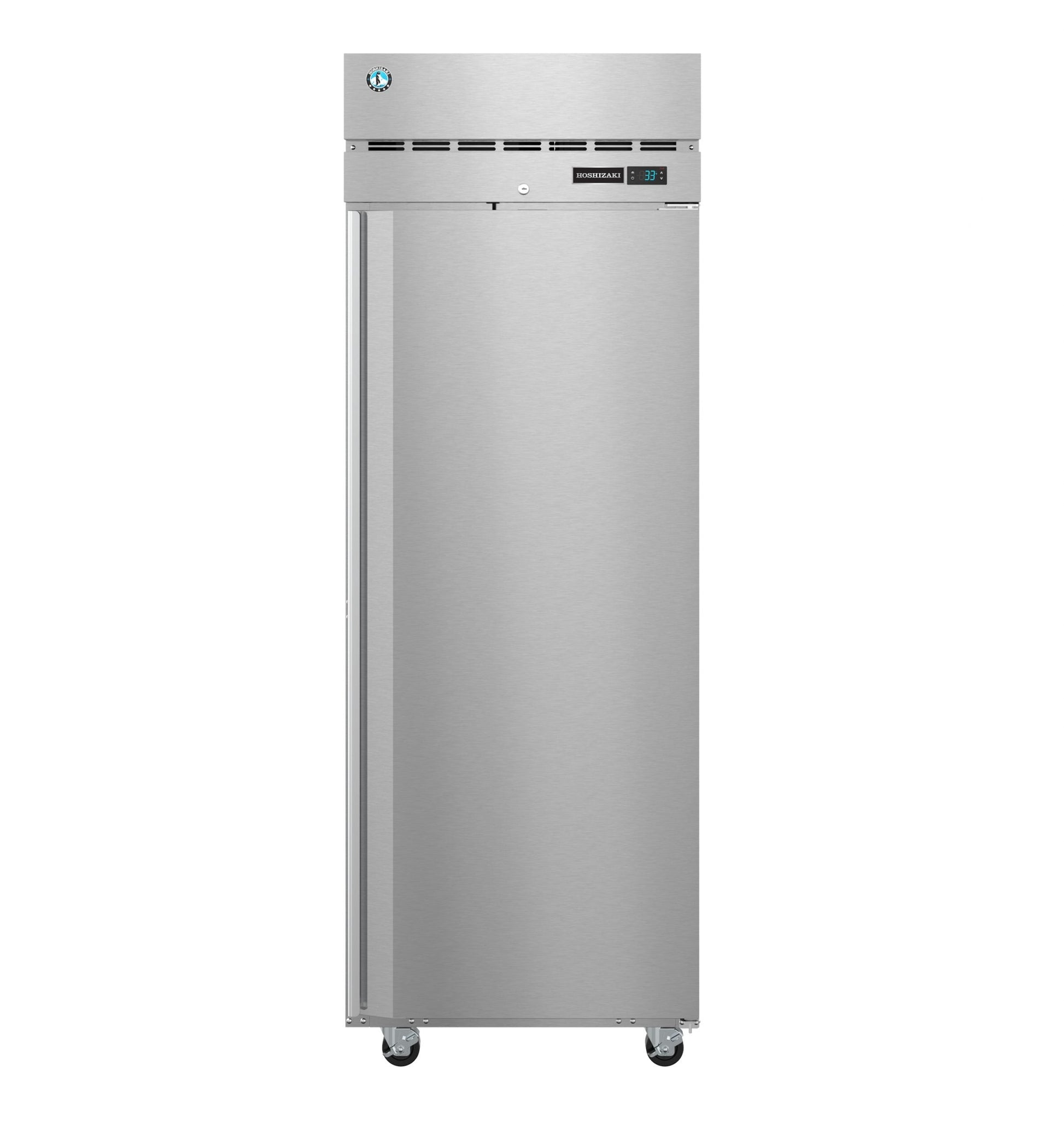

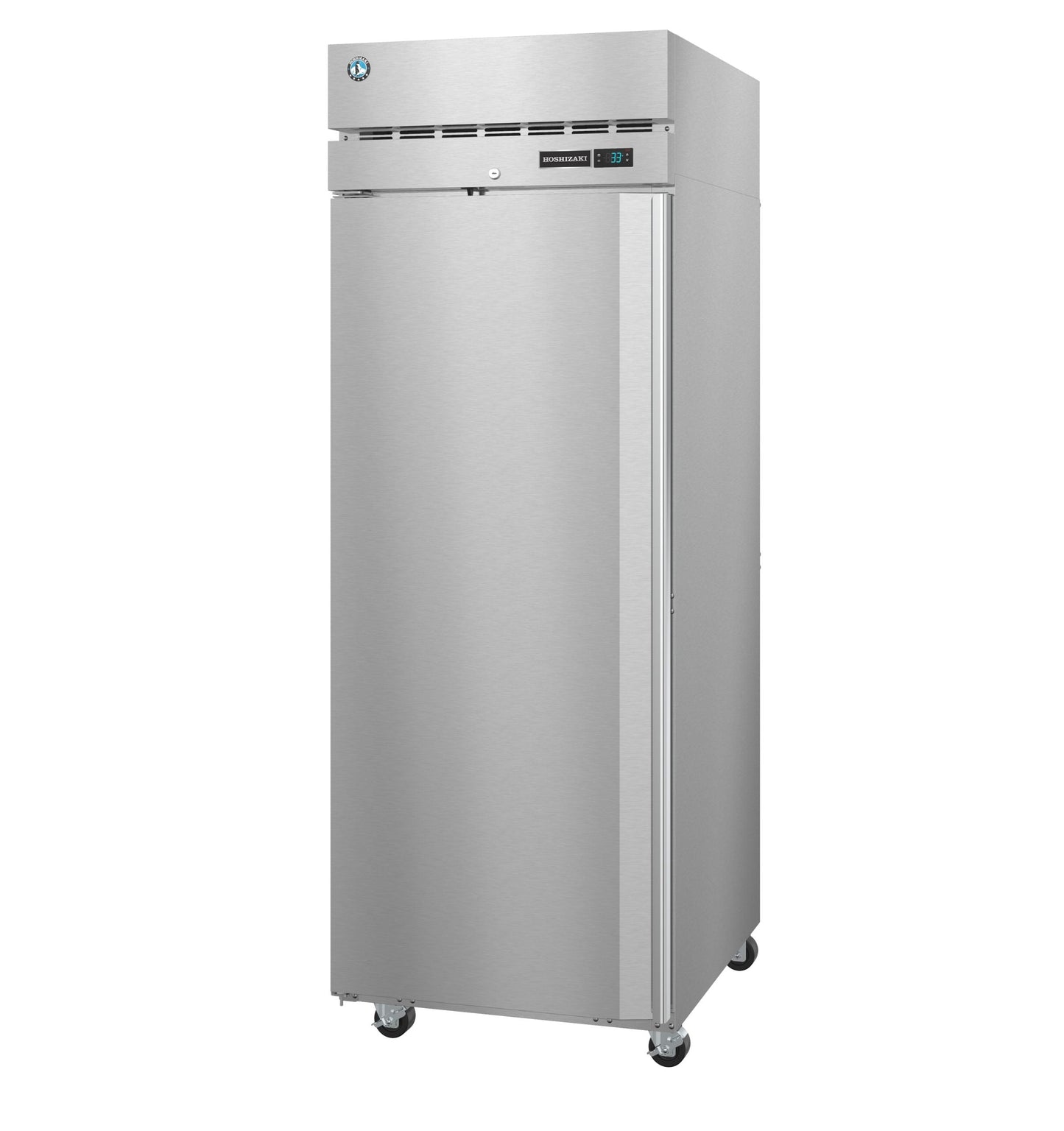

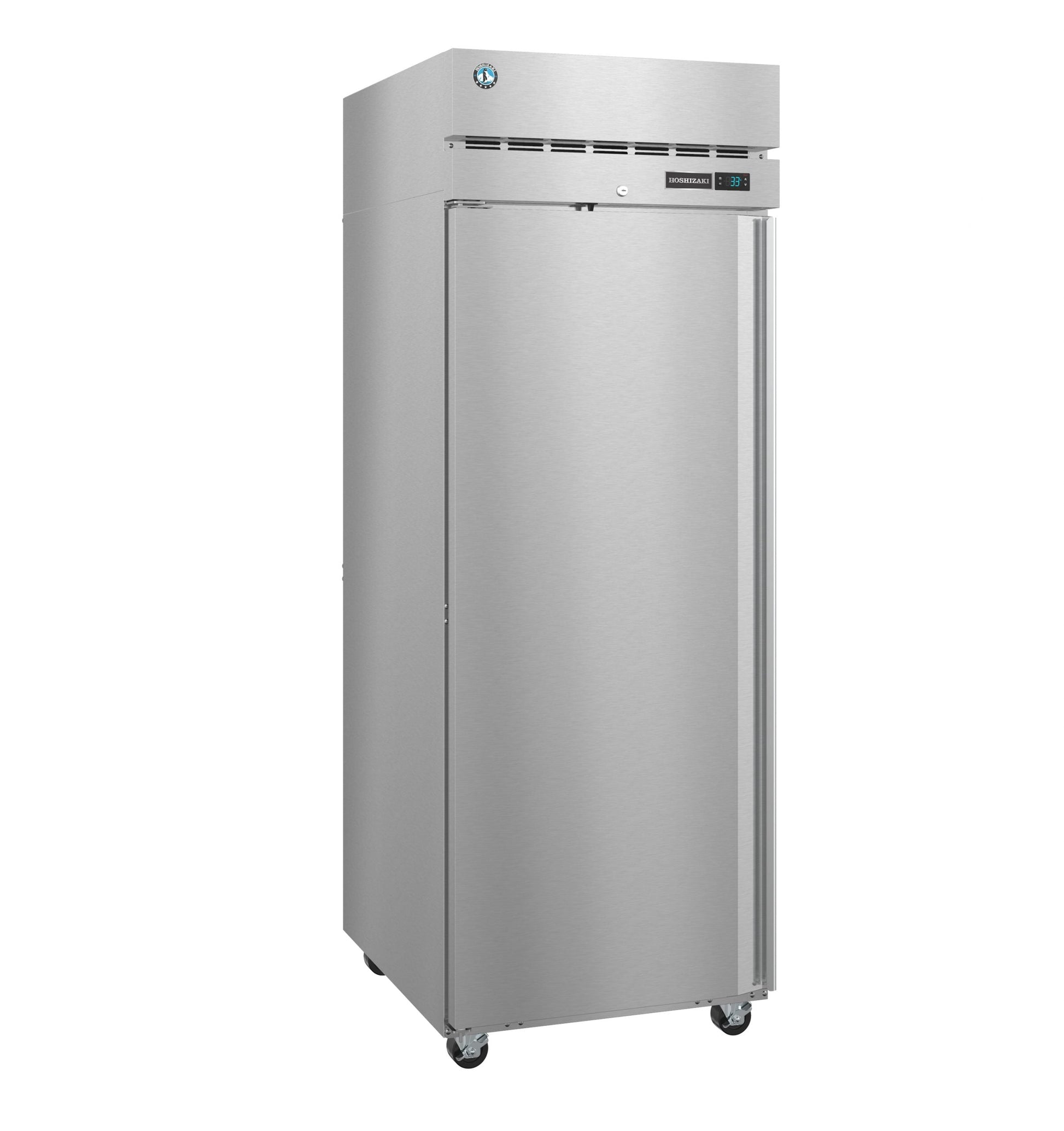

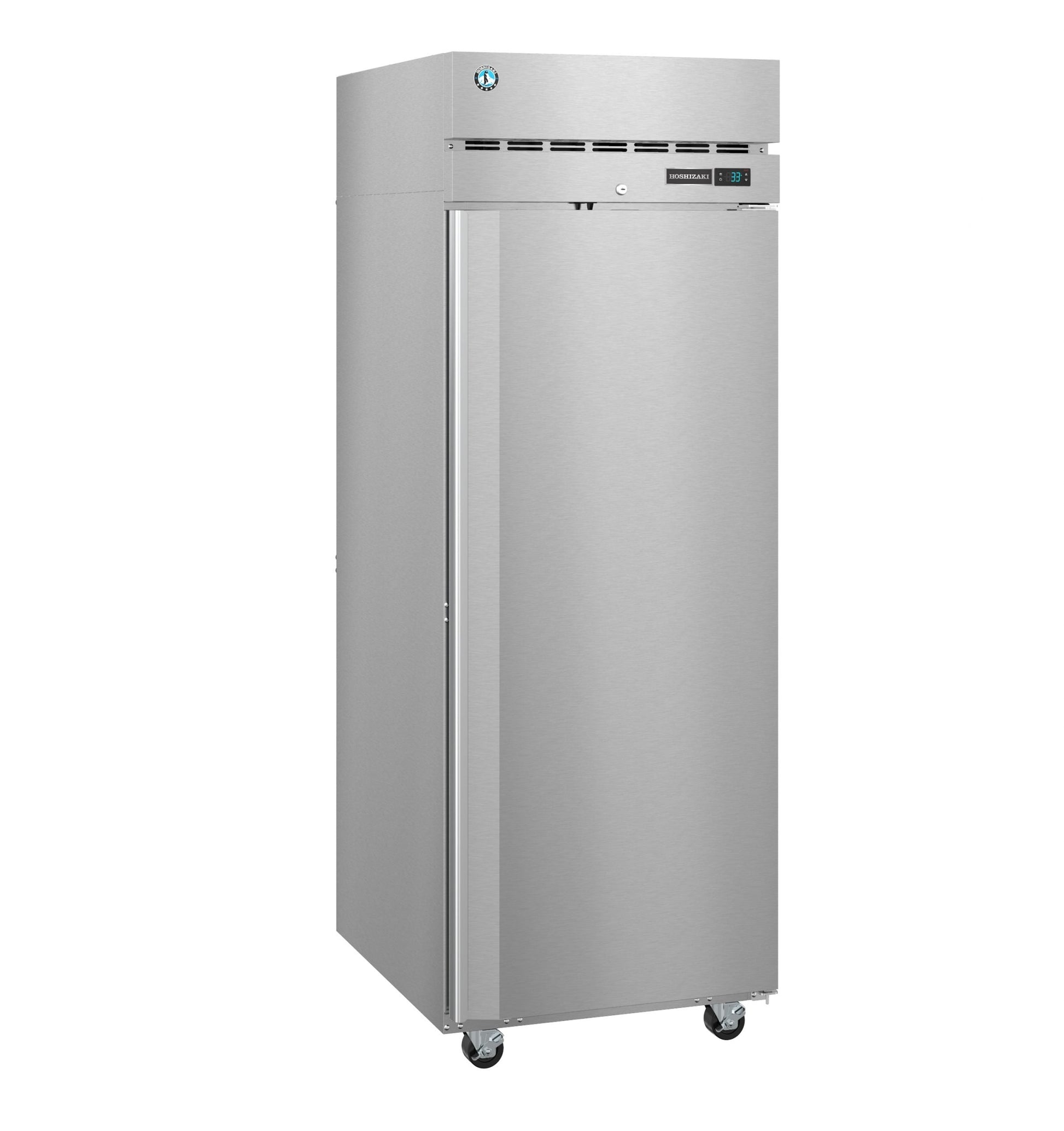

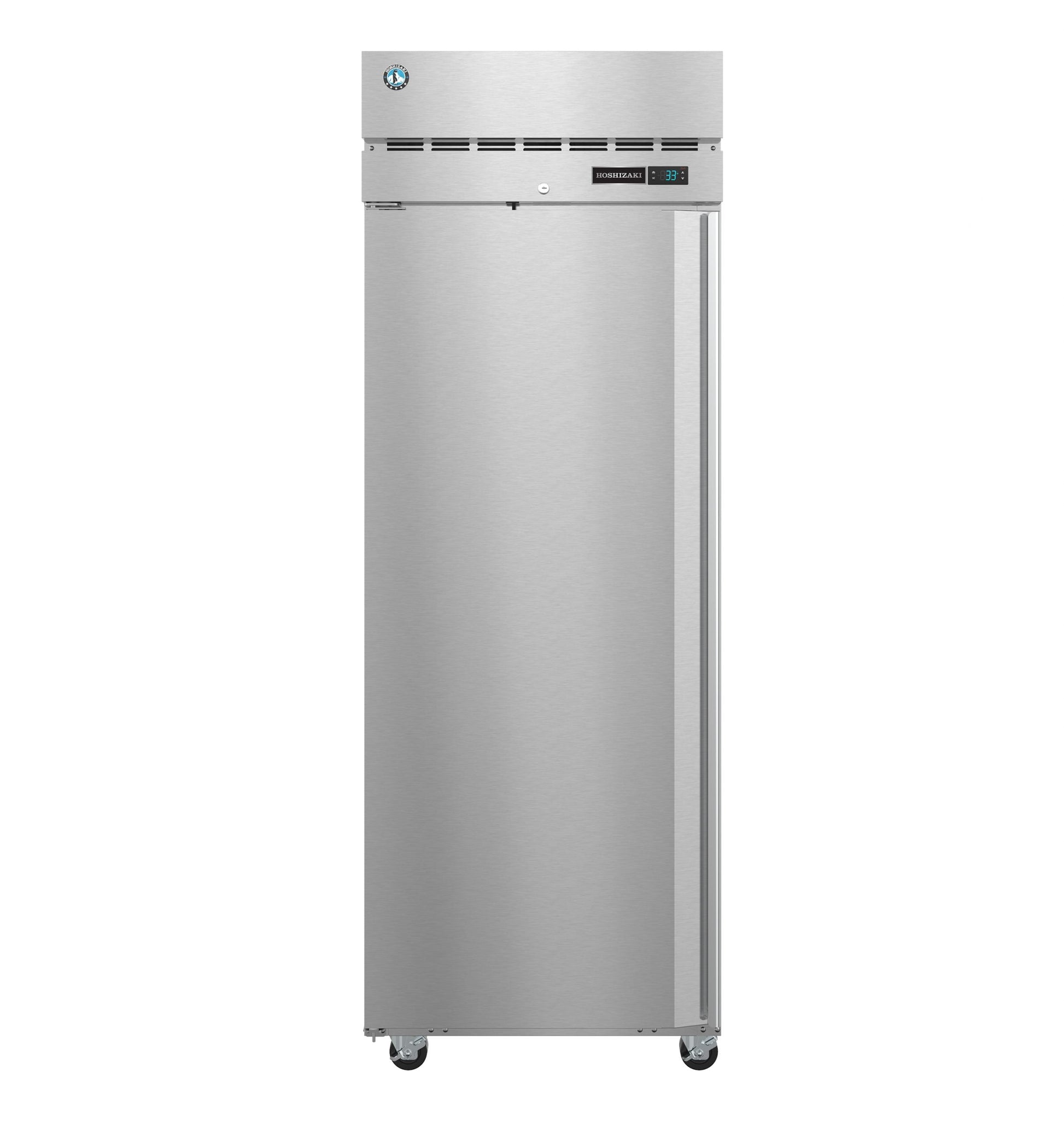

Hoshizaki 28" Wide 1 Door Top Mount Reach-In Freezer - F1A-FS

Hoshizaki 28" Wide 1 Door Top Mount Reach-In Freezer - F1A-FS

The F1A-FSL Steelheart Series Upright single section freezer with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-FSL is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F1A-FSL also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.25 kWh/day at 8.46 Amps, 10 ft long cord with a 6 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.

Features

• Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
• Net capacity of 23.1 cubic feet

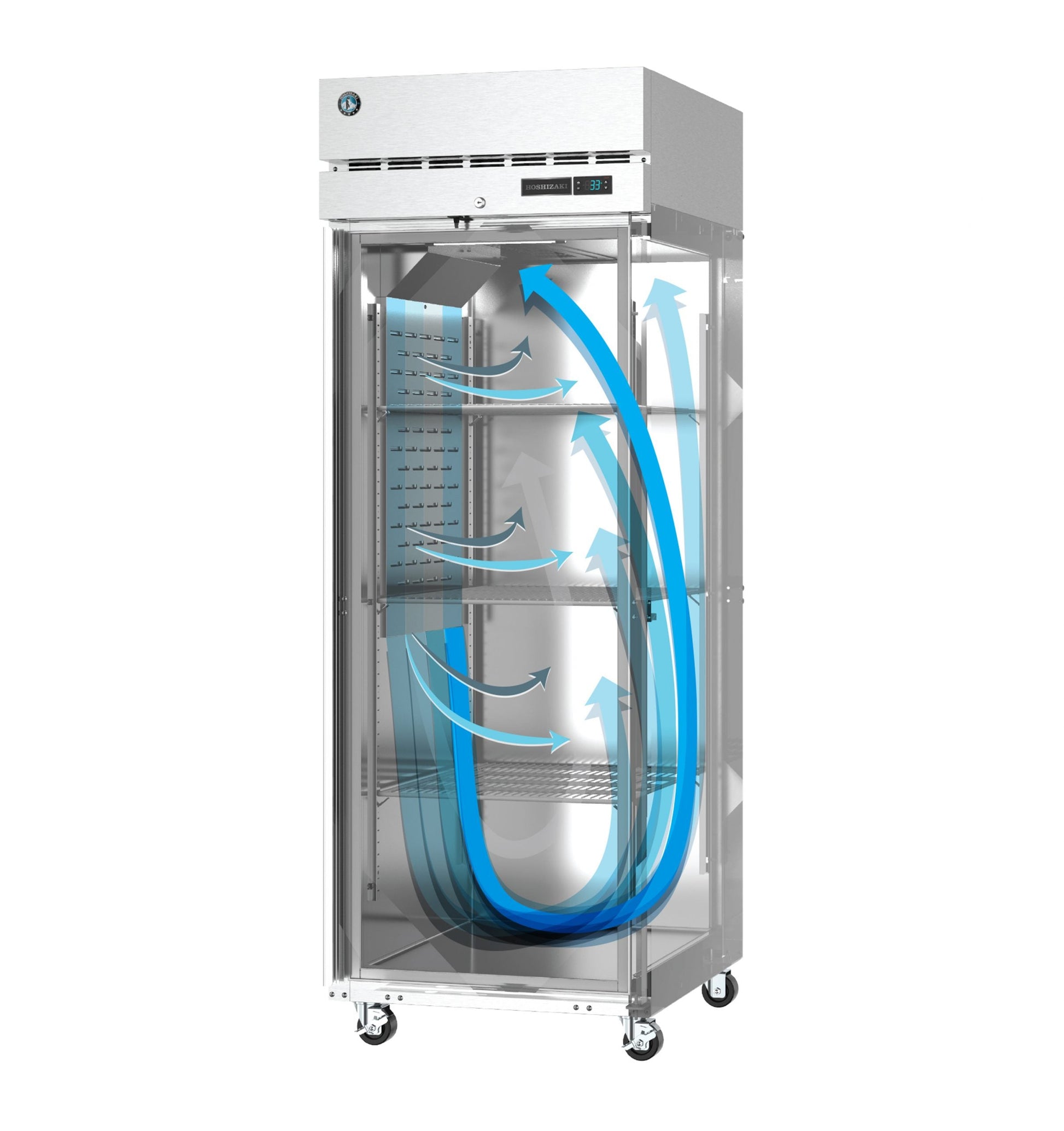

• Unique “ducted” air distribution system
• Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
• Stainless steel exterior (front, sides, top) and a stainless steel interior

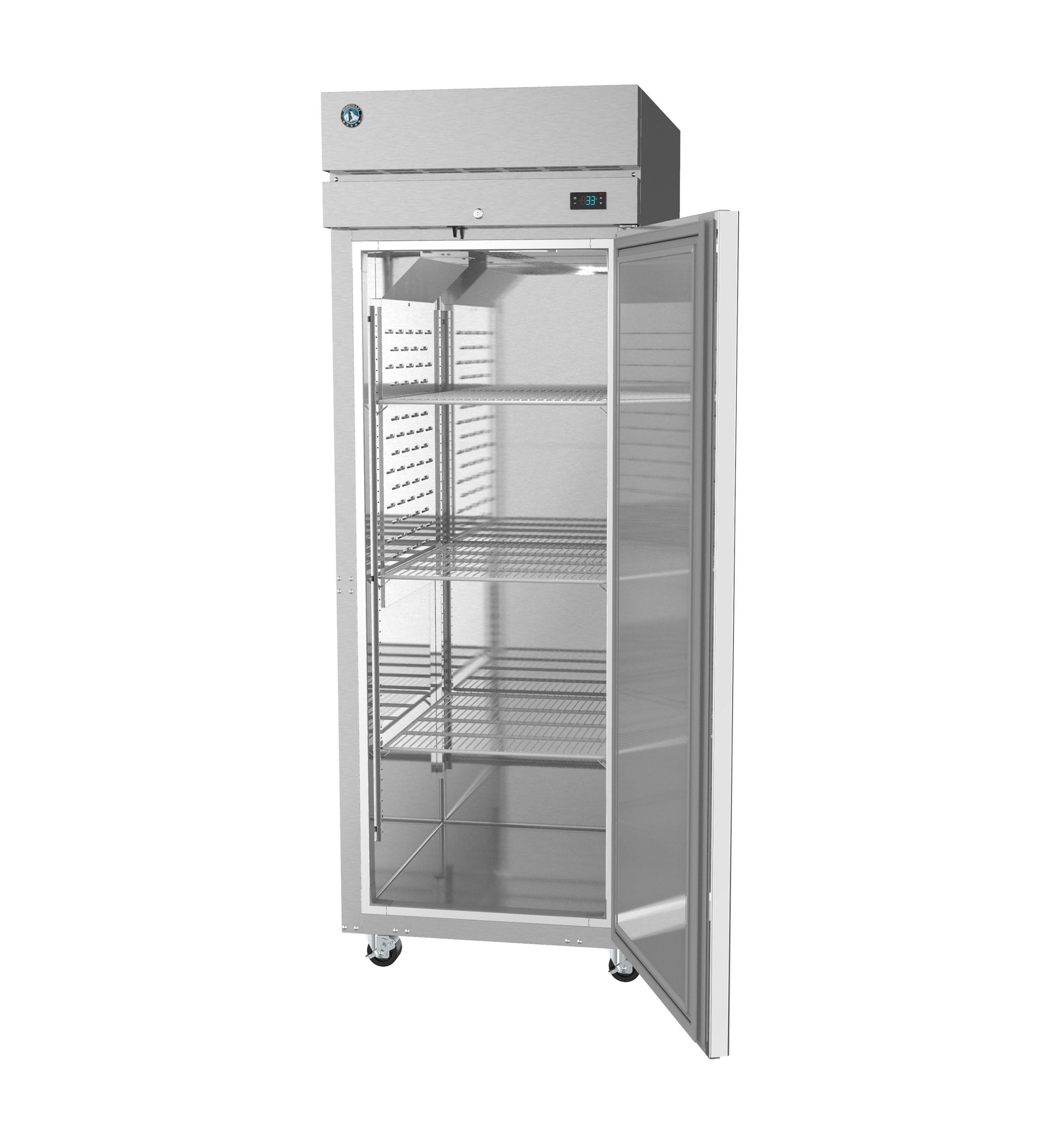

• Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
• One piece, full door length, extruded aluminum flush mount door handle
• Lockable Full Stainless Door, left hand swing
• Insulated with 2 3/8″ CFC free, foamed in place polyurethane

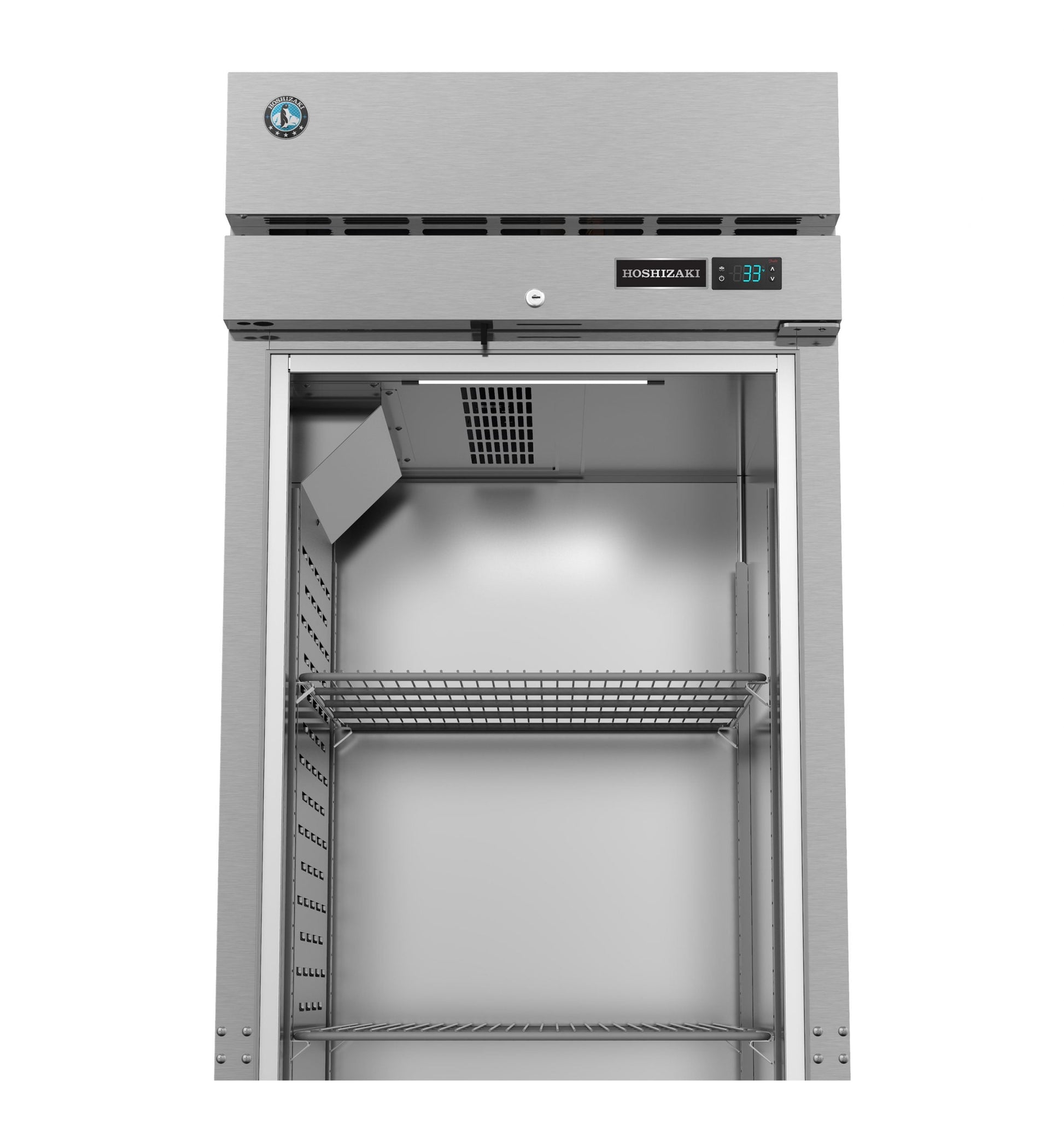

• Interior LED light bar is mounted horizontally on the ceiling
• Solid state digital controller with temperature alarms and LED display (°F or °C)
• R290 refrigerant
• (4) 4″ Stem Casters (2 with brakes) are standard

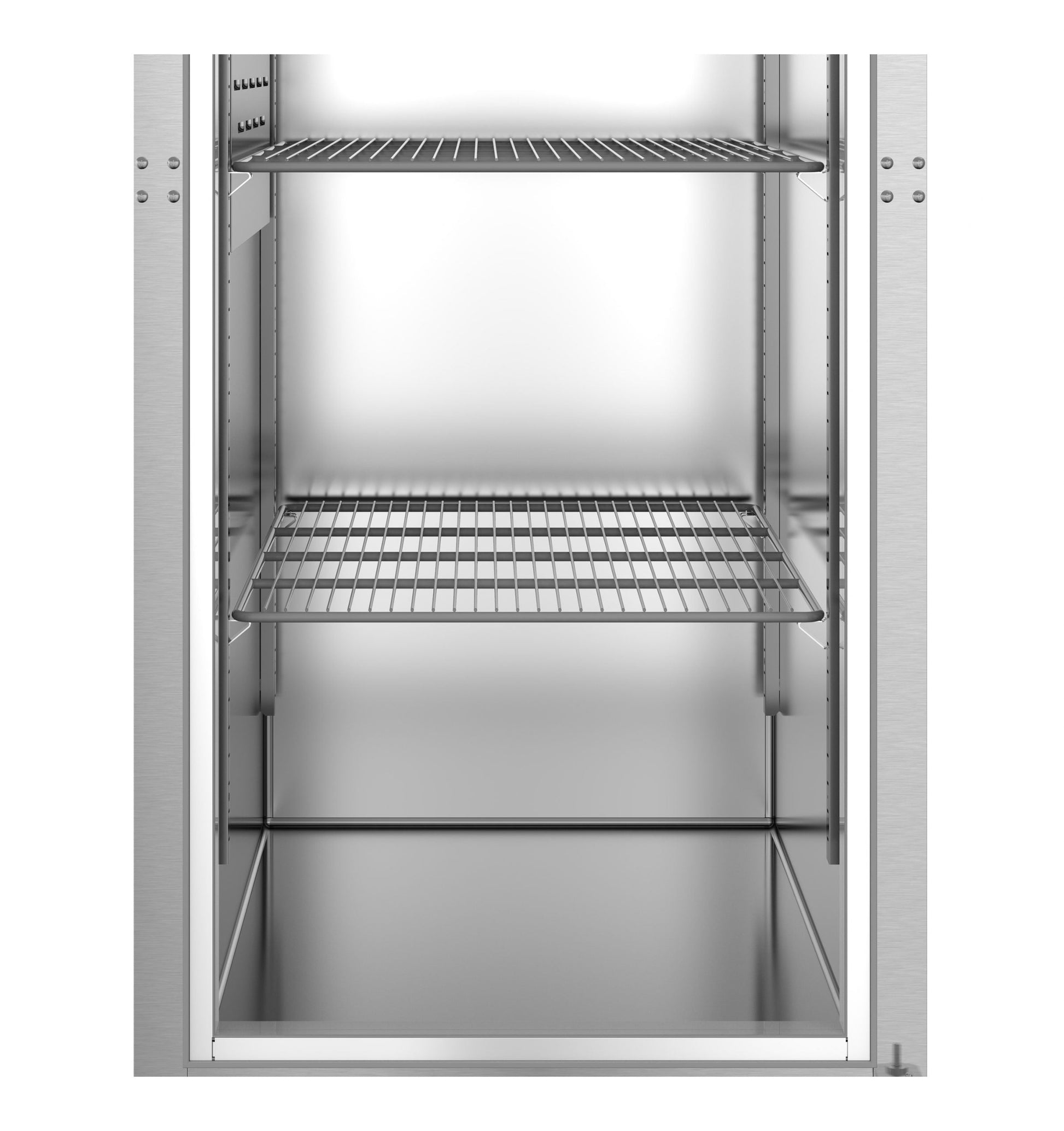

• Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports

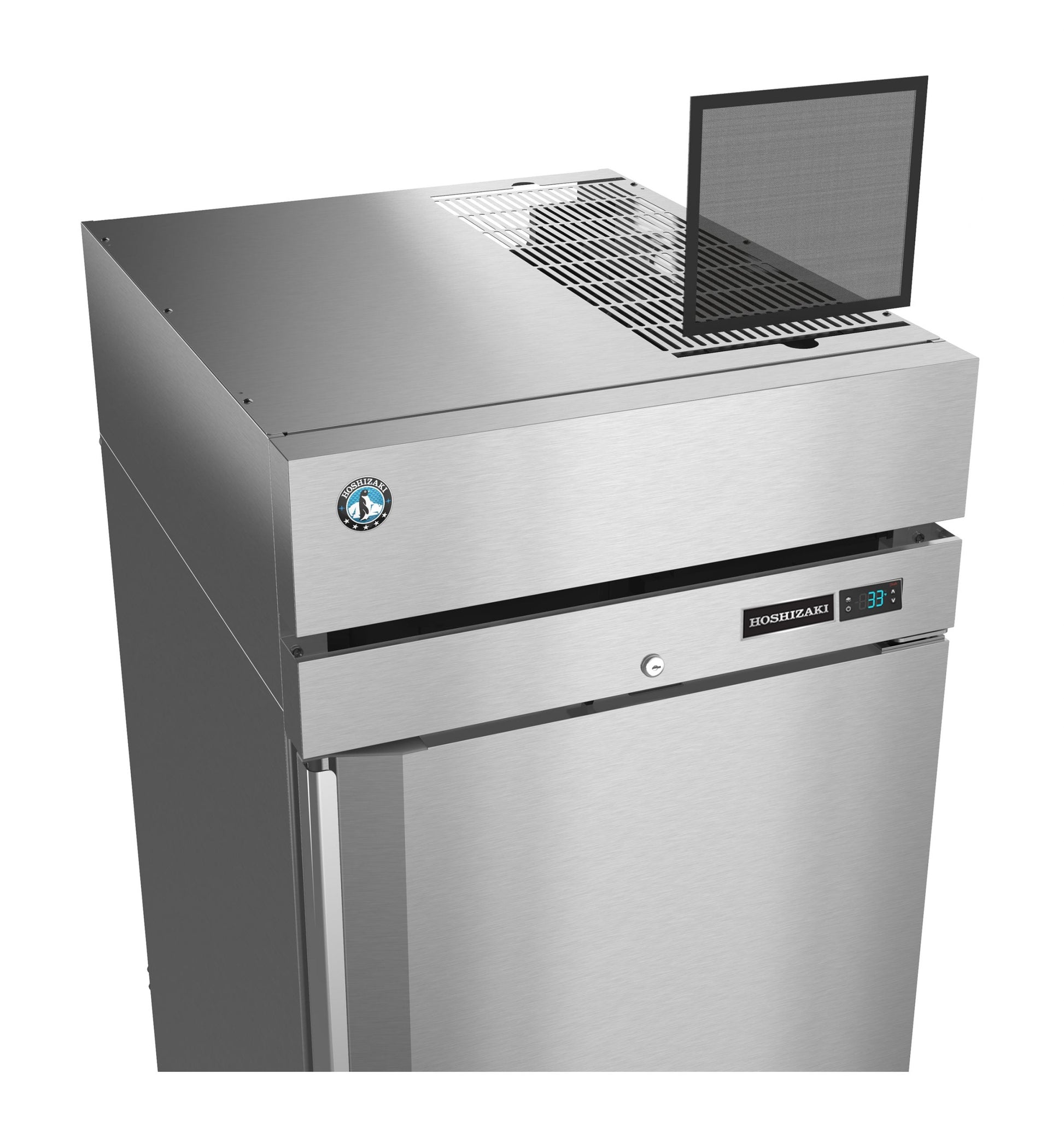

• Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
• Nominal Compres. of 1425 BTU/hr at 3/4 HP
• 115v/60/1, 10 ft. cord and plug
• Shipping Crate: 36″ L x 31.5″ D x 81″ H at 355 lbs
• Top mounted energy efficient non-electric evaporation system
• Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty

Specifications

What Our Experts Think

• Compact Design: The 28" wide size makes it ideal for kitchens with limited space while providing reliable frozen storage.
• Top-Mount Freezer: The top-mount refrigeration system allows for easier access to the storage area, while improving airflow and energy efficiency.
• Durable Construction: Built with high-quality stainless steel, ensuring durability and ease of cleaning in high-traffic commercial kitchens.
• Reliable Freezing Performance: Maintains consistent temperatures, ensuring food stays safely frozen, reducing spoilage and waste.
• Energy Efficient: Designed to minimize energy consumption, helping reduce operational costs while providing excellent performance.
• Smooth Access: The single door provides easy access to stored frozen items, making organization and retrieval quick and simple.
• Trusted Hoshizaki Quality: Hoshizaki's reputation for durability and reliability makes this freezer a trusted choice for commercial kitchens.

Q&A

Q: What is the Hoshizaki F1A-FS Reach-In Freezer?
A: A 28" wide, 1-door top-mount freezer designed for efficient frozen food storage in commercial kitchens.

Q: What is the storage capacity?
A: Provides 13.1 cu. ft. of frozen storage space, ideal for holding large quantities of frozen goods.

Q: What materials is it made from?
A: Features a durable stainless steel exterior and interior for easy cleaning and long-lasting durability.

Q: How does it maintain temperature?
A: Equipped with a top-mounted refrigeration system that ensures consistent freezing and temperature control.

Q: Is it energy efficient?
A: Yes, it uses R290 refrigerant, providing eco-friendly and energy-efficient cooling.

Q: What are the dimensions?
A: Approximately 28" W x 30" D x 77" H, designed to fit in smaller kitchen spaces while maximizing storage.

Q: Does it have adjustable legs?
A: Yes, includes adjustable legs for stability and leveling on uneven surfaces.

Maintenance Tips

• Clean Regularly: Wipe down the interior and exterior with mild soap and warm water to prevent dirt and food residue buildup.
• Inspect & Clean Gaskets: Check the door seals for wear or damage and clean them to maintain an airtight seal and ensure energy efficiency.
• Clean Condenser Coils: Dust and vacuum the condenser coils every 3-6 months to maintain optimal cooling performance.
• Monitor Temperature: Ensure the freezer maintains a temperature of -10°F to -20°F for safe food storage.
• Defrost as Needed: Regularly check for ice buildup and defrost to ensure efficient operation and airflow.
• Keep the Vent Area Clear: Ensure there is proper space around the freezer for airflow to avoid overworking the compressor.
