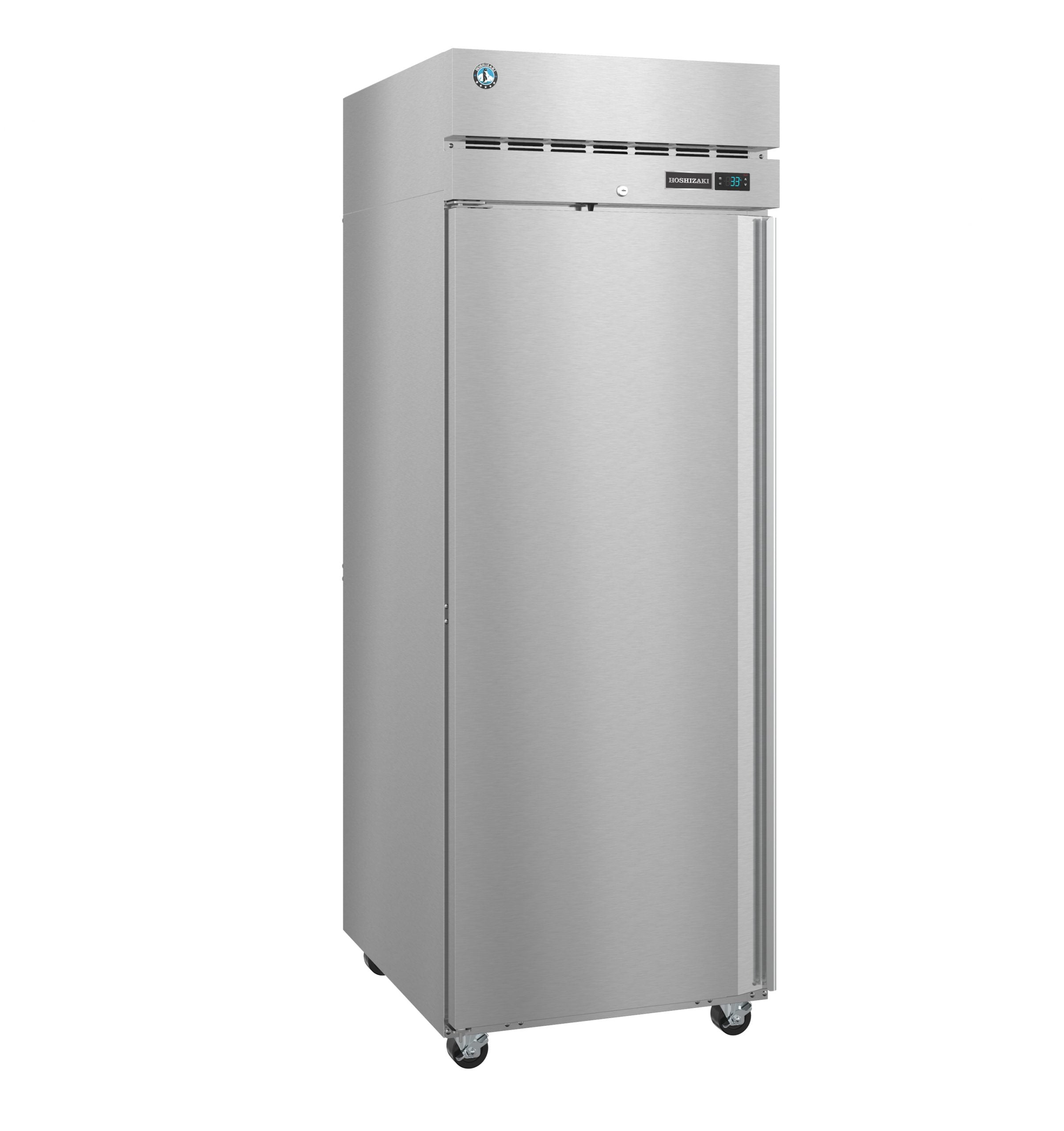

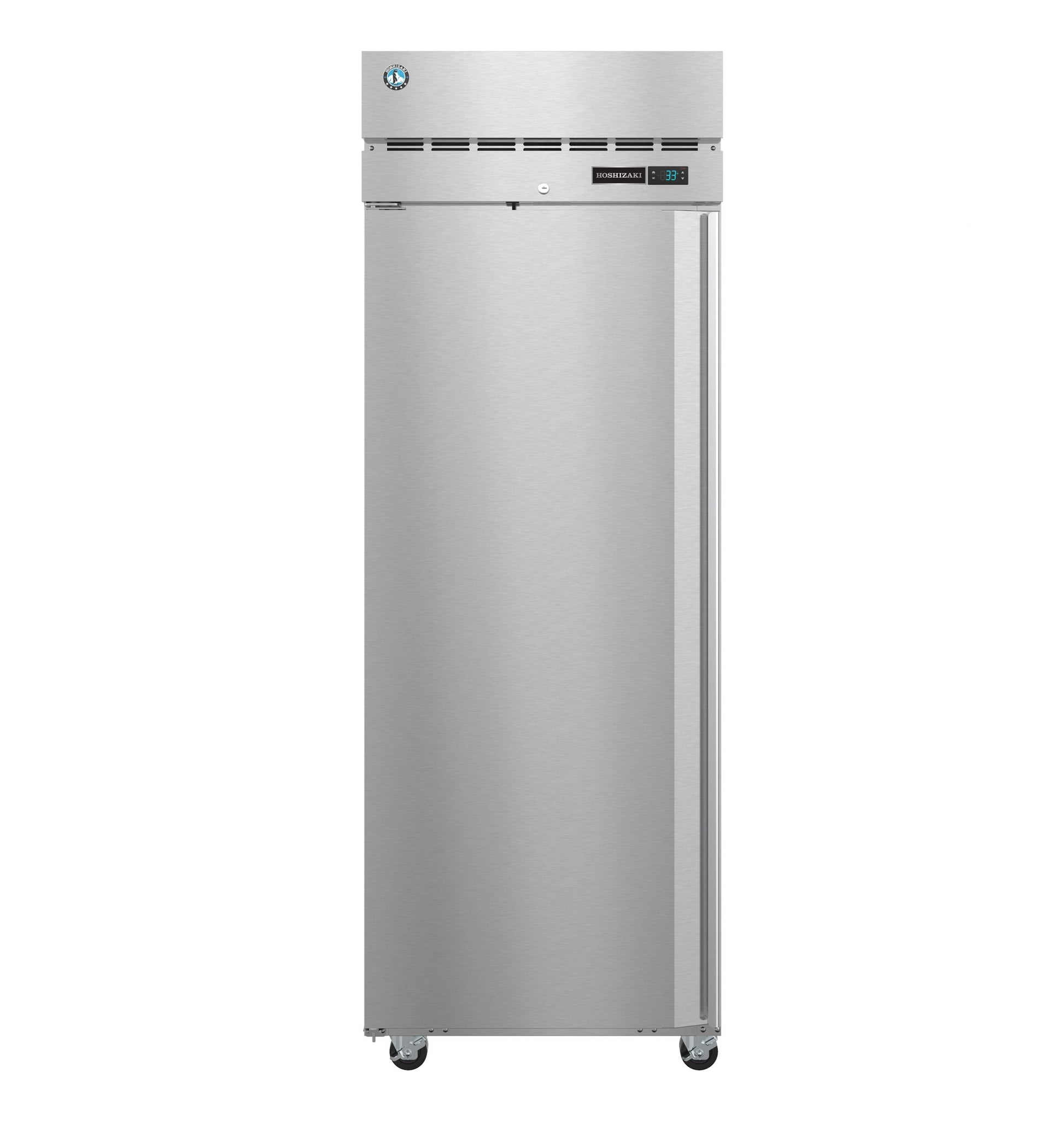

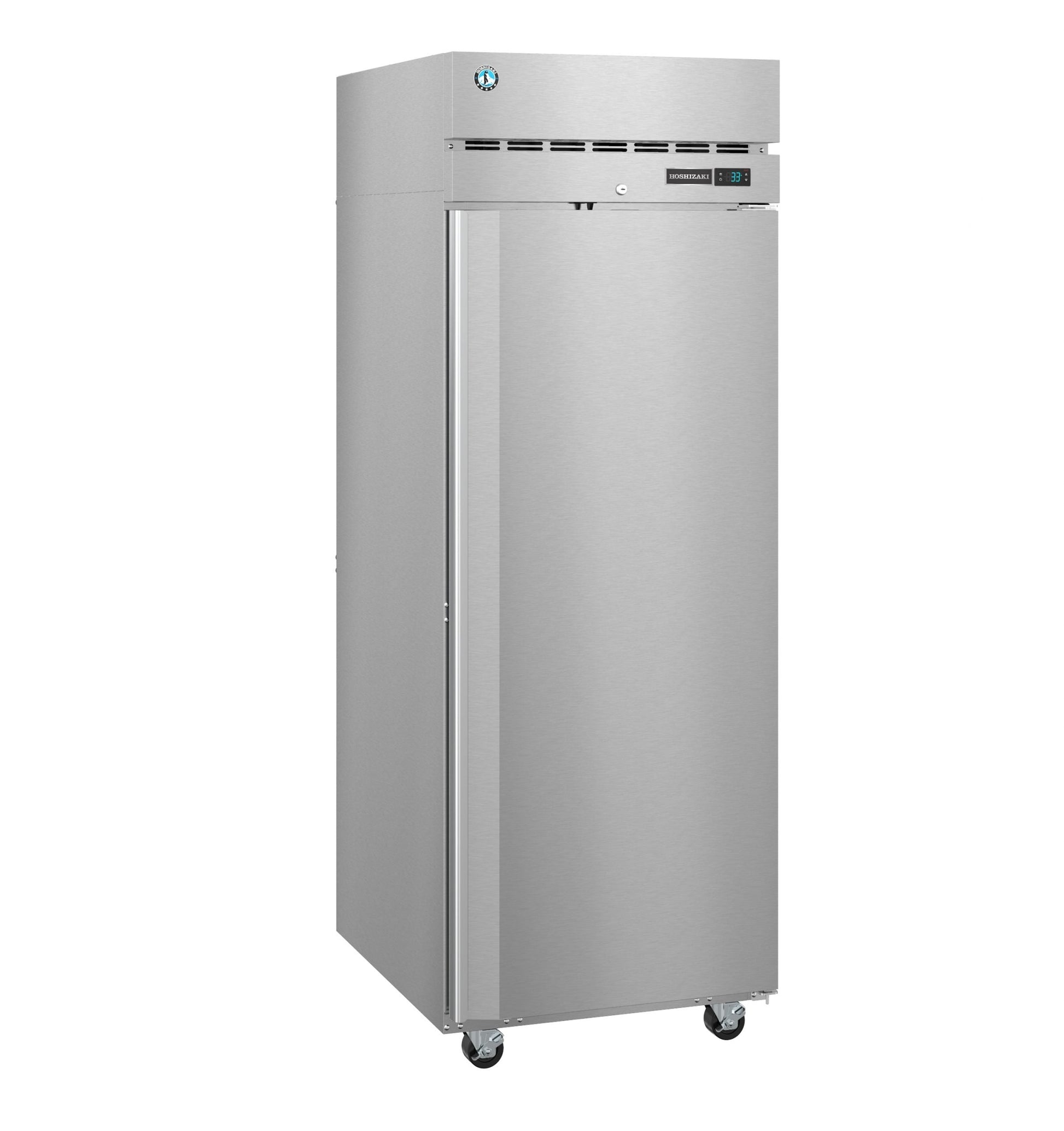

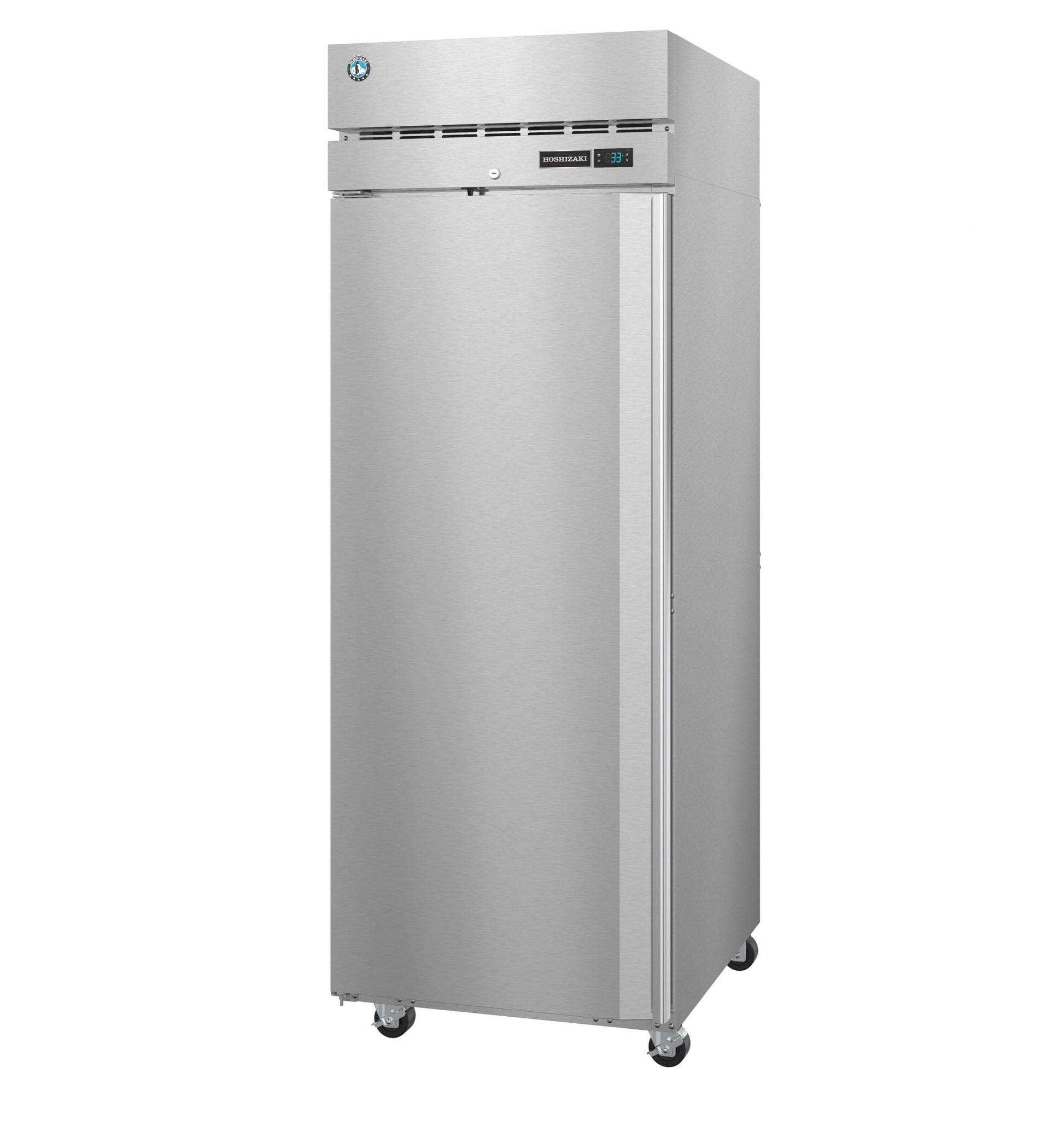

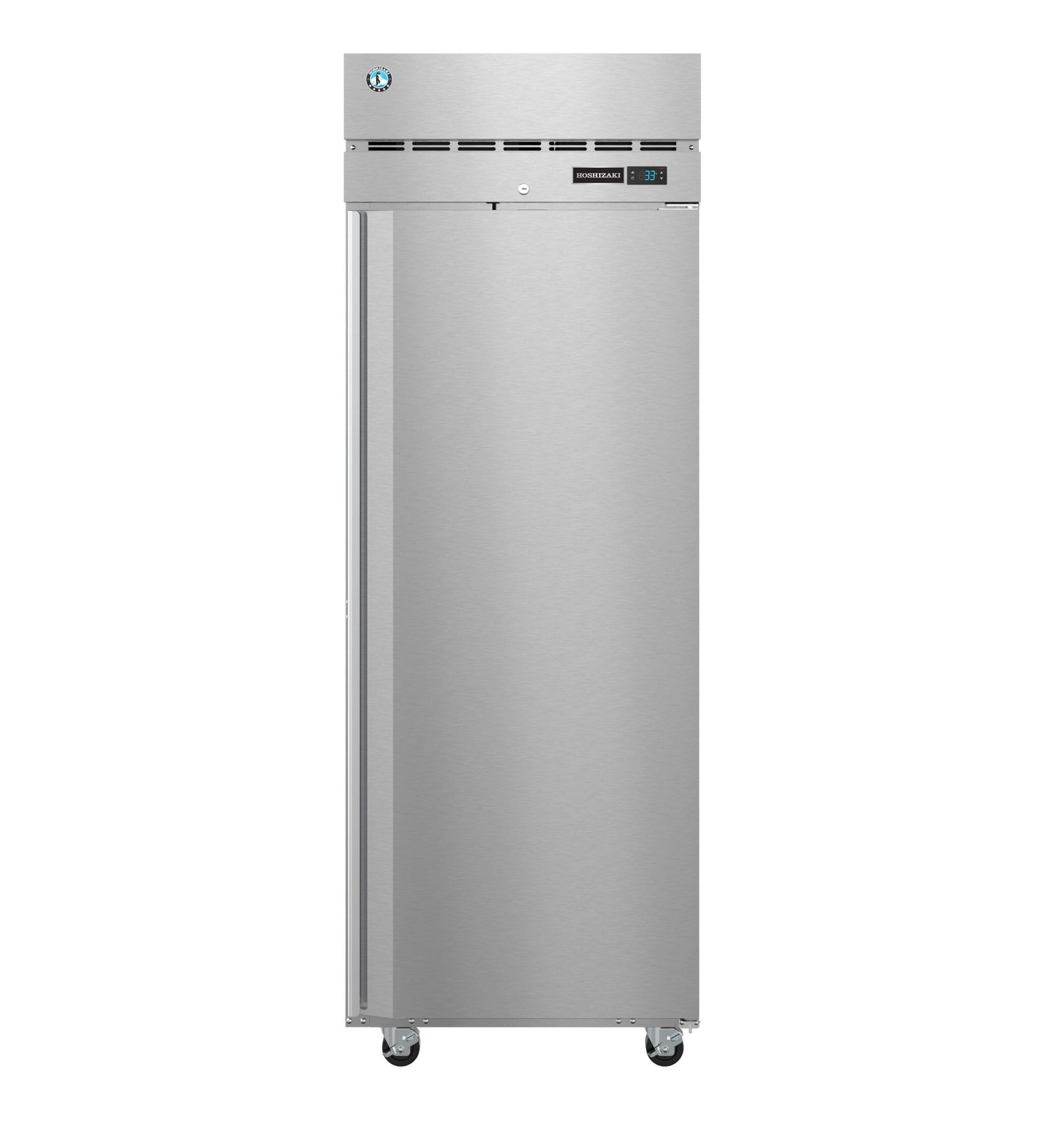

Hoshizaki 28" Wide 1 Door Top Mount Reach-In Freezer - F1A-FS
The F1A-FSL Steelheart Series Upright single section freezer with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-FSL is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F1A-FSL also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.25 kWh/day at 8.46 Amps, 10 ft long cord with a 6 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 23.1 cubic feet

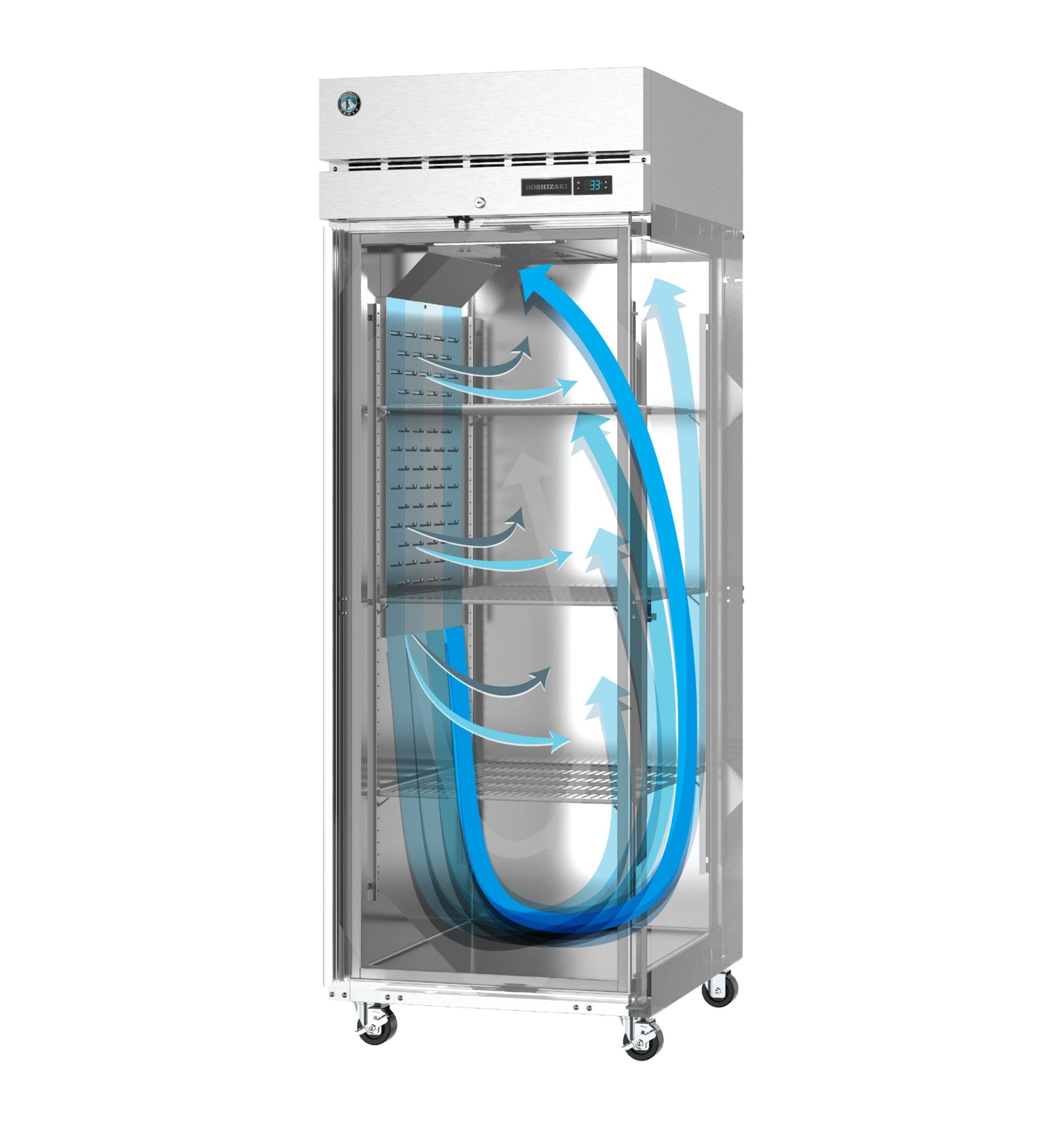

- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior

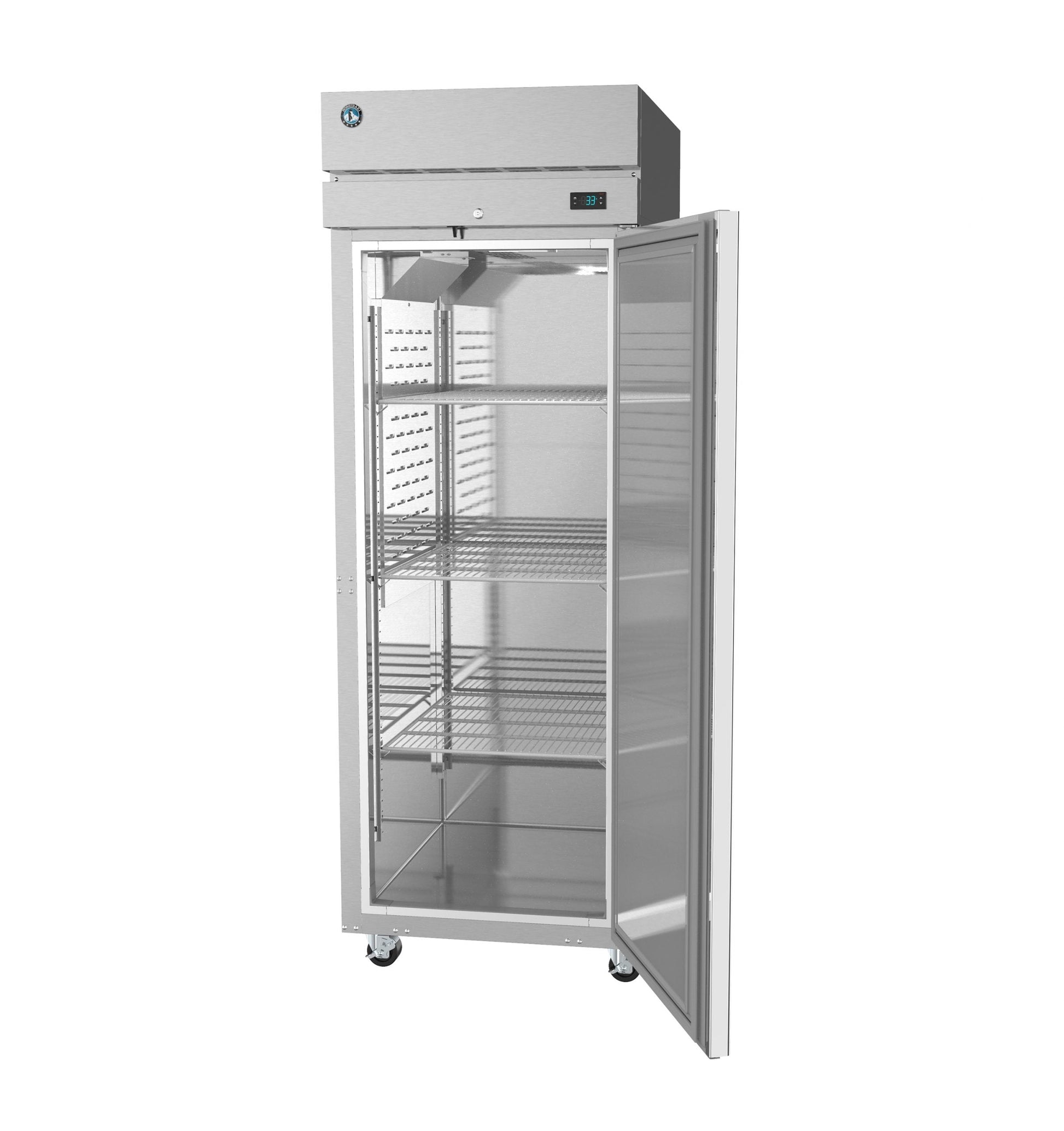

- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Full Stainless Door, left hand swing
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane

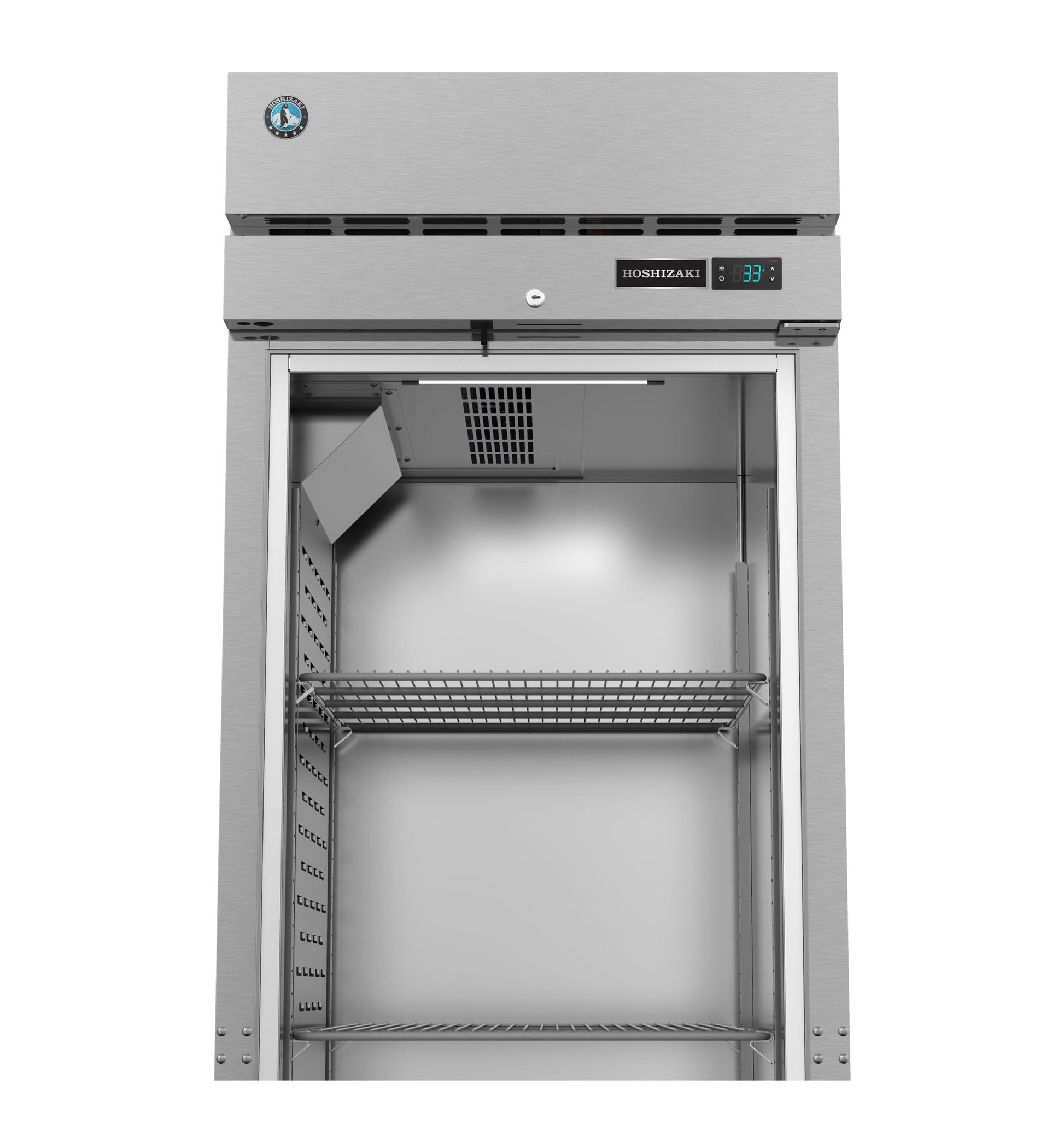

- Interior LED light bar is mounted horizontally on the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard

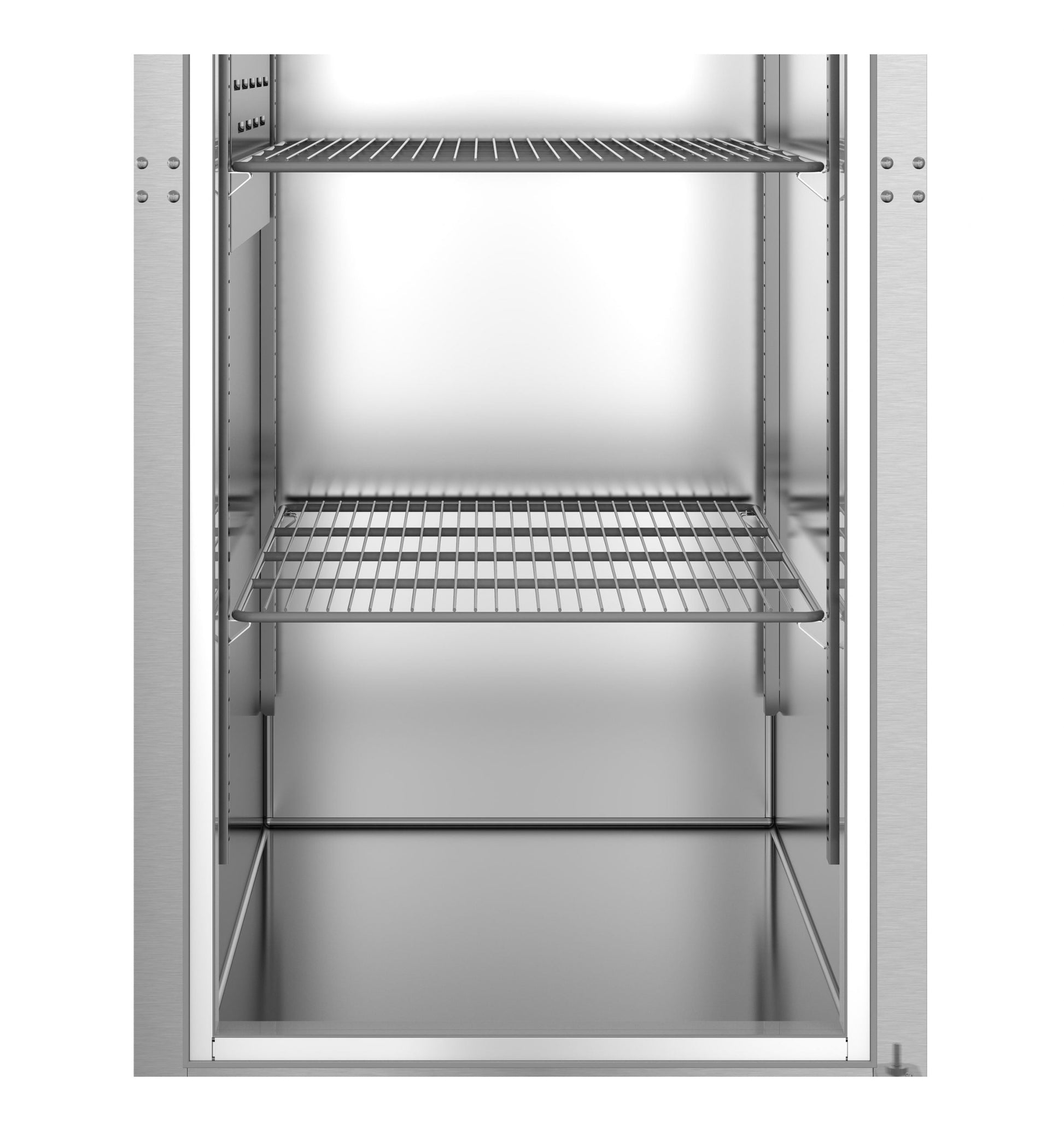

- Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports

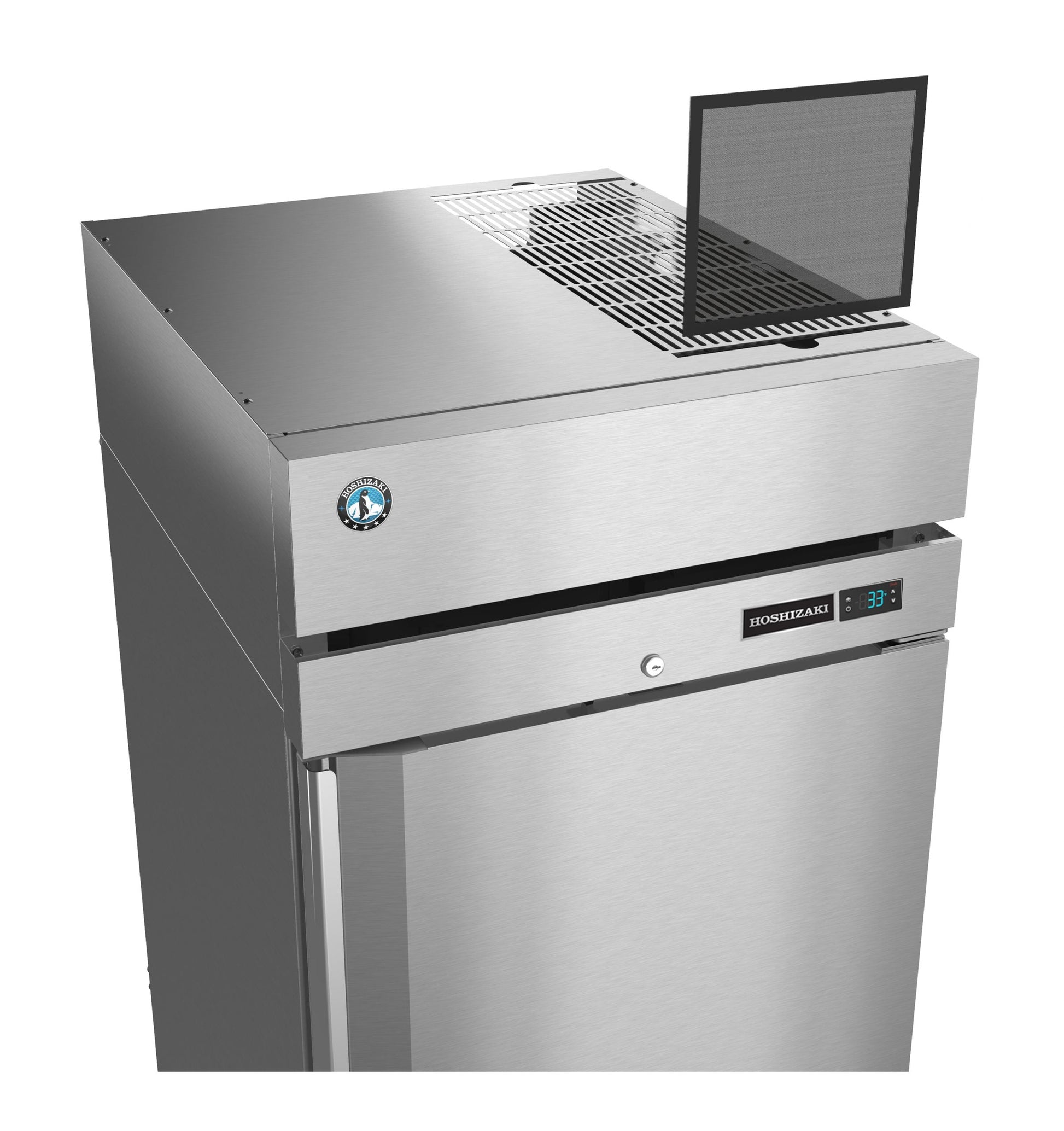

- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 1425 BTU/hr at 3/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 36″ L x 31.5″ D x 81″ H at 355 lbs
- Top mounted energy efficient non-electric evaporation system
- Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty
Specifications
| Brand |
Hoshizaki |
| Model Number |
F1A-FSL |
| Door Type |
solid |
| Size |
1 section |
| Exterior Finish |
stainless steel |
| Compressor HP |
3/4 HP |
| Compressor Location |
top mounted |
| Refrigerator Type |
Reach-In |
| Door Quantity |
1 |
| Interior Finish |
stainless steel |
| Capacity (Cu. Ft.) |
23 |
| Door Style |
full hinged |
What Our Experts Think
-
Compact & Powerful: 28” wide design maximizes storage while fitting into tight kitchen spaces.
-
Reliable Freezing: Maintains consistent low temperatures for optimal food preservation.
-
Top-Mount Refrigeration: Keeps the compressor away from floor debris for better efficiency and longevity.
-
Durable Construction: Stainless steel exterior and interior ensure long-lasting performance.
-
User-Friendly Design: Self-closing door, adjustable shelves, and LED lighting for easy access.
Q&A
Q: What is the Hoshizaki F1A-FS Reach-In Freezer used for?
A: It provides reliable, frozen storage for perishable ingredients in commercial kitchens, restaurants, and food service establishments.
Q: What are its dimensions?
A: The freezer is 28 inches wide, making it a space-efficient option for kitchens with limited space.
Q: How much storage capacity does it offer?
A: It features a single-door compartment with adjustable shelves for organized storage of frozen goods.
Q: What are its key features?
A: The F1A-FS includes a durable stainless steel exterior, a top-mounted refrigeration system, self-closing doors, and an energy-efficient design.
Q: What is the temperature range?
A: It maintains a consistent, food-safe freezing temperature to preserve food quality and safety.
Q: Is it energy efficient?
A: Yes, it features an energy-efficient compressor and eco-friendly refrigerant for cost-effective operation.
Q: Does it require professional installation?
A: While designed for easy setup, professional installation is recommended for optimal performance and longevity.
Maintenance Tips
-
Clean Condenser Coils: Remove dust monthly to maintain efficient cooling performance.
-
Inspect Door Gaskets: Check for cracks or wear to ensure a tight seal and prevent temperature loss.
-
Monitor Temperature: Keep at recommended settings for food safety and energy efficiency.
-
Defrost as Needed: Prevent excessive ice buildup to maintain optimal airflow.
-
Wipe Interior & Exterior: Use mild detergent to keep surfaces clean and sanitary.
