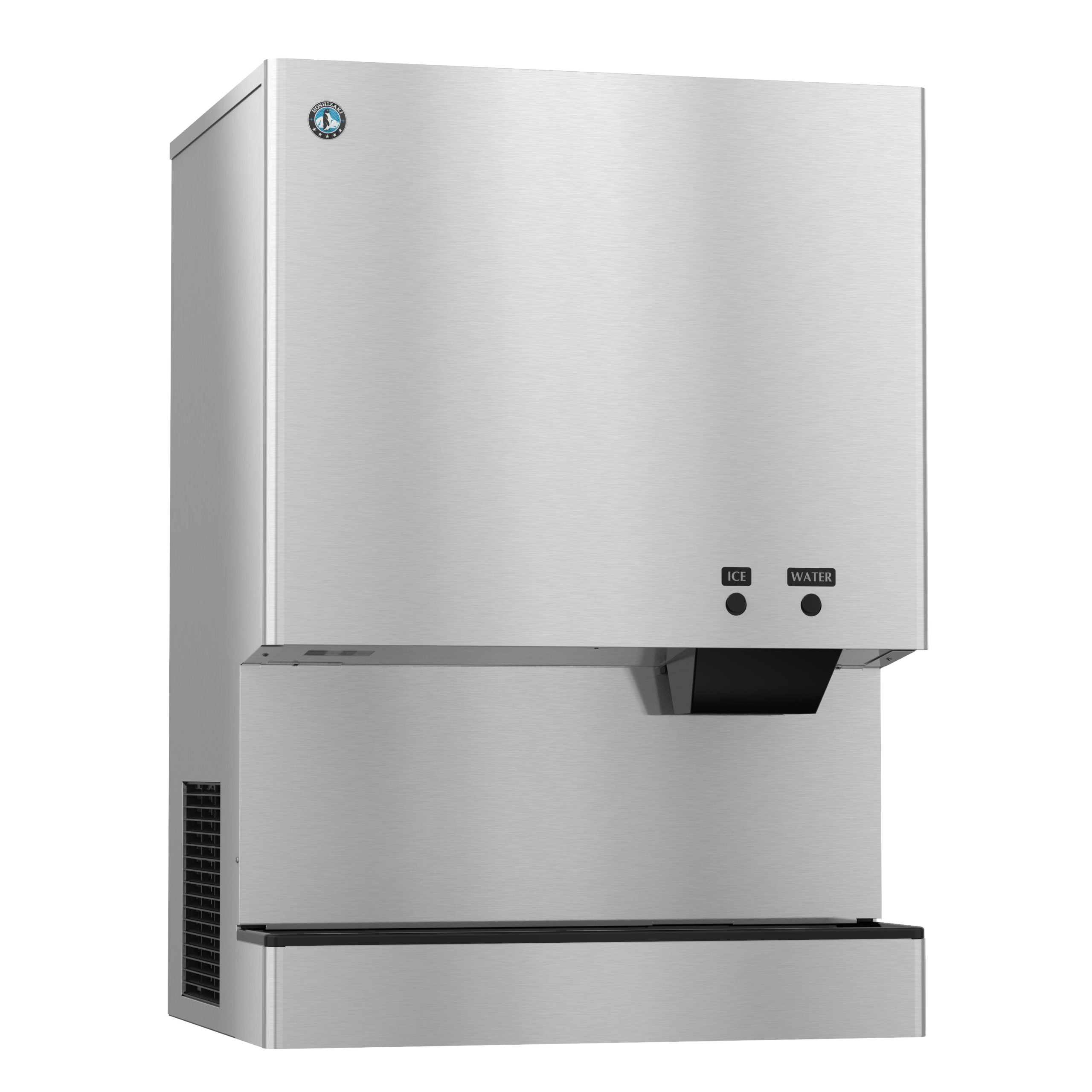

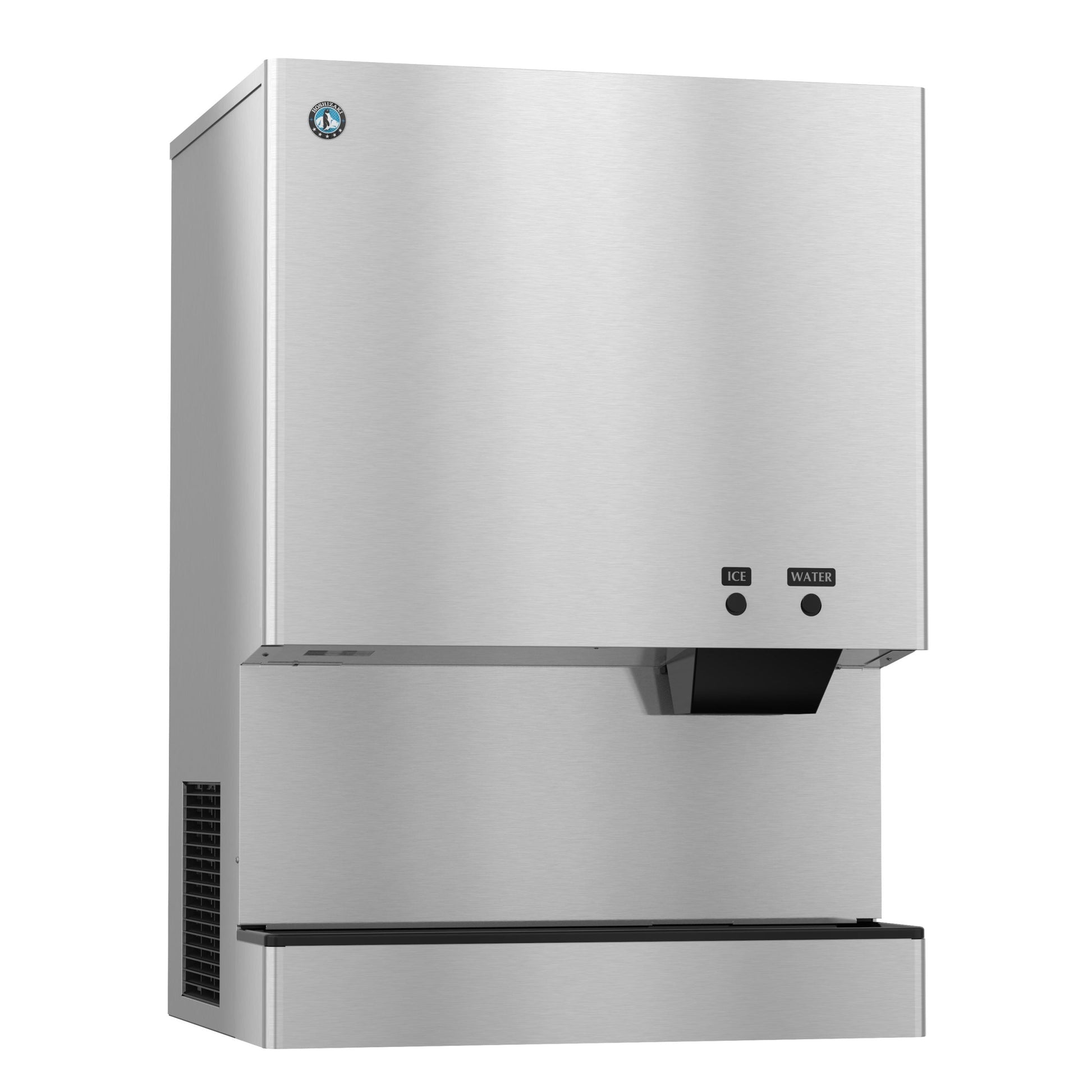

Hoshizaki 34" Wide Air-Cooled Small Cubelet Ice Water Dispenser w/ Built-In Storage Bin - DCM-752BAH

Hoshizaki 34" Wide Air-Cooled Small Cubelet Ice & Water Dispenser w/ Built-In Storage Bin - DCM-752BAH

The DCM-752BAH is capable of producing approximately 708 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 95 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Features

• Dimensions: 34-1/16″ W x 28-1/2″ D x 48-1/16″ H
• Up to 708 lbs of ice produced per 24 hours
• Up to 95 lbs of built-in storage capacity (3.2ft3)
• Produces small cubelet nugget-style ice
• Durable stainless steel exterior

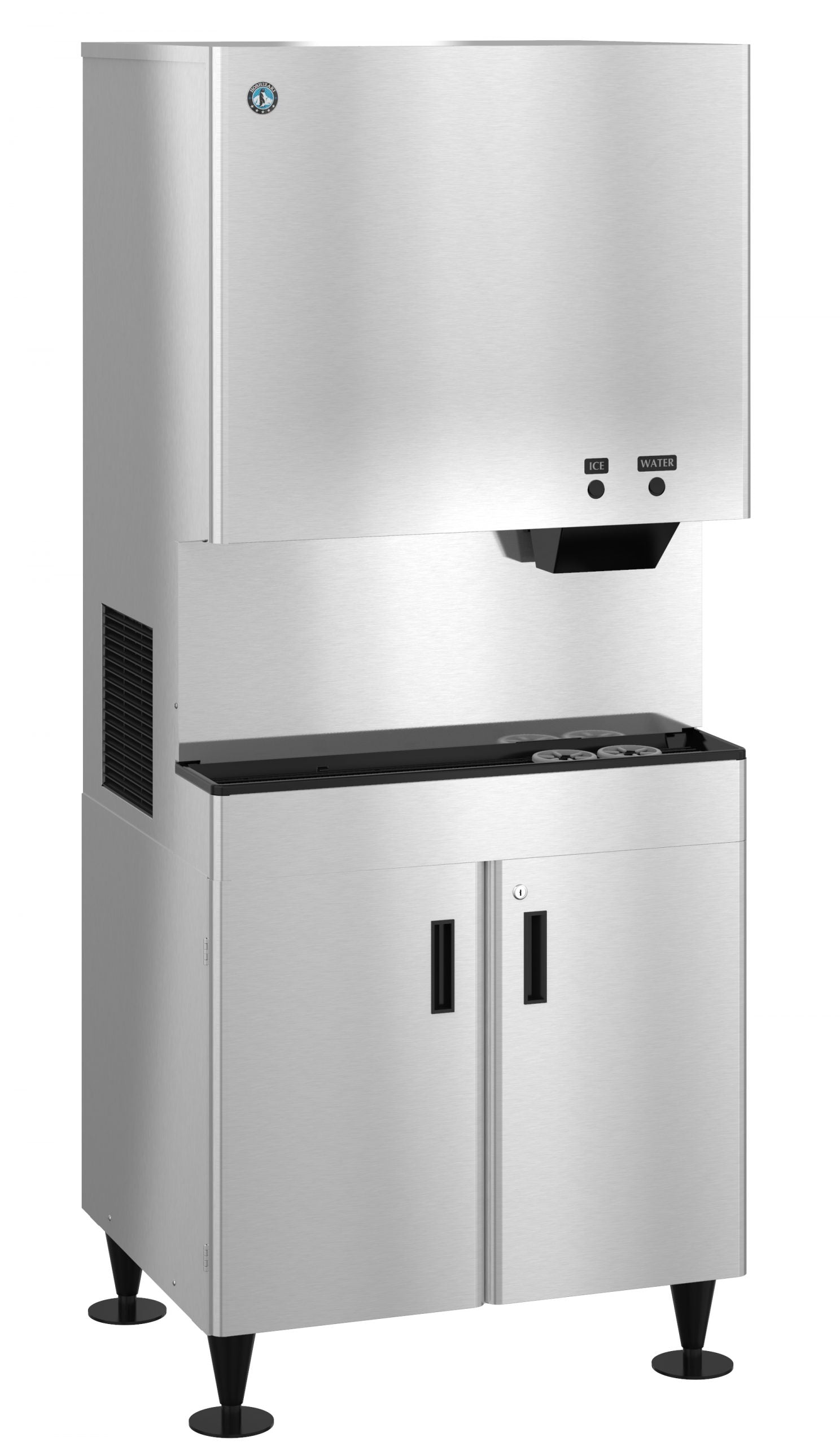

• Place on countertop or optional stand: SD-700, SD-750
• Push button operation that dispenses ice or water
• Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (1 lbs. 10 oz. / 737 g)
• Heat Rejection:6900 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 13 amps (20 Amp Max fuse)
• 5.1 kwh/100 lbs. 90/70
• Single phase, 115v/60/1
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).


Specifications

What Our Experts Think

The Hoshizaki DCM-752BAH is a versatile, air-cooled ice and water dispenser with built-in storage, perfect for self-serve applications.

• Small Cubelet Ice – Soft, chewable ice ideal for beverages and healthcare use.
• Air-Cooled Efficiency – Reduces water usage while maintaining consistent ice production.
• 34” Wide Compact Design – Fits seamlessly in commercial and healthcare environments.
• Built-In Storage Bin – Ensures easy access to fresh ice on demand.
• Touch-Free Dispensing – Enhances hygiene and minimizes contamination risks.

Q&A

Q: What is the daily ice production capacity?
A: The DCM-752BAH can produce up to 782 lbs of small cubelet ice per day under optimal conditions.

Q: How much ice can the built-in storage bin hold?
A: The integrated storage bin holds up to 95 lbs of ice, ensuring a consistent supply.

Q: What type of ice does this dispenser produce?
A: It produces soft, chewable cubelet ice, ideal for beverages, healthcare, and blended drinks.

Q: Does this unit dispense both ice and water?
A: Yes, it is designed to dispense both ice and water for added convenience.

Q: Is this unit air-cooled?
A: Yes, the DCM-752BAH features an air-cooled system for efficient operation without additional water usage.

Q: What are the dimensions of this dispenser?
A: It is 34 inches wide, making it a space-efficient choice for high-volume applications.

Q: Is professional installation recommended?
A: Yes, a certified technician should install the unit to ensure proper operation, drainage, and performance.

Maintenance Tips

• Clean the Ice & Water Dispenser Regularly: Use a Hoshizaki-approved cleaning solution to remove scale, mineral buildup, and contaminants.
• Sanitize the Storage Bin: Clean and disinfect the built-in bin frequently to prevent mold, bacteria, and ice contamination.
• Inspect & Clean Air Filters: Keep the air filters free of dust and debris to maintain proper airflow and cooling efficiency.
• Check Water Lines & Connections: Regularly inspect for leaks, blockages, or kinks that could affect water flow and ice production.
• Monitor Ice Output & Performance: If ice production decreases, check for proper ventilation, clean the condenser, and ensure adequate water supply.
