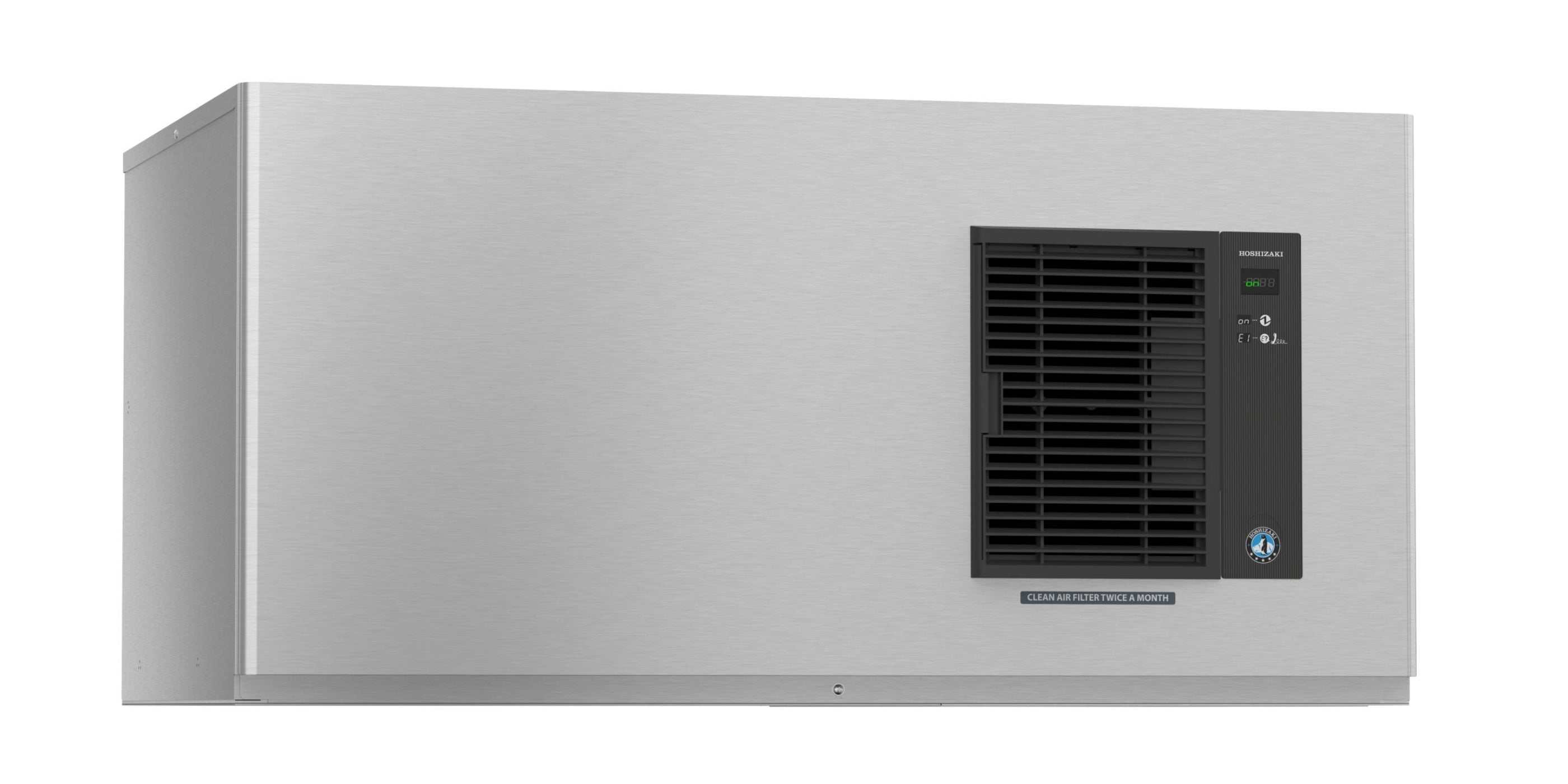

Hoshizaki 44" Wide Air-Cooled Square Cuber Ice Maker (Bin Sold Separately) - IM-500SAB
The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 44″ W x 27-5/8″ D x 21-3/4″ H
- Up to 489 lbs of ice produced per 24 hours

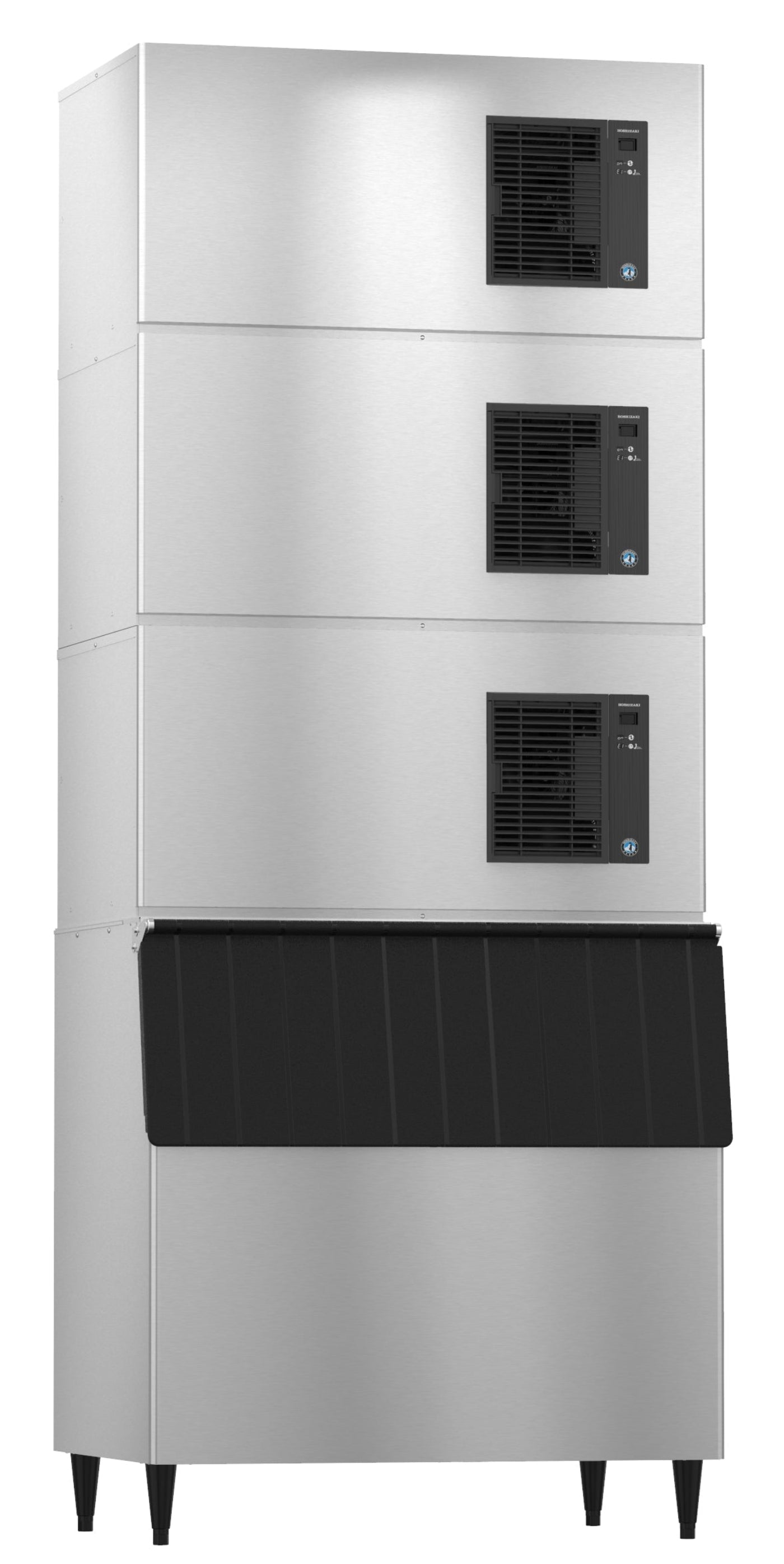

- Stack 3 units for 3x the ice production

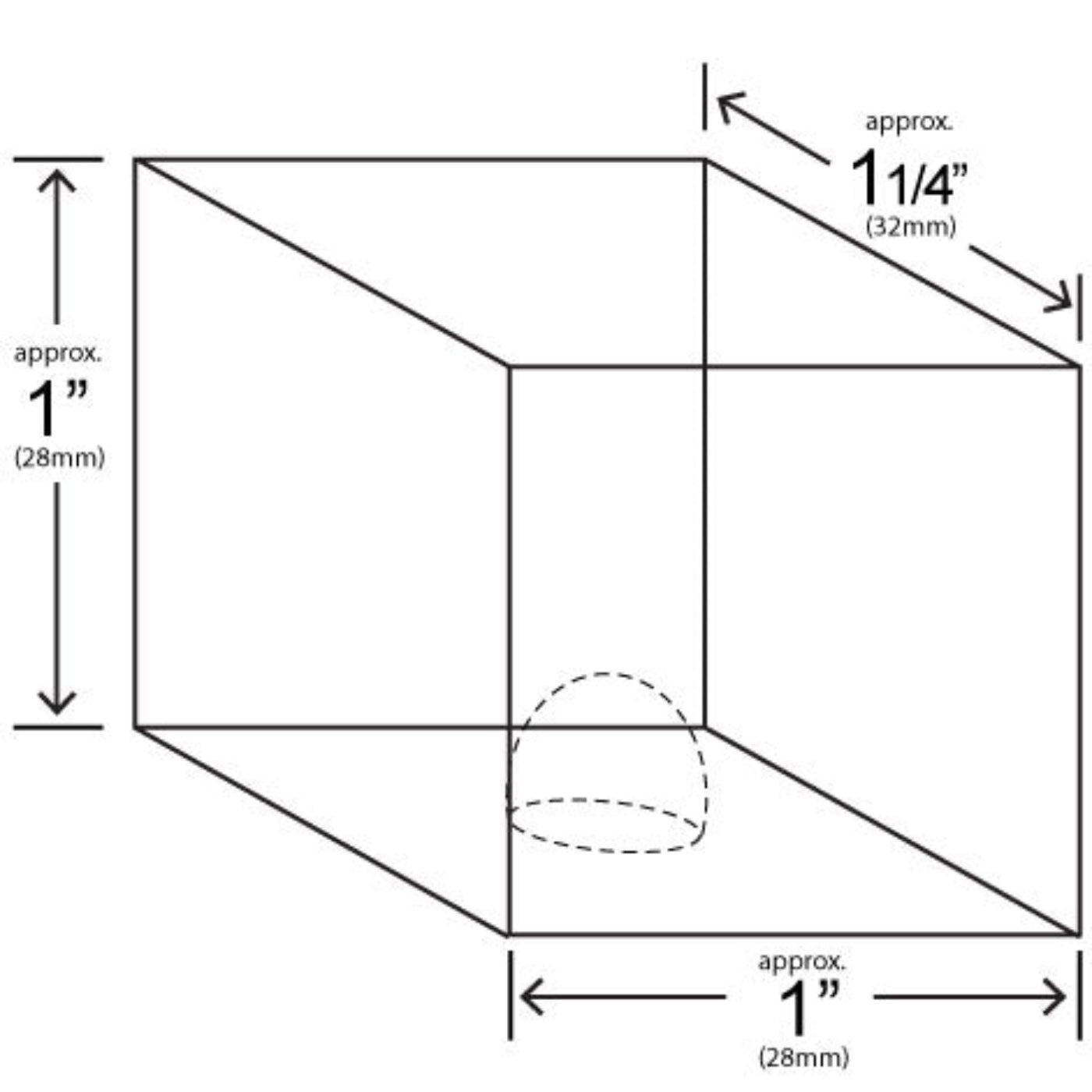

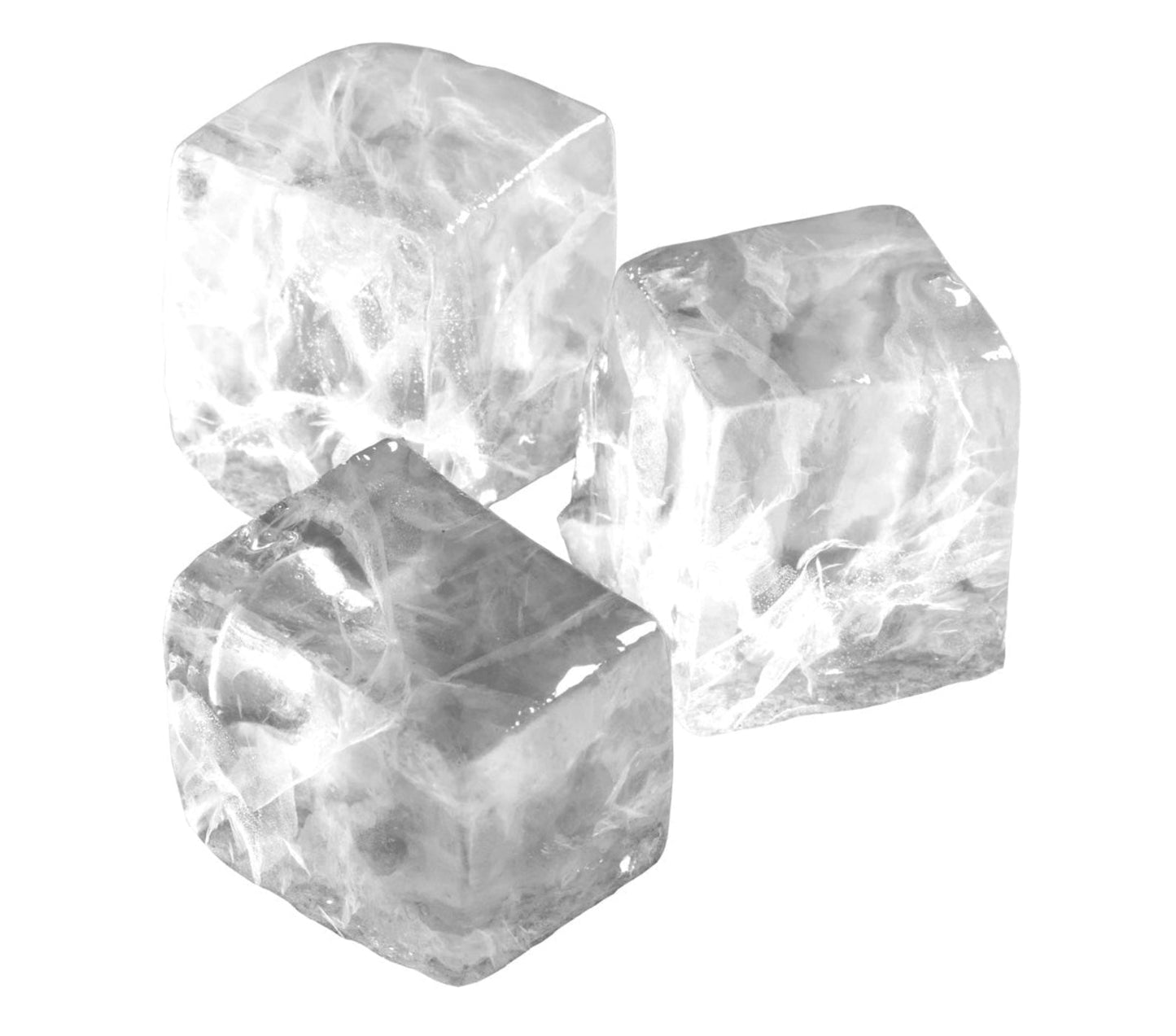

- Produces individual square cubes
- Durable stainless steel exterior

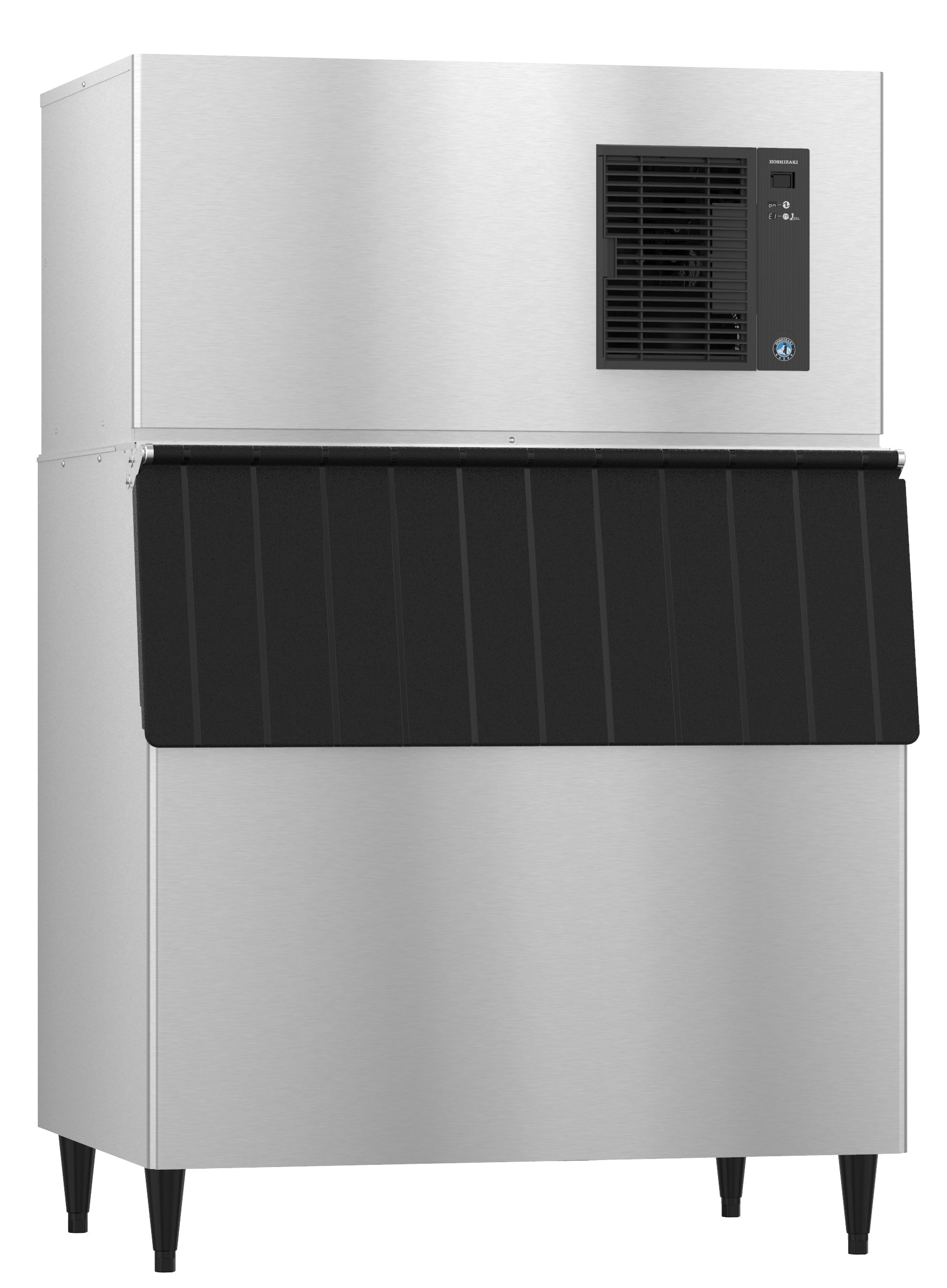

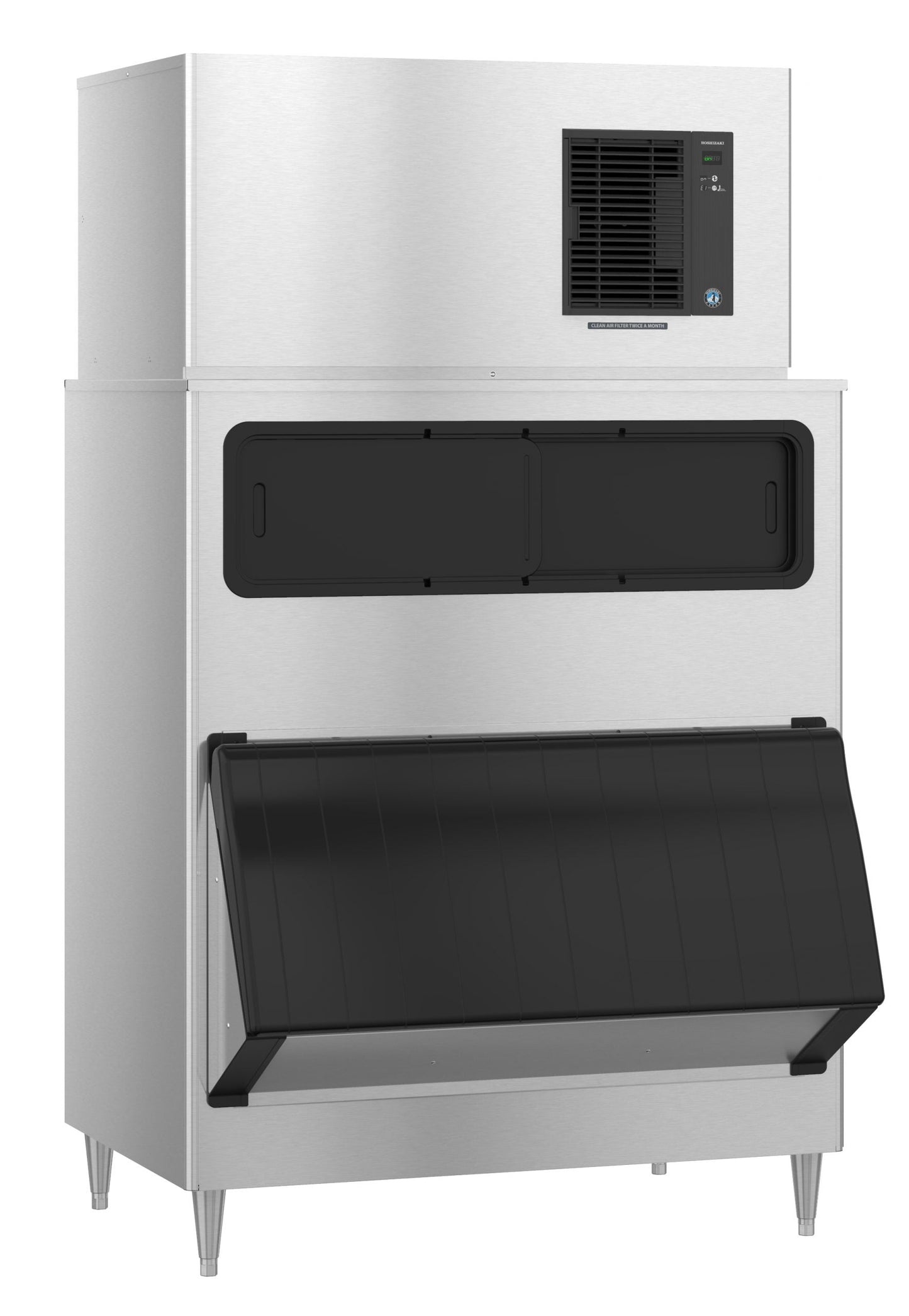

- Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck digital control system with LED display
- Clean individual square ice cubes
- Panels easily removed and all components accessible for service
- R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
- Heat Rejection:4500 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.5 amps (20 Amp Max fuse)
- 5.8 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
What Our Experts Think
-
High-capacity air-cooled square cuber ice maker designed for commercial kitchens, bars, and beverage operations.
-
Produces up to 500 lbs. of square cubed ice per day, ensuring a reliable supply for high-demand service periods.
-
Air-cooled condenser delivers efficient, quiet operation while minimizing heat in the workspace.
-
Durable stainless steel construction ensures longevity, hygiene, and easy cleaning.
-
Bin sold separately, allowing flexible storage and installation options.
Q&A
-
Q: How much ice can it produce daily?
A: Up to 500 lbs. of square ice in 24 hours.
-
Q: What type of cooling system does it use?
A: Air-cooled condenser for efficient, low-maintenance operation.
-
Q: Is the ice bin included?
A: No, the bin is sold separately for customizable storage solutions.
-
Q: What type of ice does it make?
A: Produces square-shaped cubes, ideal for beverages and foodservice applications.
Maintenance Tips
-
Clean and sanitize the unit regularly according to Hoshizaki guidelines.
-
Inspect water lines and filters to maintain ice quality and proper flow.
-
Descale as needed to prevent mineral buildup and maintain performance.
-
Keep condenser coils and vents free of debris for optimal efficiency.
-
Schedule professional maintenance twice yearly to ensure peak output and long-term reliability.
