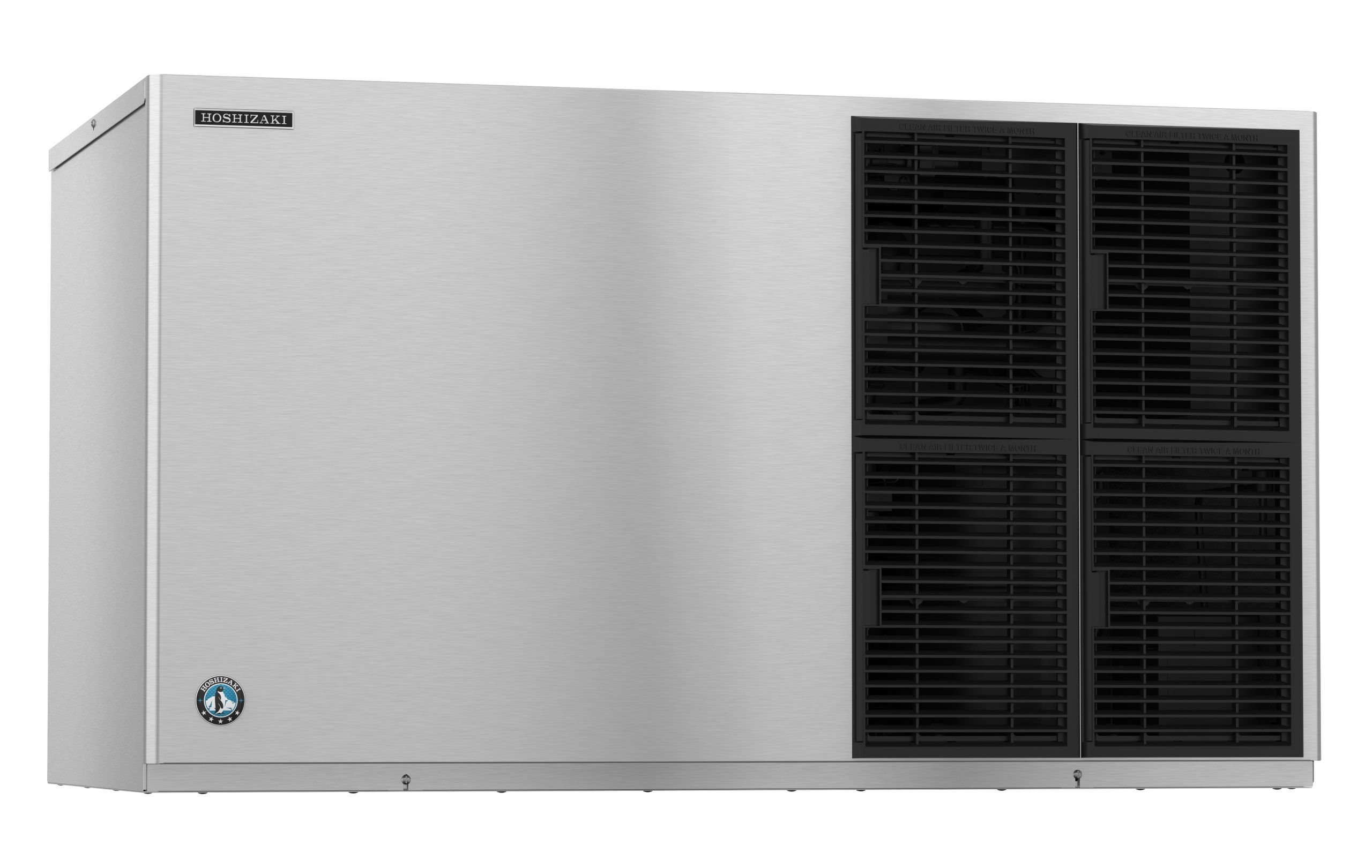

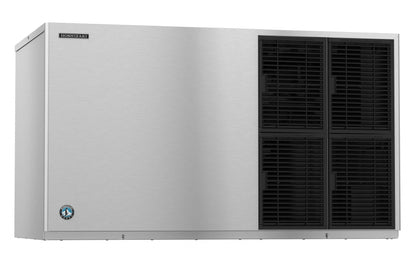

Hoshizaki | 48" Wide 3 Phase Air-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-1301SAJ3

Hoshizaki  | 48" Wide 3 Phase Air-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-1301SAJ3

The KM-1301SAJ3 is capable of producing approximately 1427 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-1301SAJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR qualified. Please consult the Specification Sheet for additional details. Replaces KM-1301SAH3.

Features

• Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
• Up to 1427 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior

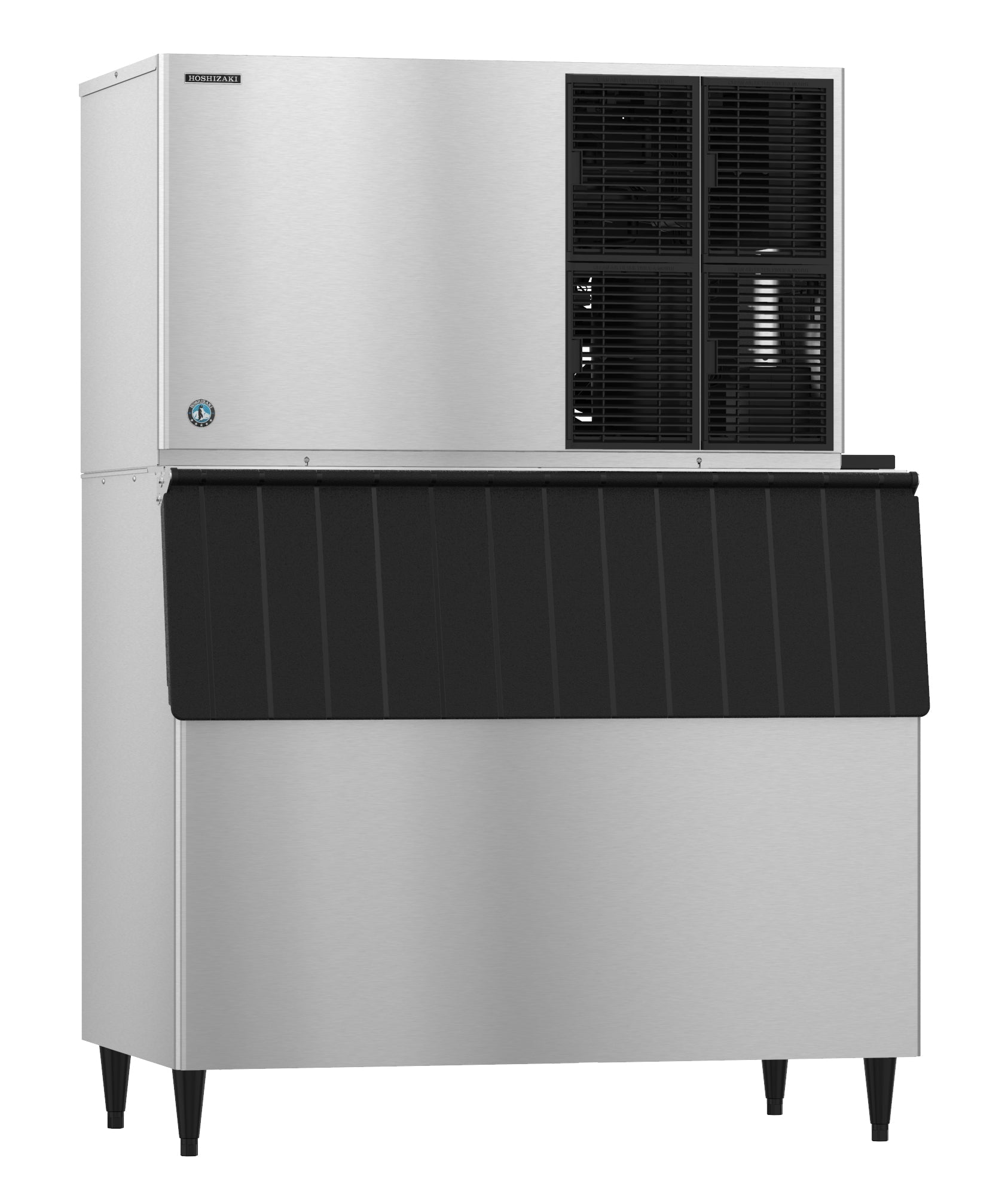

• Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck alert system
• CycleSaver design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (3 lbs. 15.5 oz. / 1800 g)
• Heat Rejection:18400 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 9.5 amps (20 Amp Max fuse)
• 3.95 kwh/100 lbs. 90/70
• Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
• ENERGY STAR qualified

 Specifications

What Our Experts Think

The Hoshizaki KM-1301SAJ3 48" Wide 3 Phase Air-Cooled Crescent Cuber Ice Maker is a high-capacity, commercial-grade unit designed for efficiency and reliability. Here’s why it stands out:

• High Ice Output: Produces up to 1,353 lbs. of Hoshizaki’s signature crescent ice per day—perfect for busy restaurants, bars, and catering services.
• Air-Cooled System: Eliminates the need for additional water-cooled plumbing, reducing operational costs.
• Durable Stainless Steel Exterior: Built to withstand heavy-duty use while maintaining a sleek and professional look.
• Energy-Efficient Performance: Maximizes ice production while minimizing water and energy consumption.
• Customizable Storage Options: Compatible with a range of ice bins (sold separately) for flexible installation.

Q&A

Q: What is the Hoshizaki KM-1301SAJ3 used for?
A: The Hoshizaki KM-1301SAJ3 is a commercial-grade air-cooled ice maker designed for restaurants, hotels, bars, hospitals, and other high-volume businesses that require a consistent supply of ice.

Q: How much ice does it produce per day?
A: It produces up to 1,383 lbs. of crescent-shaped ice cubes per day, making it ideal for large-scale operations.

Q: Does this unit include a storage bin?
A: No, the ice storage bin is sold separately.

Q: Is this unit new?
A: Yes, the KM-1301SAJ3 is a brand-new, high-capacity ice maker, designed for durability, efficiency, and long-term use in demanding commercial environments.

Maintenance Tips

• Clean the Exterior: Wipe stainless steel surfaces with a damp cloth and mild detergent to prevent dirt and smudges.
• Sanitize Ice-Making Components: Every 3-6 months, use a Hoshizaki-approved cleaning solution to sanitize the evaporator, water system, and internal parts.
• Inspect & Replace Water Filters: Change filters regularly to prevent scale buildup and maintain high-quality ice production.
• Monitor Ice Production: If ice output decreases or cubes appear irregular, check for scale buildup, water flow issues, or cooling inefficiencies.
• Maintain the Ice Bin (Sold Separately): Keep the bin clean and sanitized to prevent contamination and ensure proper ice storage.
• Clean the Air Filters: Check and clean the air filters regularly to maintain proper airflow and cooling efficiency.
• Inspect the Condenser Coils: Keep the air-cooled condenser free of dust and debris to prevent overheating and maintain performance.
• Schedule Professional Maintenance: Arrange an annual service check with a technician to inspect refrigerant levels, electrical components, and overall system efficiency.
