Fanuc Corporation| Ge Fanuc Serial Communication Termination Module - 531X170TBSAGG1
The 531X170TBSAGG1 is a TB Option Card manufactured by GE for integration into various general-purpose drive systems, including the DC-300 drive. Compatibility with the 531x series of boards should be verified using the system's manual or user guide.Â

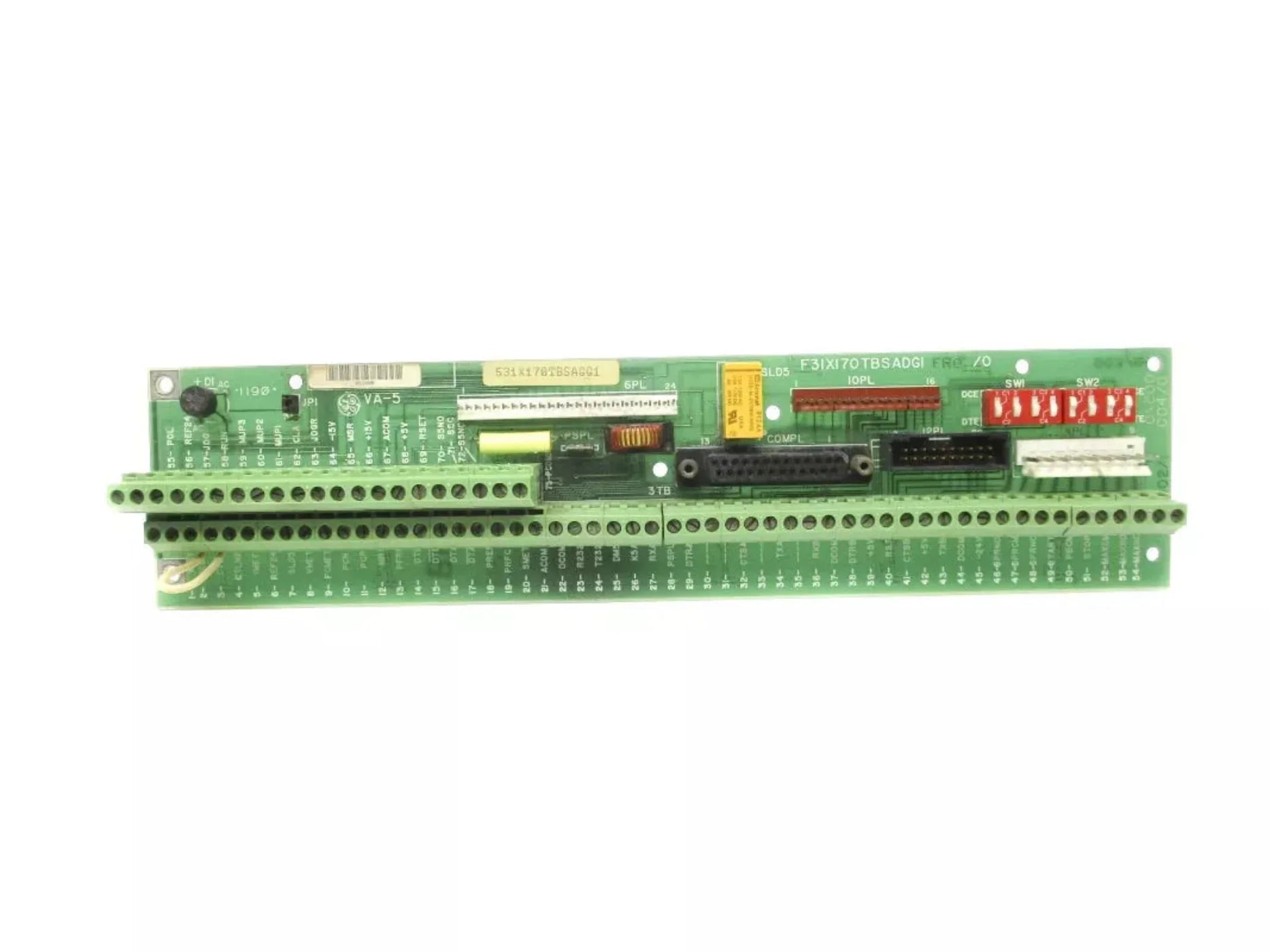

This module features two central terminal strips: one with 21 screw connections and another with 54 screw connections, each individually numbered and labeled. The larger terminal strip includes connections labeled Xstp, Pcom, Ctln1, Ctln2, Imet, Ref24, Sld5, Vmet, Fcmet, Pcn, Pcp, Mri, Pfrf, and Dtb. The second terminal strip includes connections labeled Ref24, Jog, Run, Mup3, Mup2, Mup1, CLA, and Jogr.
The 531X170TBSAGG1 is a TB Option Card developed by GE specifically designed for integration into various general-purpose drive systems, notably including the DC-300 drive. Compatibility with the 531x series of boards should be confirmed through reference to the system’s manual or user guide.Â
This module features two central terminal strips, each meticulously populated with screw connections. The first terminal strip houses 21 connections, while the second accommodates 54 connections. Each connection is uniquely numbered and labeled, with designations such as Xstp, Pcom, Ctln1, Ctln2, Imet, Ref24, Sld5, Vmet, Fcmet, Pcn, Pcp, Mri, Pfrf on the larger strip, and Ref24, Jog, Run, Mup3, Mup2, Mup1, CLA, Jogr on the second strip.Â
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part No    |
531X170TBSAGG1 Â Â Â |
Manufacturer    |
General Electric    |
Product Type    |
Serial Communication Termination Module    |
Series    |
Mark V LM Â Â Â |
Operating Temperature    |
-30 to 65°C    |
Power Supply Voltage    |
24 V dc    |
Board Size    |
14.3 cm high x 23.1 cm    |
Weight    |
0.45 kg    |
Â
What Our Experts Think
-
Reliable Signal Termination: Provides stable and efficient termination for serial communication lines, ensuring optimal data transmission.
-
Optimized for GE FANUC Systems: Designed for seamless integration into GE FANUC control and communication setups.
-
Enhanced Data Integrity: Minimizes signal interference and data loss, maintaining system reliability.
-
Built for Durability: Engineered to endure tough industrial environments, offering long-term operational stability.
-
Easy Integration: Facilitates smooth installation and connection to existing GE FANUC components.
-
GE FANUC Quality: Backed by GE’s commitment to precision, efficiency, and minimal downtime.
Q&A
Q: What is the 531X170TBSAGG1 Serial Communication Termination Module?
A: It’s a GE Fanuc serial communication termination module designed to facilitate stable and efficient data communication between industrial control systems and external devices.
Q: What systems is it compatible with?
A: This module is compatible with GE Fanuc control systems, particularly in applications that require reliable serial communication for process control and automation.
Q: What does the serial communication termination module do?
A: It terminates serial communication lines, ensuring proper signal integrity and seamless data transfer between devices, which is essential for maintaining operational accuracy and efficiency.
Q: Why choose the 531X170TBSAGG1?
A: It offers reliable signal termination, reducing communication errors and ensuring smooth and effective operation of industrial control systems, enhancing system reliability and performance.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, high reliability, and long-term performance in demanding industrial environments.
Maintenance Tips
-
Visual Inspection: Regularly inspect the module for any visible signs of damage, such as burnt components, broken traces, or damaged connectors. Pay special attention to the serial communication ports.
-
Clean the Module: Use dry compressed air or an anti-static brush to remove dust, dirt, or debris. Avoid using liquid cleaners, which could damage sensitive components or cause short circuits.
-
Check for Loose or Corroded Connections: Inspect all serial communication cables and connectors for secure attachment and signs of corrosion or wear. Loose or corroded connectors can lead to signal loss or communication errors.
-
Verify Serial Communication Signals: Regularly test the module's ability to receive and transmit data. Ensure that the communication signals are within the specified voltage range to ensure reliable data transmission.
-
Test the Termination Resistance: Ensure the termination resistors are functioning properly. Incorrect termination can cause signal reflections, leading to communication errors or data corruption.
-
Monitor Power Supply: Check that the module is receiving the correct power supply voltage. Fluctuations or incorrect voltage can cause instability or failure in communication.
-
Run Diagnostics: Use diagnostic tools or software to assess the module’s communication performance. Look for error codes or abnormal readings, which may indicate wiring or communication issues.
-
Temperature Monitoring: Ensure the module operates within the recommended temperature range. Overheating can damage components and negatively affect communication performance.
-
Check Firmware: Make sure the module is running the latest firmware version for optimal performance and compatibility with other equipment.
-
ESD Protection: Handle the module with electrostatic discharge (ESD) protection, such as wrist straps and anti-static mats, to prevent damage to sensitive components.
