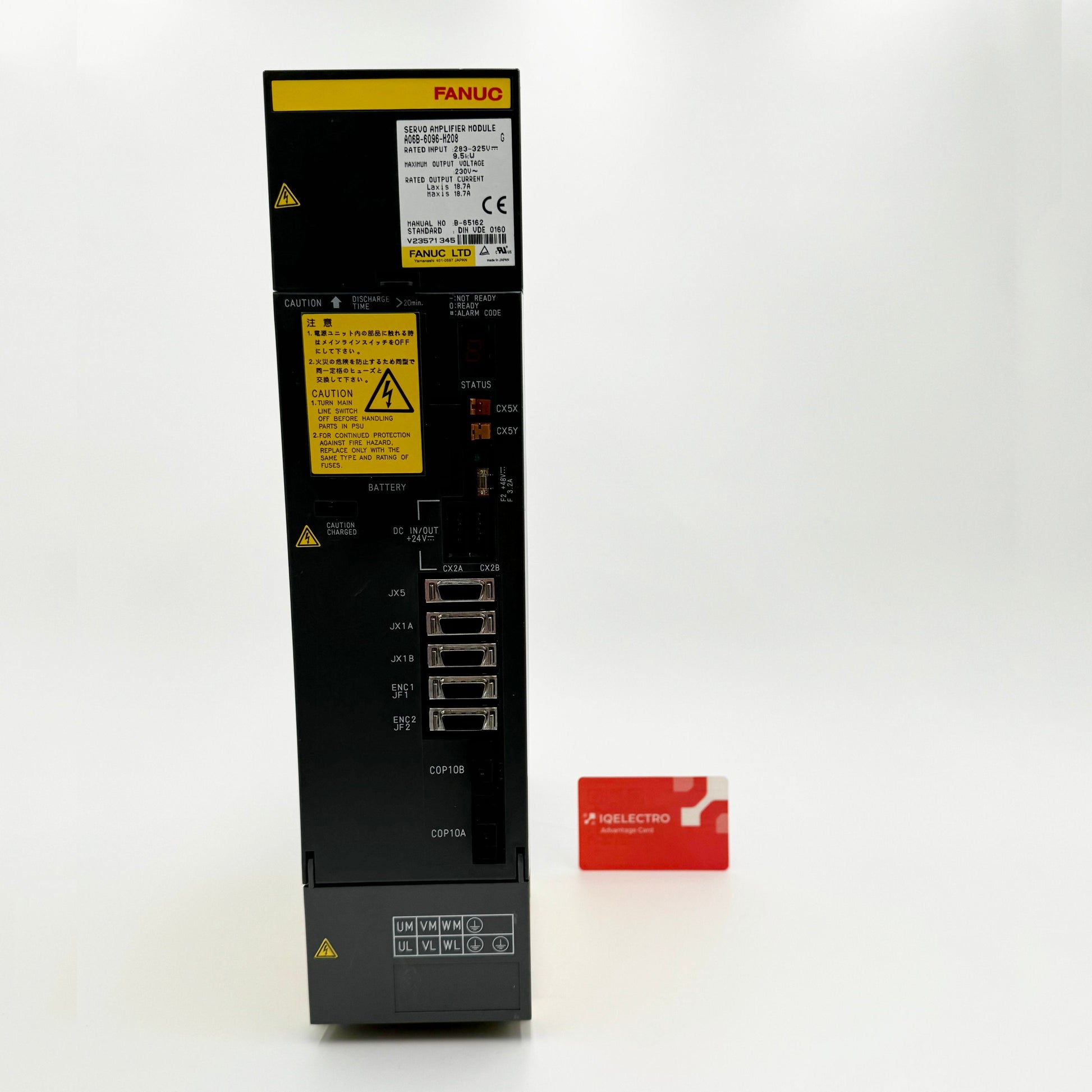

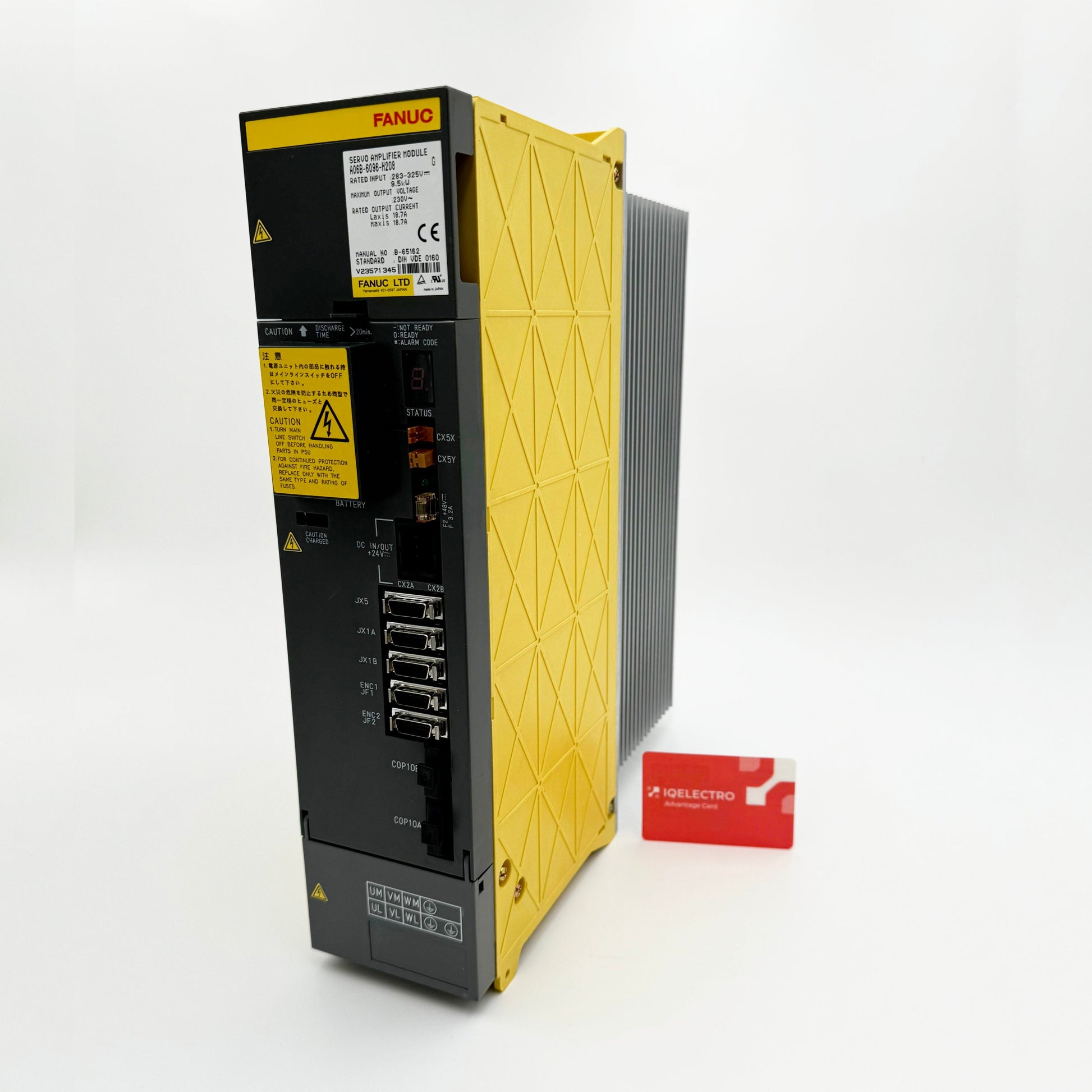

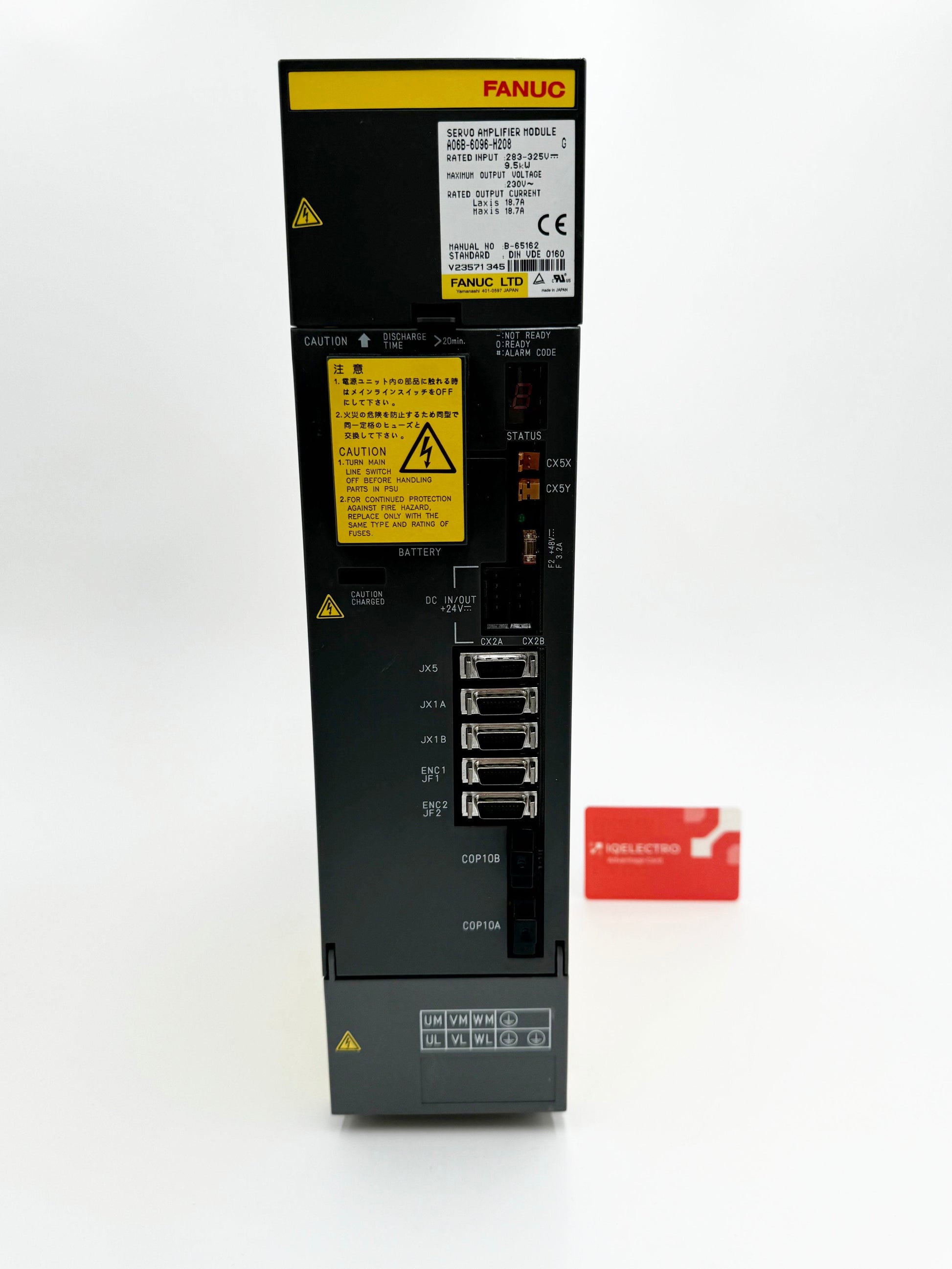

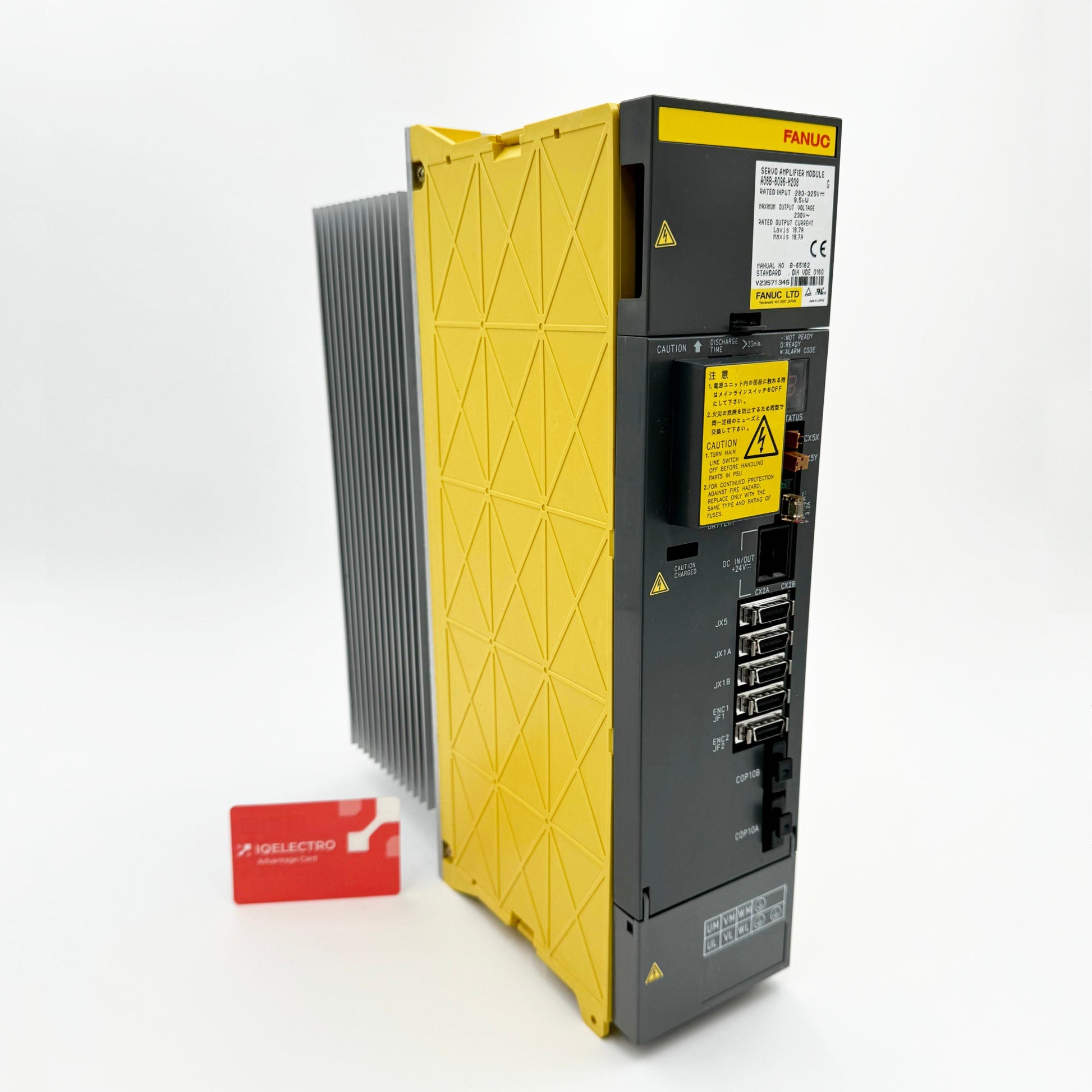

Fanuc Corporation GE Fanuc 2 Axis Alpha Servo Module MDL SVM2-80/80 - A06B-6096-H208

Fanuc Corporation GE Fanuc 2 Axis Alpha Servo Module MDL SVM2-80/80 - A06B-6096-H208

The A06B-6096-H208 GE Fanuc 2 Axis Alpha Servo Module MDL SVM2-80/80 is designed for high-precision control in CNC and automation systems. It features a rated input voltage of 283-339 V and delivers robust performance with advanced servo control technology for two axes, supporting demanding applications.

Information About A06B-6096-H208

The A06B-6096-H208 GE Fanuc 2 Axis Alpha Servo Module MDL SVM2-80/80 is a high-performance servo amplifier designed for precision control in industrial automation and CNC applications. This module supports two axes, with a rated output current of 18.7 A for both the L and M axes. It operates within a supply voltage range of 283 to 325 V, providing output voltage of 230 V and a power rating of 9.5 kW. The module is engineered for reliable axis control, featuring advanced technology to ensure accurate and efficient performance in demanding environments.

Manufacturer information
Ge Fanuc, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• Precision Output Control: Delivers 6 analog current outputs (0–20 mA or 4–20 mA), ideal for accurate process control.

• Dual Power Compatibility: Operates on both 115VAC and 125VDC, offering flexible installation options.

• Heavy-Duty Industrial Use: Rugged design built for harsh environments—resistant to vibration, moisture, and electrical noise.

• Built-In Diagnostics: Real-time fault detection and LED status indicators for each channel enhance reliability and ease of maintenance.

• Modular Flexibility: Compatible with GE Genius I/O systems, making it easy to scale or upgrade your automation setup.

• Safe & Isolated Channels: Individual channel isolation helps prevent cross-talk and improves system safety.
