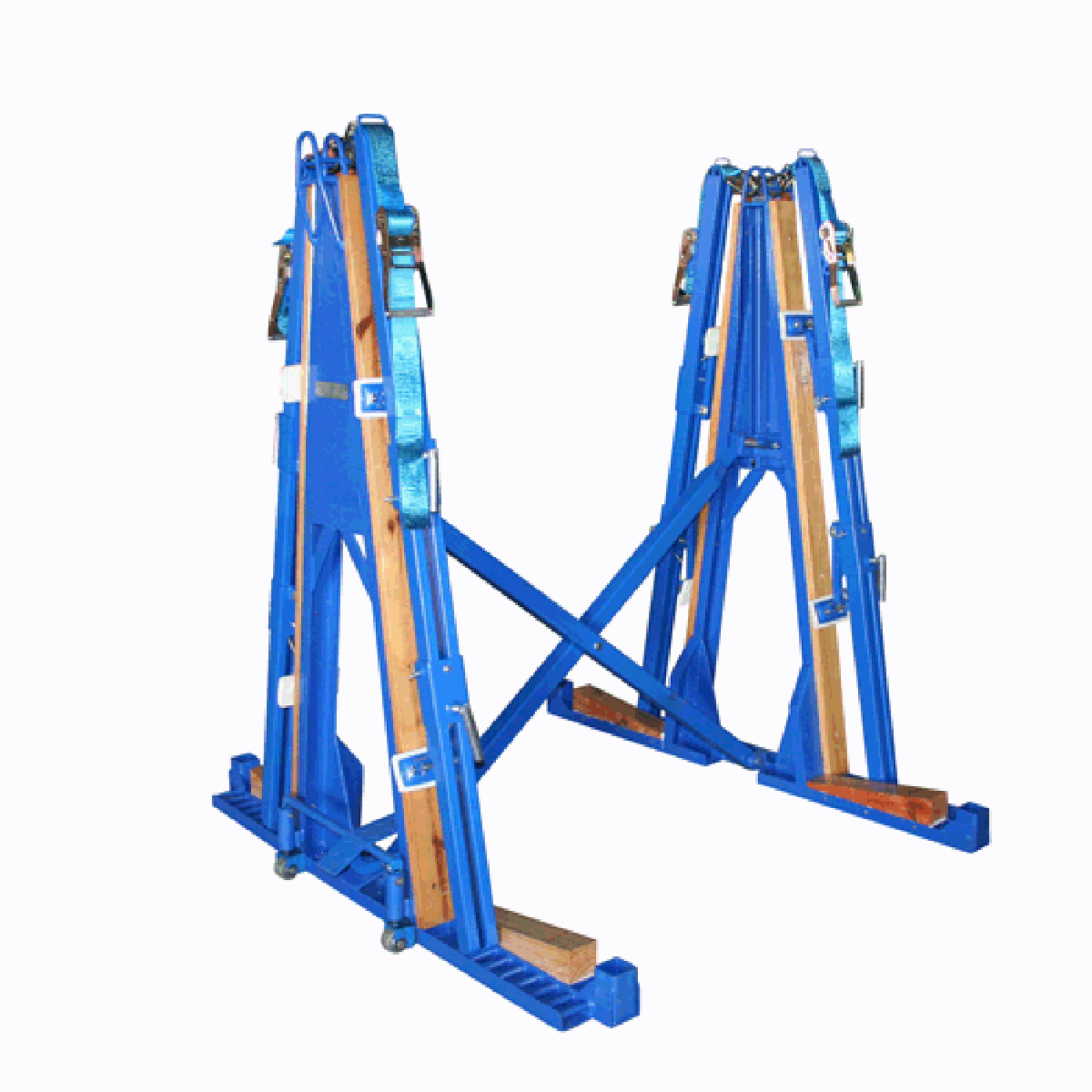

Aardwolf Folding A Frame - FAF2100
Hauling granite and marble isn't easy, and it certainly isn't safe if you don't have the right equipment. This well-made foldable a frame is needed for both the safety of the driver and other workers, as well as for the protection of the granite and marble.
The sturdy Aardwolf Folding 'A' Frame granite transporting frames with its unique integrated vertical locking bars and ratchet locking straps is designed so as to holds all material safely and securely, which eliminate risk to the operator and prevent damage to material. The load is secured independently on each side by two vertical locking bars, which are inserted into brackets at the base of the frame and held by ratchet locking straps at the top.
The unloaded frame can be folded up by the simple withdrawing of two spring loaded pins from the cross braces and the lowering of the three wheels at one end by means of a cam lever. The lowered wheels also allow the frame to be positioned on the tray of a truck or manually moved around the factory.
Features
Bolts holes in base of frame for optional securing of the Folding 'A' Frame to the vehicle.
Granite is secured by rubber pads mounted on cleats, which are in turn adjustable in height along the vertical locking bars.
Large hand-tightened wing nuts are used to tighten the cleats to the vertical locking bars.
Powered coat paint finish.
What Our Experts Think
-
Heavy-duty folding A-frame designed for storing and transporting slabs.
-
Space-saving foldable design makes it easy to store when not in use.
-
Strong steel construction ensures durability and long service life.
-
Suitable for granite, marble, engineered stone, and glass.
-
Widely used in workshops, warehouses, and job sites.
Q&A
Q: What is the capacity of the FAF2100?
A: It safely holds stone slabs up to its rated load capacity.
Q: Can the frame be folded for storage?
A: Yes, the foldable design saves space when not in use.
Q: What materials can it store?
A: Ideal for granite, marble, quartz, engineered stone, and glass.
Q: Is it portable between sites?
A: Yes, the sturdy yet foldable design makes it practical for transport.
Maintenance Tips
-
Inspect frame joints and welds regularly for stability.
-
Keep the frame clean and free from stone dust.
-
Lubricate moving hinges to maintain smooth folding.
-
Store in a dry place to prevent corrosion.
-
Do not exceed the maximum rated capacity.
