Aardwolf Slab Rack - Set - ASR0107
Aardwolf Slab Rack Base Rails - Premium Storage for stone slabs such as marble, granite, quartz, engineered stone, and all other types of ston

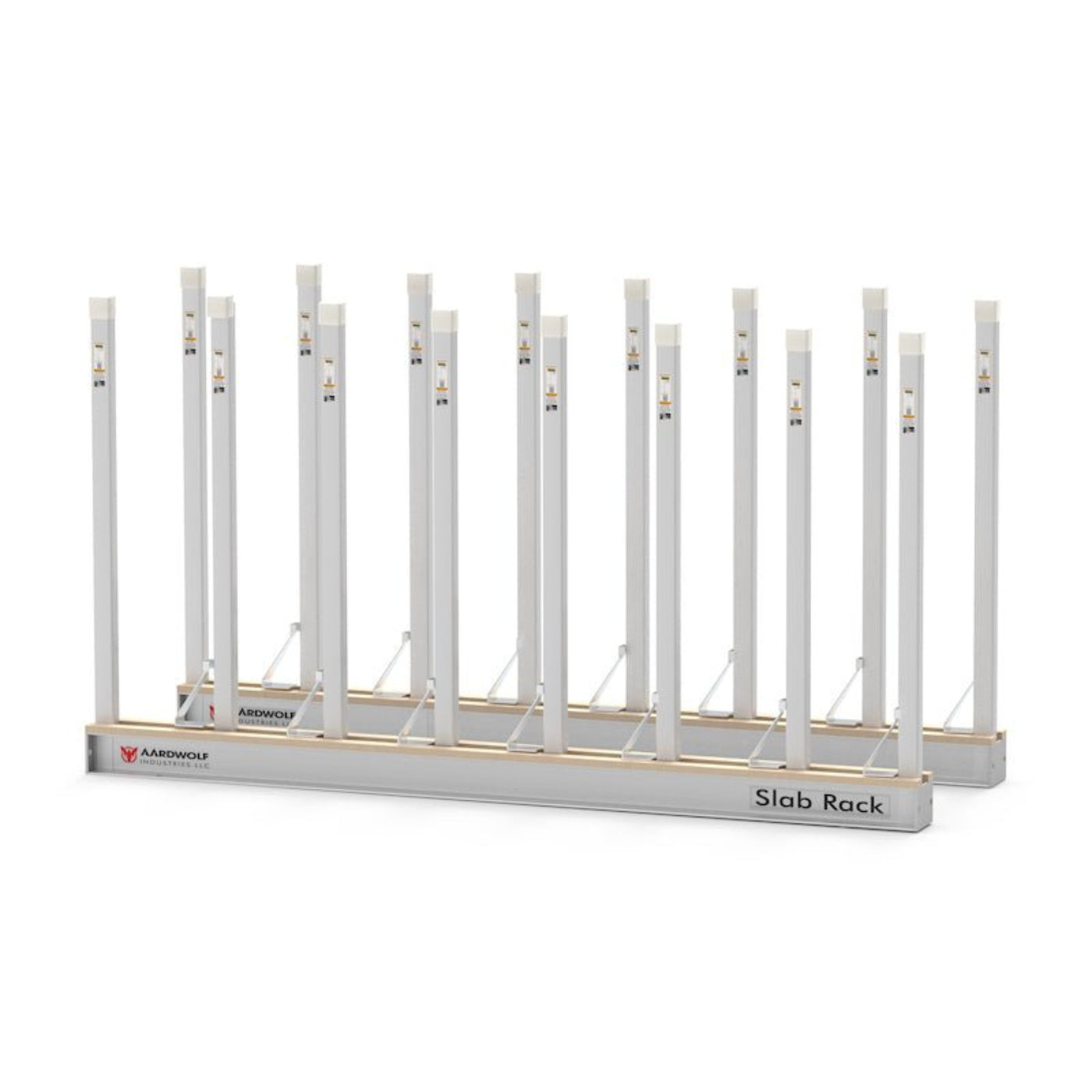

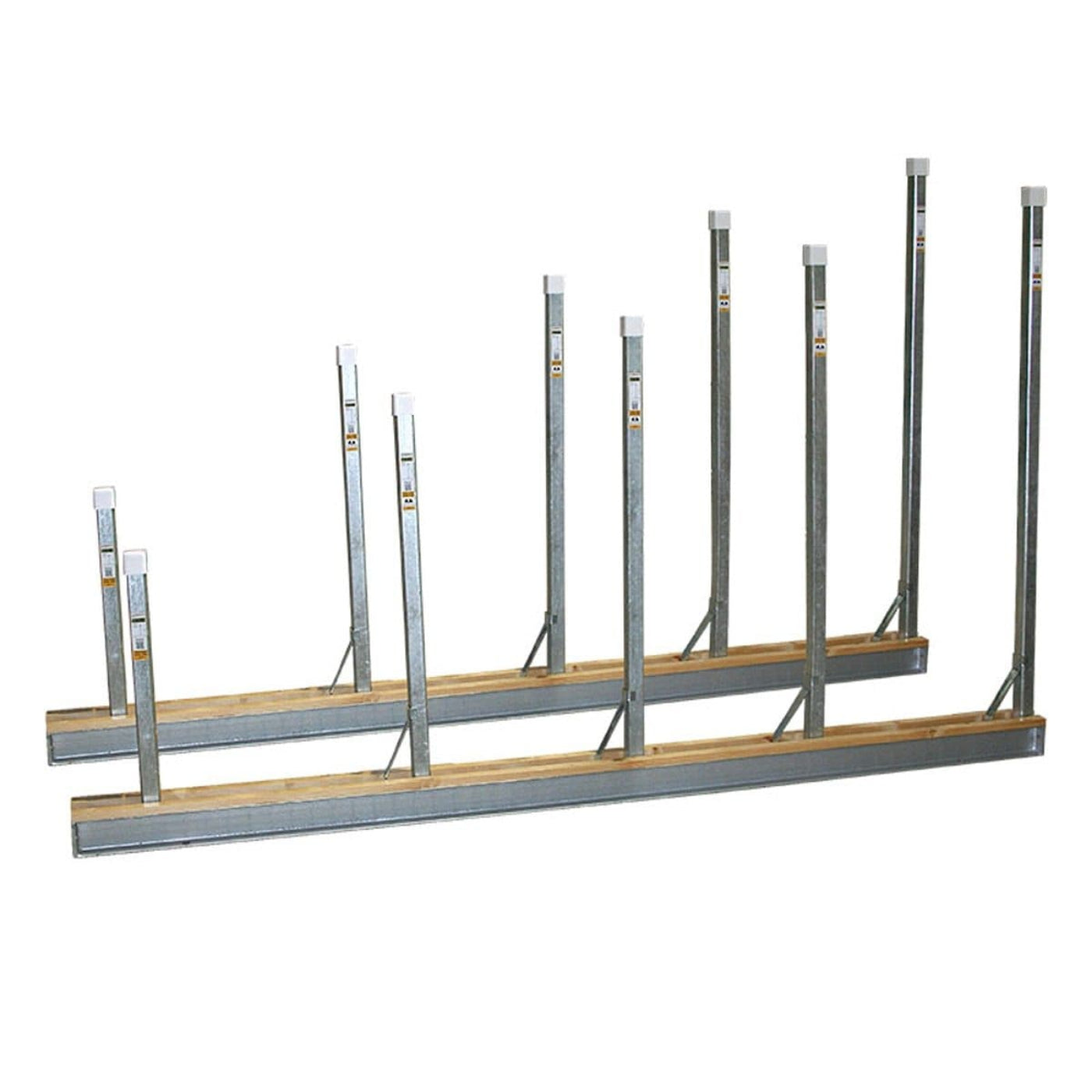

Aardwolf Slab Rack is made for the storing stone or slabs such as marble, quartz, engineered stone, and other types of stone. The slab racks come in a pair of galvanised steel rails 3 meters long, together with square steel tube posts. with a max capacity of 10,000 LBS. The square post can be positioned anywhere along the rack. The user has a selection of two different strength posts. All post are manufactured from square tube steel with a minimum yield strength of 345 Mpa, ensuring safety for the vertical storage of slab bundles
Features
- Galvanised steel rails 5 -½ wide, 4" high and 9'10" long can be butted and bolted together for desired length.
- The center of rails has 2" square holes spaced 0.2" apart allowing for adjustment of post in 2.2" increments for maximum storage efficiency.
- The rack heights are 4 ¾" from the floor for alignment of glass or stone dolly used for transporting
- (2") square tube posts are powder-coated and topped with 2 3/8" square rubber post caps to prevent scratches to polished surfaces.
- Two ¾" x 1 -½ timber battens per rail protect the slab edges and the finish on the rails.
Specifications
|
Metric
(mm-kg) |
Imperial
(inch-lbs) |
| Galvanised steel rail |
2979x144x125 |
117.3x5.7x4.9 |
| Rack height |
125 |
4.9 |
| Saure hole |
52 |
2 |
| Increment |
55 |
2.2 |
| Square tube post |
50 |
2 |
| Thickness of all posts |
4 or 5 |
0.15 or 0.2 |
| Square rubber post |
60 |
2.4 |
| Timber battens per rail |
40x25 |
1.6x1 |
| Net weight |
50.7/PCS |
111.8 |
| Gross weight |
51 |
112.4 |
| Package dimension |
2975x145x125 |
117x5.7x4.9 |
What Our Experts Think
-
Heavy-Duty Construction: Crafted from galvanized steel with a high yield strength, ensuring durability and safety for vertical slab storage.
-
Customizable Storage: Includes two 3-meter galvanized rails and 16 adjustable posts (47.2" high), providing flexibility with 2.2" spacing increments to accommodate different slab sizes.
-
Protective Design: Rails are equipped with timber battens to prevent scratching, while posts have rubber caps to safeguard polished surfaces from damage.
-

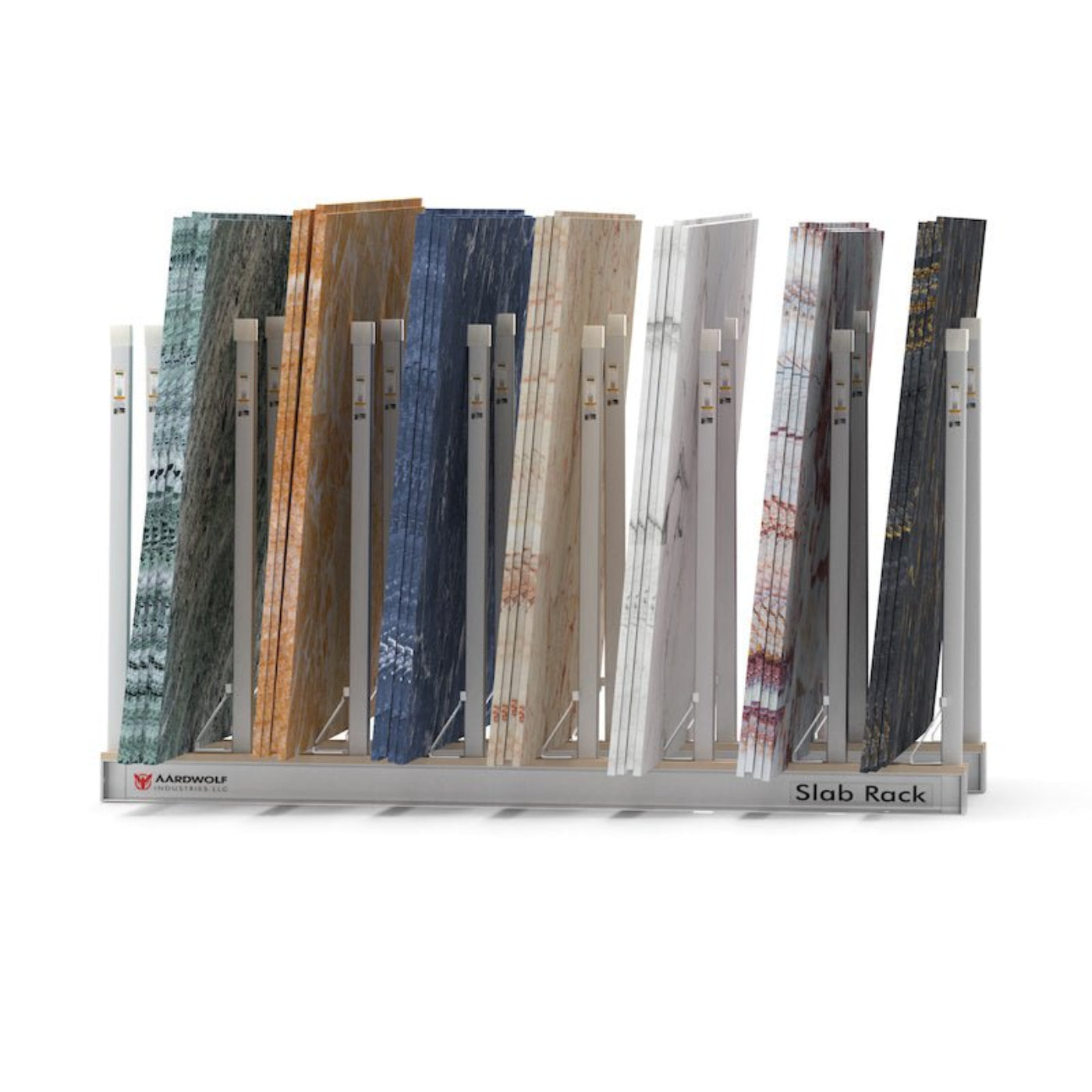

Space-Efficient: Designed to store slabs such as marble, granite, quartz, and engineered stone in a compact and organized manner.
-
User-Friendly Assembly: Easy to assemble and disassemble, making it convenient for efficient storage and quick retrieval of materials.
Q&A
Q: What is the Aardwolf Slab Rack Set (ASR0107)?
A: The ASR0107 is a modular storage system designed for safely storing stone slabs such as marble, granite, and engineered stone. It includes two galvanized steel rails, each 3 meters long, and 16 galvanized square tube posts with rubber caps.
Q: How does the ASR0107 ensure safe slab storage?
A: The posts are made from square tube steel with a minimum yield strength of 345 MPa, ensuring safety for vertical storage. The rails feature timber battens to protect slab edges, and posts can be positioned at 2.2-inch increments for optimal spacing.
Q: What is the recommended slab lean angle for the ASR0107?
A: The rack is designed to store slabs at a 4° lean, which is considered optimal for stability and safety.
Q: Where can I purchase the ASR0107?
A: The ASR0107 is available through various suppliers, including Master Wholesale, Direct Diamond Tools, and HOF Equipment Company. Availability and pricing may vary, so it's advisable to check with local distributors or online retailers for the most current information.
Maintenance Tips
-
Regular Cleaning: Wipe down the galvanized steel rails and posts with a damp cloth to remove dust and debris. For stubborn residues, use mild soap and water. Avoid abrasive cleaners to preserve the finish.
-
Inspect Rubber Rails: Check the rubber-topped rails for wear or damage. Replace them if they show signs of deterioration to prevent scratching and damage to slabs.
-
Examine Posts: Ensure the posts are securely mounted and free from signs of wear or damage. Replace any damaged posts to maintain the structural integrity of the rack.
-
Monitor Load Capacity: Adhere to the specified load limits to prevent overloading and potential damage. The maximum number of slabs that can be safely stored per bay depends on the type of post selected, the slab thickness, and dimensions.
-
Proper Storage: Store the rack in a dry, sheltered area to protect it from environmental elements that could cause corrosion or damage.
