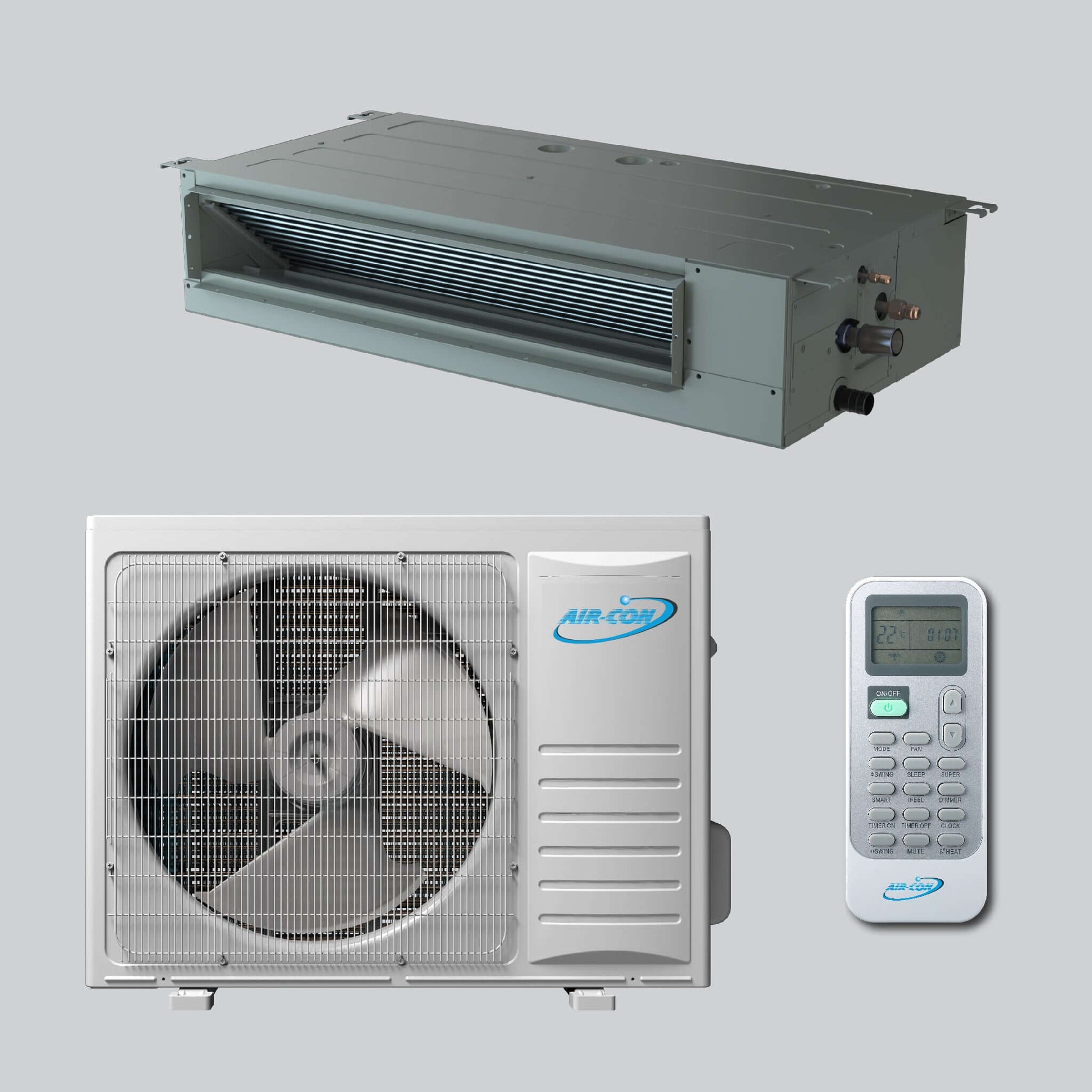

Air-Con Sky Pro 9000 BTU Concealed Duct Mini Split Air Conditioner 19 SEER - ASLCI/EK4H4S09
Enjoy year round comfort with the ability to heat or cool your room or space with Air-Con Sky Pro 9000 BTU concealed duct air conditioner.
Features
- 24hr Timer

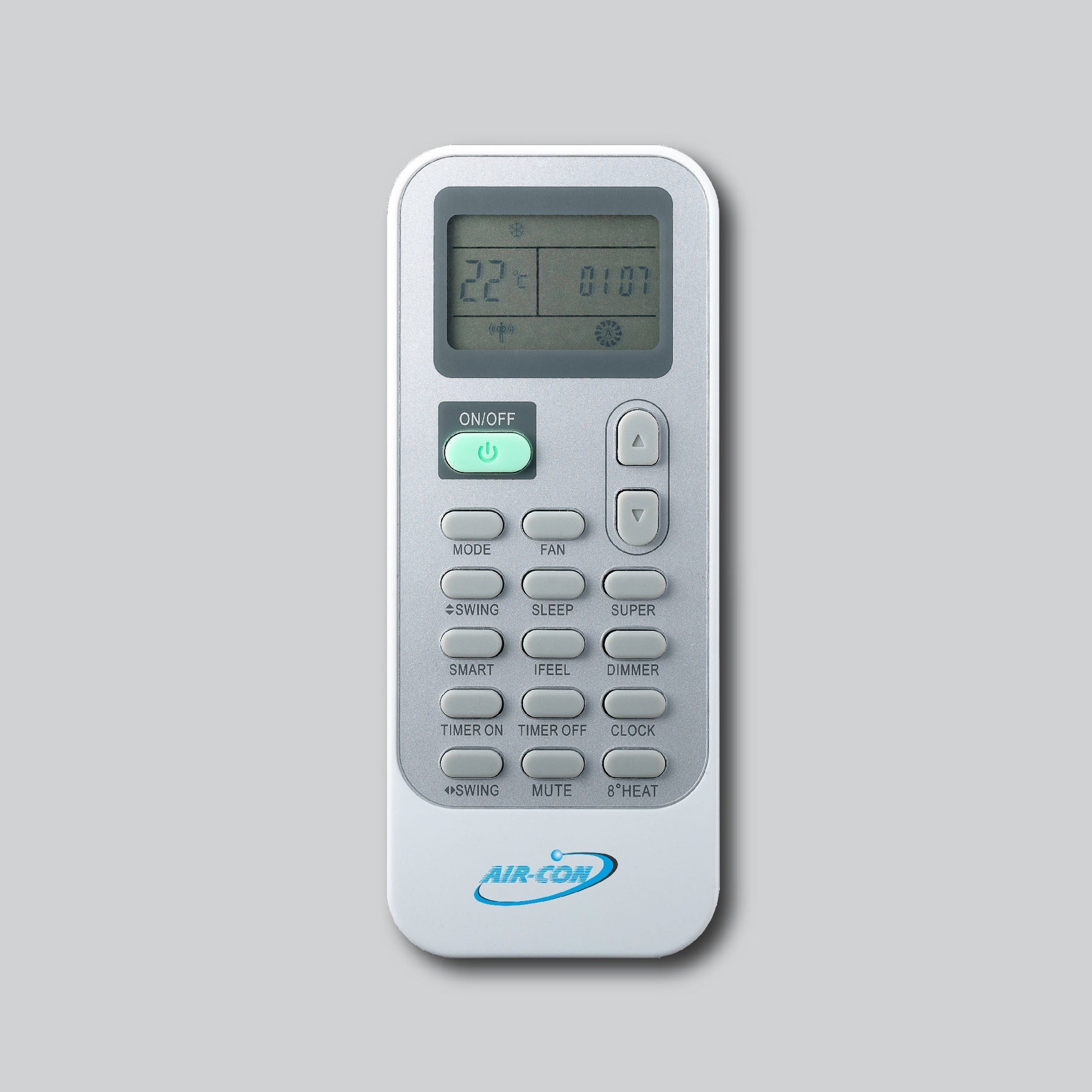

- Wired Controller
- Auto Restart
- Cooling and Heating up to 5° F
- 220v / 1ph / 60Hz
Specifications
| Model |
ASLEK4H4S09 / ASLCI4H4S09 |
| Voltage / Frequency / Phase |
208/230V - 60Hz - 1 Phase |
| Cooling Capacity (BTU) |
9,000 |
| Heating Capacity (BTU) |
9,000 |
| Power Consumption (Watts) |
750 |
| Amperage (A) |
3.7 |
| SEER |
19 |
| HSPF |
9.5 |
| Operating Ambient Temperature |
5°F Cooling / 5°F Heating |
| Indoor Unit Dimensions (W x H x D) |
35-7/8" x 7-1/2" x 17-5/8" |
| Outdoor Unit Dimensions (W x H x D) |
31-7/8" x 22-7/8" x 11" |
| Lineset Size |
1/4" & 3/8" |
What our Experts Think
-

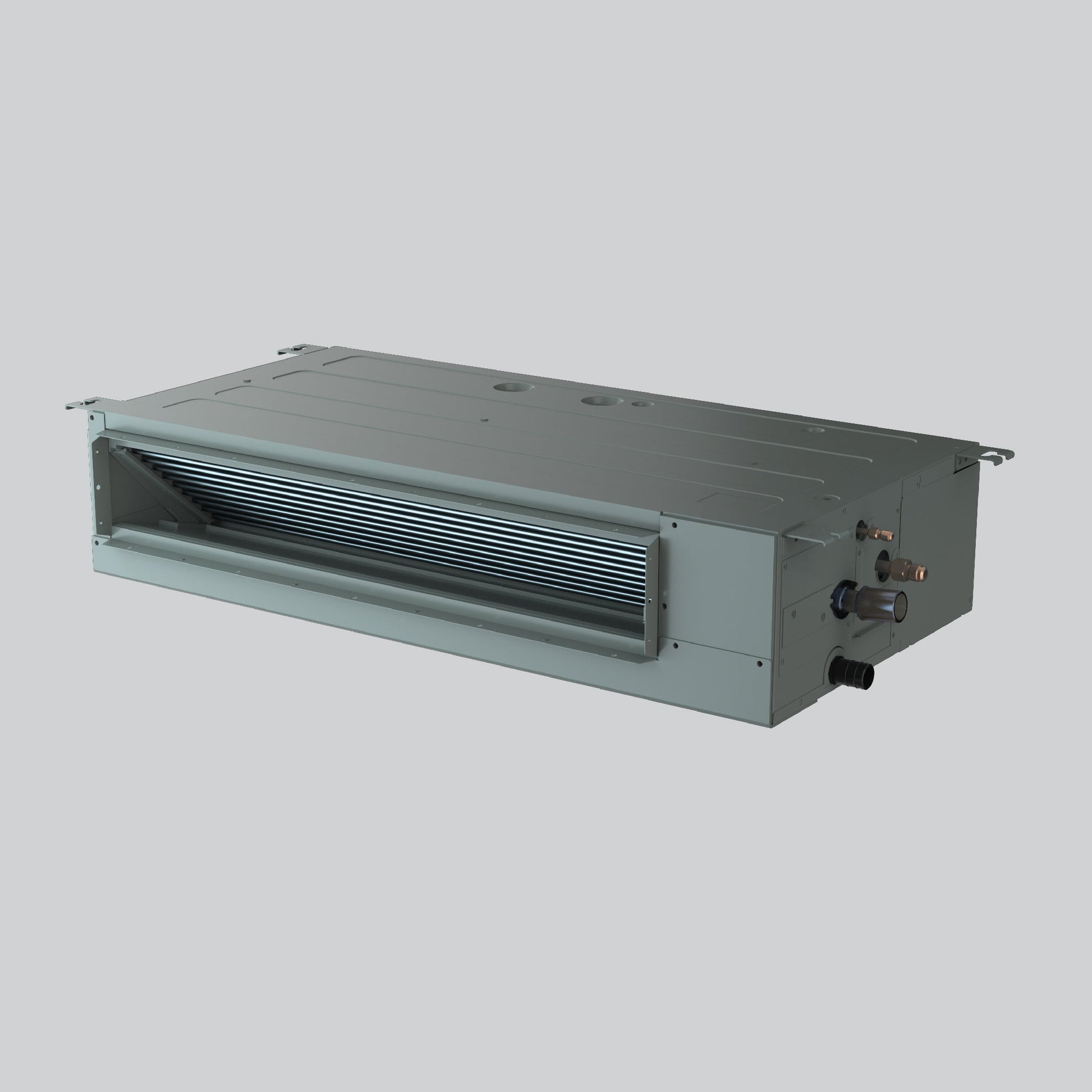

Discreet Cooling: Concealed duct design allows for hidden installation, maintaining a clean and seamless look in any room.
-
Efficient Performance: With a 9000 BTU capacity and 19 SEER rating, it offers reliable cooling and energy savings for smaller to mid-sized spaces.
-
Flexible Ducted System: Ideal for multi-room cooling or spaces where aesthetics and airflow control are key.
-
Quiet Operation: Delivers comfort with minimal noise, making it perfect for bedrooms, offices, or studios.
-
Built for Integration: Designed to work within existing ductwork layouts, enhancing comfort without visible units.
-
Durable Engineering: Offers dependable, long-term performance backed by quality components.
Q&A
Q: What is the cooling capacity of this unit?
A: It offers 9,000 BTU, ideal for efficiently cooling smaller rooms or zoned spaces.
Q: How energy-efficient is the system?
A: With a 19 SEER rating, it delivers solid energy savings and reliable performance.
Q: What type of installation does it require?
A: This is a concealed duct unit, designed for hidden installation in ceilings or soffits.
Q: Does it support both heating and cooling?
A: Yes, it functions as a heat pump for year-round comfort.
Q: What voltage does it use?
A: It operates on a 230V power supply.
Q: Is professional installation required?
A: Yes, installation by a licensed HVAC professional is recommended for performance and warranty.
Q: Is this unit suitable for residential or commercial use?
A: It’s great for both residential and light commercial applications where discreet climate control is needed.
Maintenance Tips
-
Clean Air Filters Monthly: Remove and clean the indoor unit's air filters every month using a vacuum or mild detergent with warm water. Ensure they are completely dry before reinserting to maintain optimal airflow and efficiency.
-
Inspect and Clean Coils: Periodically check and gently clean the evaporator and condenser coils with a soft brush or cloth. For thorough cleaning, use a mild detergent or specialized coil cleaner, ensuring the unit is powered off during maintenance.
-
Maintain Proper Clearance Around Outdoor Unit: Ensure at least 2 feet of clearance around the outdoor condenser unit to allow proper airflow. Regularly remove any obstructions such as leaves or debris to prevent airflow restrictions.
-
Monitor and Clean the Drain Line: Check the condensate drain line for blockages or algae buildup. Clear any clogs with a wet/dry vacuum to avoid water damage and ensure efficient operation.
-
Schedule Annual Professional Maintenance: Have a licensed HVAC technician perform an annual inspection and servicing to ensure optimal performance, check refrigerant levels, and inspect electrical components.
