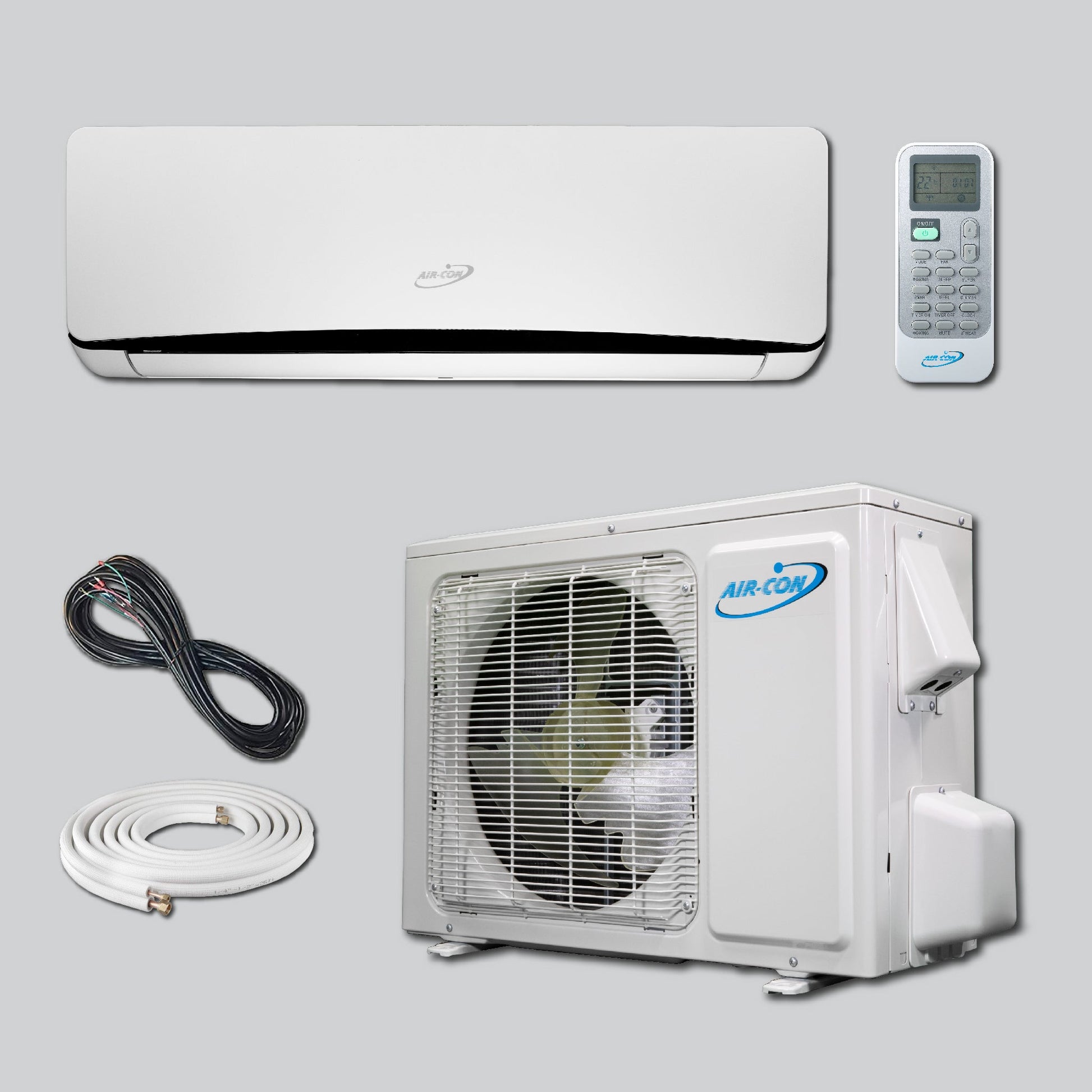

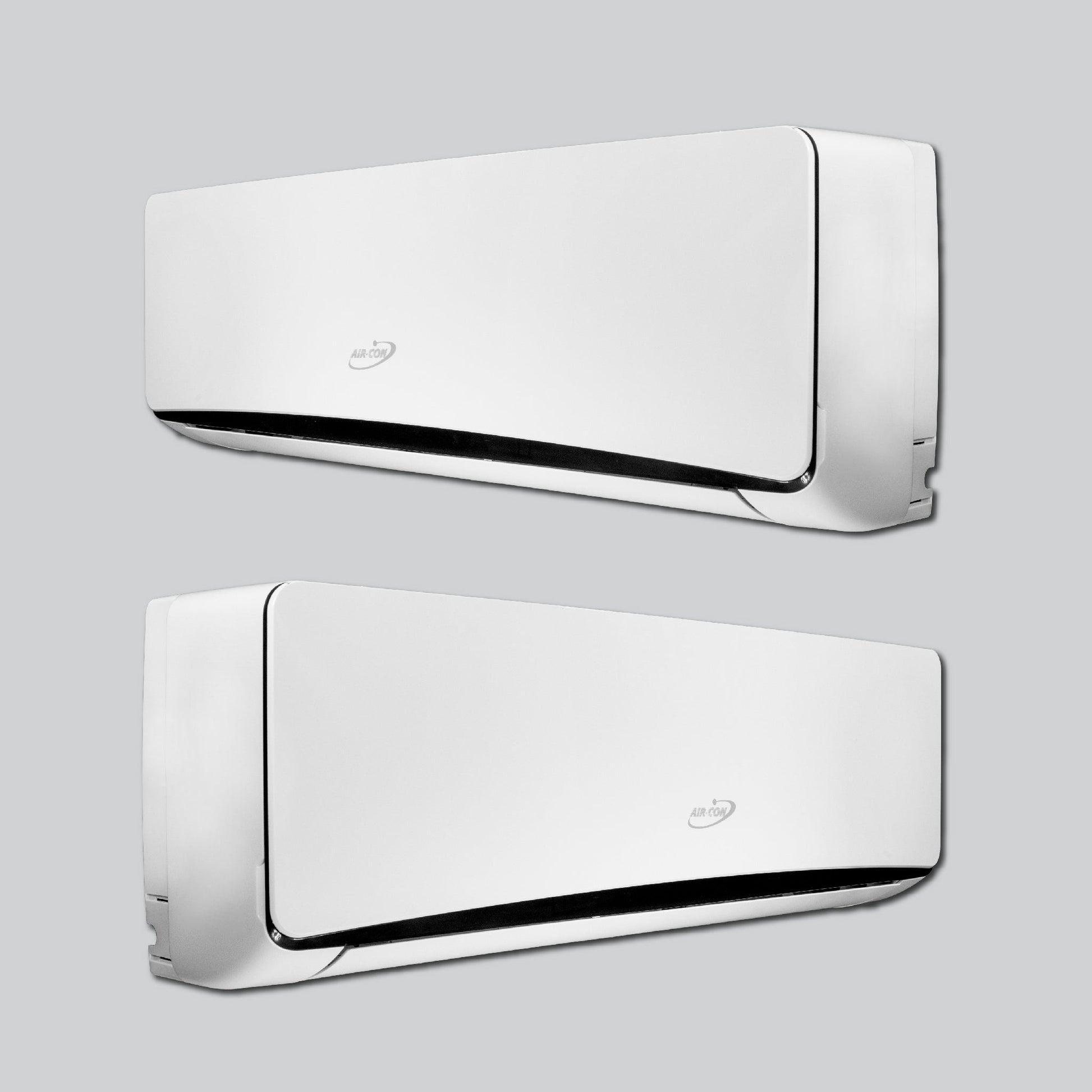

Air-Con Titanium 9000 BTU Ductless Mini Split Air Conditioner Heat Pump System 19 SEER 110-120V - ATUCI/EM4H1S09
Enjoy year round comfort with the ability to heat or cool your room or space with Air-Con Titanium series 9000 BTU ductless air conditioner.
Features
- Inverter technology to lower operating costs
- Turbo mode for fast heating and cooling
- Sleep mode for comfortable sleeping
- Auto clean prevents mildew
- Auto reset for power interruptions
- 24 hour timer with last-setting memory
- Dedicated dehumidifier
- Horizontal and vertical louver motion

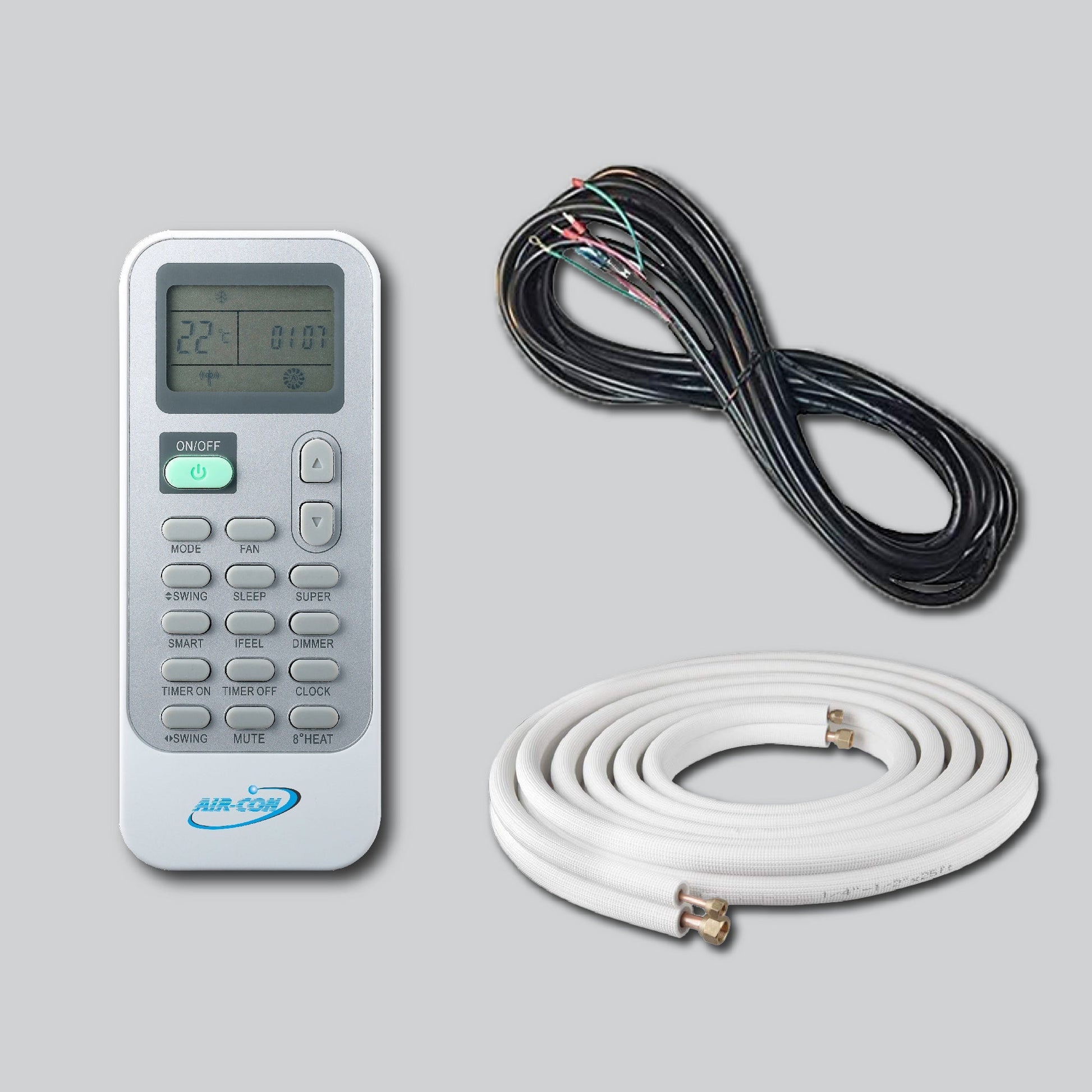

- WIFI ready with optional remote*
Specifications
| Model |
ATUCI4H1S09 / ATUEM4H1S09 |
| Voltage / Frequency / Phase |
110/115V - 60Hz - Single Phase |
| Cooling Capacity (BTU) |
9,000 |
| Heating Capacity (BTU) |
9,500 |
| Power Consumption (Watts) |
810 |
| Amperage (A) |
7.4 |
| SEER |
19.3 |
| HSPF |
10.5 |
| Operating Ambient Temperature |
5°F Cooling / -4°F Heating |

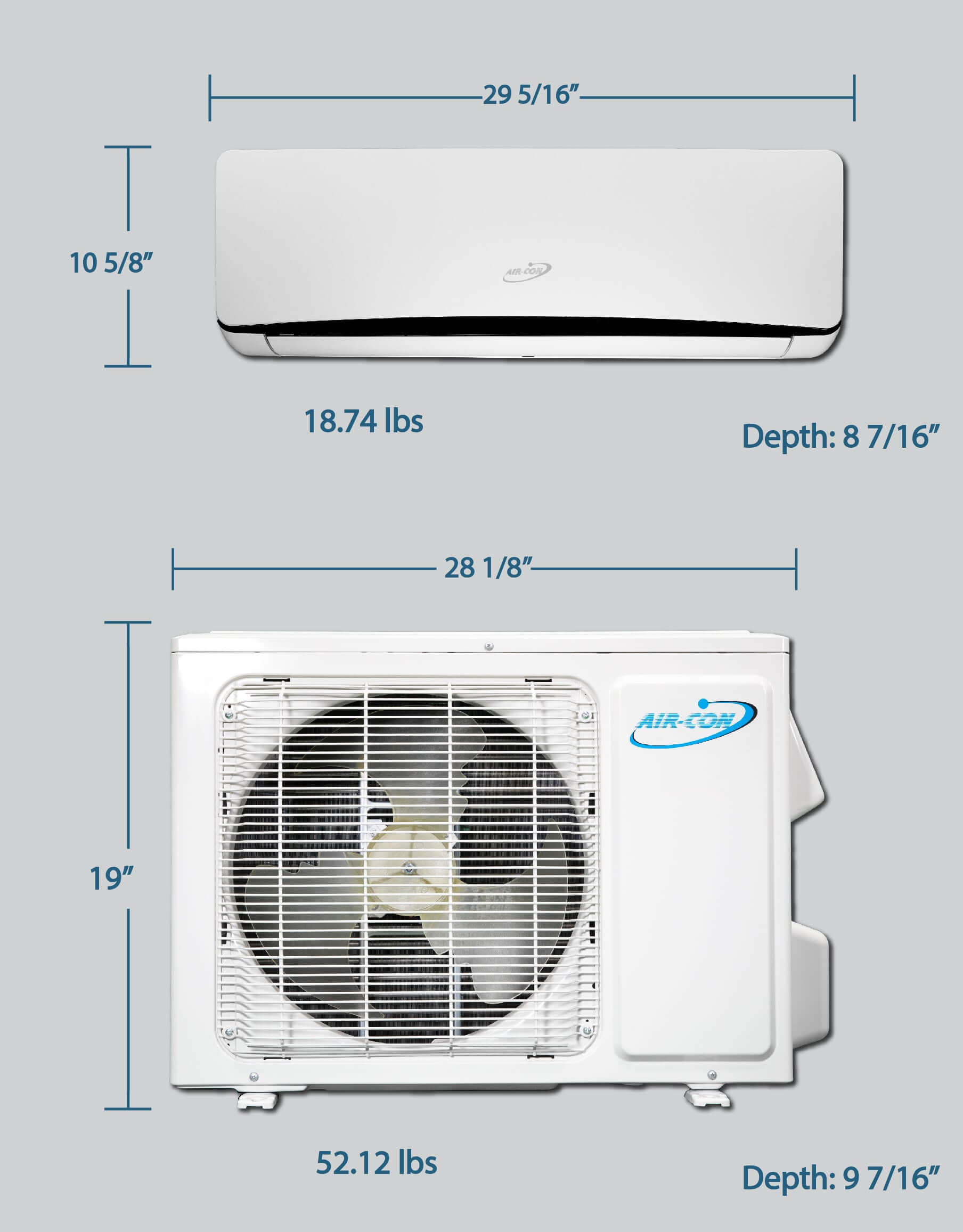

| Indoor Unit Dimensions (W x H x D) |
29 5/16" x 10 5/8" x 8 7/16" |
| Outdoor Unit Dimensions (W x H x D) |
28 1/8" x 19" x 9 7/16" |
| Lineset Size |
1/4" & 3/8" |
What our Experts Think
-
Ideal for Small to Medium Rooms: Perfect for spaces up to 600 sq. ft., such as bedrooms, offices, or small living areas.
-
Efficient Year-Round Comfort: Provides both cooling and heating, with heating capabilities down to -4°F, ensuring consistent comfort in various climates.
-
Energy Efficient: Achieves an 18 SEER and 9.35 HSPF rating, helping to reduce energy consumption and lower utility bills.
-
Comprehensive Installation Kit: Comes pre-charged with refrigerant and includes the necessary components for installation, simplifying the setup process.
-
Advanced Features: Equipped with inverter technology, turbo mode, sleep mode, auto-clean, auto-reset, 24-hour timer, and dedicated dehumidifier for enhanced comfort.
-
Quiet Operation: Designed to operate with minimal noise, maintaining a peaceful environment, ideal for bedrooms and offices.
-
Smart Home Integration: Wi-Fi ready with an optional remote, allowing for remote control and integration with smart home systems.
Q&A
Q: What is the cooling and heating capacity of the Air-Con Titanium 9000 BTU Mini Split?
A: This unit delivers 9,000 BTU of cooling and 9,500 BTU of heating, ideal for spaces up to 400 sq. ft.
Q: How energy efficient is this system?
A: With a 19 SEER rating and 10.5 HSPF, it offers high energy efficiency, helping to reduce electricity bills.Â
Q: What voltage does this unit operate on?
A: It operates on 110-120V, making it compatible with standard household electrical systems.
Q: Is this system suitable for both cooling and heating?
A: Yes, it functions as a heat pump, providing both cooling and heating for year-round comfort.
Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper performance and to maintain warranty coverage.
Maintenance Tips
-
Clean or Replace Air Filters Regularly: Inspect and clean the indoor unit's air filters every 1–2 months. Replace them if they appear damaged or excessively soiled.
-
Inspect and Clean Coils Annually: Dust and debris can accumulate on the evaporator and condenser coils, reducing efficiency. Use a soft brush or a vacuum with a brush attachment to clean them.
-
Check Refrigerant Levels Annually: Low refrigerant levels can decrease cooling efficiency and damage the compressor. Have a professional technician check and top up refrigerant as needed.
-
Inspect and Clear Drain Lines Quarterly: Regularly check and clean the condensate drain line to prevent clogs and water damage.
-
Maintain Outdoor Unit: Keep the outdoor unit free from debris such as leaves and dirt to ensure proper airflow. Use a garden hose with a gentle spray to clean the coils, being careful not to bend the fins.Â
-
Schedule Annual Professional Maintenance: Have a qualified HVAC technician perform a comprehensive inspection and servicing at least once a year to ensure optimal performance.
