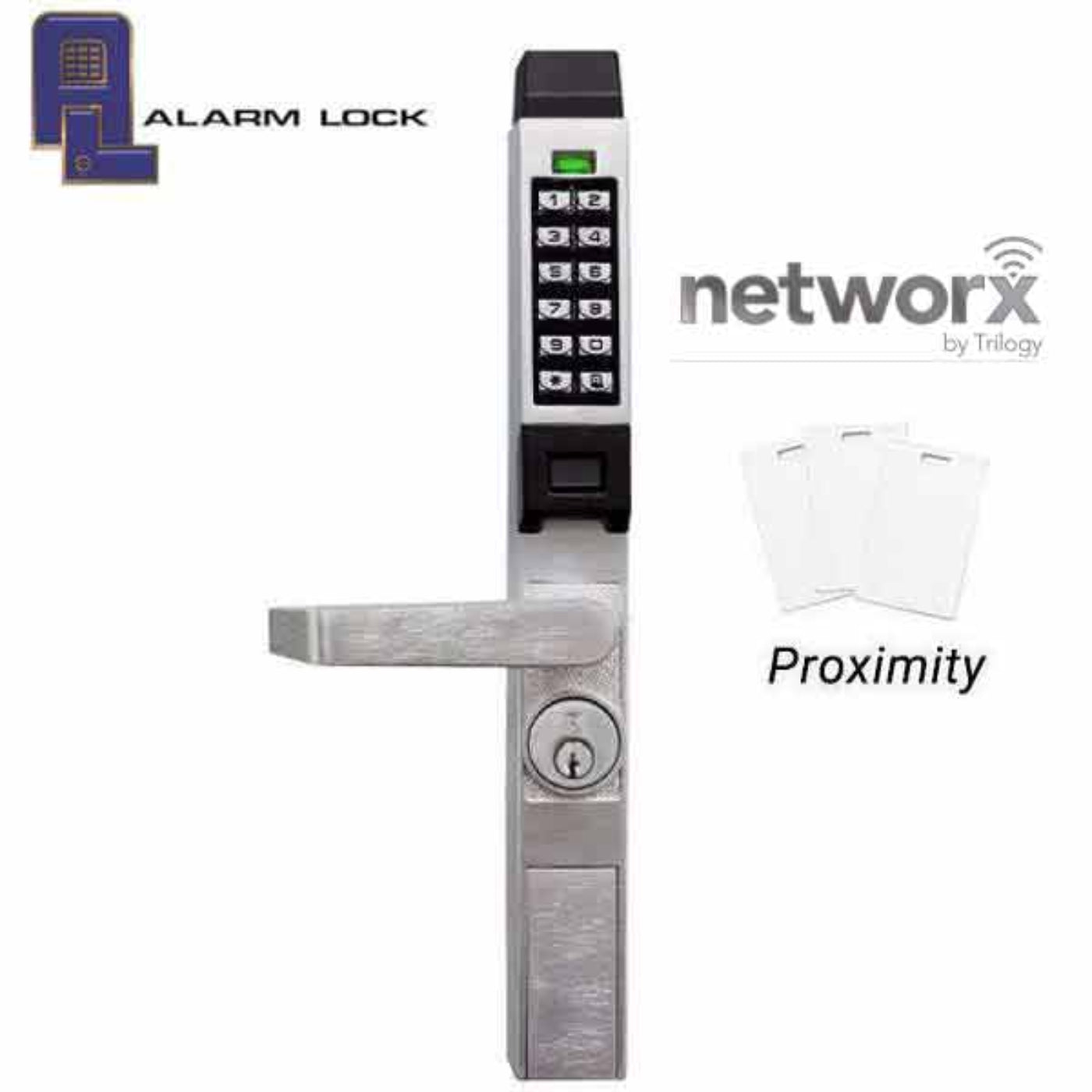

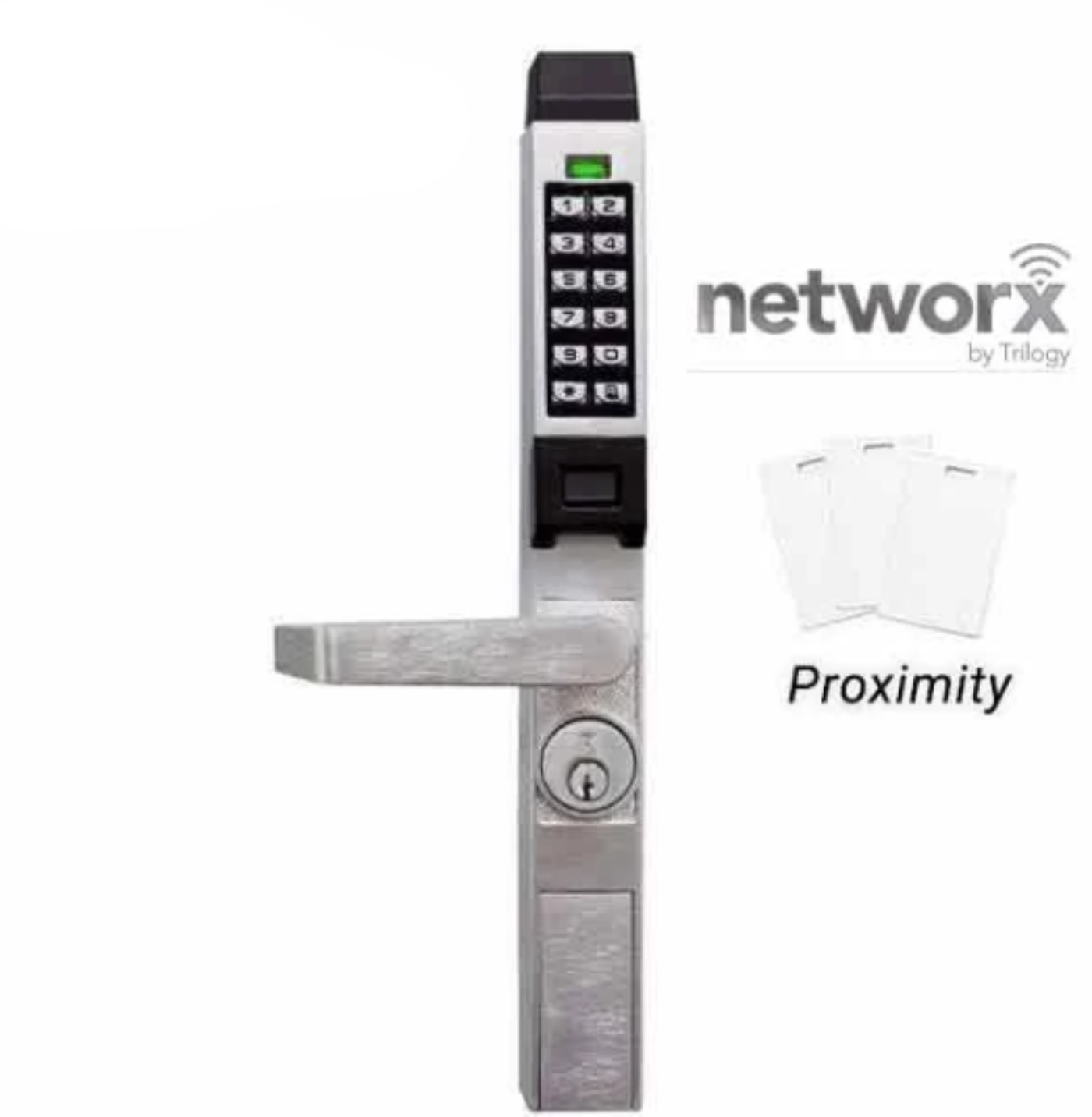

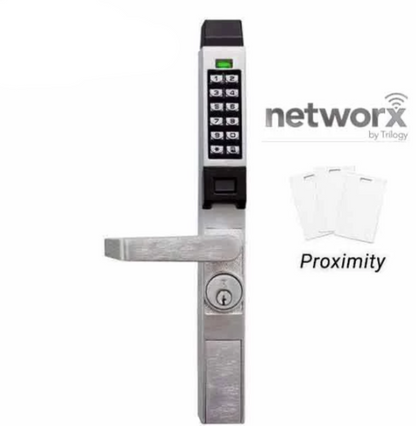

Alarm Lock Trilogy Narrow-Stile Digital PROX Keypad Lever Lock - Networx - 26D - Satin Chrome - ALL-PDL1300-NW
Trilogy Narrow Stile Keypad Lever Lock w/ Audit Trail supports Adams Rite latch. products. Get field-proven Trilogy keyless access lock convenience anywhere there's a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1300 series is a rugged entry lock of advanced design with several programmable features.
Features
- Built-in Proximity Reader: Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- Features Alarm Locks Networx connectivity so you can communicate with up to 63 different locks via a gateway connection
- Include a mortise cylinder that has 2 keys included
- More Information Below
Specifications
| LOCK FUNCTION |
Entrance Narrow-Stile PROX Keypad Lever Lock w/ Audit Trail |
| DOOR THICKNESS |
Only Stile thickness 1 ¾" |
| BACKSET |
3 1/32”,1 1/8’ and 1 1/2” |
| HANDING |
Non-handed; fully field-reversible |
| LEVER TRIM |
Leverset compatible with Adams Rite 4500, 4700 & 4900 series deadlatch |
| POWER |
Long-life, battery-operated for 80,000 to 100,000 Cycles respectively, typical on two 3-Volt 123A Lithium batteries, supplied; low battery alert |
| CYLINDER |
6-pin standard mortise cylinder in SC1 Keyway supplied (Supports 1-1/2" 1-3/8”) |
| KEYS |
2 Keys Included |
| CAMS |
Cams supplied works with generic Alarm Lock cylinder |
| PROGRAMMABLE |
Yes |
| USER CODES |
support 2000 users by PIN, HID Prox ID cards, or fobs. PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| PROXIMITY FREQUENCY |
125 kHz |
| GATEWAYS & COMPATIBILITY |
Choice of networking options for any application, control 63 locks per Gateway and 2016 Locks per system. Compatible with AL-IME2, AL-IME2-80211, AL-IME2-POE |
| SOFTWARE |
Free Windows-based software for programming, entering users, and receiving time-/date-stamped (by user) 35K event audit trail from the lock. |
| WEATHERPROOF |
-31˚ to +151˚F (-35˚ to +66˚C) |
| CONSTRUCTION |
Zinc Alloy, Vandal Resistant |
| FINISH |
26D Satin Chrome |
What Our Experts Think
-
Networx Wireless Technology: This lock integrates seamlessly with the Networx wireless system, allowing remote management, access control, and programming from a central system.
-
Prox Keypad & Digital Lock: Equipped with both a keypad and proximity reader, offering dual authentication methods for enhanced security.
-
Audit Trail: High-capacity audit trail feature tracks up to 40,000 events, making it ideal for managing multiple users and monitoring access logs.
-
Narrow-Stile Design: Specifically designed for narrow-stile door frames, offering a slim profile for modern door setups.
Q&A
Q: What is the Alarm Lock Trilogy Narrow-Stile Digital PROX Keypad Lever Lock - Networx (ALL-PDL1300-NW)?
A: The Alarm Lock Trilogy Narrow-Stile Digital PROX Keypad Lever Lock - Networx (ALL-PDL1300-NW) is a high-security keyless entry lock that combines a proximity card reader and digital keypad. It is designed for narrow stile doors and offers networked wireless functionality for remote control and monitoring.
Q: What finish does this model have?
A: The lock comes in a Satin Chrome (26D) finish, offering a sleek and durable appearance for a wide range of environments.
Q: What kind of access control does this lock provide?
A: The lock offers both proximity card access and PIN code entry, providing flexible options for secure access control.
Q: What is the Networx feature?
A: The Networx feature allows the lock to be part of a wireless network, enabling remote management, programming, and monitoring from a central location or a computer system.
Q: Is it suitable for commercial use?
A: Yes, this lock is designed for commercial or institutional applications, providing advanced security for businesses, schools, hospitals, and more.
Q: Does this lock support an audit trail?
A: Yes, it includes an audit trail feature that stores and tracks up to 40,000 access events, helping administrators to monitor and review entry history.
Maintenance Tips
-
Battery Replacement: Replace batteries annually or when the low battery alert appears.
-
Clean Keypad & Prox Reader: Regularly clean with a soft, damp cloth to prevent dirt and grime buildup.
-
Audit Trail Monitoring: Frequently download and review audit trail data for enhanced security tracking.
-
Firmware Updates: Keep firmware updated to ensure smooth networked operation.
-
Network Connectivity: Check wireless connection regularly for uninterrupted remote management.
-
Lubrication: Apply silicone-based lubricant to moving parts every 6 months for smooth lever operation.
-
Test Access Control: Periodically test prox card and keypad functionality to ensure seamless access control.
