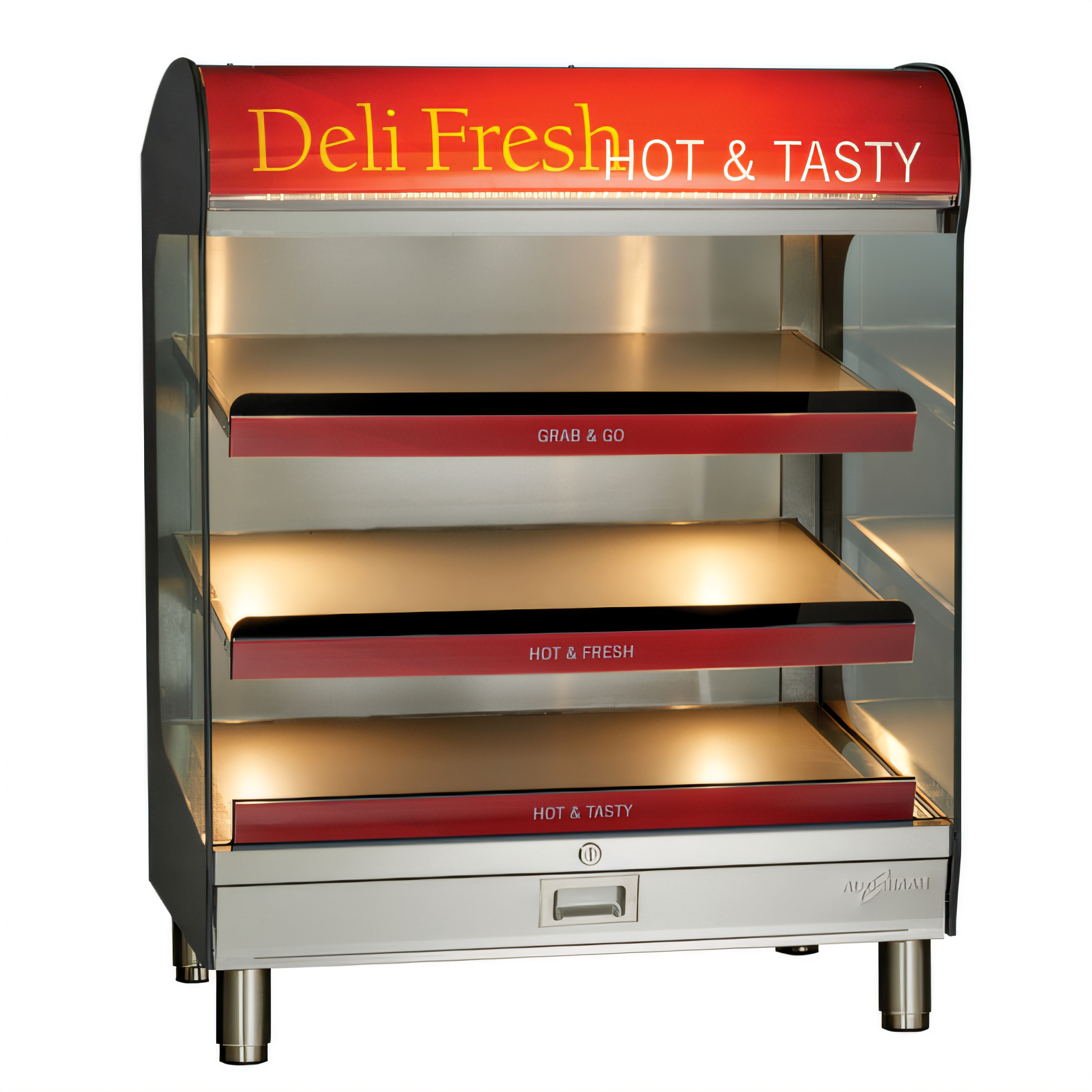

Alto-Shaam HSM-36/3S/T Halo Heat Hot Food Displays - HSM-36/3S/T
Self-service • 3 heated shelves • 72 lb total capacity
Turn grab-and-go traffic into guaranteed sales with Alto-Shaam’s Halo Heat™ technology. The compact HSM-36/3S/T keeps rotisserie chicken, pizza, sandwiches and more at peak freshness—without fans, hot spots or dried-out food.
Features
- Halo Heat™ gentle radiant heat surrounds product with even top & bottom warmth—no drying, no fans, whisper-quiet.
- Three full-width heated shelves (32-7/8" W × 20-1/2" D) with individual thermostatic controls for menu flexibility.
- Includes six chicken boats with dome covers per shelf—merchandise up to 18 whole birds at once.
- Bright, energy-saving LED lighting on every shelf maximizes product visibility and impulse buys.
- Open, self-service front speeds customer access; optional pass-through rear door kits available.
- Front-mounted latched access panel simplifies cleaning and service.
- (4) 4" adjustable stainless-steel legs create a sturdy, NSF-compliant countertop footprint.
- IPX4 splash-proof, cULus, CE & UL EPH Classified for safe operation in any foodservice environment.
- Made in the USA, backed by Alto-Shaam’s ISO 9001:2015 quality commitment & industry-leading warranty.
Specifications
| Model |
HSM-36/3S/T |
| Exterior dimensions (H × W × D) |
54" × 36" × 27-1/4" (1372 × 914 × 692 mm) |
| Heated shelf surface |
31-7/8" × 19-1/2" (810 × 495 mm) each |
| Electrical |
208-240 V, 1 ɸ, 50/60 Hz, 8.8-10.0 A, 1.82-2.41 kW
6′ cord with NEMA 6-15P plug |
| Listings |
cULus • CE • UL EPH • IPX4 |
| Net weight |
311 lb (141 kg) |
Capacities
| Total holding capacity |
72 lb (33 kg) |
| Per-shelf capacity |
24 lb (11 kg) |
| Ships with |
18 chicken boats with dome covers |
| Shelf temperature range |
Approx. 90–200 °F (32–93 °C), adjustable |
Ideal For
- Supermarket delis & rotisserie programs
- C-stores & forecourts
- University & corporate dining
- Stadium kiosks & concessions
- Ghost kitchens & commissaries
What’s Included
- HSM-36/3S/T countertop merchandiser with three Halo Heat™ shelves
- (18) chicken boats with dome covers
- (4) 4" adjustable legs
- User, installation & warranty documentation
What our Experts Think
-
Wide Display Capacity – At 36 inches wide with 3 shelves, this unit provides ample space to showcase a variety of hot grab-and-go items.
-
Halo Heat® Advantage – Maintains consistent, gentle heat to preserve moisture and flavor without overcooking or drying food.
-
Enhanced Merchandising – Transparent design and tiered shelving maximize product visibility, driving impulse sales.
-
Flexible Applications – Well-suited for supermarkets, cafeterias, and quick-service restaurants needing reliable hot food holding.
-
Operational Efficiency – Energy-efficient system lowers utility costs while keeping food presentation-ready for extended periods.
Q&A
Q: What is the Alto-Shaam HSM-36/3S/T?
A: The HSM-36/3S/T is a 36-inch wide Halo Heat® hot food merchandiser with 3 heated shelves, designed to keep grab-and-go items hot, appealing, and ready for self-service.
Q: What heating system does it use?
A: It uses Halo Heat® technology, which provides gentle, even heat to maintain ideal serving temperatures without overcooking or drying out food.
Q: How many shelves does it include?
A: This model features three heated shelves, each with independent temperature controls for flexible product holding.
Q: What types of food can it hold?
A: It’s great for pizza, hot sandwiches, fried chicken, sides, breakfast items, and packaged meals.
Q: Does it enhance product visibility?
A: Yes. It has glass sides, LED lighting, and an open front for easy customer access and maximum product visibility to drive impulse sales.
Q: What are the main benefits of this merchandiser?
A: It extends hot holding times, reduces shrink and waste, maintains food quality, and increases grab-and-go sales opportunities.
Q: Where is the HSM-36/3S/T best used?
A: Ideal for convenience stores, supermarkets, cafeterias, and quick-service restaurants.
Maintenance Tips
-
36-inch heated shelf merchandiser with Halo Heat® technology for precise holding
-
Features 3 heated shelves, each with independent temperature controls
-
Keeps food warm without drying, overcooking, or added humidity
-
Glass panels on all sides enhance visibility and drive impulse sales
-
Compact footprint fits seamlessly into front-of-house or retail spaces
-
Energy-efficient operation lowers costs while maintaining food quality
-
Durable stainless steel frame ensures long-lasting performance
-
Easy-to-clean surfaces for quick sanitation and food safety
-
Ideal for c-stores, quick-service, grocery, and cafeteria applications
-
UL and NSF certified for commercial foodservice use
