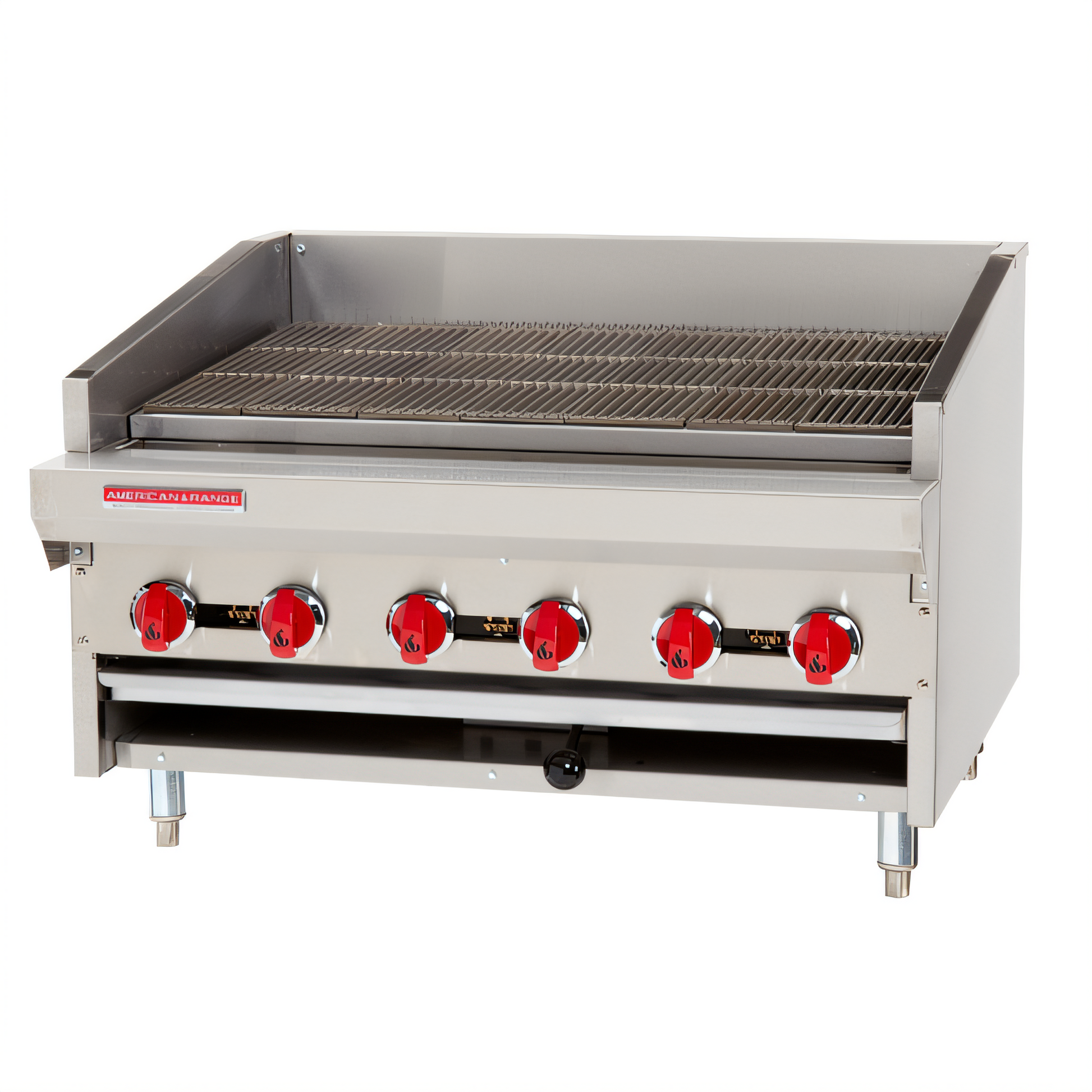

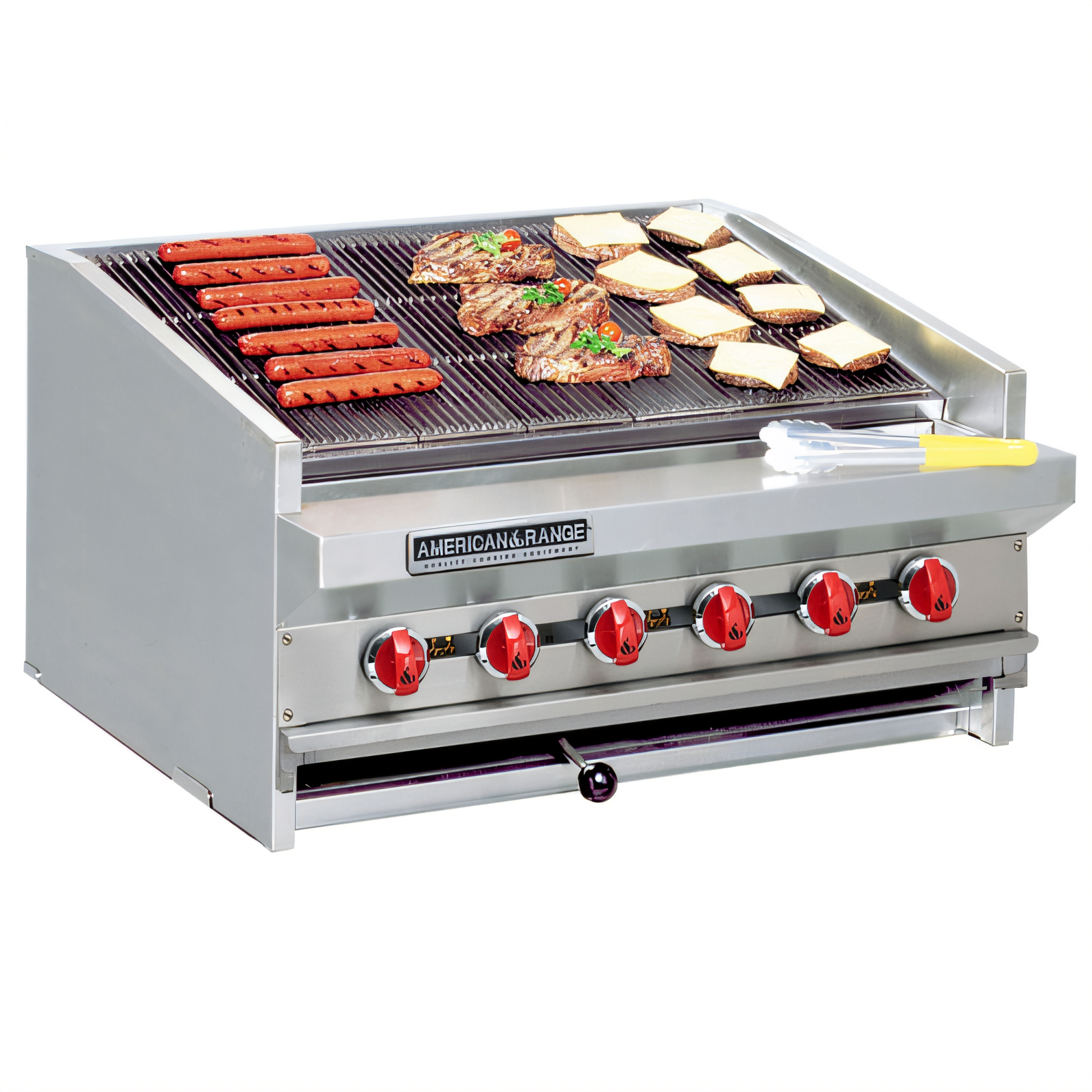

American Range Gas Charbroilers - ADJ-48
48" Wide | 8 Burners | 160,000 BTU
Bring steak-house power to your line with the ADJ-48. This USA-built, 48" countertop charbroiler packs eight independent 20,000 BTU burners, heavy-duty cast-iron grates and a three-position adjustable cooking surface—giving chefs total control over heat, speed and flavor.
Key Features
- 160,000 BTU (47 kW) total output from eight individually controlled 20,000 BTU burners
- Radiant cooking system with rugged cast-iron grates for even heat & signature sear marks
- Three-position grate with stay-cool lift handle—adjust height without removing product
- Stainless-steel exterior and fully welded frame stand up to demanding, high-volume kitchens
- 4" rear splash and tapered side splashes help contain heat & grease
- Full-width drip, crumb & grease trays slide out for quick cleaning
- 4" adjustable legs for leveling; optional caster kit available (sold separately)
- Field convertible for Natural or Propane gas (specify at order)
- ETL Listed for safety & sanitation
- Backed by a two-year limited parts & labor warranty
Performance & Control
- Create multiple temperature zones across the expansive 48" surface
- Cast-iron radiants shield burners while distributing heat evenly
- Grate sections lift out for effortless cleaning and service
Specifications
| Specification |
Details |
| Model |
ADJ-48 |
| Gas Type |
Natural or Propane |
| Total BTU |
160,000 BTU/h |
| Total kW |
47 kW |
| Burners |
8 × 20,000 BTU |
| Cooking Surface Width |
48" (1219 mm) |
| Overall Dimensions (W × D × H) |
48" × 32 3/8" × 20 1/4" (1219 × 822 × 514 mm) |
| Gas Inlet |
3/4" NPT |
| Manifold Pressure |
Natural 5.0" W.C. | Propane 10.0" W.C. |
| Adjustable Grate Positions |
3 |
| Construction |
Stainless-steel body, cast-iron grates & radiants |
| Leg Height |
4" adjustable |
| Shipping Weight |
440 lb (200 kg) |
| Certifications |
ETL (US & Canada), ETL Sanitation |
| Origin |
Designed & Built in USA |
What Our Experts Think
-
48" countertop gas charbroiler with adjustable cast iron grates for flexible cooking.
-
Equipped with 8 burners at 20,000 BTU each, providing a powerful 160,000 BTU/hr output.
-
Durable stainless steel construction ensures long-lasting performance in busy kitchens.
-
Spacious grilling surface ideal for restaurants, hotels, and catering services.
-
ETL certified and proudly designed/built in the USA.
Q&A
Q: How big is the cooking surface?
A: 48" wide with 32 3⁄8" depth — perfect for handling multiple orders at once.
Q: What type of gas does it use?
A: Compatible with both Natural Gas (5.0" W.C.) and Propane (10.0" W.C.).
Q: Is it designed for heavy-duty commercial use?
A: Yes, the 8 high-output burners and cast iron grates are built for high-volume grilling.
Maintenance Tips
-
Brush and clean cast iron grates after each use.
-
Empty and wash drip trays daily to avoid grease hazards.
-
Inspect burners and gas connections regularly for safe operation.
-
Clean stainless steel body with mild soap and warm water.
-
Arrange annual professional servicing to ensure peak efficiency.
