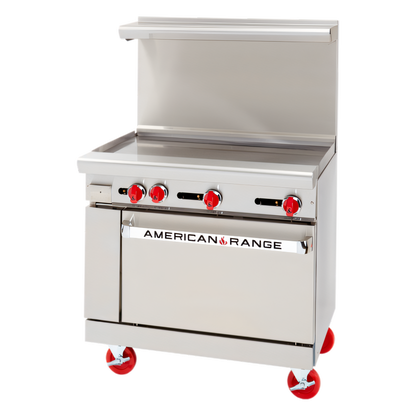

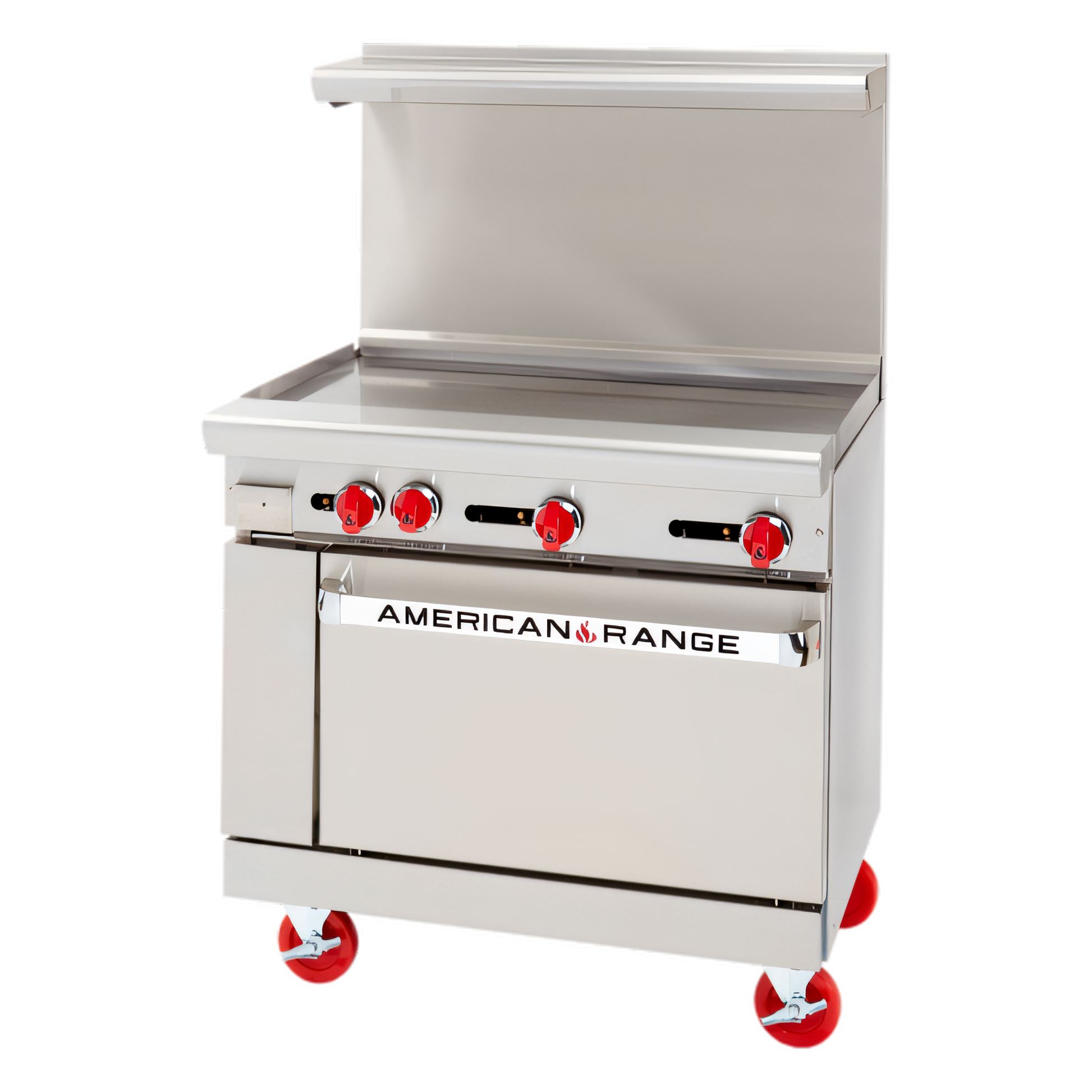

American Range Gas Ranges - AR-36G
Model AR-36G | Made in USA | cETLus & ETL-Sanitation
Built for the rigors of a high-volume kitchen, the American Range AR-36G combines a full-width 1" thick griddle with a spacious standard oven, delivering a total of 95,000 BTU of precise, dependable heat in just 36 inches of line space.
Features
-
Heavy-Duty 1" Griddle Plate – Three 20,000 BTU burners (one every 12") provide even heat across the entire 36" surface.
-
Quick-Clean Design – 3" wide grease trough and a full-width removable drip pan keep service moving and cleanup simple.
-
Powerful Standard Oven – 35,000 BTU steel burner, porcelain-enameled interior, and thermostat range of 250 °F-500 °F (121 °C-260 °C).
-
Durable Stainless Construction – Front, sides, back-splash, and 6" landing ledge resist corrosion and look sharp on the line.
-
Adjustable 6" Chrome-Plated Legs – Level the range quickly on any non-combustible floor surface.
-
No-Charge Back Options – Choose a 6" stub back, 20" back riser, or high shelf & riser to match your ventilation set-up.
-
Safety & Compliance – cETLus & ETL-Sanitation listed and supplied with factory-installed pressure regulator.
Oven Performance
- Interior dimensions: 26-1/2"W × 22-1/2"D × 13-1/2"H (673 × 572 × 343 mm).
- (2) chrome-plated racks included; two fixed rack positions.
- Spring-assisted, counter-weighted door—no adjustment required.
- 100 % gas shut-off for dependable safety.
Specifications
| Width |
36" (914 mm) |
| Depth |
32-1/2" (825 mm) | 39-1/2" (1003 mm) with door open |
| Cooking Surface Height |
36" (914 mm) |
| Height w/ 20" Riser |
56" (1422 mm) |
| Total Input |
95,000 BTU/hr | 28.0 kW |
| Griddle Plate |
36"W × 24"D, 1" thick polished steel |
| Oven Burner |
35,000 BTU/hr steel tube |
| Temperature Range |
250 °F – 500 °F (121 °C – 260 °C) |
| Gas Connection |
3/4" NPT rear; 5" W.C. NG or 10" W.C. LP (specify when ordering) |
What our Experts Think
-
All‑In‑One Griddle & Oven Solution
The American Range AR‑36G features a 36″ heavy‑duty griddle paired with a standard oven base, giving kitchens the flexibility to cook flat‑top items and bake or roast—ideal for diners, cafés, and commercial lines where space efficiency matters.
-
Heavy‑Duty Griddle Performance
A 1″ thick polished steel griddle with multiple 20,000 BTU burners provides even heat distribution, fast recovery, and strong performance for burgers, pancakes, eggs, and other high‑volume griddle tasks.
-
Reliable Standard Oven
The integrated oven delivers 35,000 BTU with a 250°F–500°F thermostat range, a porcelain‑enameled interior, and chrome‑plated racks—great for consistent baking and roasting during peak service.
-
Commercial‑Grade Construction
Built with stainless steel front and sides, a rugged welded frame, and adjustable legs, this range is designed for demanding kitchen environments and easy sanitation.
-
Easy Cleanup & Versatile Setup
Features like a removable full‑width drip pan, grease trough, and optional backguard configurations (stub, riser, or high shelf) simplify maintenance and adapt to your kitchen layout.
Q&A
Q: What is the American Range AR‑36G?
A: The American Range AR‑36G is a 36‑inch commercial gas restaurant range that combines a full‑width manual griddle with a standard oven — built for heavy‑duty, high‑volume professional kitchens.
Q: What cooking surfaces does it include?
A: It features a 36″ full‑width griddle plate (1″ thick polished steel) with manual controls and a standard oven with adjustable racks for baking and roasting.
Q: How much heat output does it deliver?
A: Total gas input is about 95,000 BTU/hr, providing dependable heat for griddle and oven cooking.
Q: What are the oven features?
A: The standard oven has a 35,000 BTU steel burner, a porcelain‑enameled interior, and a thermostat range of roughly 250°F–500°F, with racks included.
Q: What construction quality does it offer?
A: Built with stainless steel front and sides, a sink‑strengthened welded frame, and adjustable chrome‑plated legs for durability and easy cleaning in busy foodservice environments.
Q: What are the dimensions?
A: The range measures 36″ W × ~32½″ D × ~56″ H (with standard legs).
Q: Is it certified for commercial kitchens?
A: Yes — the AR‑36G is cETLus and ETL‑Sanitation listed and Made in the USA, meeting professional safety and sanitation standards.
Q: What kitchens is this range best suited for?
A: Ideal for restaurants, diners, cafés, and catering operations that need both flat‑top griddle cooking and oven capability in a compact 36″ unit.
Maintenance Tips
-
Daily griddle cleaning: Scrape the 36″ griddle plate after every use and wipe away food residue and grease from the 3″ grease trough and removable drawer to maintain even heat and prevent buildup
-
Wipe stainless steel surfaces: Clean the front, sides, landing ledge, back‑splash, and any riser with a soft cloth and mild, non‑abrasive cleaner to protect the stainless finish and resist corrosion.
-
Clean oven interior regularly: Wipe the porcelain‑enameel standard oven cavity and chrome racks after cooling to prevent residue buildup and improve airflow and heating consistency.
-
Inspect gas connections: Check gas lines, fittings, and valve connections periodically for tightness and signs of wear; address any leaks promptly for safety and efficiency.
-
Check burners/pilots: If equipped, ensure pilot lights and burner ports are clear of debris so flames remain strong and efficient. Clean lift‑off burner components as needed.
-
Level the range: Adjust the 6″ chrome‑plated legs to keep the unit stable and level on non‑combustible floors for consistent cooking performance.
-
Season griddle surface: Lightly season the griddle with a thin coating of cooking oil before heavy use (after thorough cleaning) to enhance surface protection and reduce sticking.
-
Annual professional service: Schedule yearly inspection of valves, ignition systems, and thermostat to ensure safe, reliable commercial operation and prevent unexpected downtime. (turn
