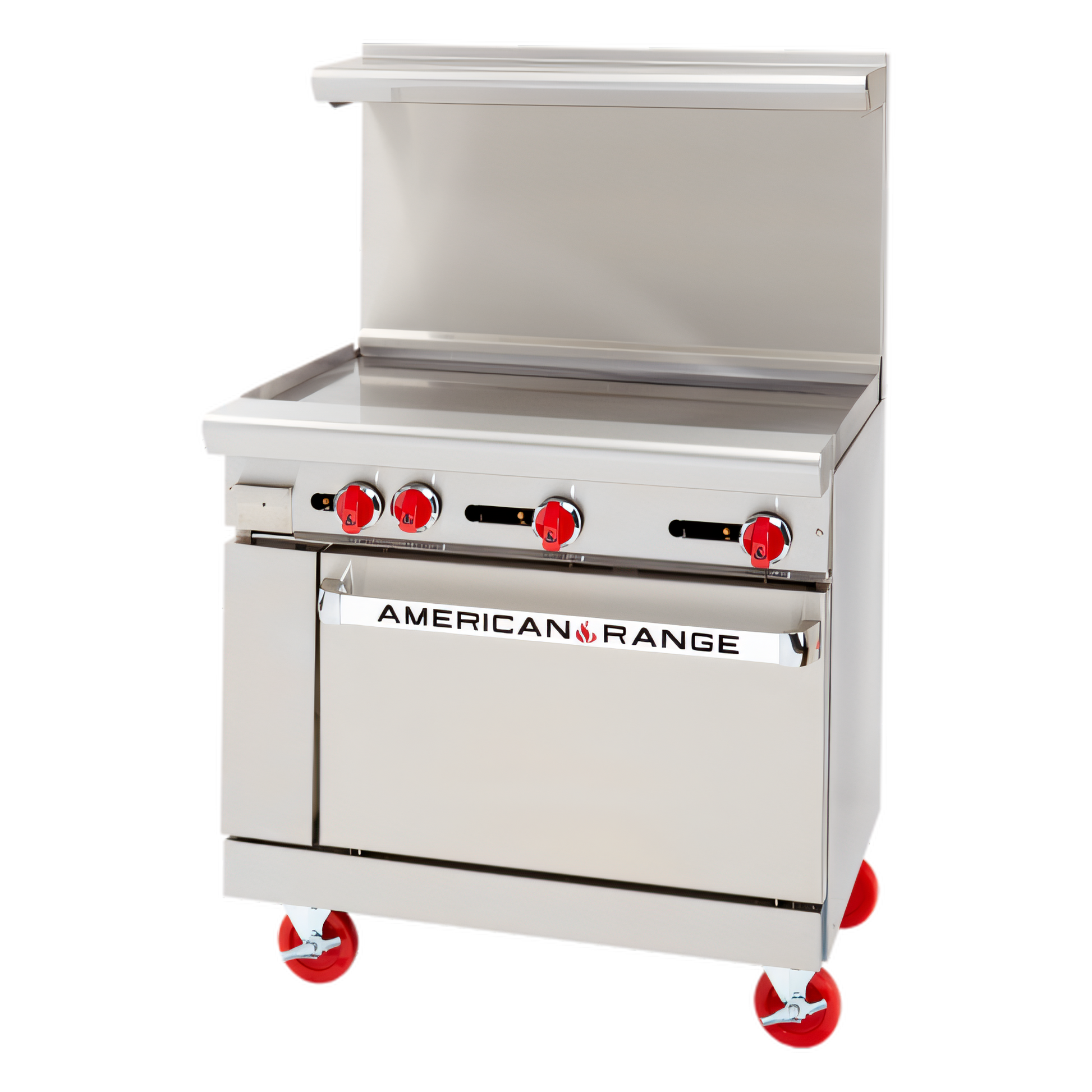

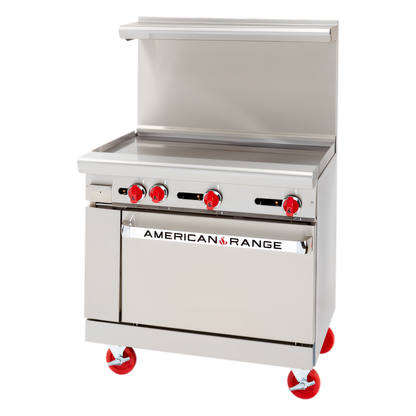

American Range Gas Ranges - AR-36G-SB
Model AR-36G-SB | 60,000 BTU | Natural or LP Gas
Rugged, USA-built construction meets precision griddle performance in a space-saving 36-inch footprint—perfect for high-volume diners, cafés, and ghost kitchens alike.
Key Features
- 1" thick polished steel griddle plate delivers superior heat retention and quick recovery.
- Three 20,000 BTU burners (one every 12") with individual manual controls for true zone cooking.
- Extra-wide 3" grease trough and full-width drip pan speed daily cleaning.
- 26-1/2" storage cabinet base keeps sheet pans, utensils, and dry goods at arm’s reach.
- Stainless steel front, sides, and 6" deep landing ledge withstand the toughest kitchen abuse.
- Choose your backsplash at no extra cost:
- 6" stainless steel stub back
- 20" backguard riser
- High riser with integrated shelf
- 6" chrome-plated adjustable legs (swivel casters optional).
- Rear ¾" NPT gas connection with factory-supplied pressure regulator.
- cETLus & ETL-Sanitation listed for worry-free code compliance.
- Made in the USA and backed by a 2-year parts & labor warranty.
Specifications
| Specification |
Details |
| Cooking Surface |
36" W × 24" D griddle (914 mm × 610 mm) |
| Plate Thickness |
1" (25 mm) polished steel |
| Total Input |
60,000 BTU/hr • 18.0 kW |
| Burner Configuration |
3 manual burners @ 20,000 BTU each |
| Overall Dimensions* |
36" W × 32-1/2" D × 56" H (with high riser) |
| Work Height |
36" on 6" legs |
| Base Style |
26-1/2" stainless storage cabinet |
| Gas Connection |
¾" NPT (rear) |
| Manifold Pressure |
Natural 5.0" W.C. • Propane 10.0" W.C. |
| Clearances (combustible / non-combustible) |
Side 12" / 0" • Rear 4" / 0" |
| Certifications |
cETLus, ETL-Sanitation |
| Country of Origin |
United States |
|
Warranty
|
2-year parts & labor (see warranty terms for details) |
What Our Experts Think
-
36" gas range featuring a full steel griddle top and a storage base instead of an oven.
-
Perfect for kitchens that need griddle cooking capacity with extra storage space below.
-
Heavy-duty steel griddle plate ensures even heating for consistent cooking results.
-
Built with stainless steel front, sides, and high shelf for durability and easy cleaning.
-
Great for diners, restaurants, and catering kitchens with limited space.
Q&A
Q: What type of cooking surface does it have?
A: A 36" wide griddle plate for versatile cooking.
Q: Does it include an oven?
A: No, it comes with a storage base for pans, trays, or utensils.
Q: Who is this range best for?
A: Ideal for kitchens focused on griddle cooking that also need extra storage capacity.
Maintenance Tips
-
Scrape and clean the griddle surface after each use.
-
Empty and wash grease drawer daily to prevent buildup.
-
Keep stainless steel exterior polished with non-abrasive cleaners.
-
Inspect gas lines and connections regularly.
-
Schedule yearly servicing for long-term reliability.
