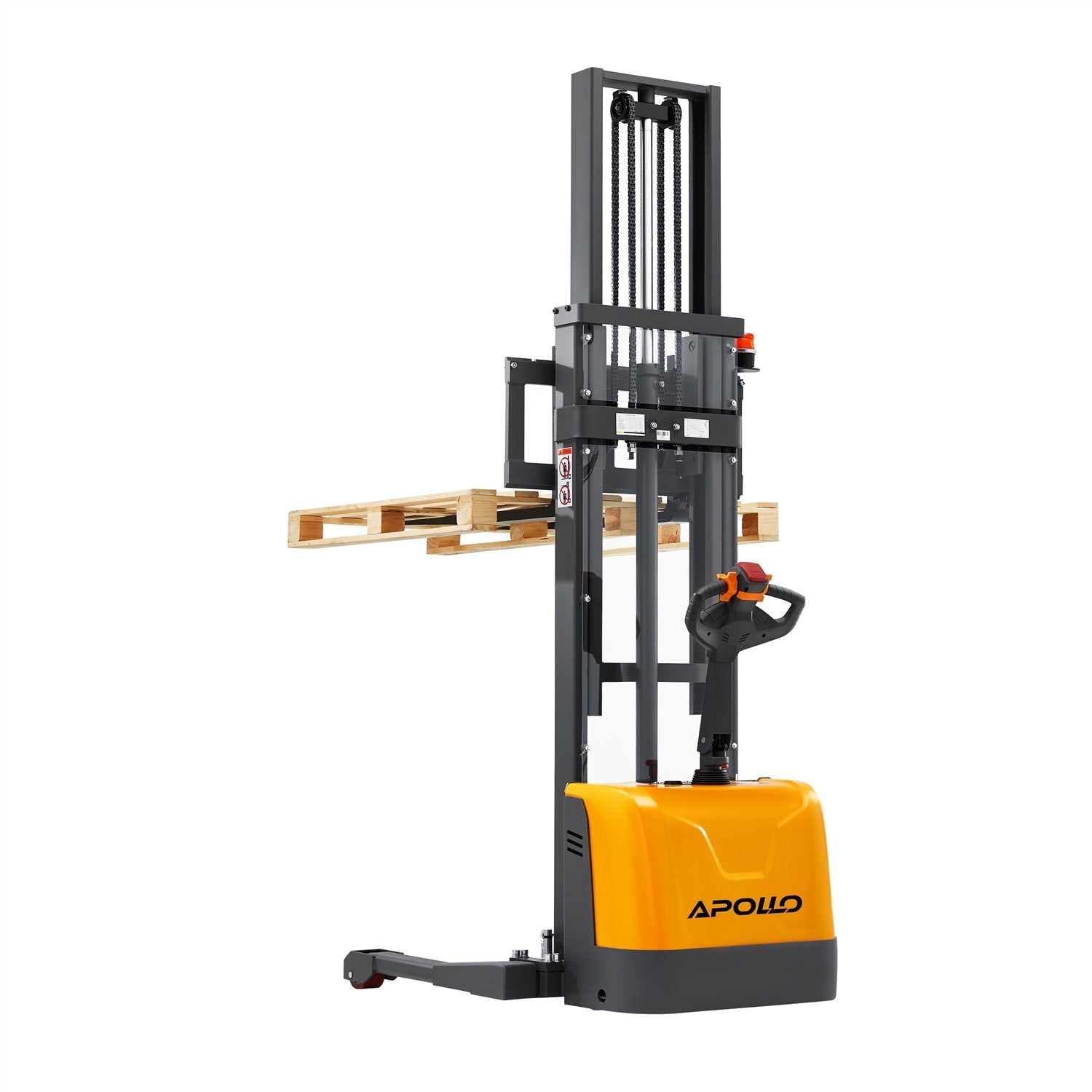

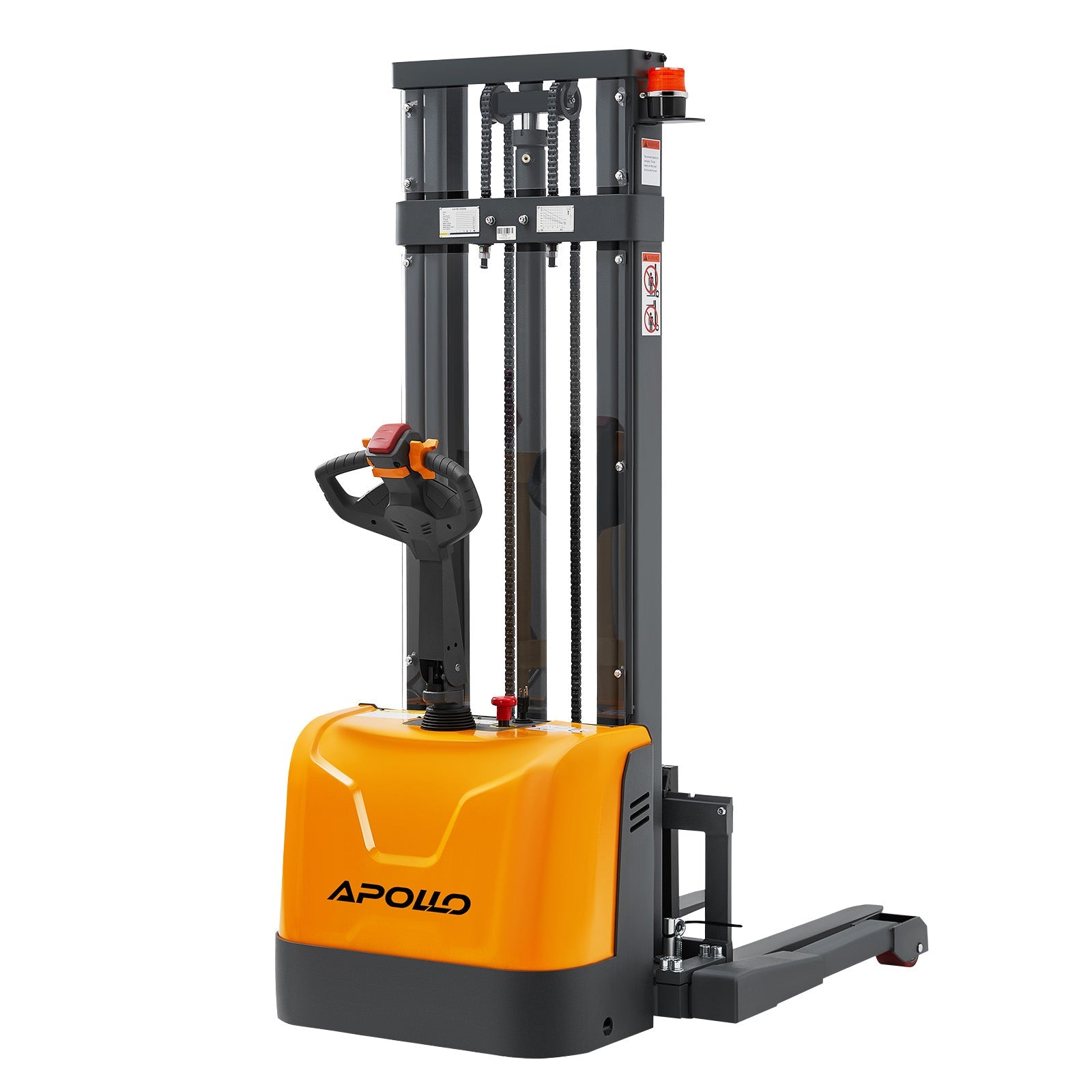

Apollolift Full Electric Straddle Stacker - A-3047
- 650-watt drive motor, 2,200-watt lift motor.
- Forks are adjustable to fit most pallets.
- Use GEL batteries that require no maintenance.
- Compact and agile, with a 52.9" turning radius for efficient operation in tight spaces.
- The display shows working hours, battery levels, and low-voltage alerts.
Features
- Smooth rolling polyurethane wheels; 180° steering arc.
- High component integration for easy maintenance and repairs.
- 110V Built-in Charger.
- 6 hours of service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.
- Safety-enhancing warning lights and buzzer included.
Specifications
- Not explosion proof.
- This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
Dimensions
- Overall Length: 70.3"
- Recommended Aisle Width: 88.3"
- Turning Radius: 52.9"

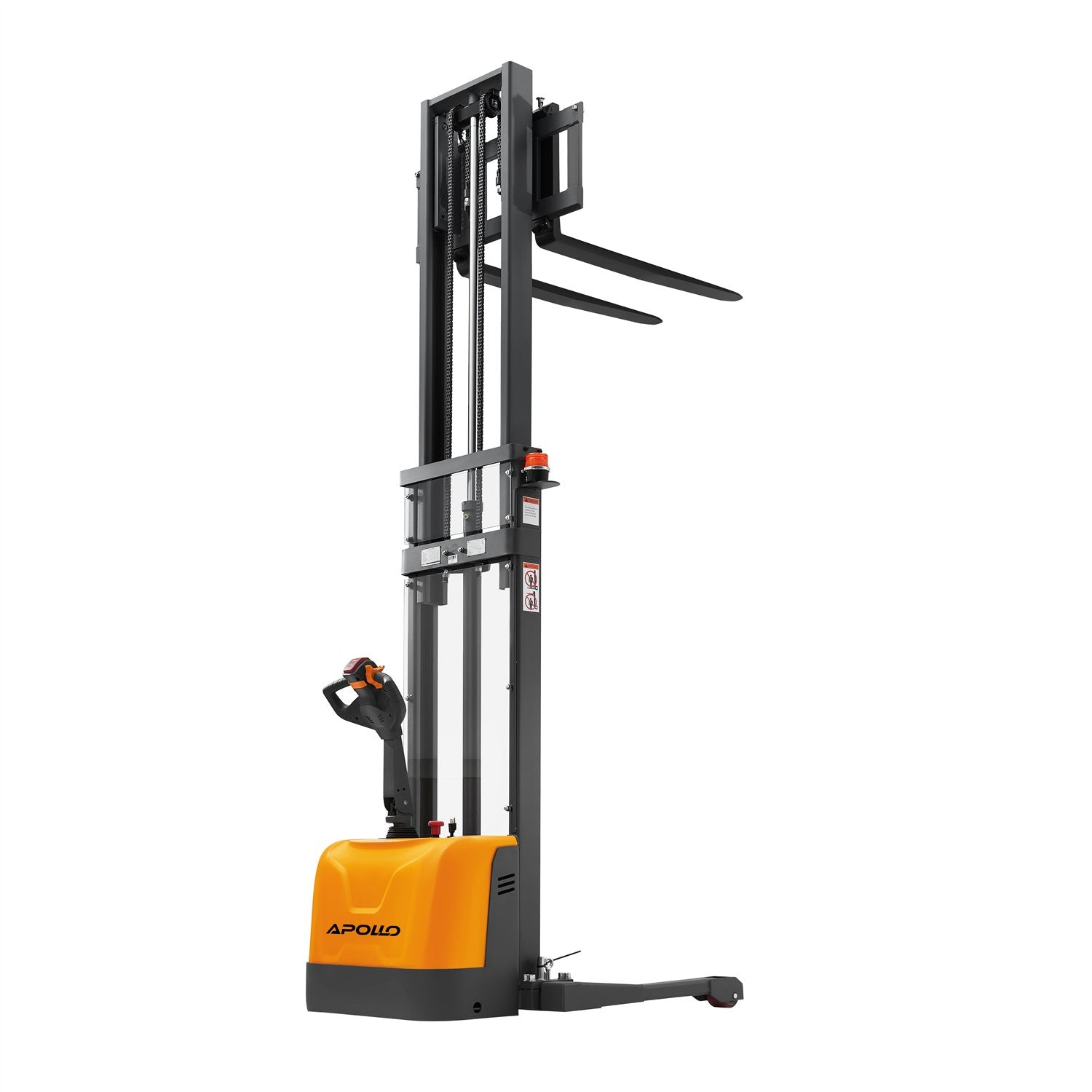

- Max. Lifting Height: 118''
- Mast Height Lowered: 84.4''
- Mast Height Raised: 143.5''
- Load Center: 23.6"
- Ground Clearance: 2.56"

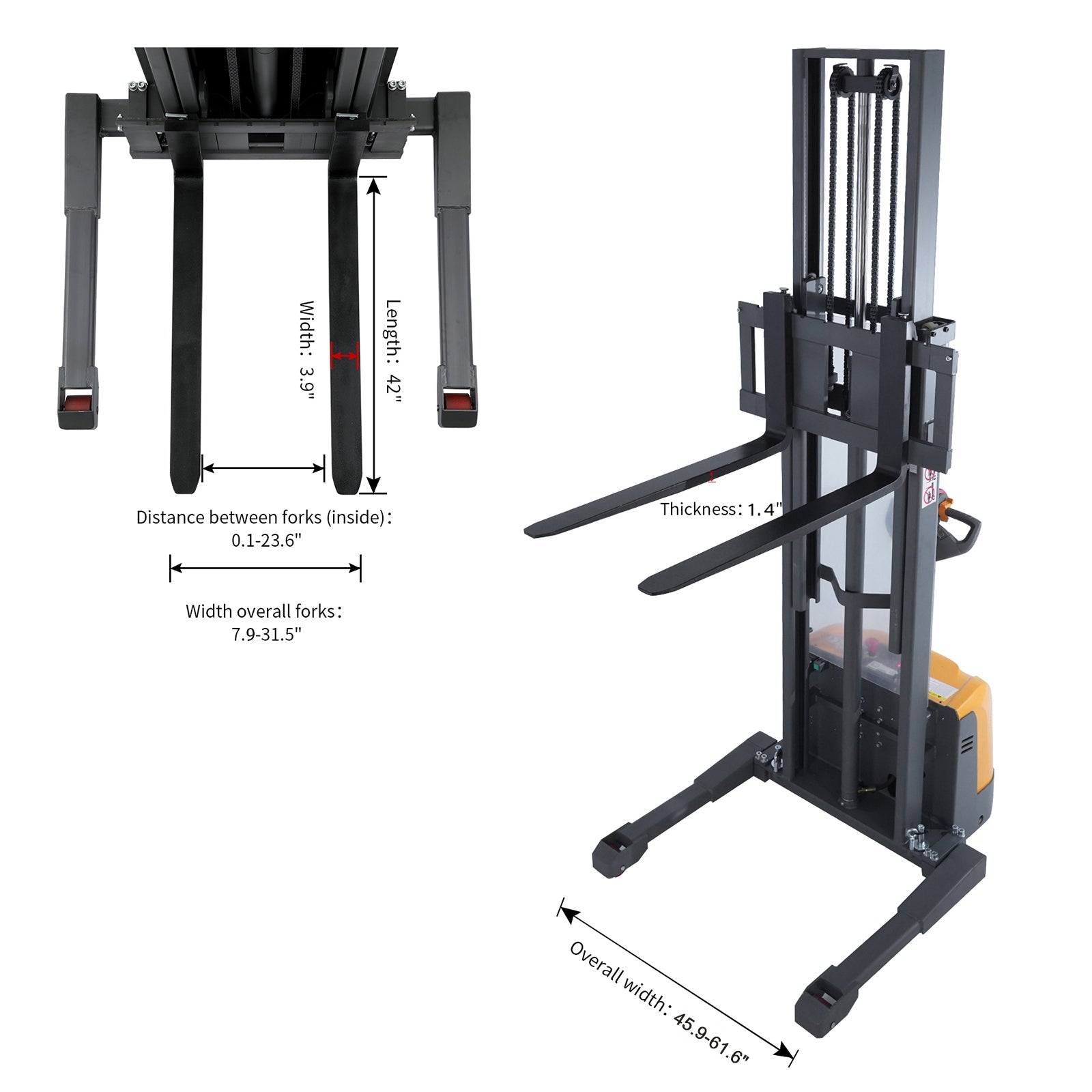

FORKS
- Fork height, Lowered: 2.8''
- Adjustable Forks: 7.8"-31.5"
- Thickness: 1.3"
- Width: 3.9"
- Length: 42"

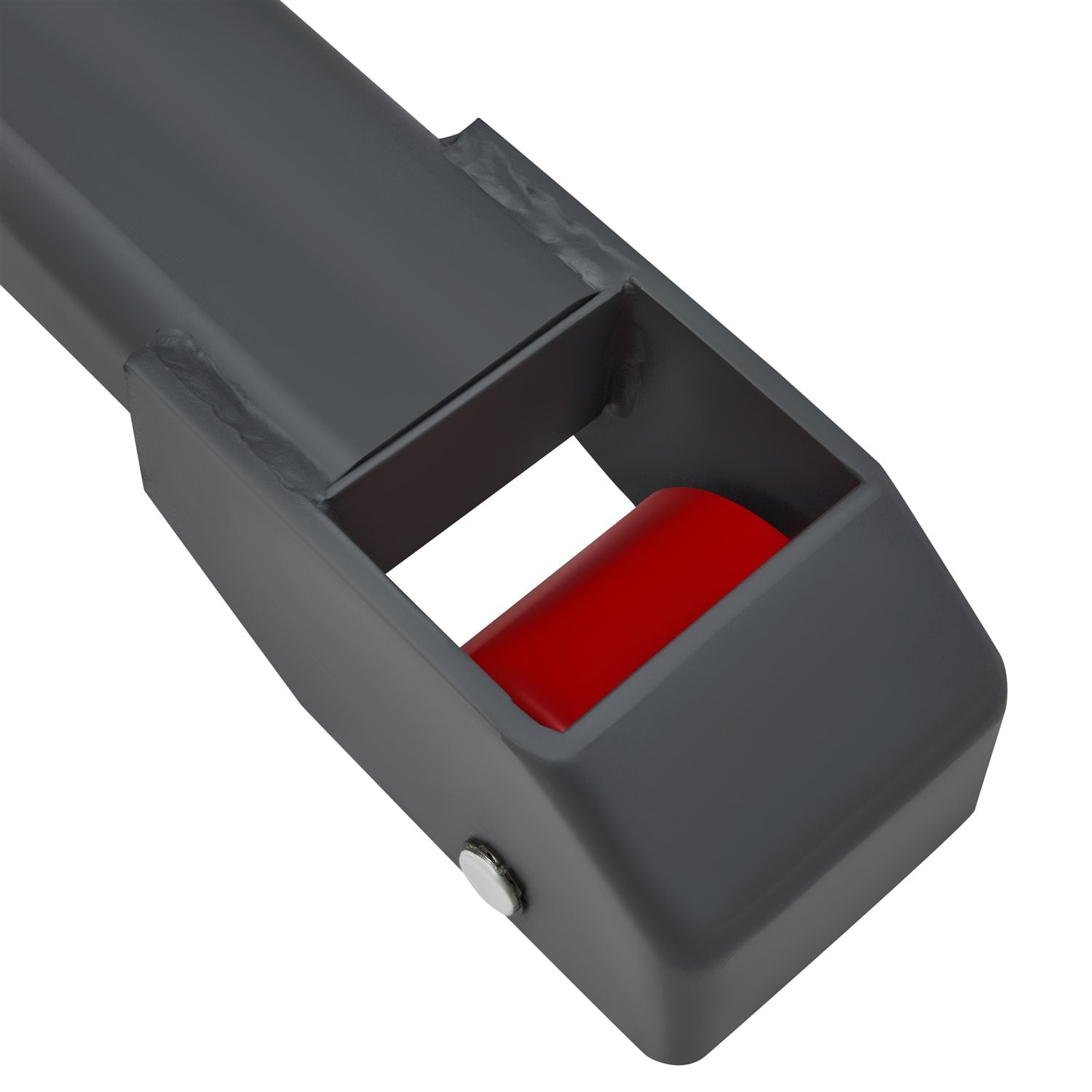

STRADDLE LEGS
- Height: 4.7"
- Adjustable range: 44" - 60"
SPEED
- Travel Speed (laden/unladen): 2.8/3.1mph
- Lifting speed(laden/unladen) : 3.5/5.9inch/s
- Lowering speed(laden/unladen) : 5.9/4.3inch/s
What our Experts Think
-
Strong industrial load rating: Supports up to 3,300 lbs, making it suitable for heavy palletized goods and continuous warehouse cycles.
-
High lift reach: Achieves a maximum lifting height of 118 inches (approx. 10 ft) for efficient multi-level racking and storage utilization.
-
Full electric drive system: Both travel and lifting are powered, reducing operator fatigue and increasing throughput in repetitive warehouse tasks.
-
Straddle-leg stability design: Built for balanced handling of standard pallets, improving safety and compatibility across mixed warehouse layouts.
-
Compact warehouse maneuvering: Designed with a tight turning radius (~53") for efficient use in narrow aisles and dense storage environments.
-
Industrial battery setup: Uses a 24V / 100–105Ah battery system, supporting full-shift operation with consistent power delivery.
-
Speed-optimized workflow: Built for smooth travel speeds around 3 mph class, helping maintain steady logistics flow in busy facilities.
-
Best use case: Ideal for medium-to-large warehouses, distribution centers, and indoor logistics hubs needing forklift-like stacking without full forklift complexity or cost.
Q&A
Q: What is the Apollolift Full Electric Straddle Stacker A-3047 used for?
A: It is designed for fully electric lifting, stacking, and transporting palletized loads in warehouses, distribution centers, and manufacturing facilities that require efficient vertical material handling.
Q: What is its load capacity?
A: It has a rated capacity of 3,300 lbs (1,500 kg) for heavy-duty warehouse operations.
Q: What is the maximum lifting height?
A: It reaches up to 118 inches (about 9.8 ft), making it suitable for mid-rise racking systems.
Q: Is it fully electric or semi-electric?
A: It is a full electric walkie stacker, meaning both driving and lifting are powered, reducing operator effort and increasing productivity.
Q: What type of battery does it use?
A: It uses a 24V / 100Ah industrial battery system, designed for long runtime and warehouse-duty cycles.
Q: What is the benefit of the straddle design?
A: The straddle legs allow handling of different pallet types (including closed-bottom pallets) while maintaining stability during lifting.
Q: Is it suitable for narrow aisles?
A: Yes, it has a compact turning radius and aisle-friendly design, making it suitable for standard indoor warehouse layouts.
Maintenance Tips
-
Battery care (24V system): Charge fully after each shift, avoid deep discharge, and top-charge during idle periods to extend cycle life.
-
Daily inspection: Check mast, forks, straddle legs, wheels, and chassis for cracks, looseness, or abnormal wear before operation.
-
Hydraulic system: Monitor lifting performance; inspect for oil leaks, slow lift/lower response, or pressure drop.
-

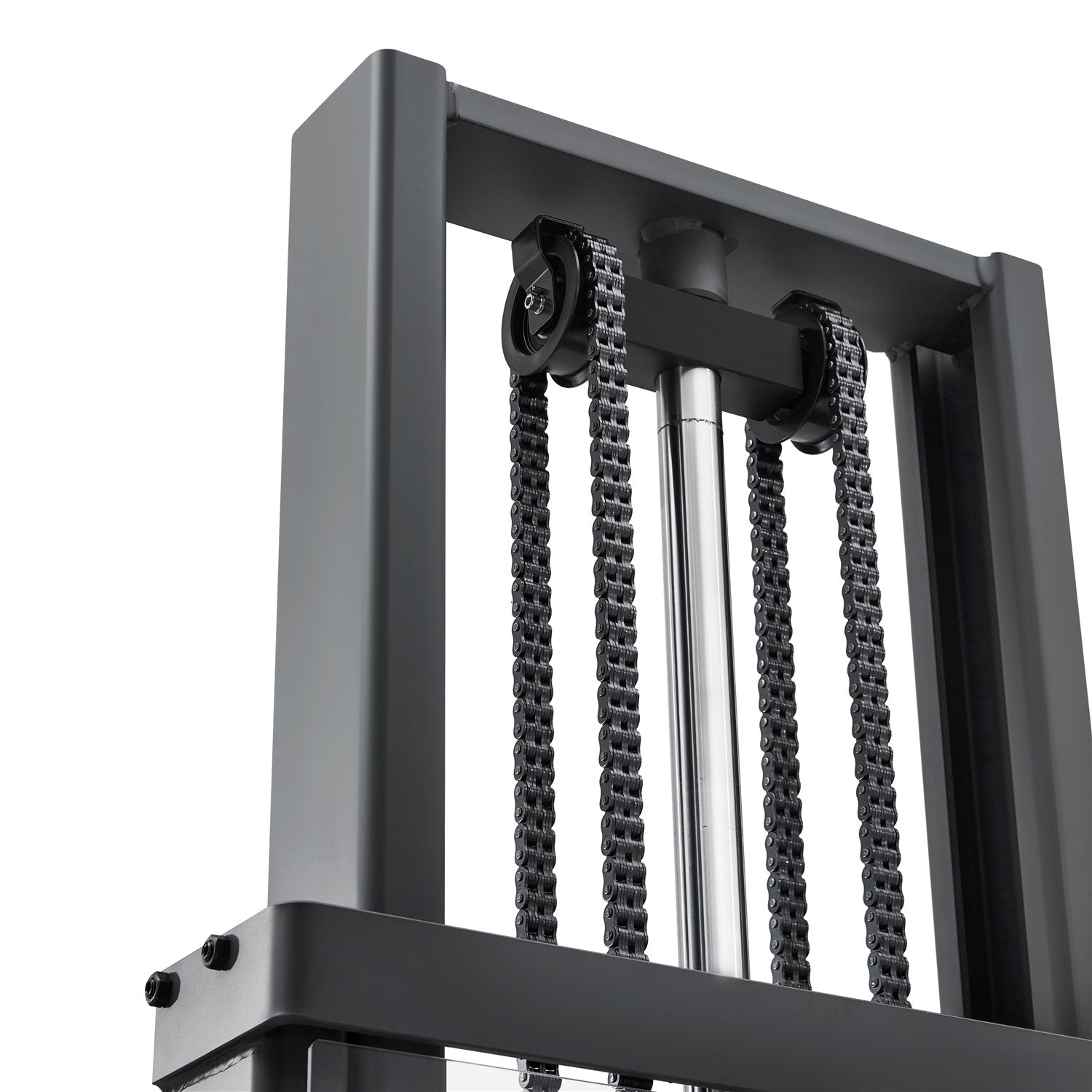

Mast & chain lubrication: Keep rails, rollers, and chains clean and properly lubricated to prevent binding and uneven lifting.
-
Electrical system: Inspect wiring, controller, display, and emergency stop for damage or loose connections.
-
Drive system care: Ensure smooth acceleration, braking, and steering; listen for motor or gearbox noise changes.
-
Wheel maintenance: Remove debris from load and drive wheels to maintain traction and reduce motor strain.
-
Load safety: Do not exceed the rated 3300 lb capacity and always center loads for stability.
-
Cleaning routine: Wipe down after use; avoid moisture exposure to electrical and hydraulic components.
-
Storage: Store indoors in a dry, temperature-stable environment and switch off power when idle.
-
Preventive servicing: Regularly inspect brakes, mast alignment, chains, and control responsiveness for early fault detection.
