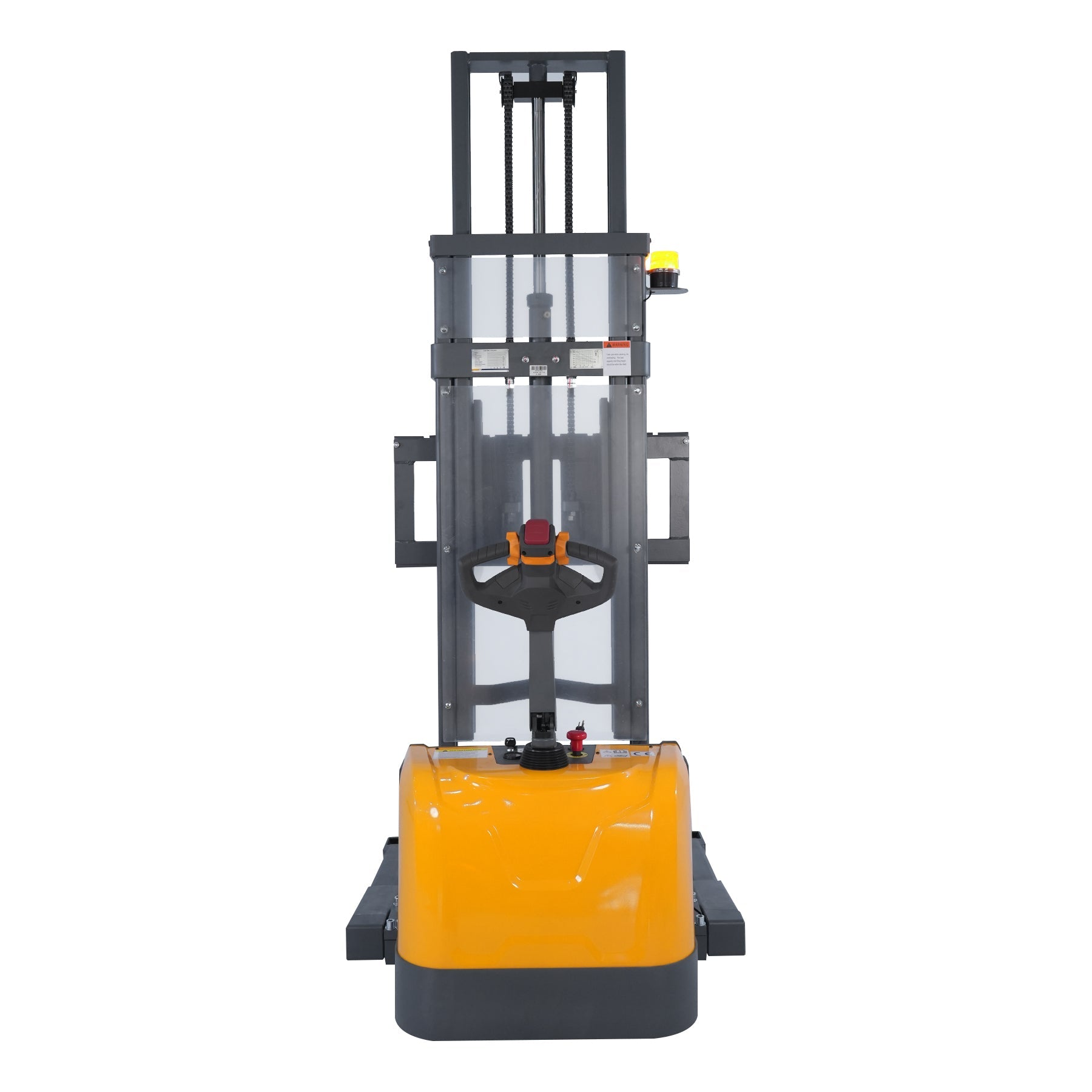

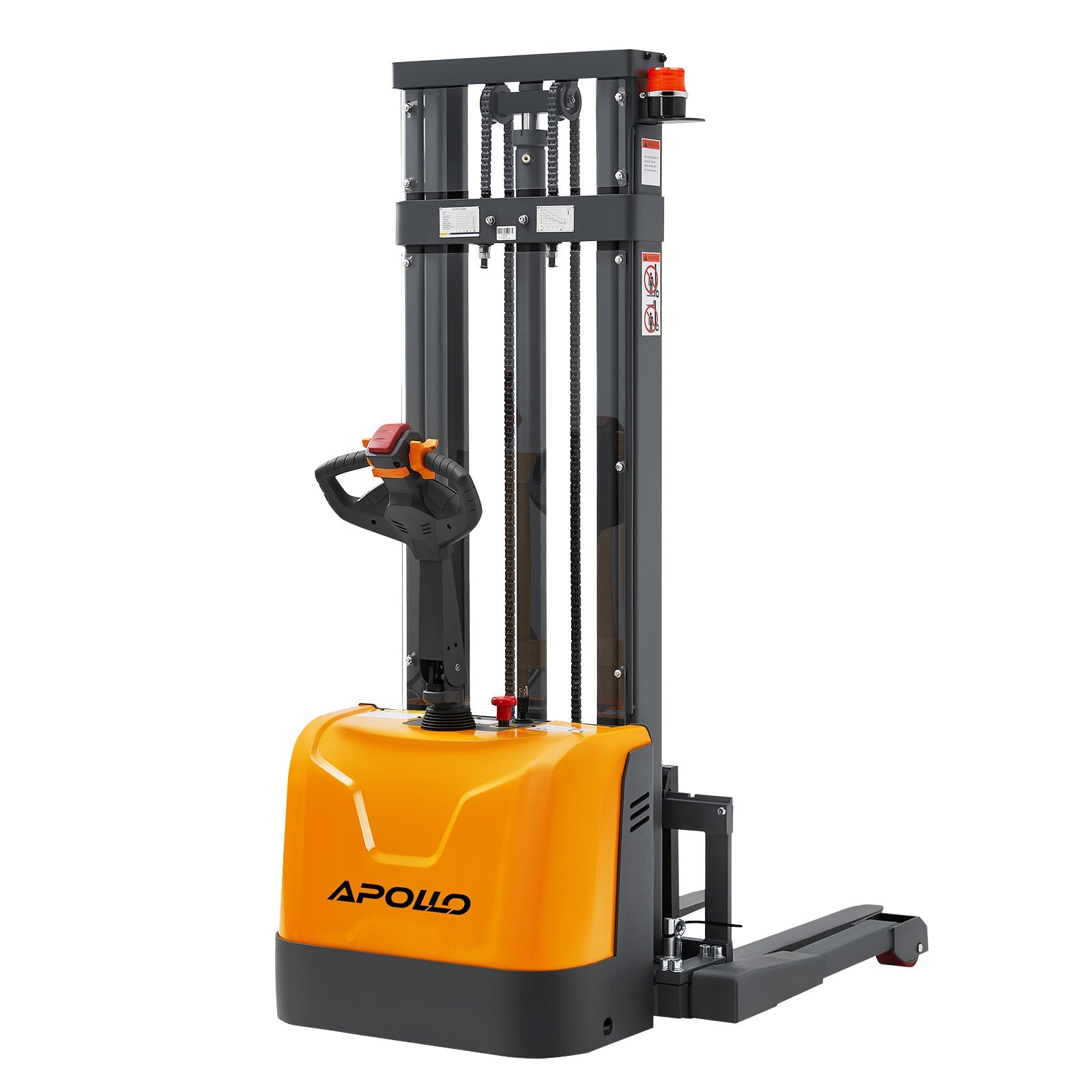

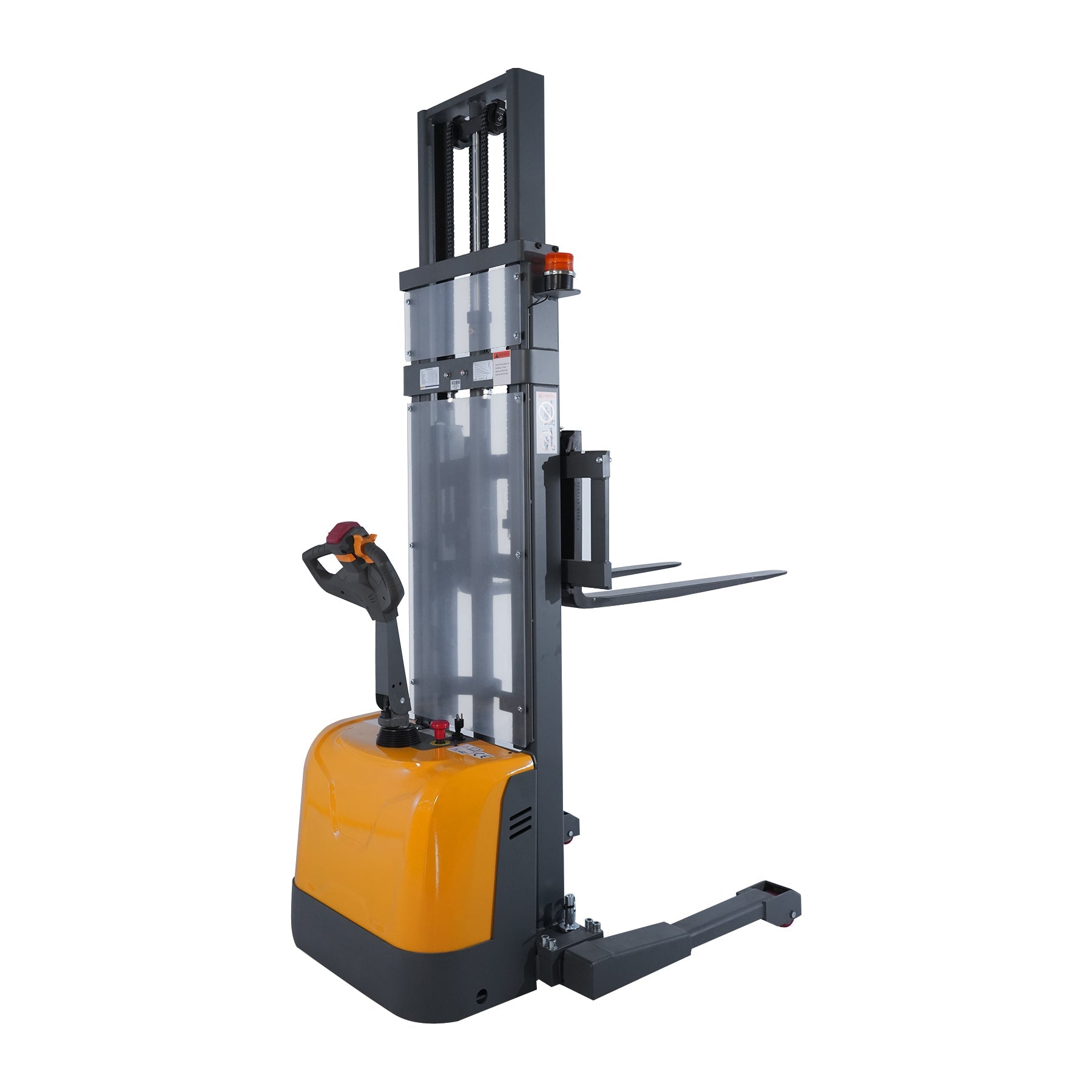

Apollolift Full Electric Straddle Stacker - A-3050

Specifications

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.

Dimensions

• Overall Length: 70.3"
• Recommended Aisle Width: 88.3"
• Turning Radius: 52.9"
• Max. Lifting Height: 98''
• Mast Height Lowered: 74.6''
• Mast Height Raised: 123.8''

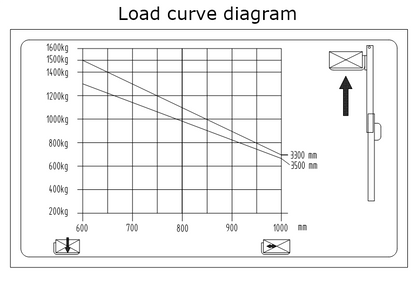

• Load Center: 23.6"
• Ground Clearance: 2.56"

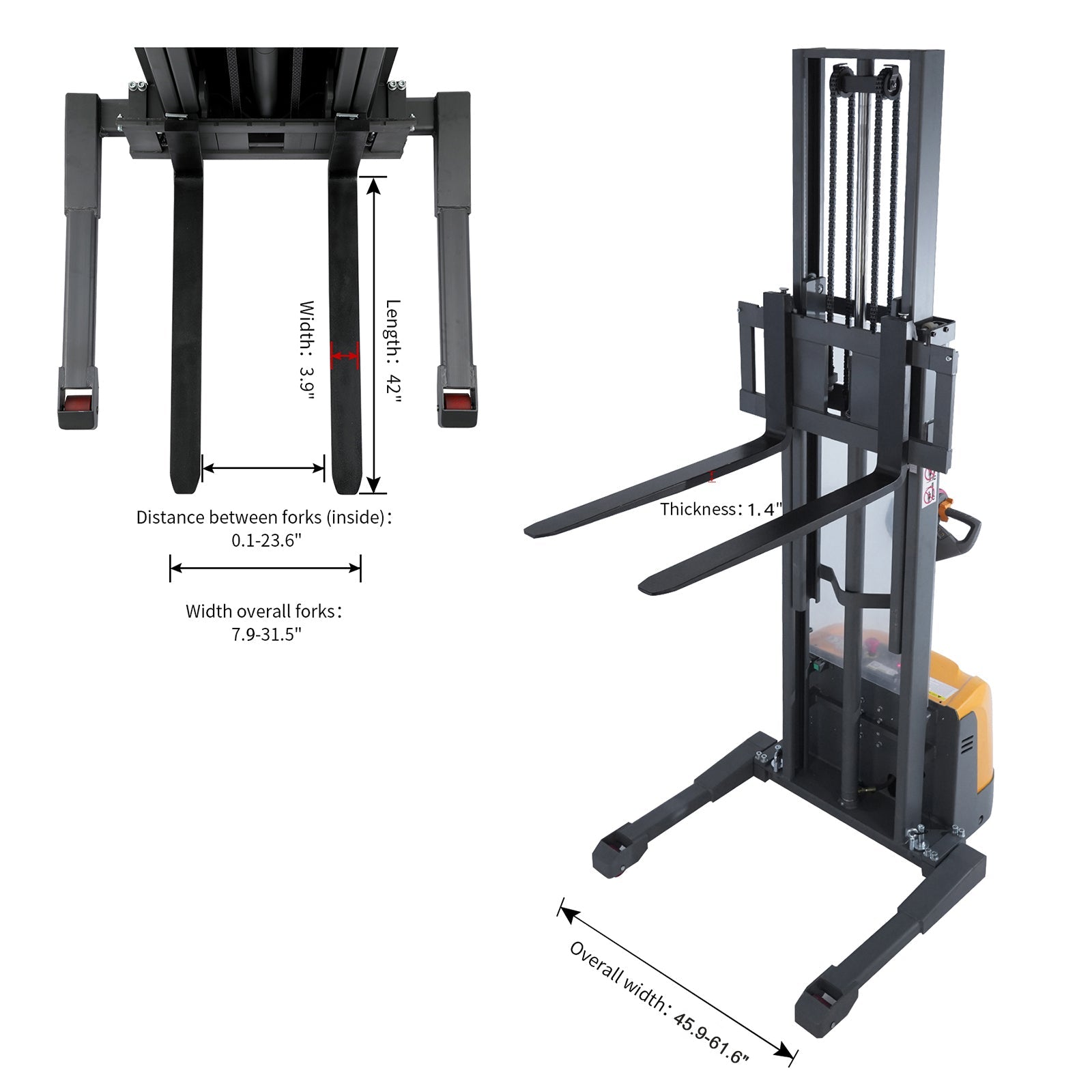

FORKS

• Fork height, Lowered: 2.8''
• Adjustable Forks: 7.8"-31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

STRADDLE LEGS

• Height: 4.7"
• Adjustable range: 44" - 60"

• Smooth rolling polyurethane wheels; 180° steering arc.
• High component integration for easy maintenance and repairs.

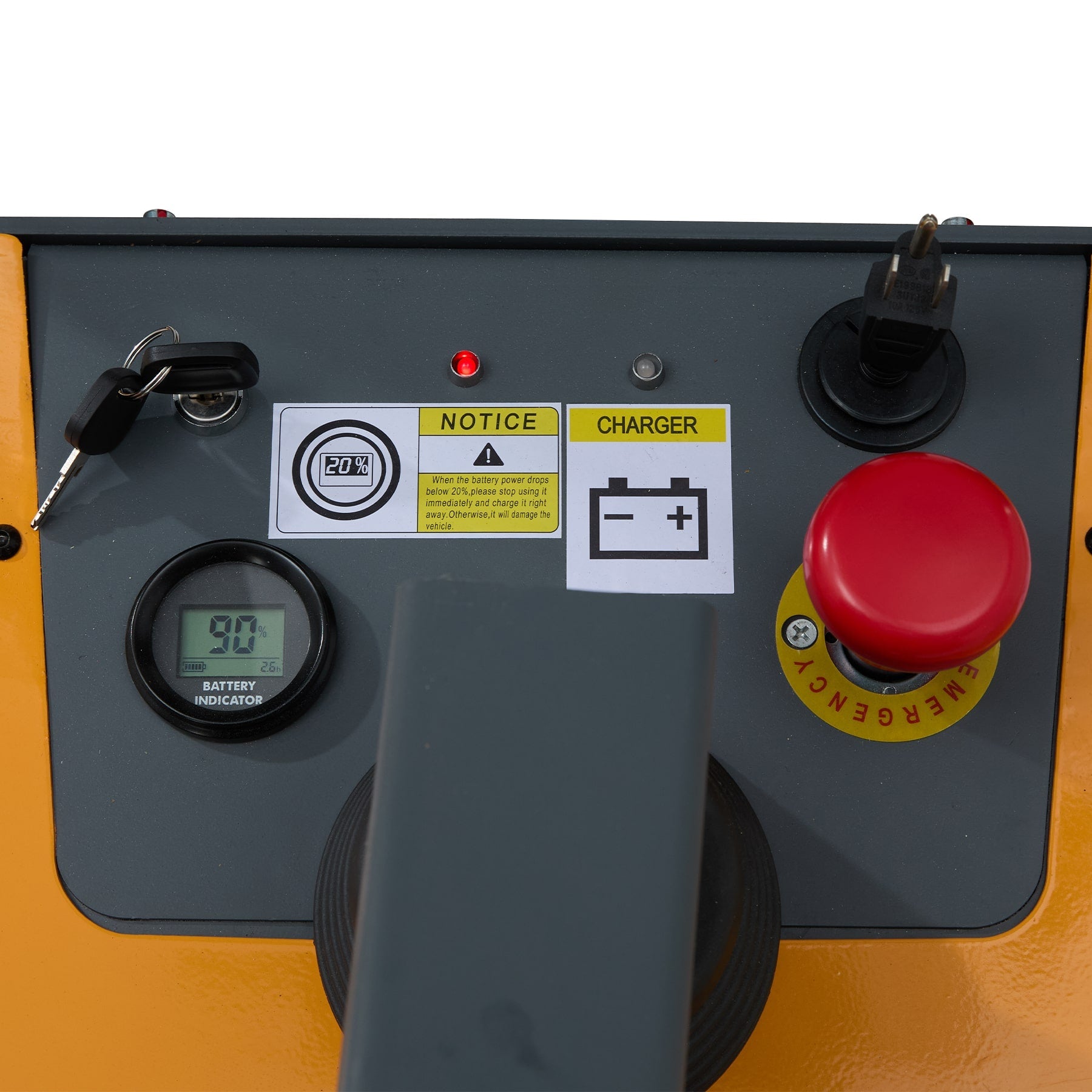

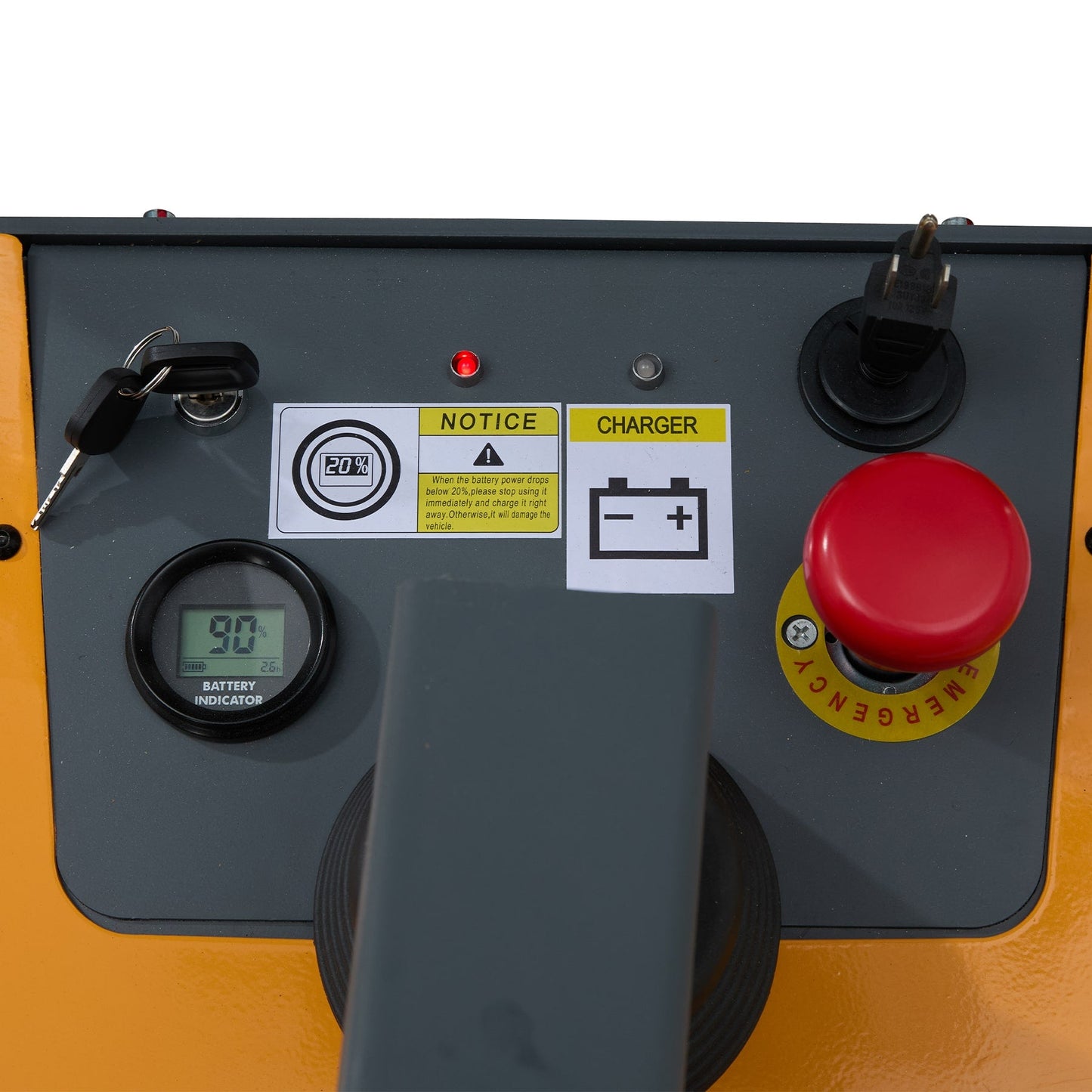

• 110V Built-in Charger.

• 6 hours of service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.

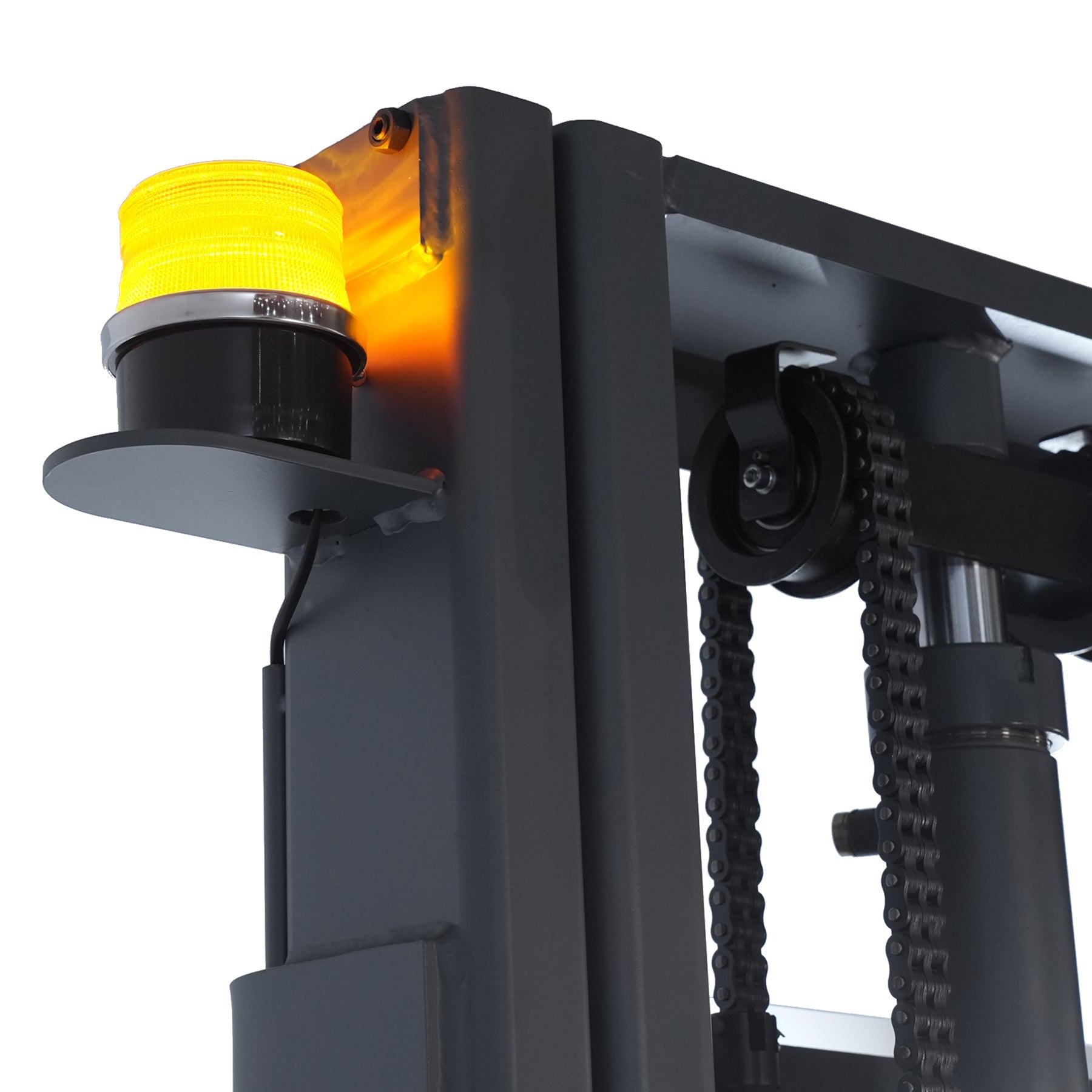

• Safety-enhancing warning lights and buzzer included.

SPEED

• Travel Speed (laden/unladen): 2.8/3.1mph
• Lifting speed(laden/unladen) : 3.5/5.9inch/s
• Lowering speed(laden/unladen) : 5.9/4.3inch/s

What our Experts Think

• Strong lifting capability: Rated for 3,300 lbs capacity, making it suitable for heavy pallets, industrial goods, and mixed warehouse loads.
• High-reach performance: Delivers up to 98 inches lift height, enabling efficient mid-to-high rack storage operations.
• Full electric drive system: Both travel and lifting are powered, improving productivity and reducing operator fatigue in repetitive workflows.
• Straddle leg stability design: Built for balanced handling of standard pallets, improving safety and compatibility in mixed warehouse environments.
• Warehouse-optimized maneuverability: Compact footprint designed for tight aisles and indoor logistics lanes, ideal for dense storage layouts.
• Industrial battery setup: Uses a 24V system (around 100Ah class) for sustained shift performance and consistent lifting power.

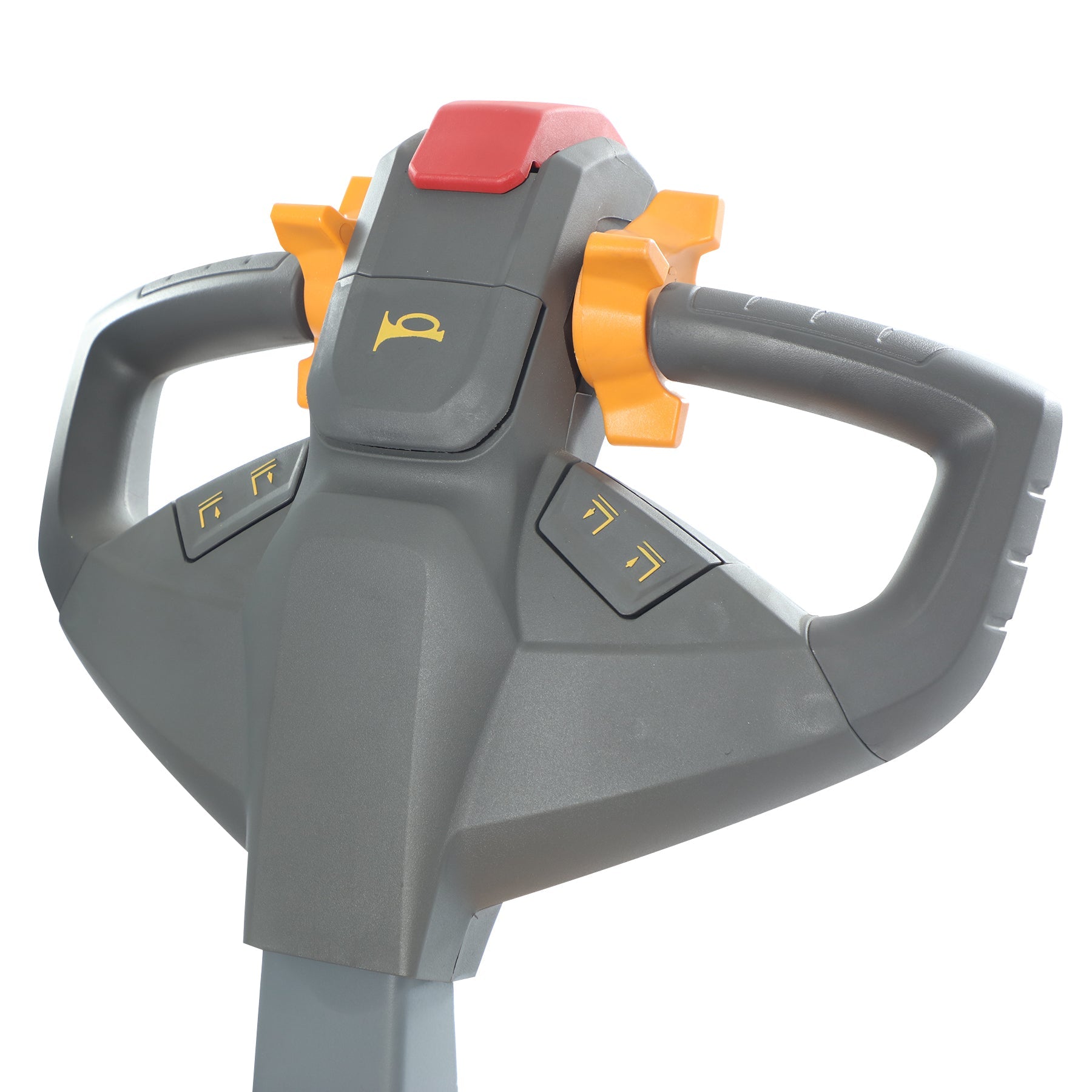

• Operator-focused controls: Designed for smooth acceleration, controlled lifting, and safe load positioning, supporting daily warehouse use.

Q&A

Maintenance Tips

• Battery care: Charge regularly, avoid deep discharge, and use only the approved charger for lithium/lead-acid system.
• Daily inspection: Check mast, forks, straddle legs, wheels, and chassis for cracks, wear, or looseness.
• Hydraulic system: Ensure smooth lifting/lowering; inspect for leaks, oil level, and pressure consistency.
• Mast & chain maintenance: Keep rails and chains clean, lubricated, and properly tensioned for safe lifting.
• Electrical system: Inspect wiring, connectors, control handle, and display for damage or faults.
• Wheel care: Remove debris from load wheels and straddle legs to maintain stability and smooth movement.
• Load safety: Never exceed rated capacity and always center loads for balanced operation.
• Cleaning routine: Clean after use; keep moisture away from electrical and hydraulic components.
• Storage: Store in a dry, indoor area and power off when not in use.
• Preventive servicing: Regularly check brakes, drive system, mast alignment, and control responsiveness.
