Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package - ATETCWB-COMBO5-FPD

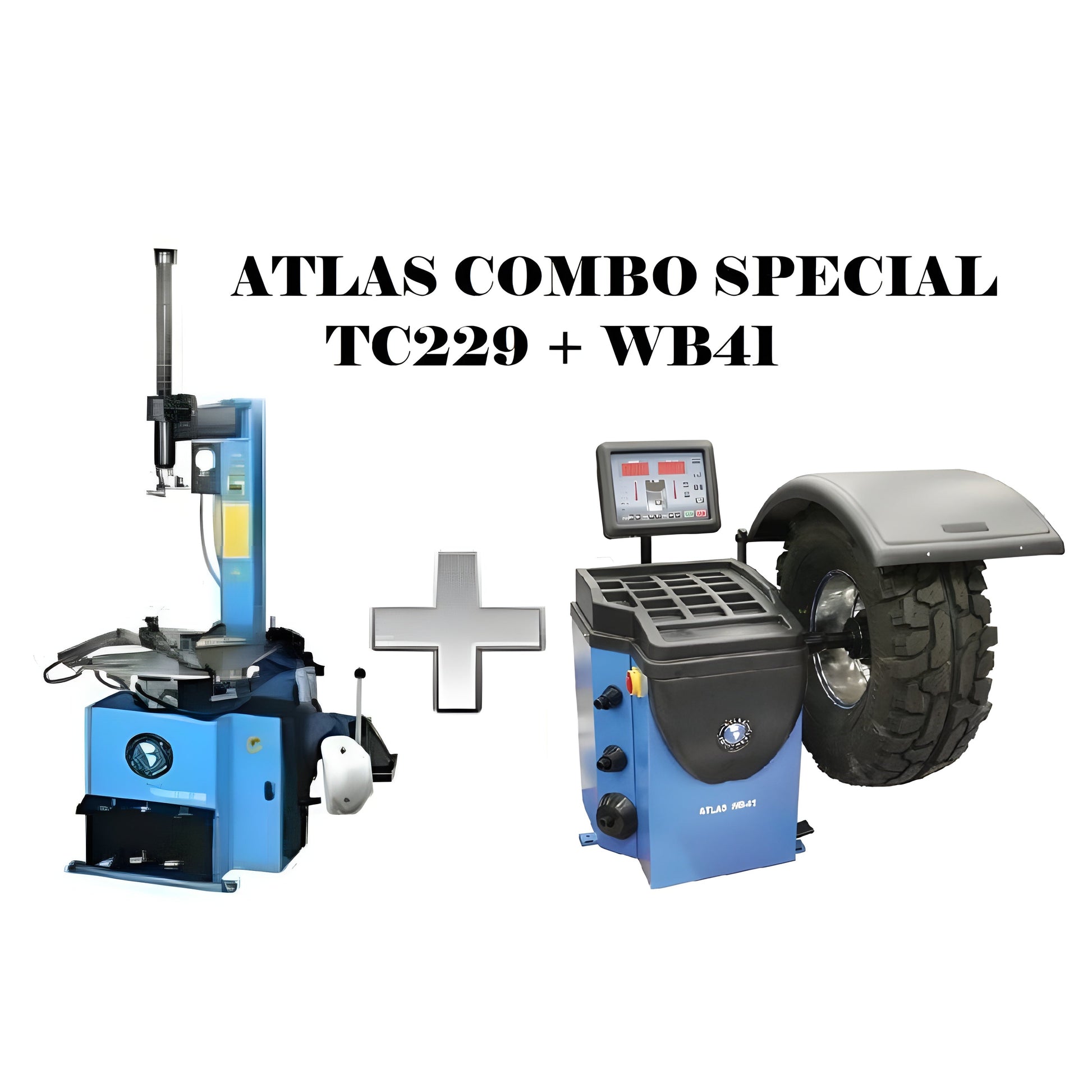

This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas WB41 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the AtlasÂ
Features

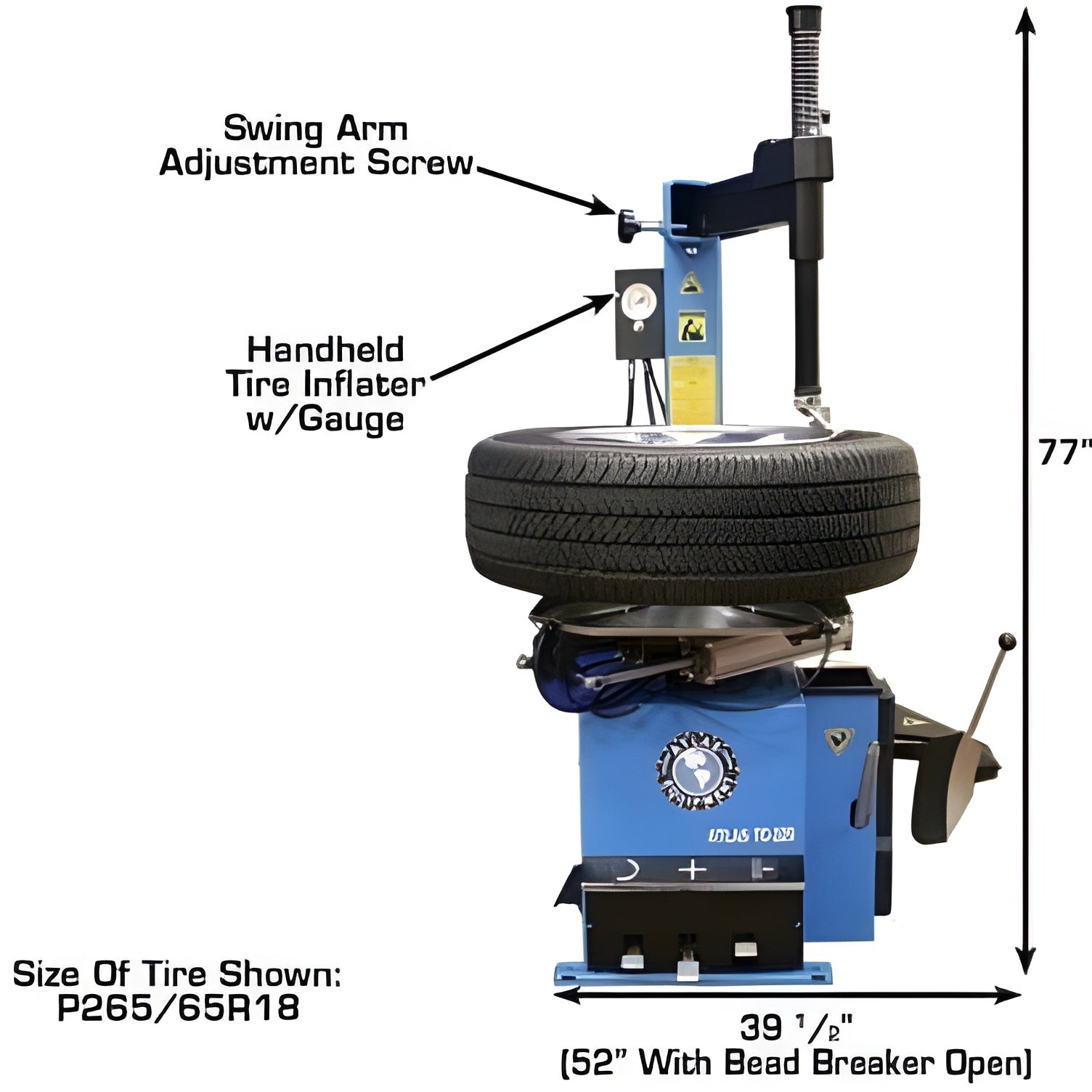

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

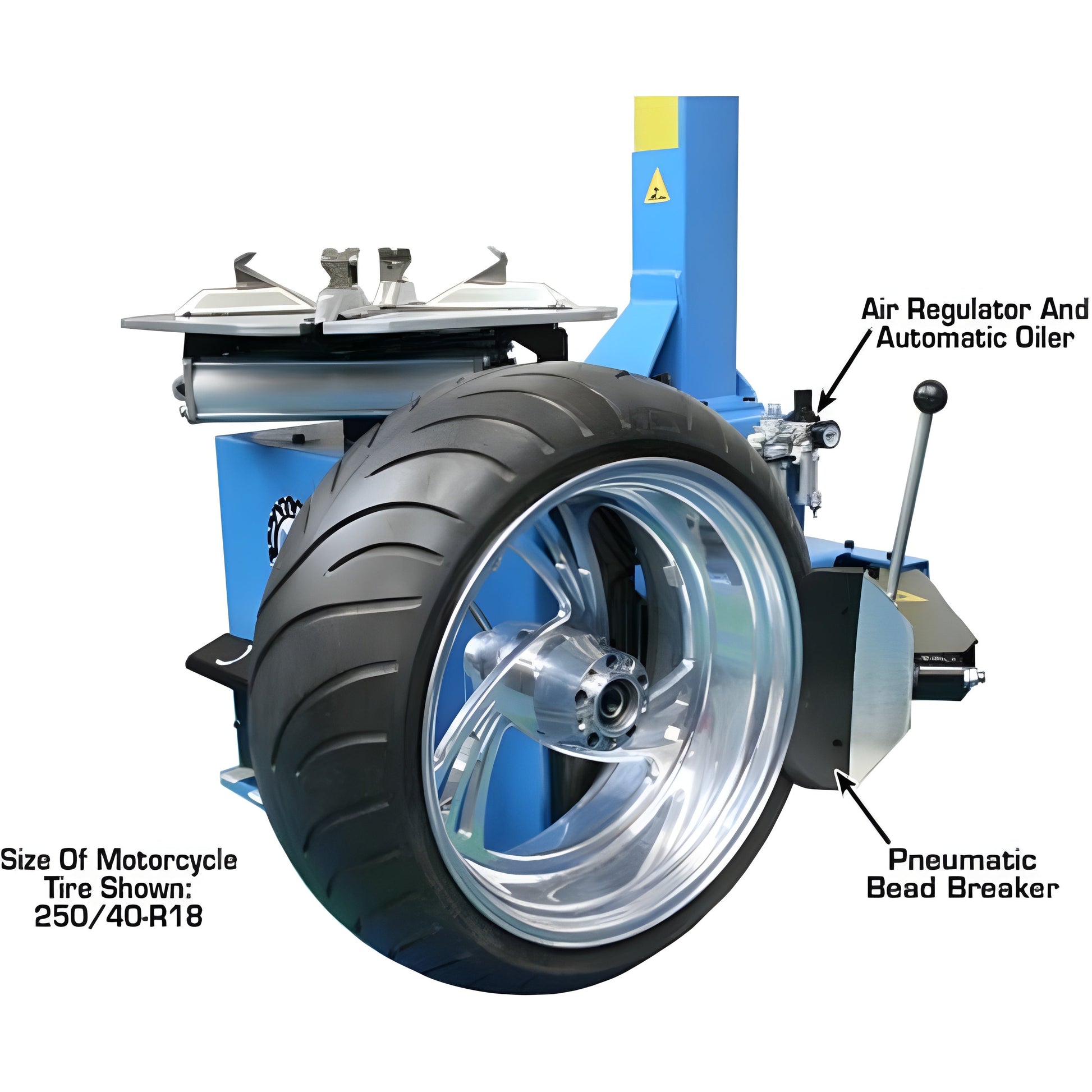

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

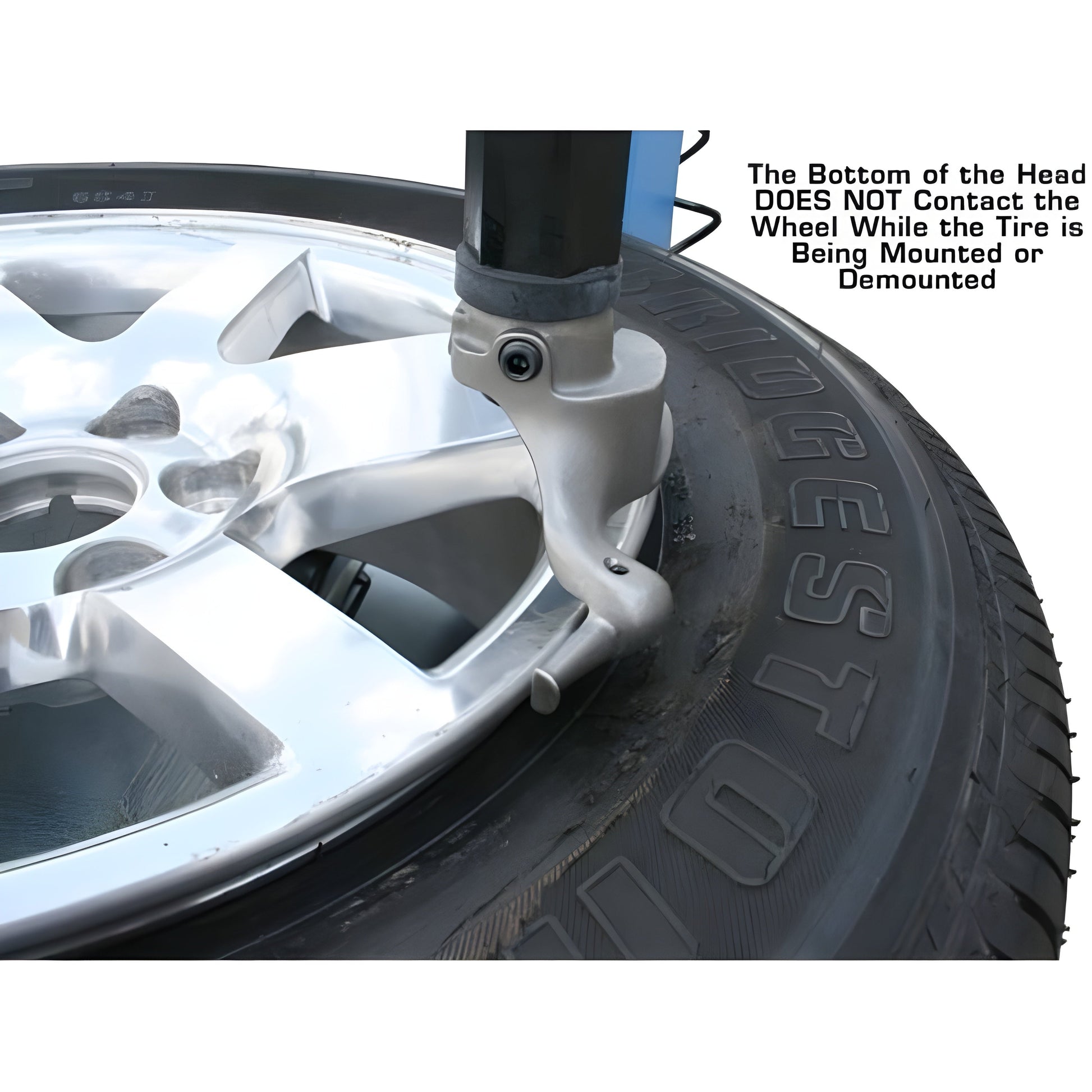

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

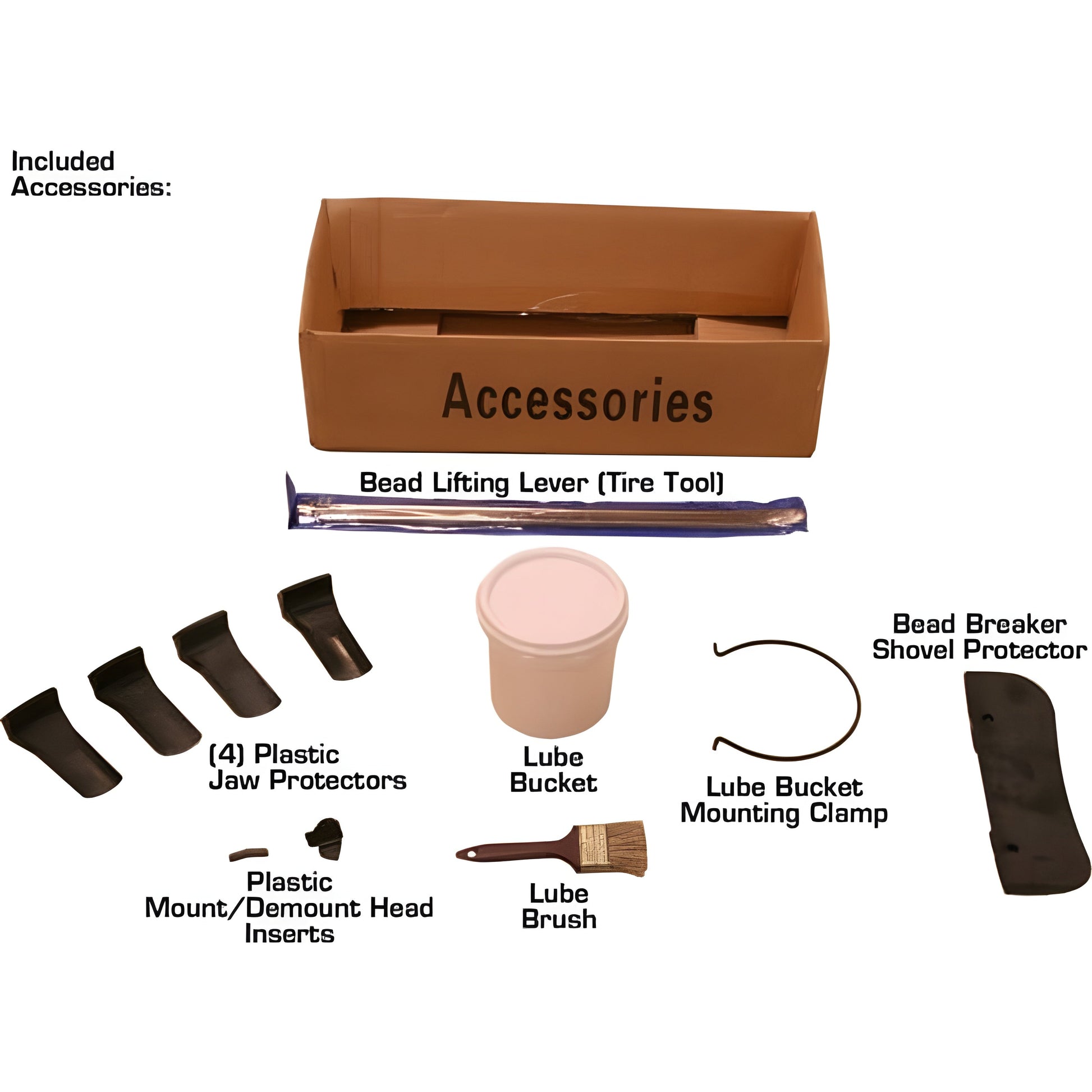

- Column mounted inflator box w/ gauge Included

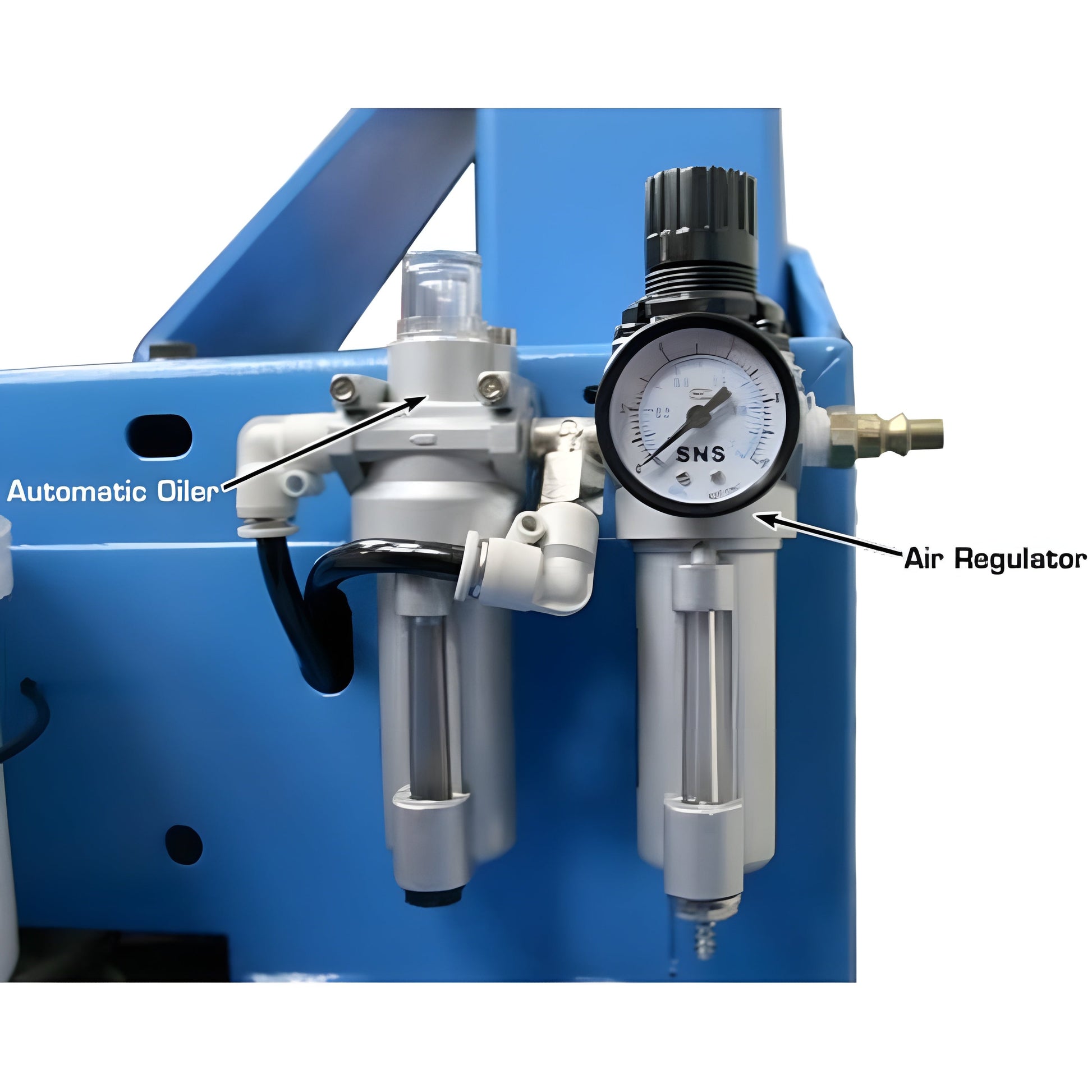

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”

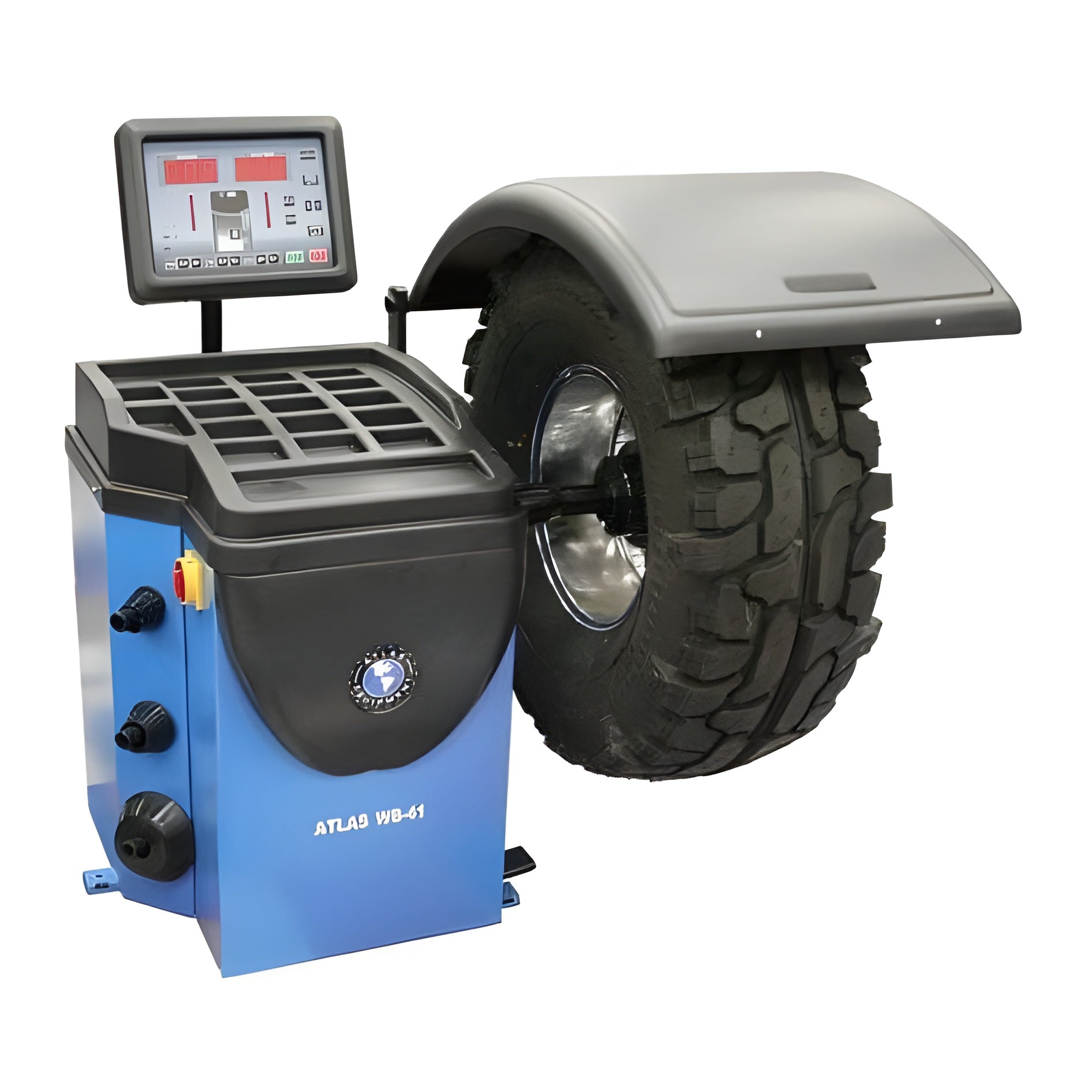

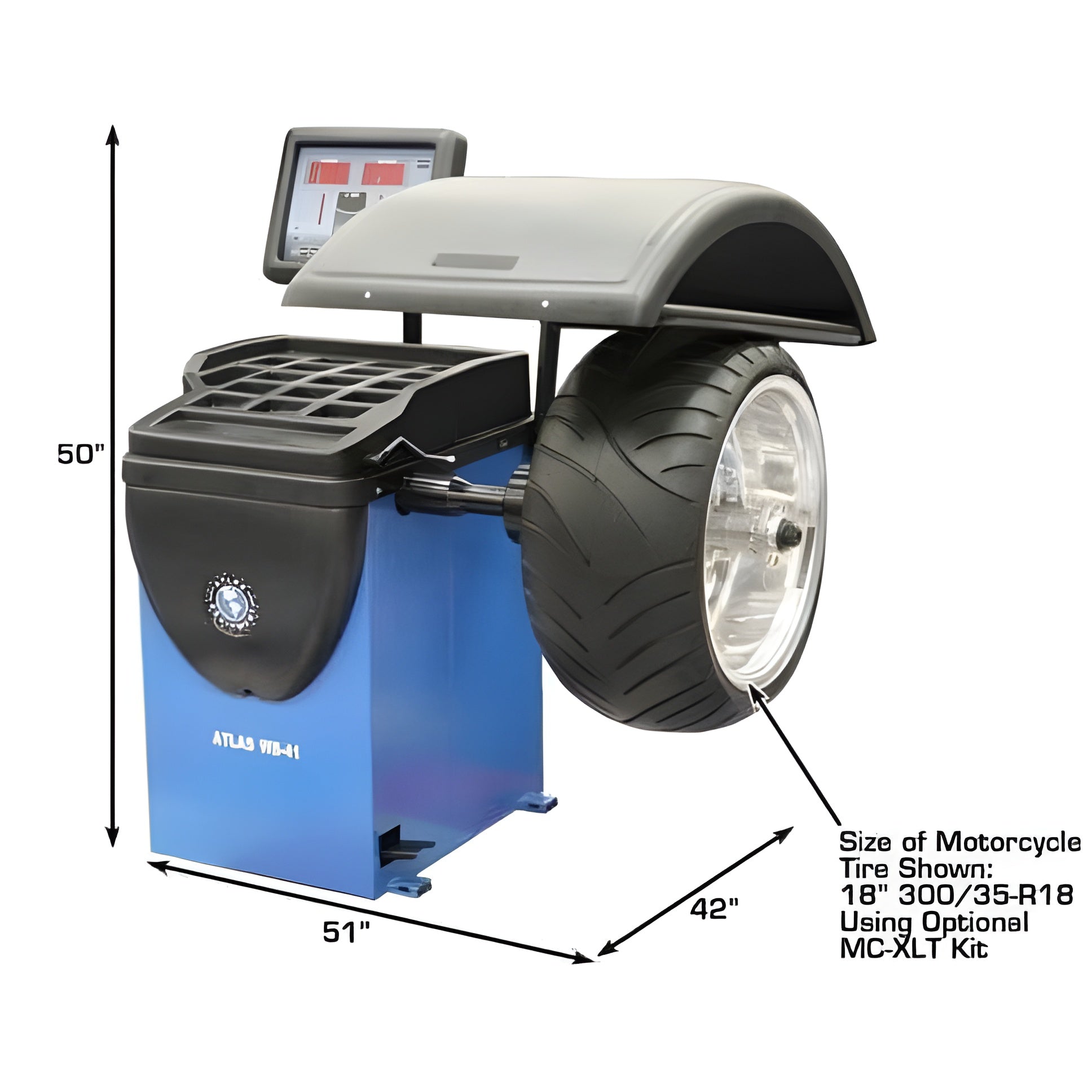

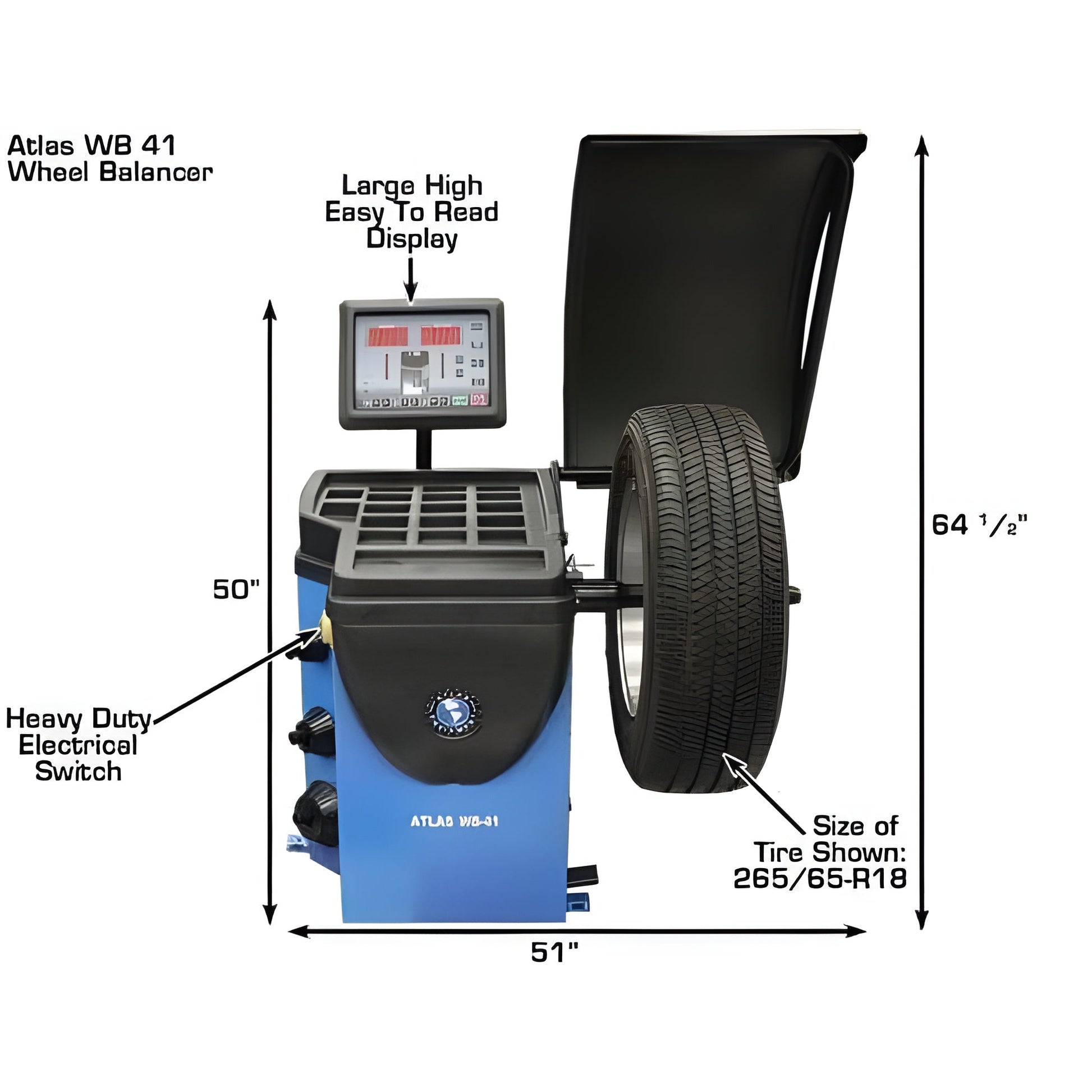

WB41 Wheel Balancer
- Computer Controlled Motorized Spin Balancer
- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |

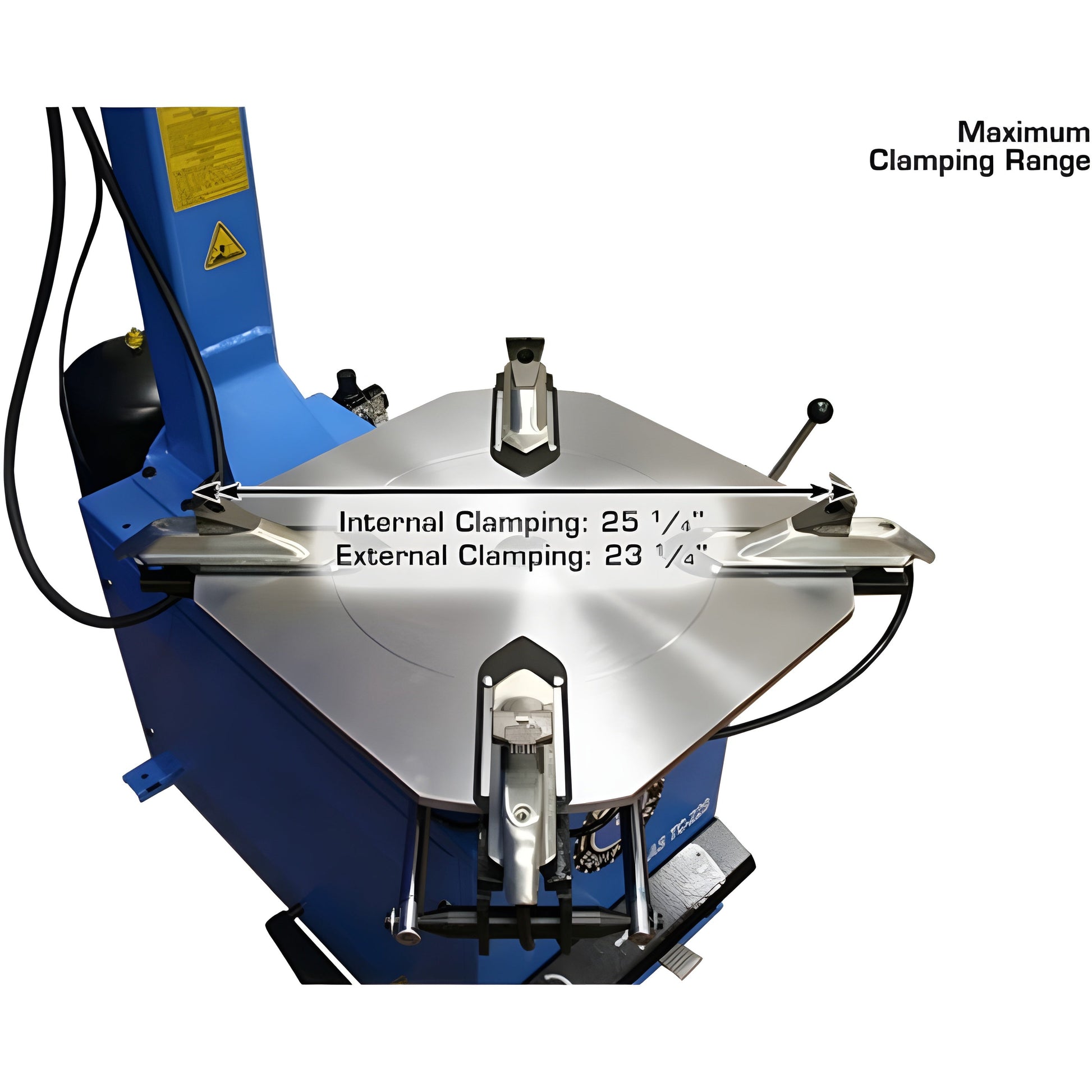

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB41 Manual
What our Expect Think
-
Efficient & Reliable Combo: The Atlas TC229 Tire Changer and WB41 Wheel Balancer provide a complete solution for professional tire service.
-
User-Friendly Design: Simplifies mounting, demounting, and balancing with intuitive controls, making it easy to handle a variety of tire sizes.
-
Durable & Built for Performance: Engineered for consistent results in high-volume shops, ensuring long-term reliability.
-
Cost-Effective Investment: A great value for auto repair businesses and tire shops looking to enhance efficiency and service quality.
Q&A
Q: What is the Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package is a complete tire service solution, combining the TC229 tire changer and WB41 wheel balancer for efficient tire changing and balancing in one package.
Q: What’s included in the combo package?
A: This package includes the Atlas TC229 Tire Changer and the WB41 Wheel Balancer, providing everything you need for professional tire installation and balancing.
Q: Is the Atlas TC229 Tire Changer easy to use?
A: Yes, the TC229 is user-friendly, equipped with a strong bead breaker and adjustable clamps to handle various tire sizes quickly and safely.
Q: What is the capacity of the WB41 Wheel Balancer?
A: The WB41 Wheel Balancer is designed to handle a wide range of tire sizes and weights, offering precision balancing up to 130 lbs for most vehicles.
Q: Is the combo package suitable for professional automotive shops?
A: Yes, both the TC229 Tire Changer and WB41 Wheel Balancer are designed for high-volume, professional use, providing reliability and durability for automotive service centers.
Q: How much space is required for this combo package?
A: Both the tire changer and wheel balancer are compact and space-efficient, making them suitable for shops with limited space while delivering full performance.
Maintenance Tips
-
Regular Inspection: Inspect for any loose or worn-out components, particularly on the bead breaker and balancing system, and tighten or replace as necessary.
-
Lubrication: Apply lubricants to moving parts on the tire changer arms and wheel balancer components to ensure smooth operation.
-
Cleaning: Keep both machines clean by wiping down the surfaces after use, especially around the tire changer and wheel balancing components.
-
Calibration: Periodically calibrate the wheel balancer for precision, and make sure the tire changer’s mounting heads and bead breaker are aligned correctly.
