Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package - ATETCWB-COMBO6-FPD

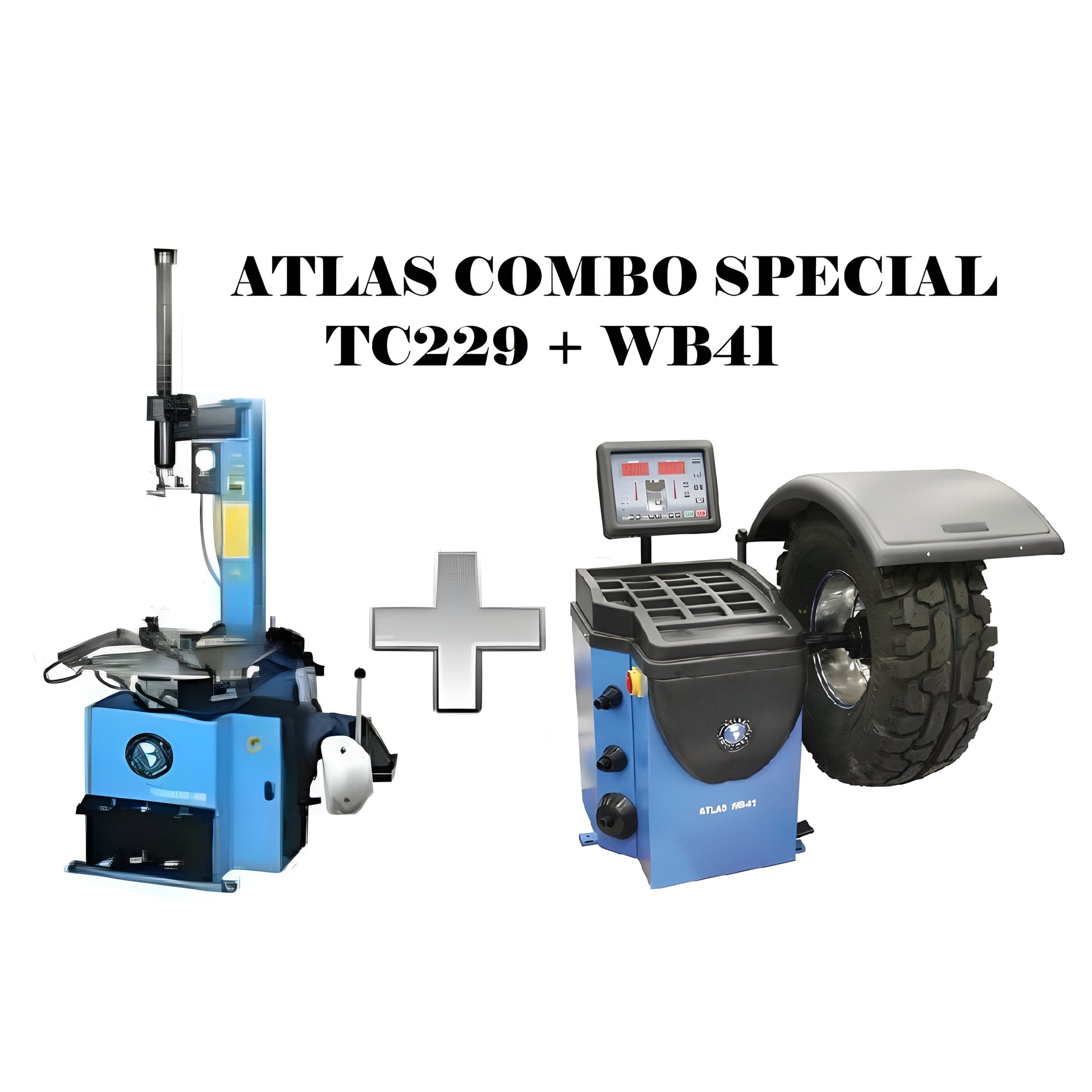

This combination package includes the AtlasTC229 rim-clamp swing arm tire changer & the Atlas WB49-2 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the AtlasÂ
Features

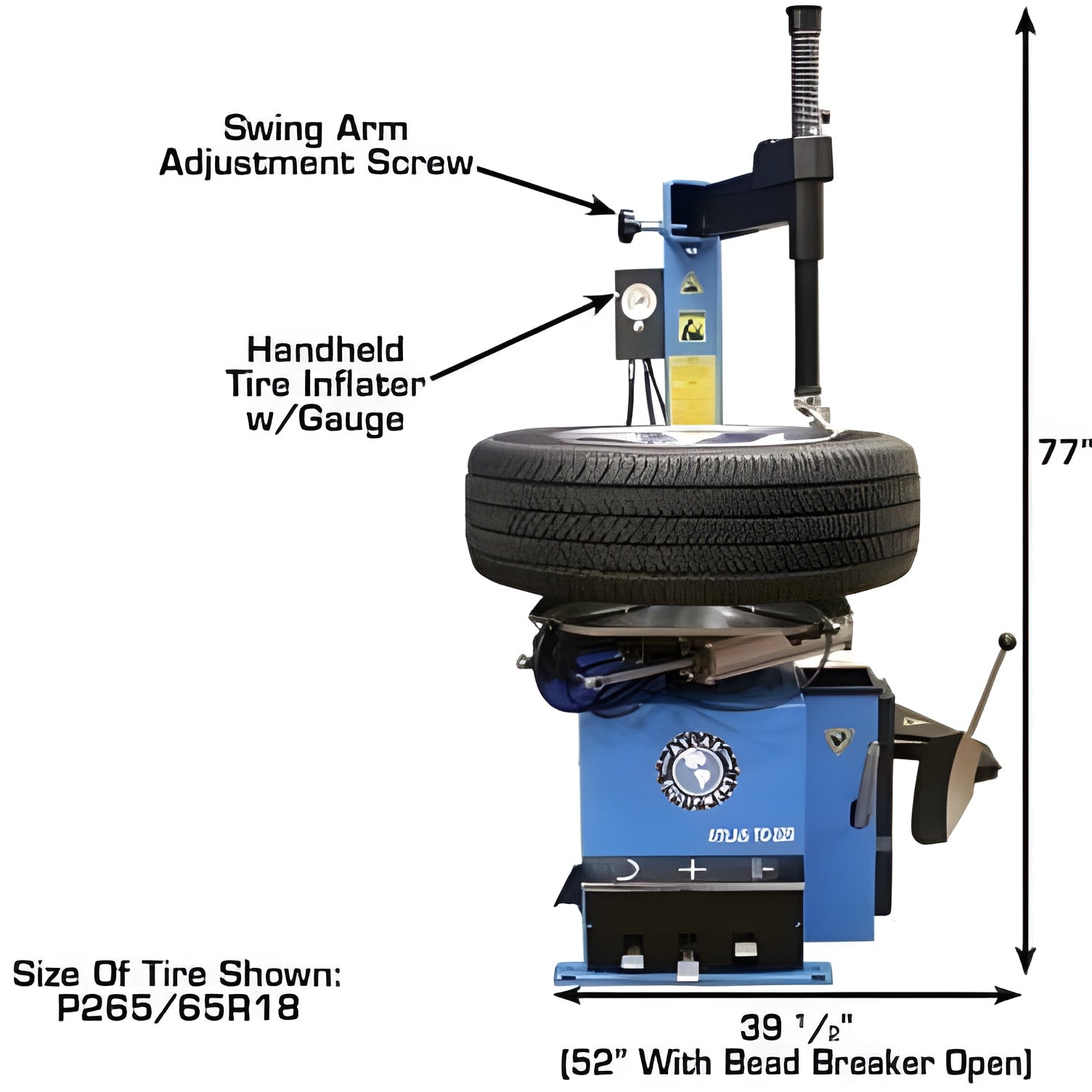

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

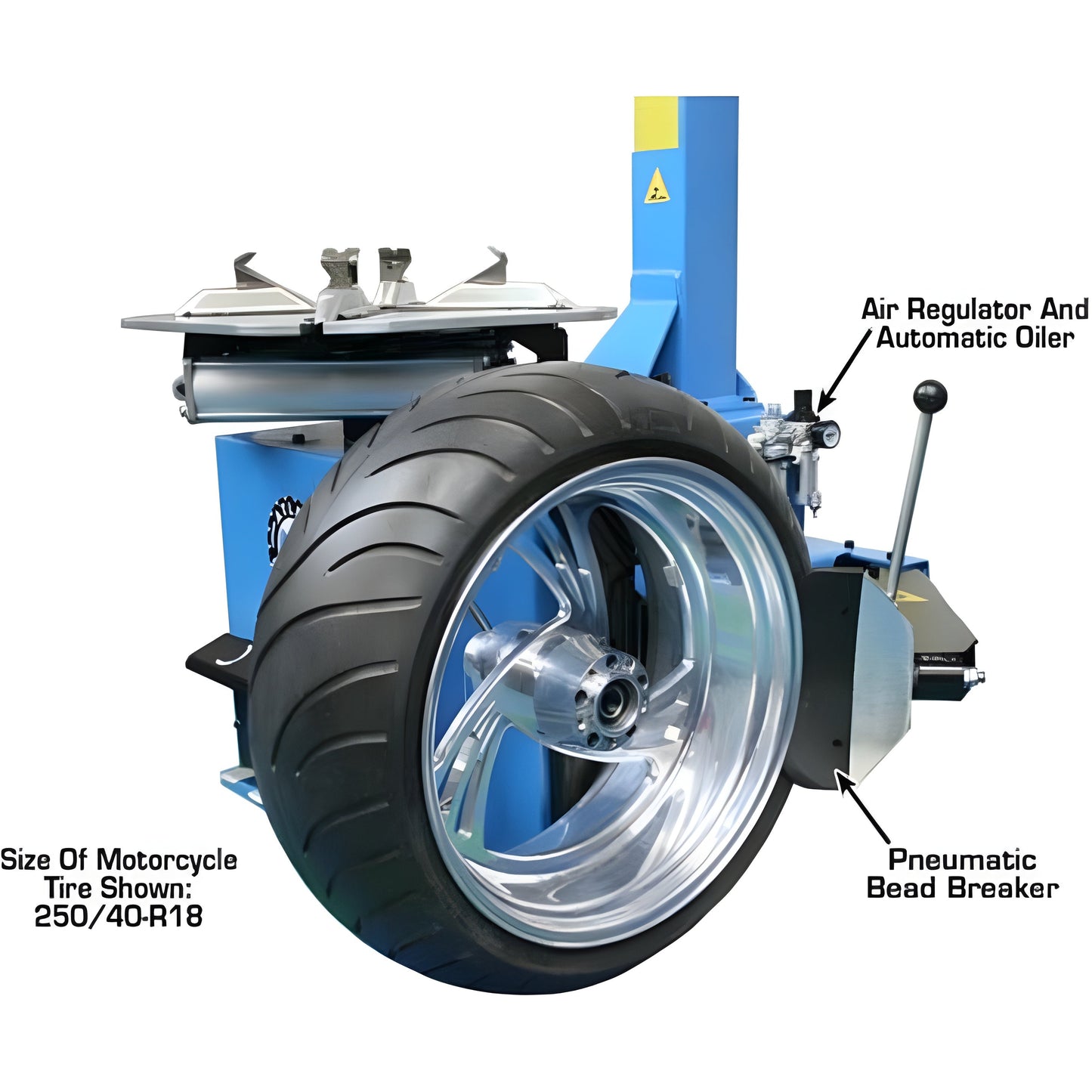

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

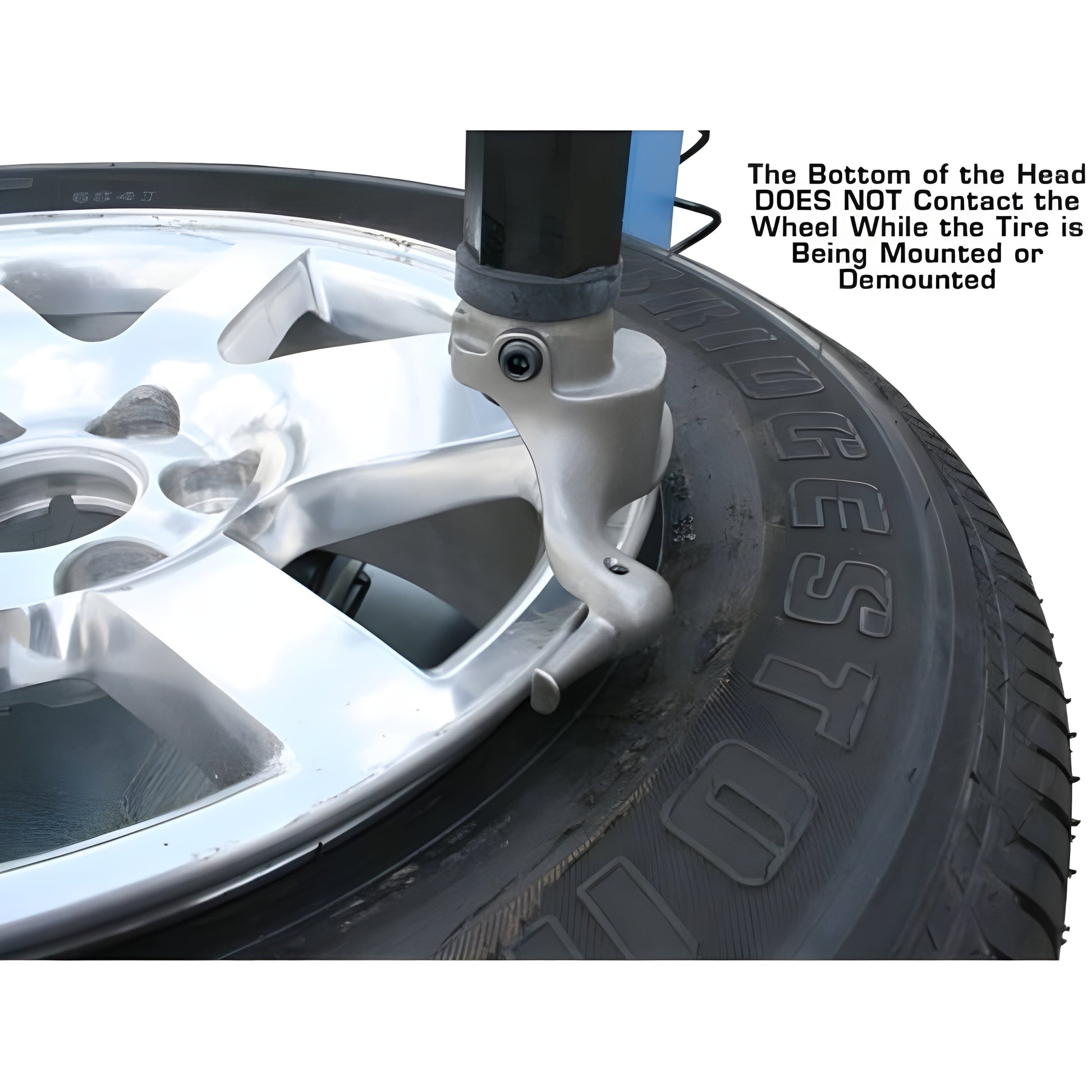

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

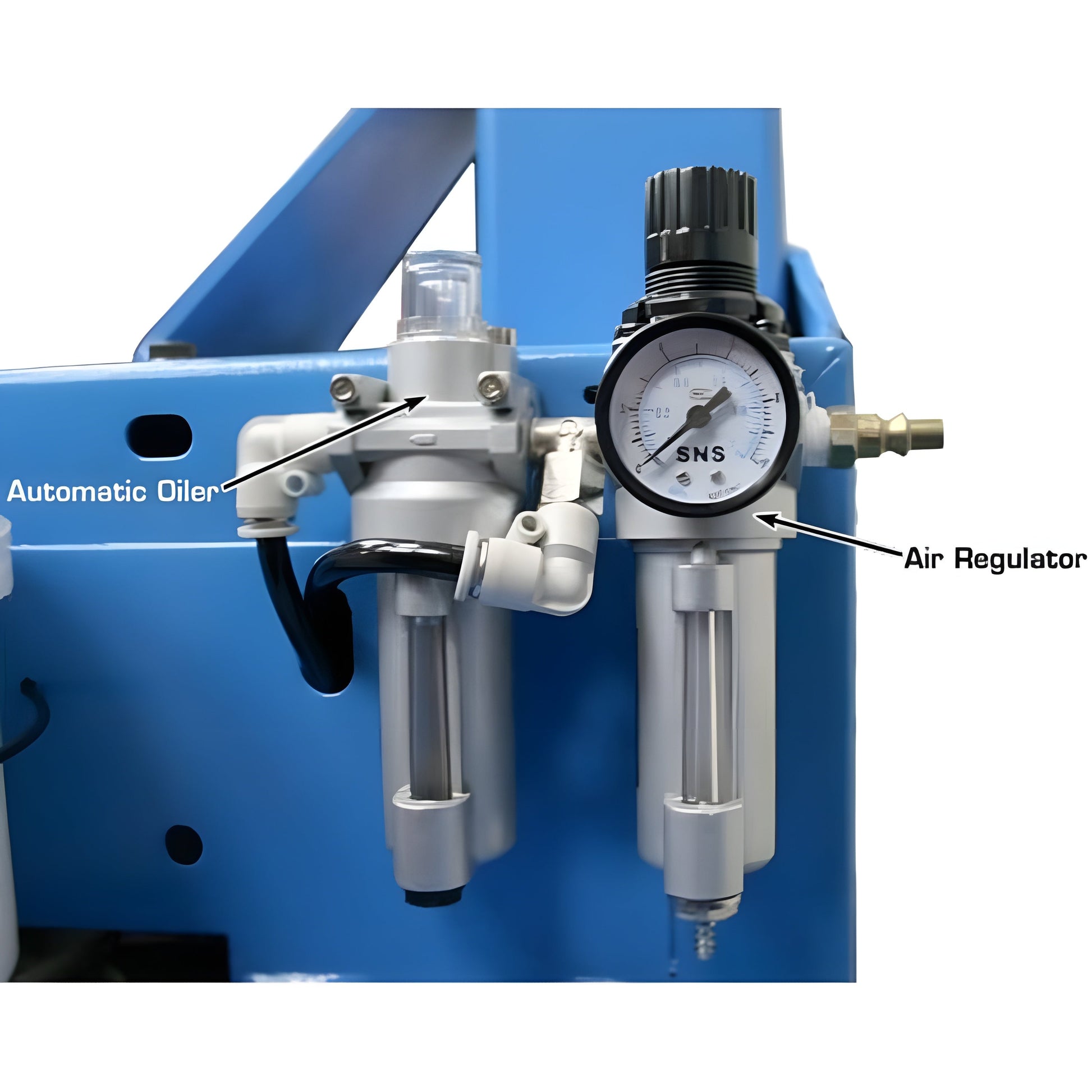

- Filter/Regulator/Lubricator Included

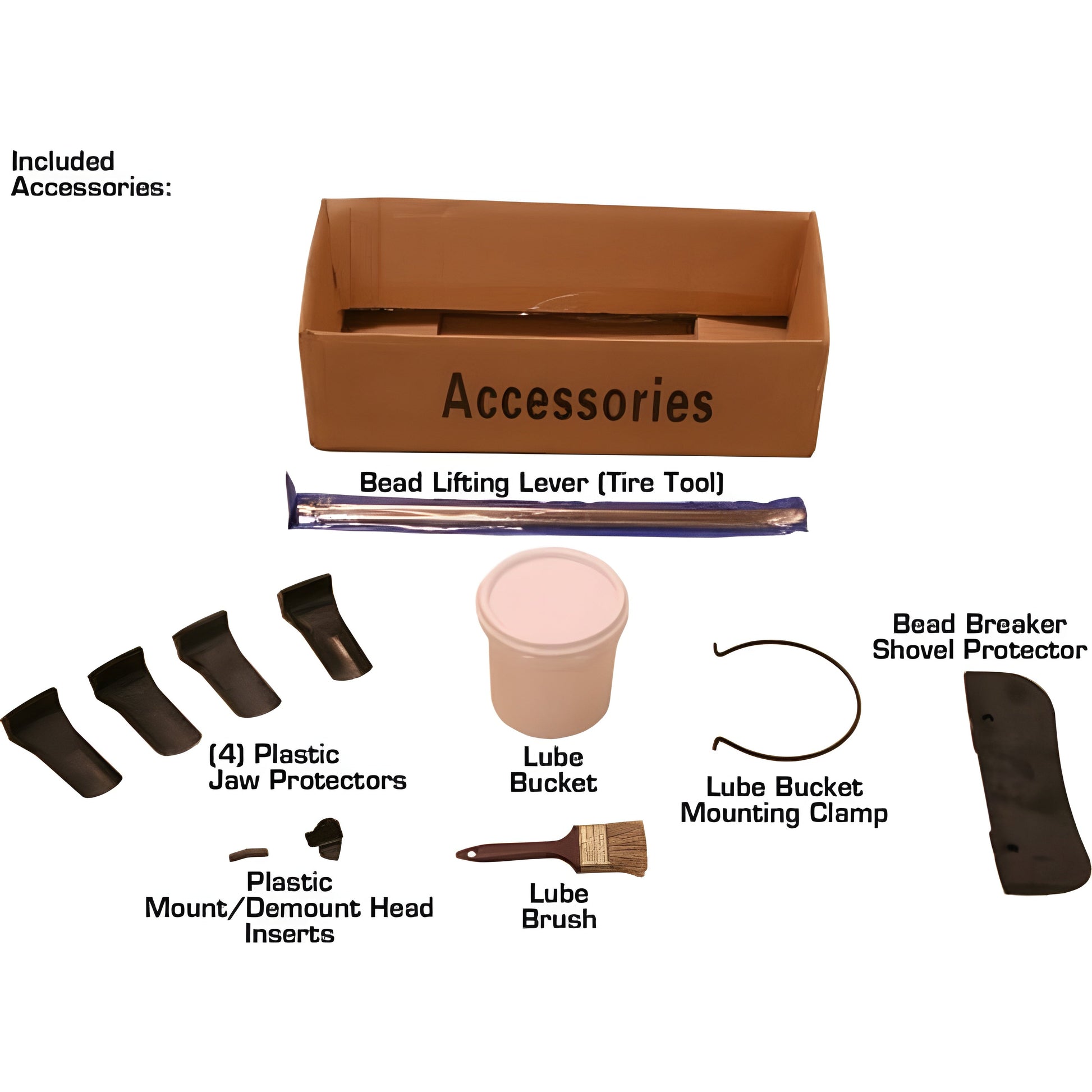

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

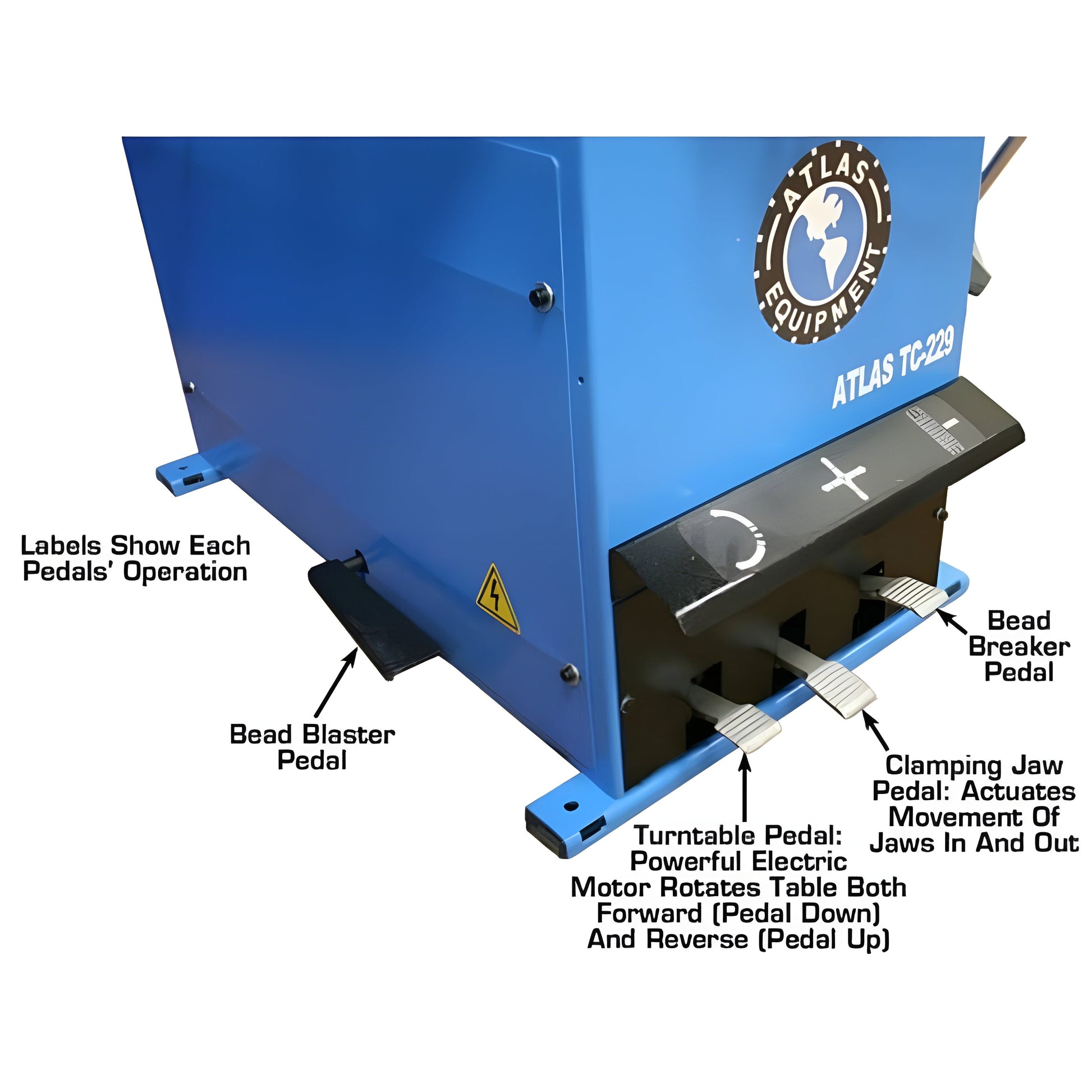

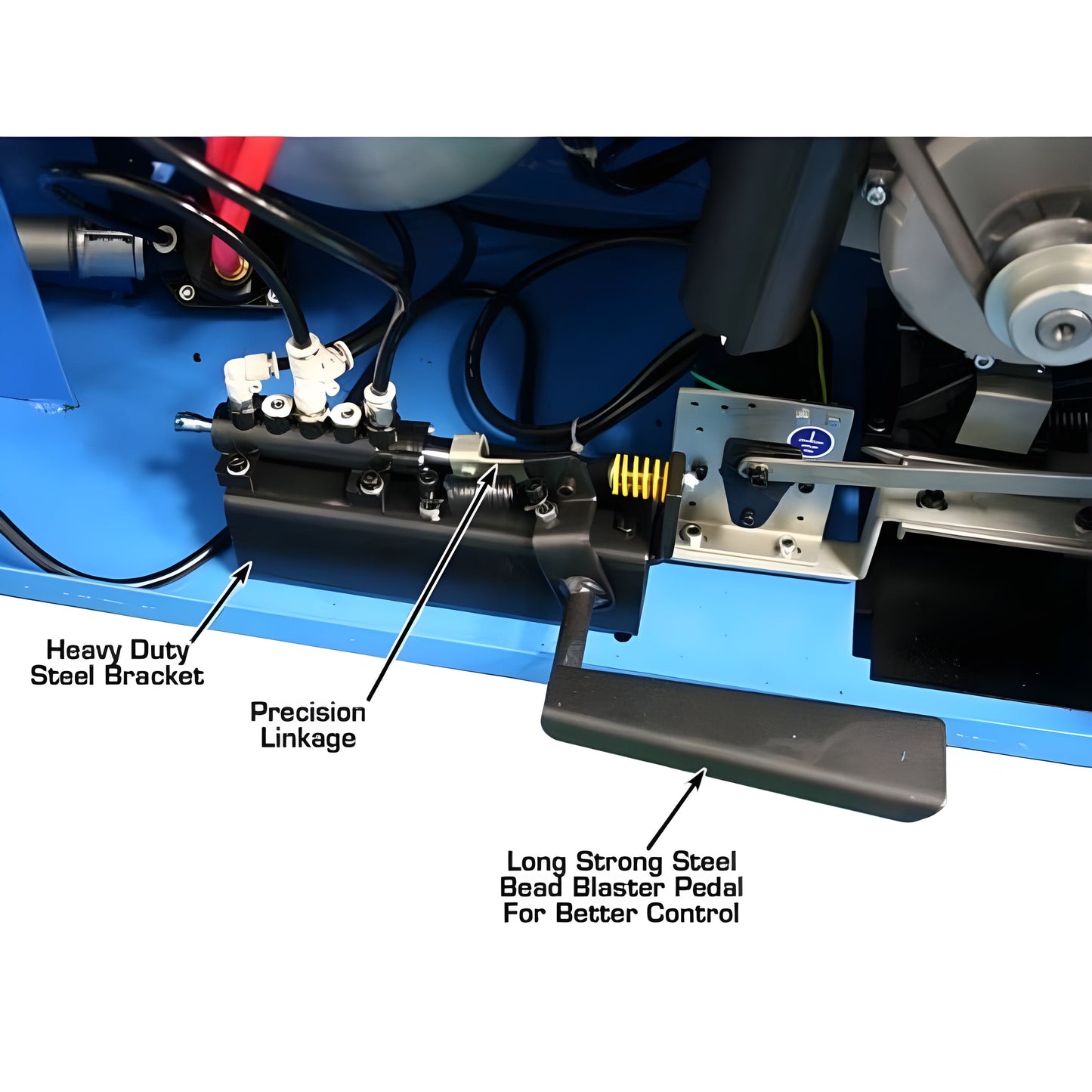

- Built in “Beadblaster”
WB49-2 Wheel Balancer
- Computer Controlled Motorized Spin Balancer
- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic 2D Data Entry
- Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |

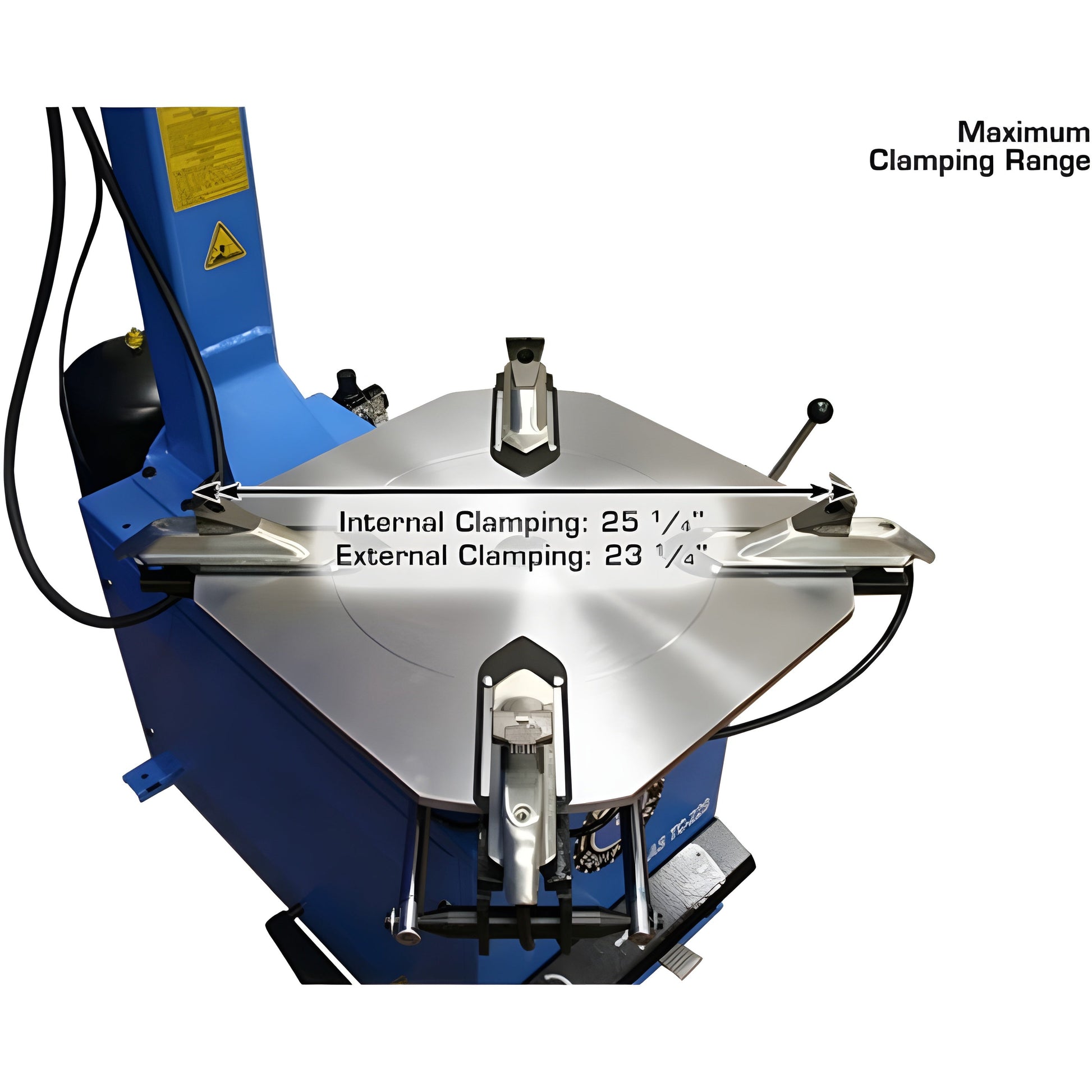

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

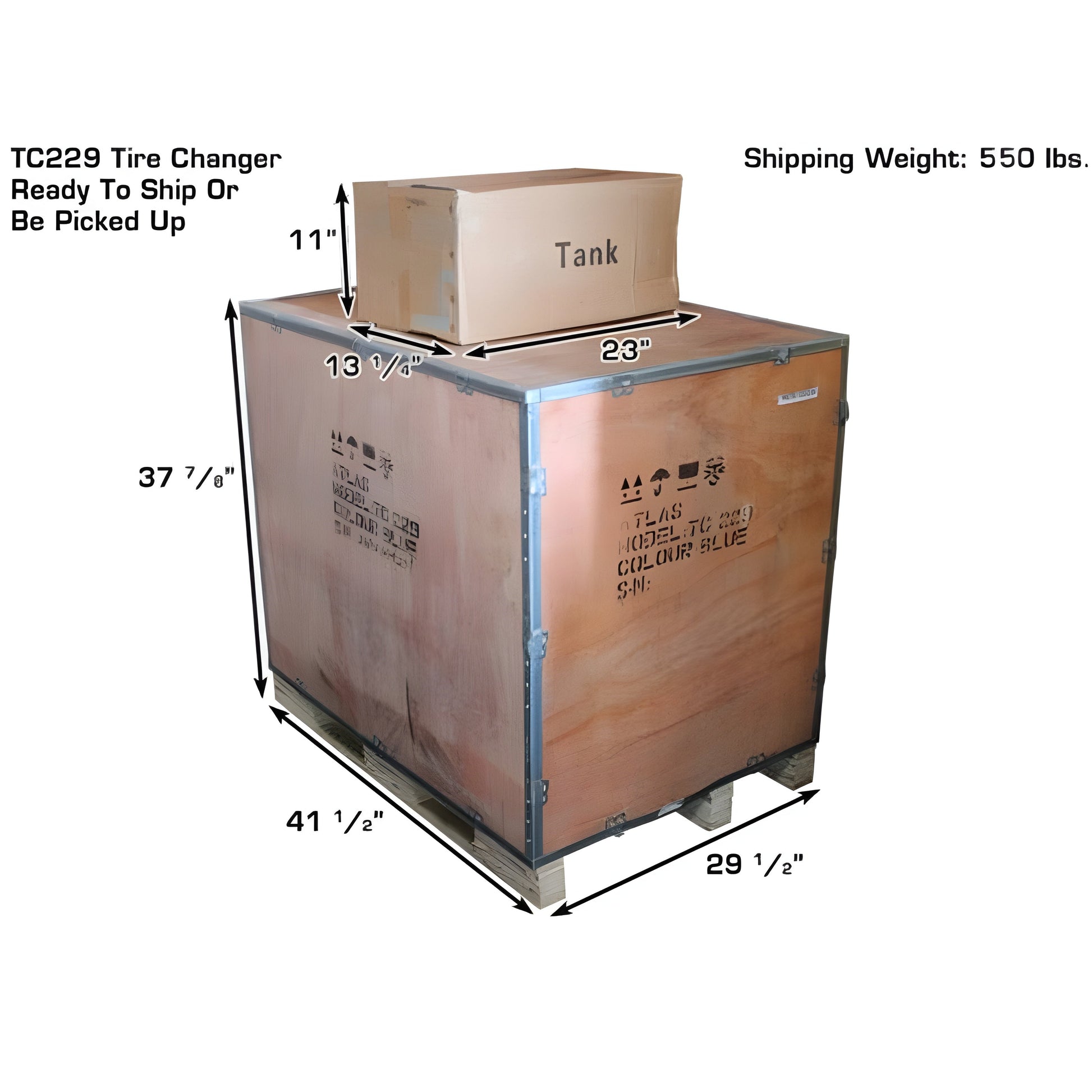

| Shipping Weight |
550 lbs. |
| Atlas® WB49-2 Specifications |
|
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
Automatic 2D (Automatic 3D Optional) |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB49-2 Manual
What our Expect Think
-
Versatile Tire Changer – The Atlas TC229 Tire Changer offers exceptional versatility, capable of handling a wide range of tire sizes, including low-profile and light truck tires.
-
High-Precision Balancing – The WB49-2 Wheel Balancer delivers precise, automatic measurements for wheel balancing, ensuring accurate results and improved vehicle performance.
-
Enhanced Efficiency – This combo package streamlines tire service, offering both tire changing and wheel balancing in one seamless setup, increasing productivity.
-
Built for Durability – Both the TC229 Tire Changer and WB49-2 Wheel Balancer are constructed with heavy-duty materials, ensuring long-lasting, dependable performance in high-demand environments.
-
User-Friendly Design – With intuitive controls, both machines are easy to operate, reducing training time and improving workflow efficiency.
-
Professional-Grade Equipment – Ideal for shops looking for an efficient, high-quality tire changing and balancing solution that can handle a variety of vehicles and tire types.
Q&A
Q: What is the Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package is a professional-grade tire service solution that combines the TC229 tire changer with the WB49-2 wheel balancer, offering efficient and reliable tire changing and balancing.
Q: What is included in the combo package?
A: This package includes the Atlas TC229 Tire Changer and the WB49-2 Wheel Balancer, providing a complete set of tools for fast, accurate tire service.
Q: Is the Atlas TC229 Tire Changer easy to use?
A: Yes, the TC229 features a user-friendly design with a powerful bead breaker and adjustable clamps, allowing for quick and secure tire changes.
Q: What is the capacity of the WB49-2 Wheel Balancer?
A: The WB49-2 Wheel Balancer can accommodate tire sizes up to 130 lbs, ensuring precise balancing for a wide range of vehicle tires.
Q: Is the combo package suitable for high-volume tire shops?
A: Yes, both the TC229 Tire Changer and WB49-2 Wheel Balancer are built for high-volume, professional use, offering durability and precision for automotive shops.
Q: How much space does this combo package require?
A: Both the TC229 and WB49-2 are compact and efficient, designed to save space in your shop while delivering exceptional performance.
Maintenance Tips
-
Regular Lubrication: Lubricate all moving parts on the tire changer and balancer, such as the mounting head and wheel balancing spindle, for smooth operation.
-
Routine Calibration: Regularly calibrate the wheel balancer to maintain high precision and accuracy.
-
Cleanliness: Keep both machines clean, particularly around tire changing and balancing components, to avoid debris buildup that could affect performance.
-
Inspection: Perform periodic checks for wear or damage, particularly on the bead breaker and the wheel balancing sensors.
