Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package - ATETCWB-COMBO6-FPD
This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas WB49-2 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas
Features

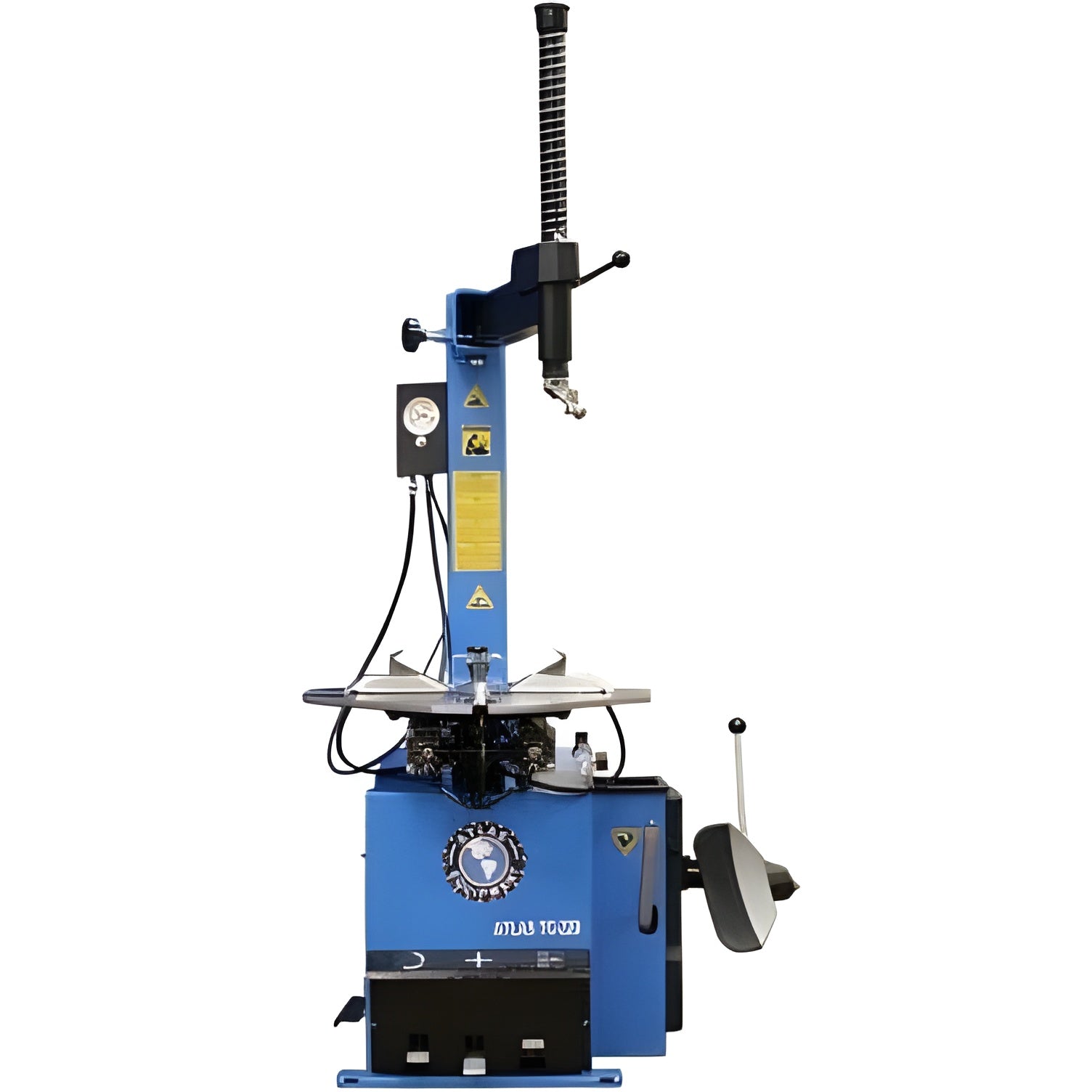

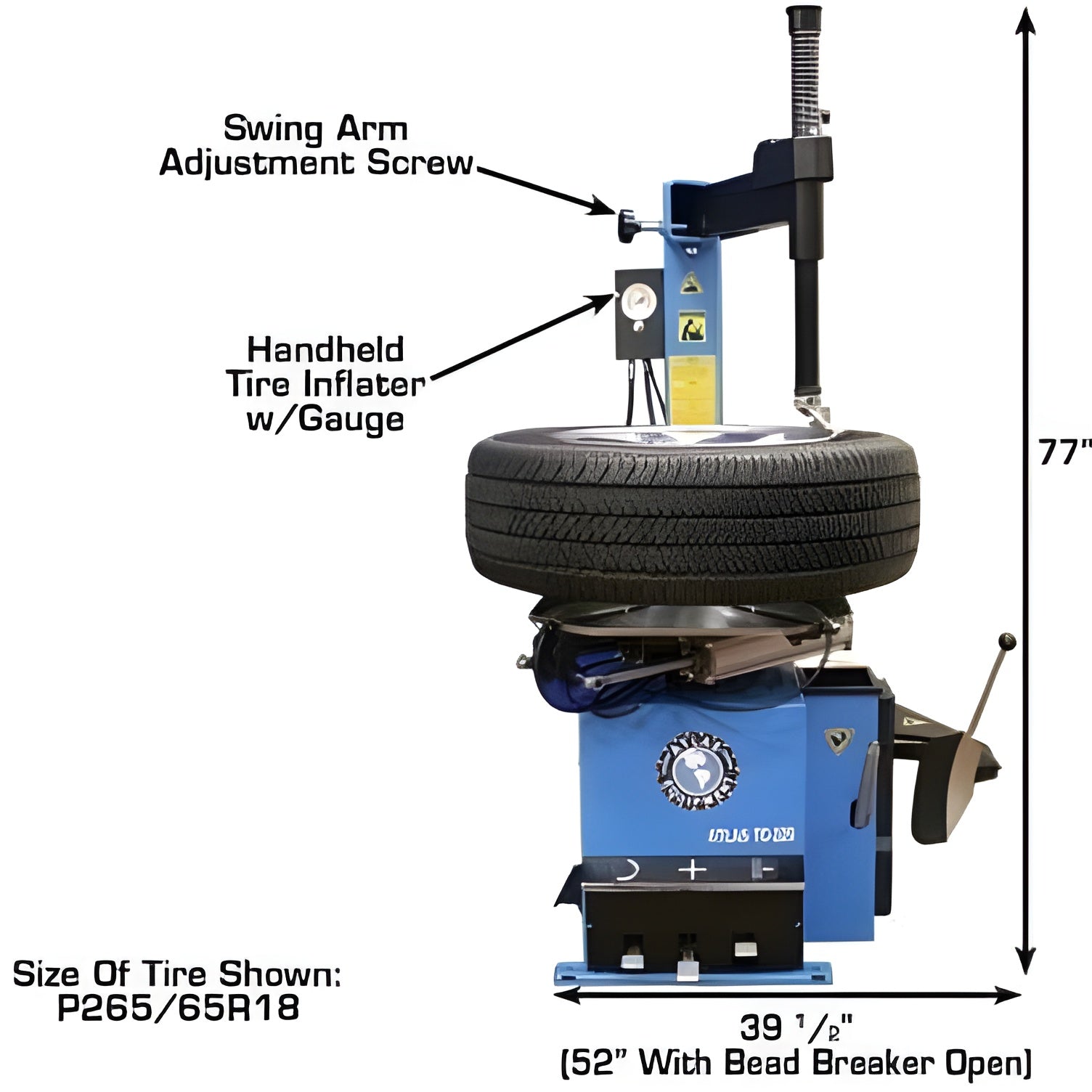

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

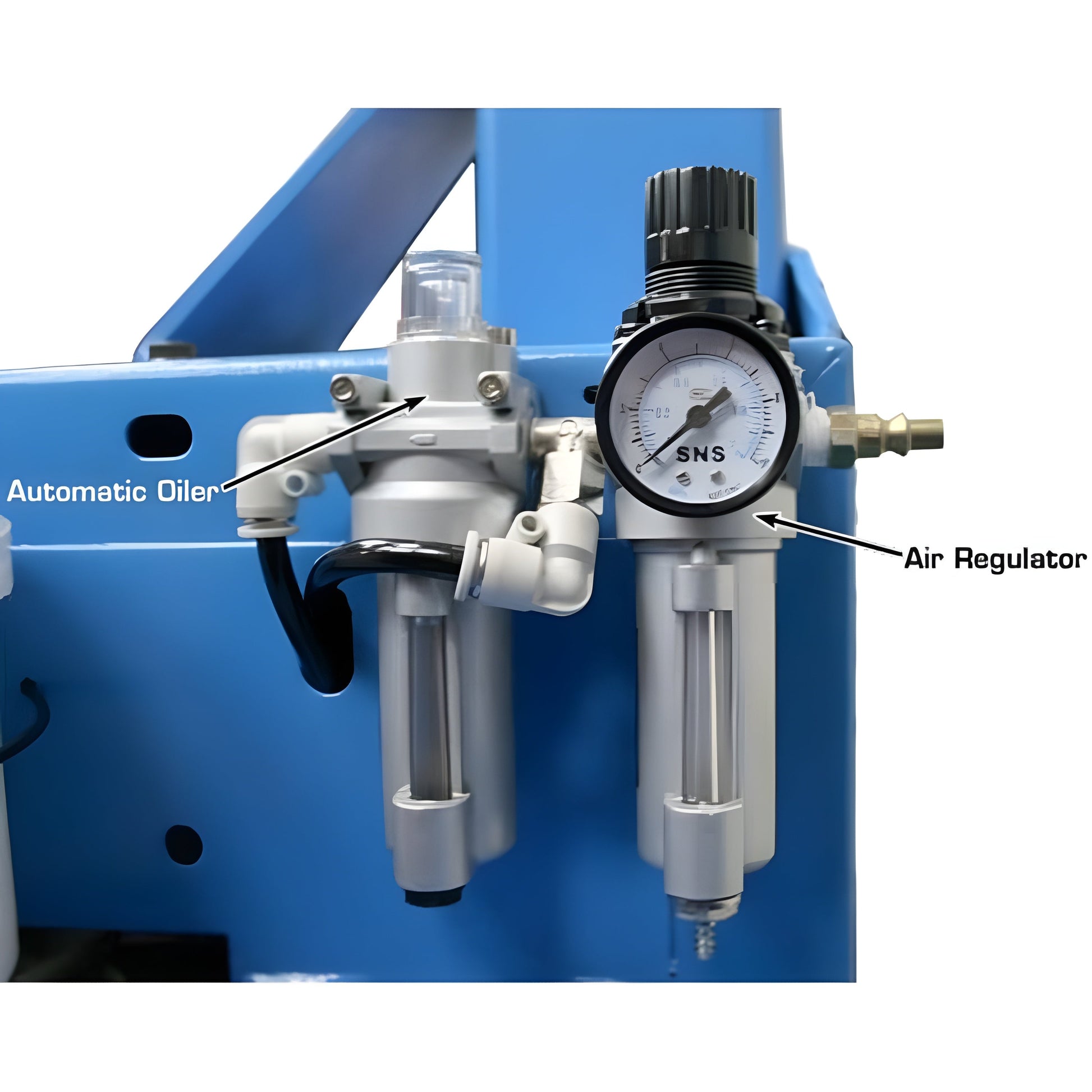

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included

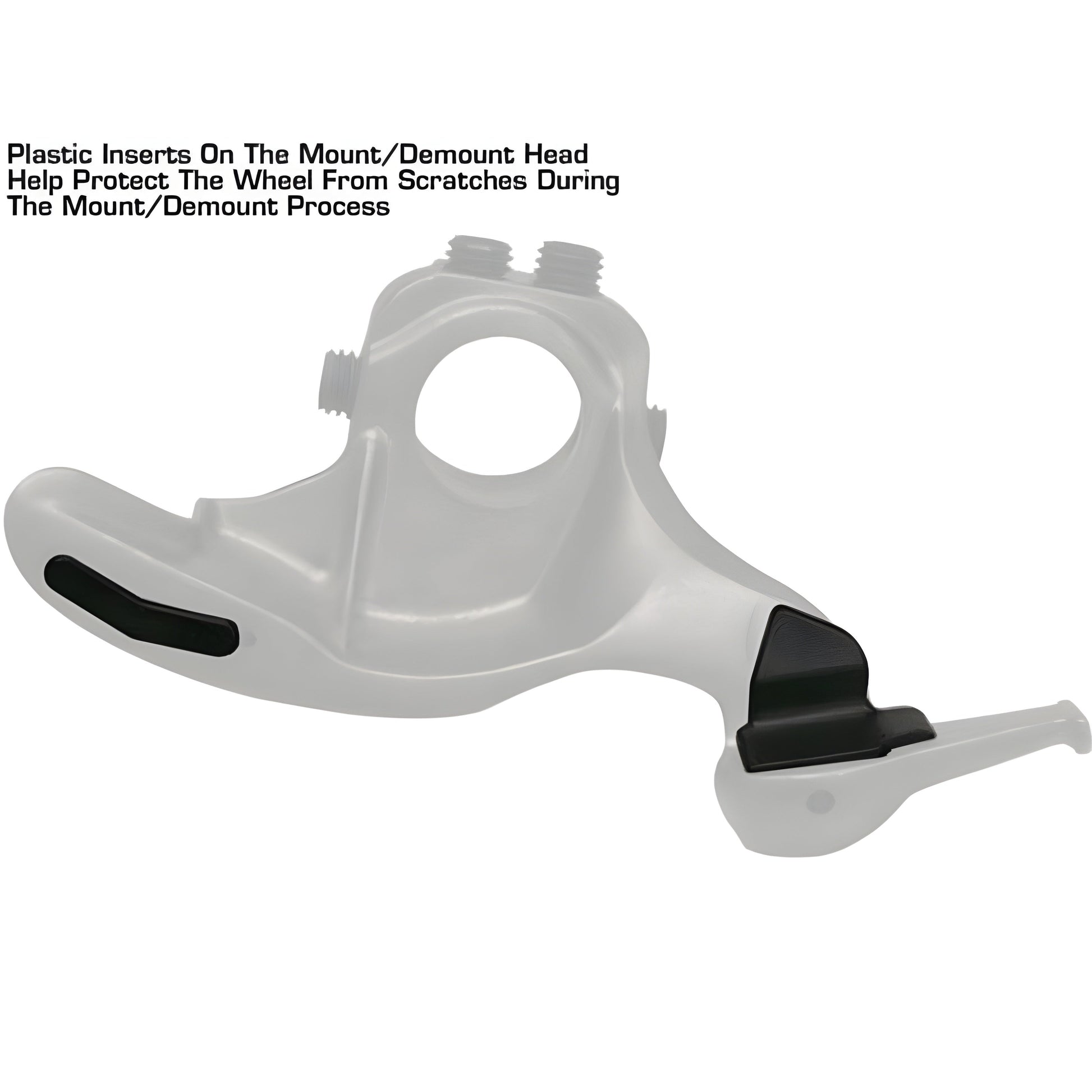

- Multiple Replacement Plastic Inserts for M/D Head Included

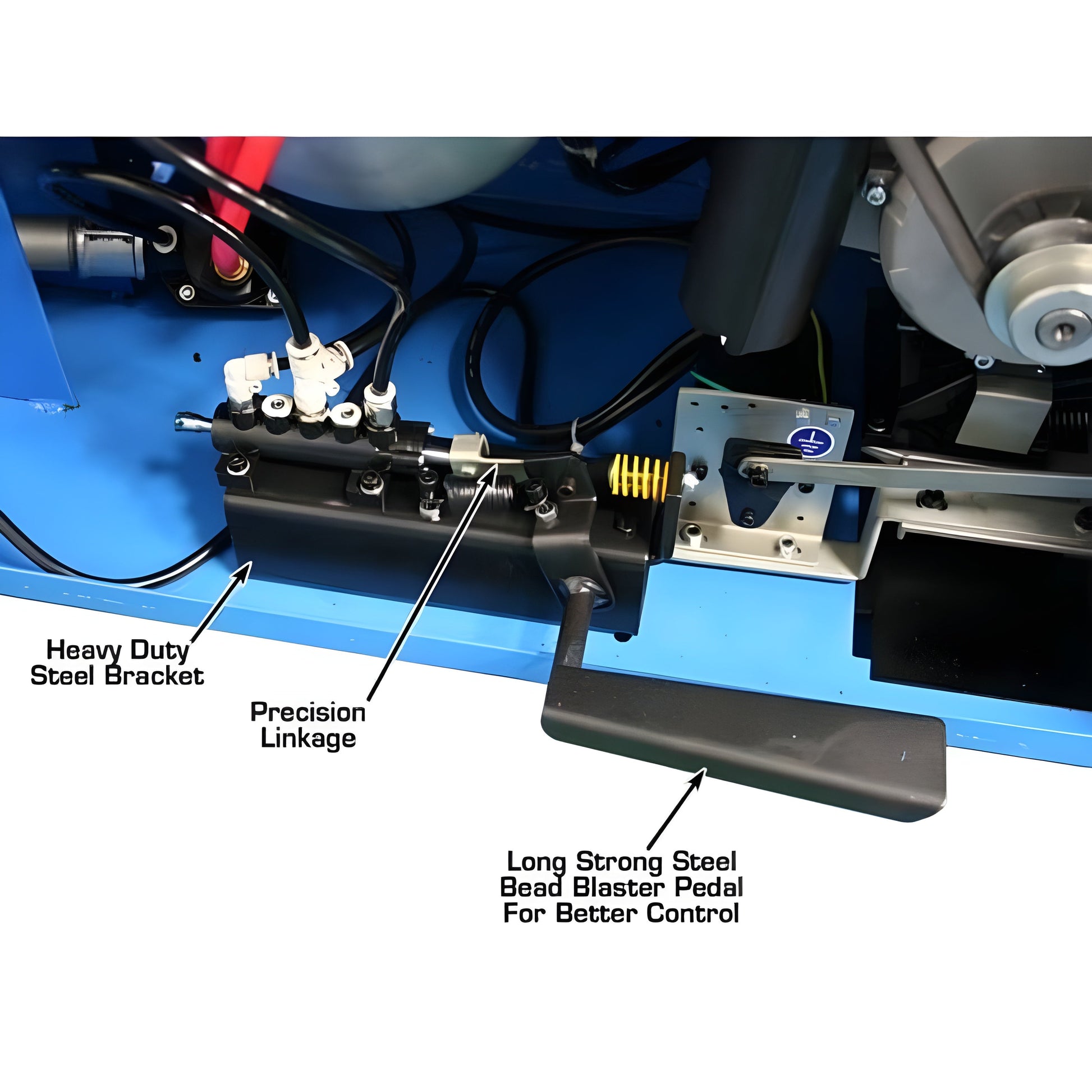

- Built in “Beadblaster”

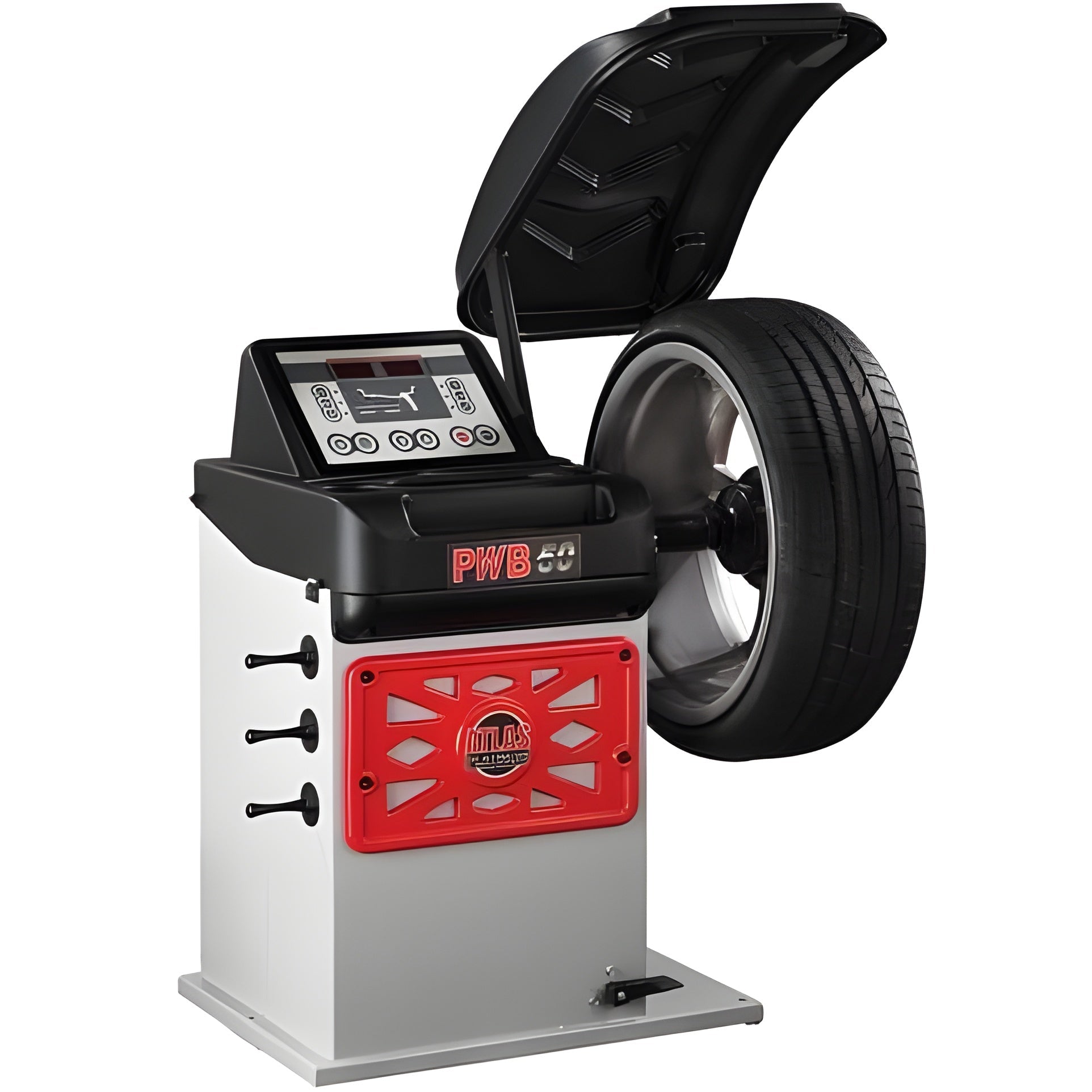

WB49-2 Wheel Balancer
- Computer Controlled Motorized Spin Balancer
- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic 2D Data Entry
- Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

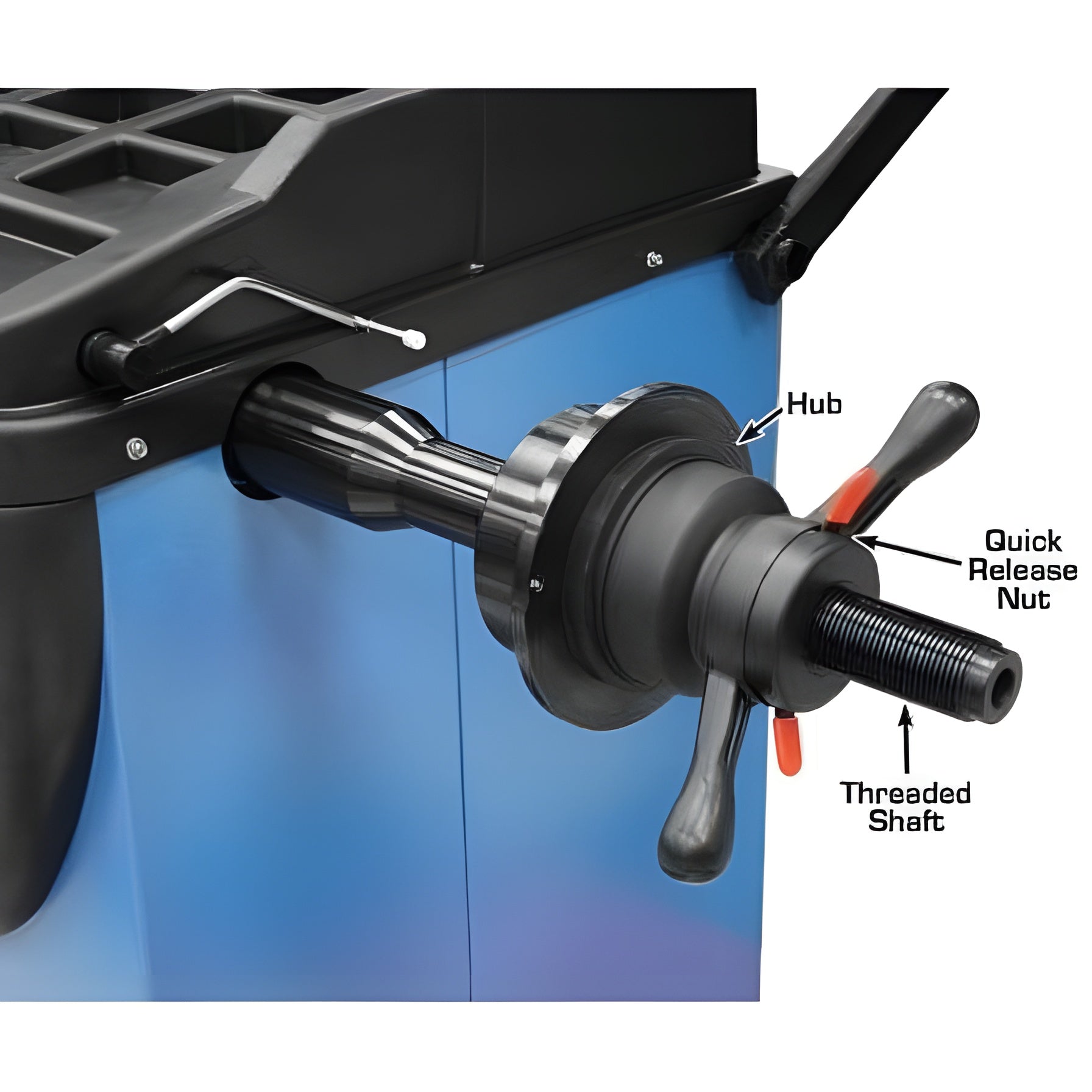

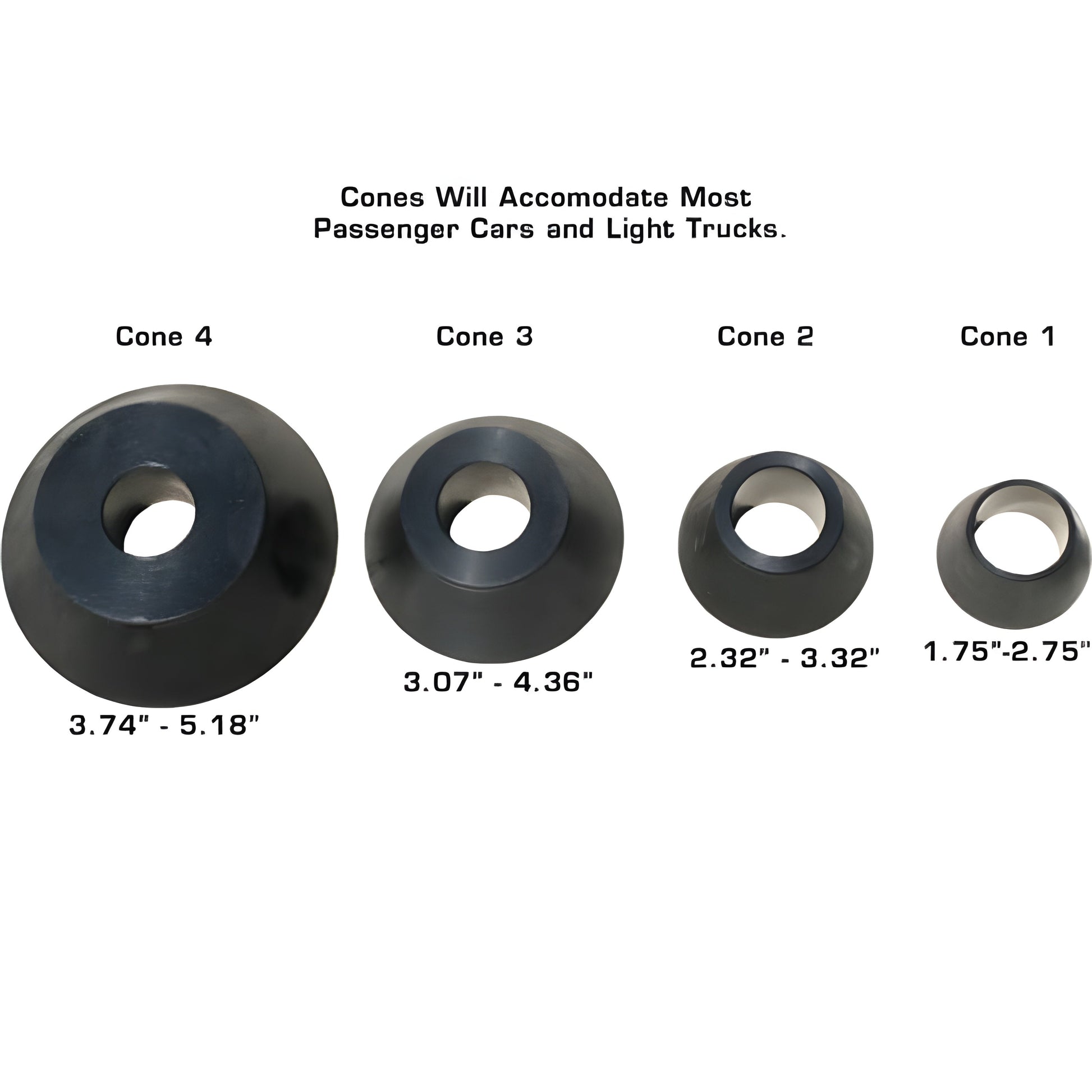

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |

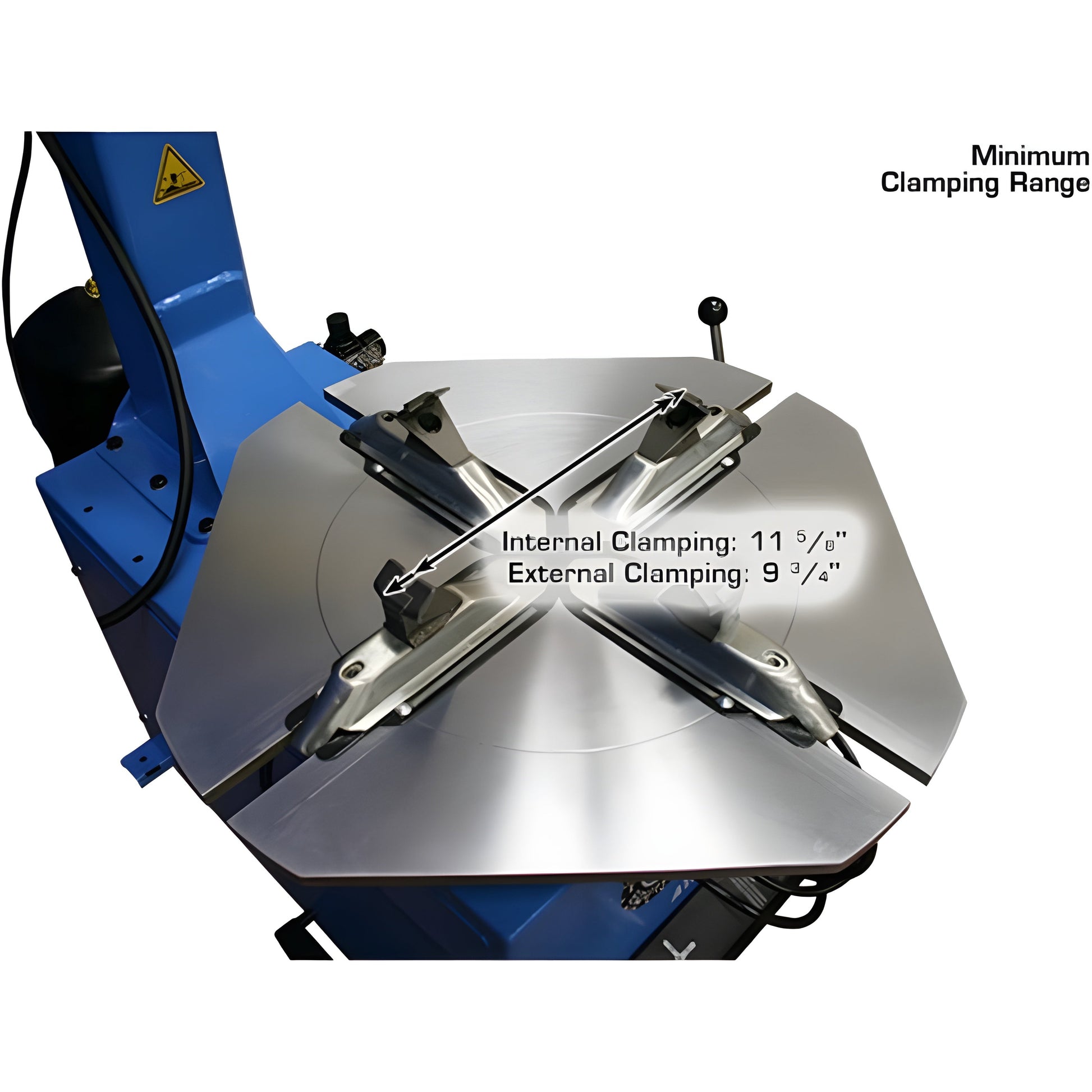

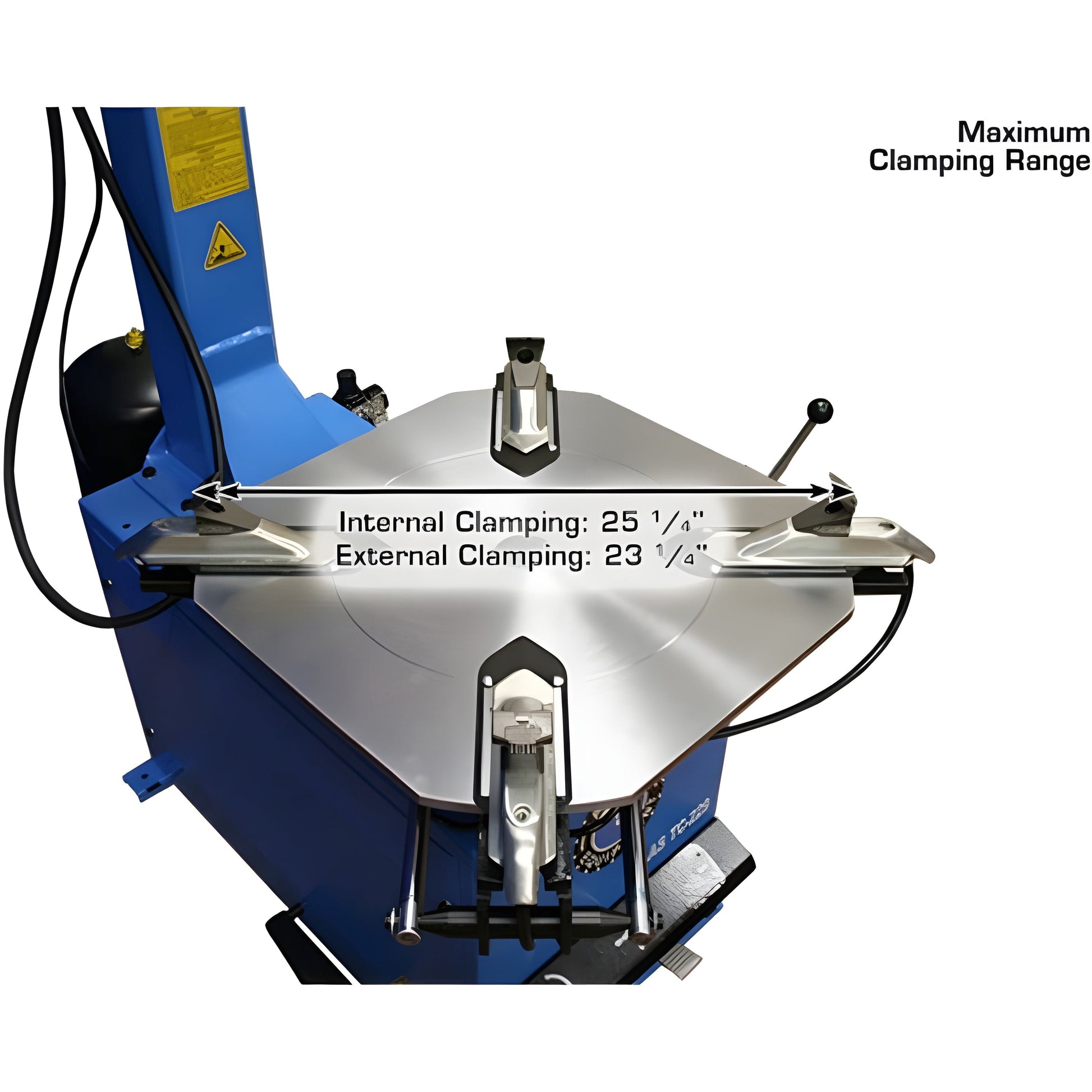

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |

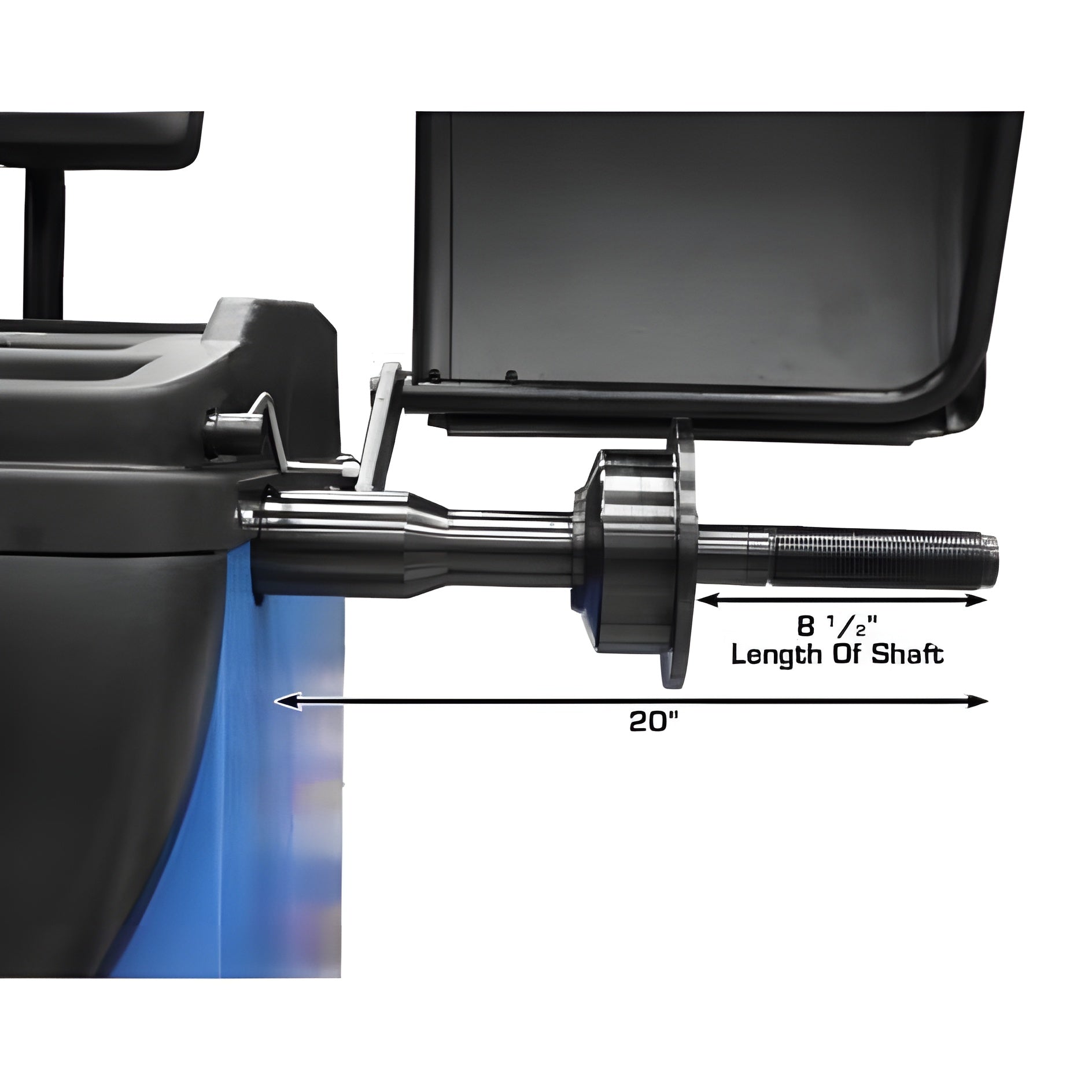

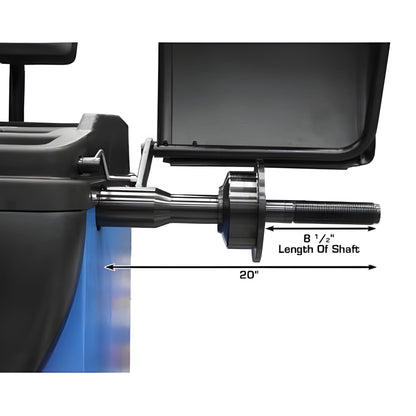

| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
Automatic 2D (Automatic 3D Optional) |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB49-2 Manual
What our Expect Think
-
Complete Tire Service Solution – The Atlas TC229 Tire Changer paired with the WB49-2 Wheel Balancer is a top-tier combo, designed to streamline tire service operations with ease and efficiency.
-
Effortless Tire Changing – The TC229 Tire Changer excels in handling a wide range of tire types, ensuring fast, precise tire mounting and demounting, even with tough or low-profile tires.
-
Enhanced Precision Balancing – The WB49-2 provides high-accuracy balancing to eliminate wheel vibrations, enhancing the overall ride quality and increasing tire lifespan.
-
User-Friendly Interface – With intuitive controls, both machines allow for quick learning and easy operation, making them suitable for both novice and experienced technicians.
-
Durable & Heavy-Duty Construction – Built to last, the combo is designed for continuous high-volume use, ensuring reliable performance in busy service environments.
Q&A
Q: What is included in the Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package includes the TC229 Tire Changer with bead breaker and adjustable mounting head, along with the WB49-2 Wheel Balancer for precise and efficient wheel balancing.
Q: What are the key features of the Atlas TC229 Tire Changer?
-
Durable construction for long-lasting performance
-
Bead breaker for easy tire removal
-
Adjustable mounting head for handling a variety of tire sizes
-
Efficient motor to speed up tire-changing processes
-
User-friendly design for easy operation
Q: Is this combo package ideal for professional use?
A: Yes, this combo package is designed to meet the needs of professional tire shops, providing both efficiency and accuracy for high-volume tire changes and wheel balancing.
Maintenance Tips
-
Clean Regularly – Wipe both the tire changer and wheel balancer with a soft, damp cloth to remove dust, dirt, and tire residue. Avoid harsh chemicals to preserve the equipment's finish.
-
Lubricate Moving Parts – Apply lubrication to the tire changer’s bead breaker and other moving parts, as well as to the wheel balancer’s drive shaft and spindle to ensure smooth and efficient operation.
-
Check for Wear – Inspect key components like the tire changer’s mounting head, wheel balancer’s spindle, and clamps regularly for any signs of wear or damage. Replace worn-out parts immediately.
-
Calibrate the Wheel Balancer – Periodically calibrate the wheel balancer to maintain accurate measurements and ensure precision. Follow the manufacturer’s guidelines for calibration.
-
Tighten Fasteners – Check and tighten all screws and bolts to maintain stability and secure operation.
-
Avoid Overloading – Never exceed the weight limits specified for the tire changer and wheel balancer to prevent unnecessary stress and potential damage.
-
Check Compatibility – Ensure the tire changer is used with the correct tire sizes and rim types to prevent damage to both the equipment and tires.
