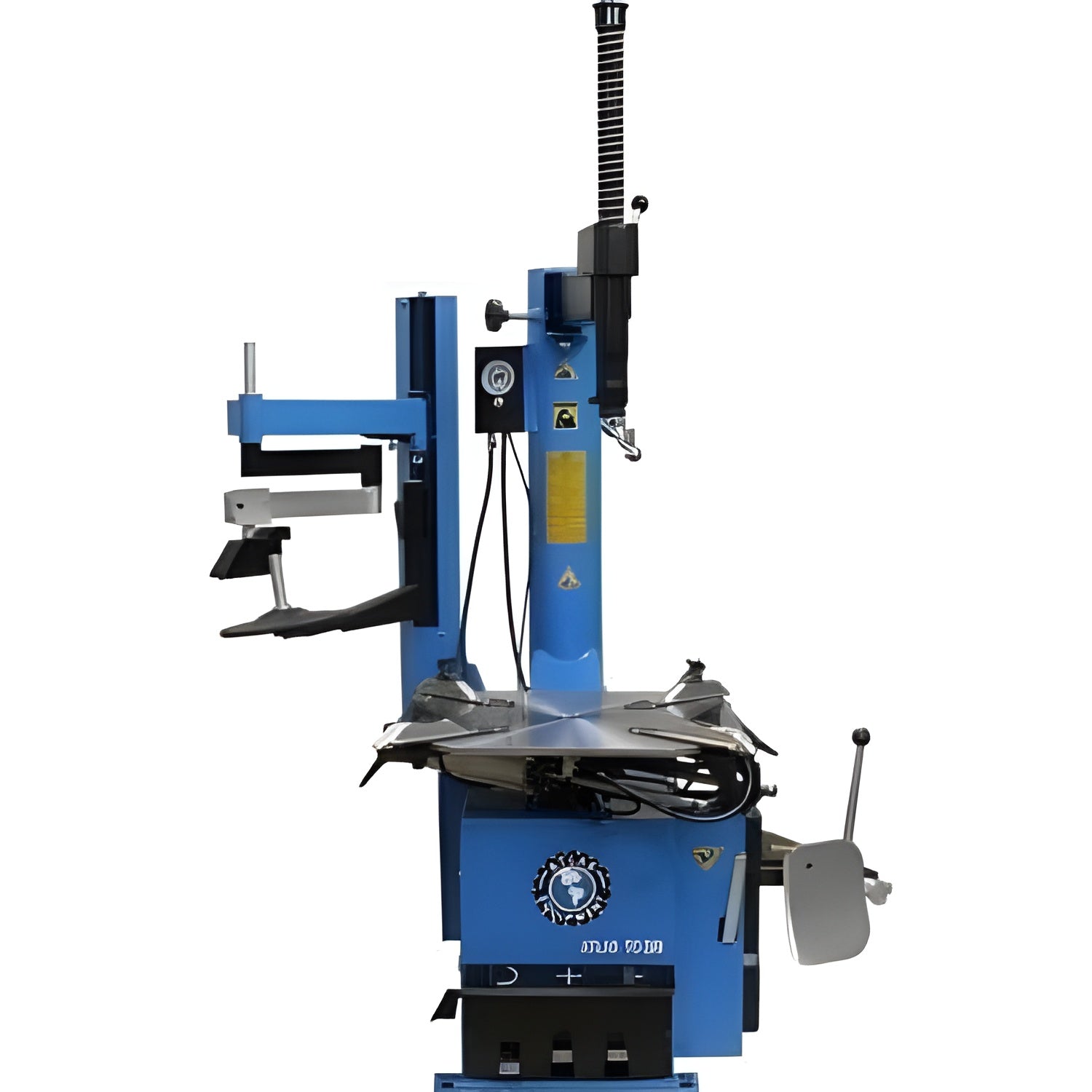

Atlas TC289LH Extra Large Rim-Clamp Tire Changer w/ Assist Arm - ATETC289LH-FPD
The Atlas TC289LH rim clamp, swing arm tire changer is the perfect machine for most general automotive serivce departments and medium sized tire stores. The TC289 is also great for farm use and “Mr. Homeowner” looking to do larger tires.. This version of the TC289 comes with the Atlas LHA or “Left Hand Assist” arm. The LHA is a valuable tool in changing stiff sidewall, low profile style tires. It also acts as an extra set of hands saving a single user time and effort.The Atlas TC289LH machine features the biggest turntable and most clearance to handle the biggest diameter tires, and is perfect for changing the tires on large SUV’s and one ton trucks. The TC289 features a built in “Beadblaster” system. The “Beadblaster” system helps inflate stiff sidewall or other “hard to inflate” tires.The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The Atlas® TC289 has a powerful ADJUSTABLE bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires.The Atlas TC289LH requires some assembly after purchase.
Video
Features
- Large Rim Clamp/Swing Arm Tire Changer
- Extra-Large turntable, more clearance
- Left Hand Assist Arm (pressing block/disk) Included
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

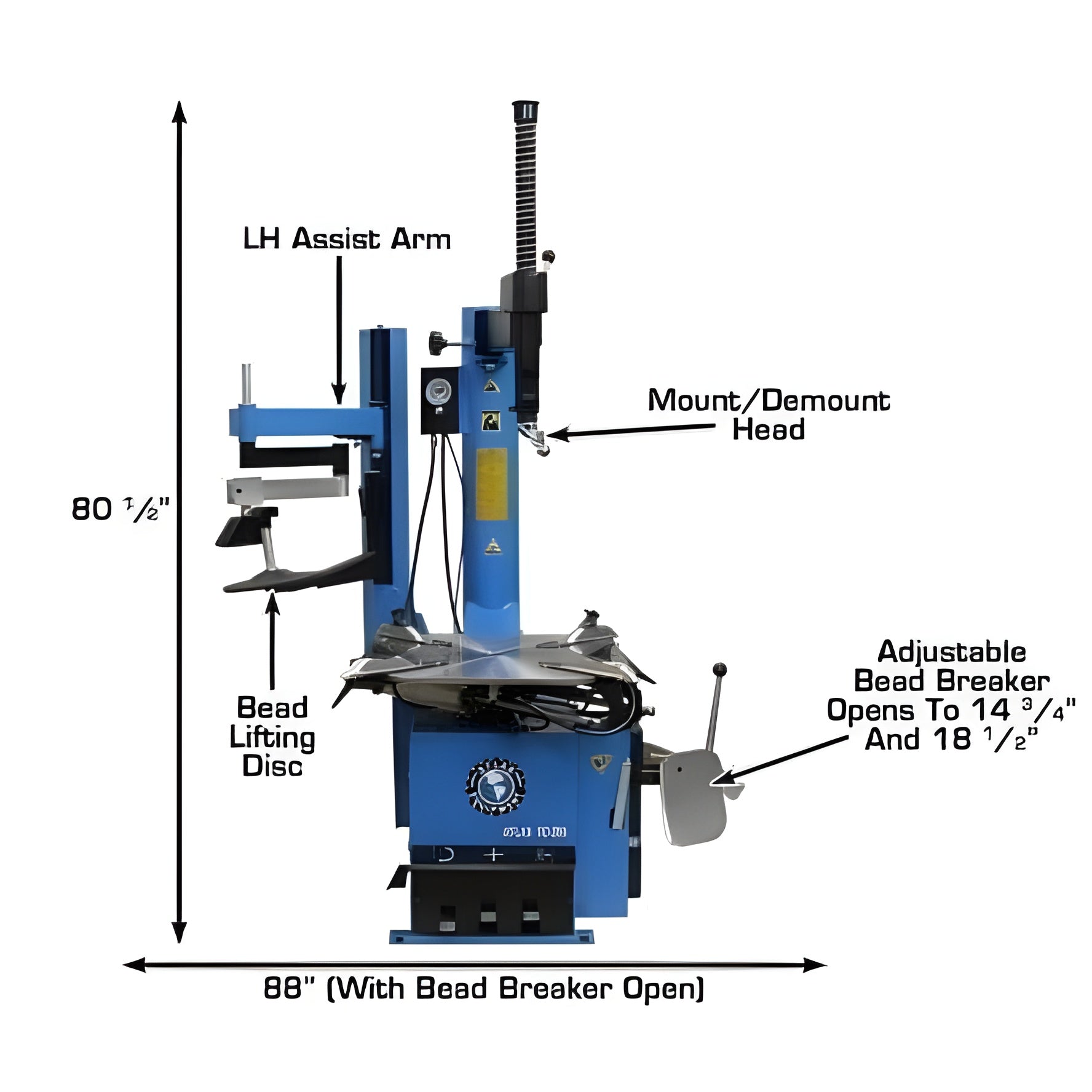

- Adjustable Bead Breaker Plate
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Motorcycle and ATV adapters available (sold separately)
- Built in “Beadblaster”
- Replacement Parts & Wear Items Always in Stock
Specifications
| Rims |
Steel, Aluminum, Alloy |
| External Locking Rim Dimension |
|
| (3 Positions) |
1) 11 7/8" - 26" |
| 2) 12 7/8" - 27" |
|
| 3) 13 3/4" - 28" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 13 7/8" - 27 7/8" |
| 2) 14 5/8" - 28 7/8" |
|
| 3) 15 5/8" - 29 7/8" |
|
| Maximum Tire Diameter |
47" |
| Maximum Wheel Width (Bead Breaker) |
18" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
Manual
Atlas TC289 Manual
Atlas Left Hand (LH) Assist Arm Manual
What our Expect Think
-
Designed for Extra-Large Rims – The Atlas TC289LH Extra Large Rim-Clamp Tire Changer is perfect for handling large rims, with a capacity to work on rims up to 48 inches. It is ideal for commercial vehicles, RVs, trucks, and other heavy-duty applications.
-
Effortless Tire Removal – Equipped with an assist arm, this tire changer reduces the effort required to remove and install tires, especially for large and difficult-to-mount tires. The assist arm improves both safety and ease of operation.
-
Enhanced Durability – The TC289LH is built with heavy-duty construction for long-lasting performance. It’s made to withstand high-volume tire service environments, offering consistent, reliable operation even under heavy use.
-
Advanced Rim Protection – With its rim-clamp technology, the tire changer ensures that rims stay protected during tire mounting and demounting. This feature prevents damage to expensive or delicate rims.
-
Boosted Productivity – The TC289LH ensures faster and smoother operation, improving workflow in your tire shop. The combination of heavy-duty capacity and assist arm technology allows for quick tire changes, helping increase service speed and overall productivity.
Q&A
Q: What is the Atlas TC289LH Extra Large Rim-Clamp Tire Changer with Assist Arm designed for?
A: The Atlas TC289LH Extra Large Rim-Clamp Tire Changer with Assist Arm is designed for high-volume tire shops and businesses that work with large and oversized tires, including light truck, SUV, and commercial vehicle tires. It is built to handle extra-large wheels and tires efficiently while minimizing damage to rims.
Q: What types of vehicles is the Atlas TC289LH suitable for?
A: This tire changer is ideal for large commercial vehicles, light trucks, SUVs, and other vehicles with oversized tires.
Q: How does the assist arm improve usability?
A: The assist arm helps to mount and demount larger tires with ease, providing additional leverage and support to prevent damaging the tire or rim. It makes the entire process quicker and safer for both the operator and the equipment.
Q: Is the Atlas TC289LH easy to use?
A: Yes, despite its heavy-duty capabilities, the Atlas TC289LH is equipped with intuitive controls and an assist arm to make the tire-changing process simpler, even for larger and tougher tires. It’s designed for maximum efficiency and operator comfort.
Maintenance Tips
-
Regular Cleaning – Clean the tire changer after each use to remove tire debris, dust, and grease. Use a soft cloth or brush and avoid abrasive materials to preserve the equipment’s surface.
-
Lubricate Moving Parts – Lubricate the bead breaker, mounting head, and assist arm’s moving components to ensure smooth operation and reduce wear on moving parts.
-
Inspect for Damage – Check the rim clamps, bead breaker, and assist arm regularly for signs of damage or excessive wear. Replace any damaged parts to maintain safety and functionality.
-
Tighten Bolts and Fasteners – Periodically check all bolts, screws, and fasteners to ensure they are properly tightened to prevent parts from loosening over time.
-
Check Tire Size Compatibility – Ensure the tire changer is used within the recommended size and weight limits. This helps avoid overloading and potential damage to the machine.
-
Monitor Tire Changing Speed – Do not rush the tire changing process. Proper speed and technique will minimize strain on the equipment and increase its lifespan.
-
Calibrate Equipment – While the TC289LH doesn’t require frequent calibration, ensure the assist arm and clamps are correctly aligned and calibrated for each new set of tires to ensure accurate performance.
-
Protect the Equipment – When not in use, cover the tire changer to protect it from dust, moisture, or accidental damage, especially in environments with high humidity or temperature fluctuations.
