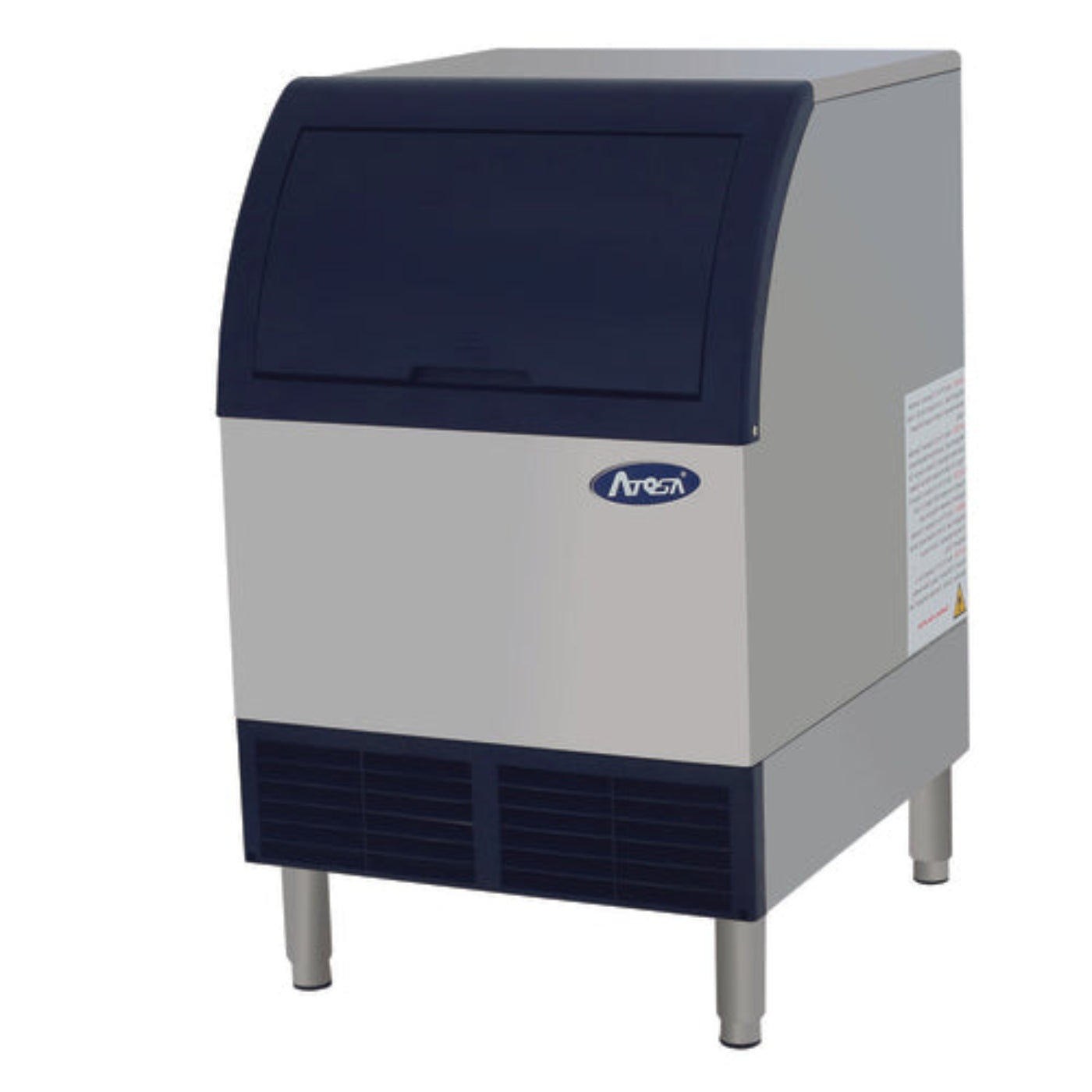

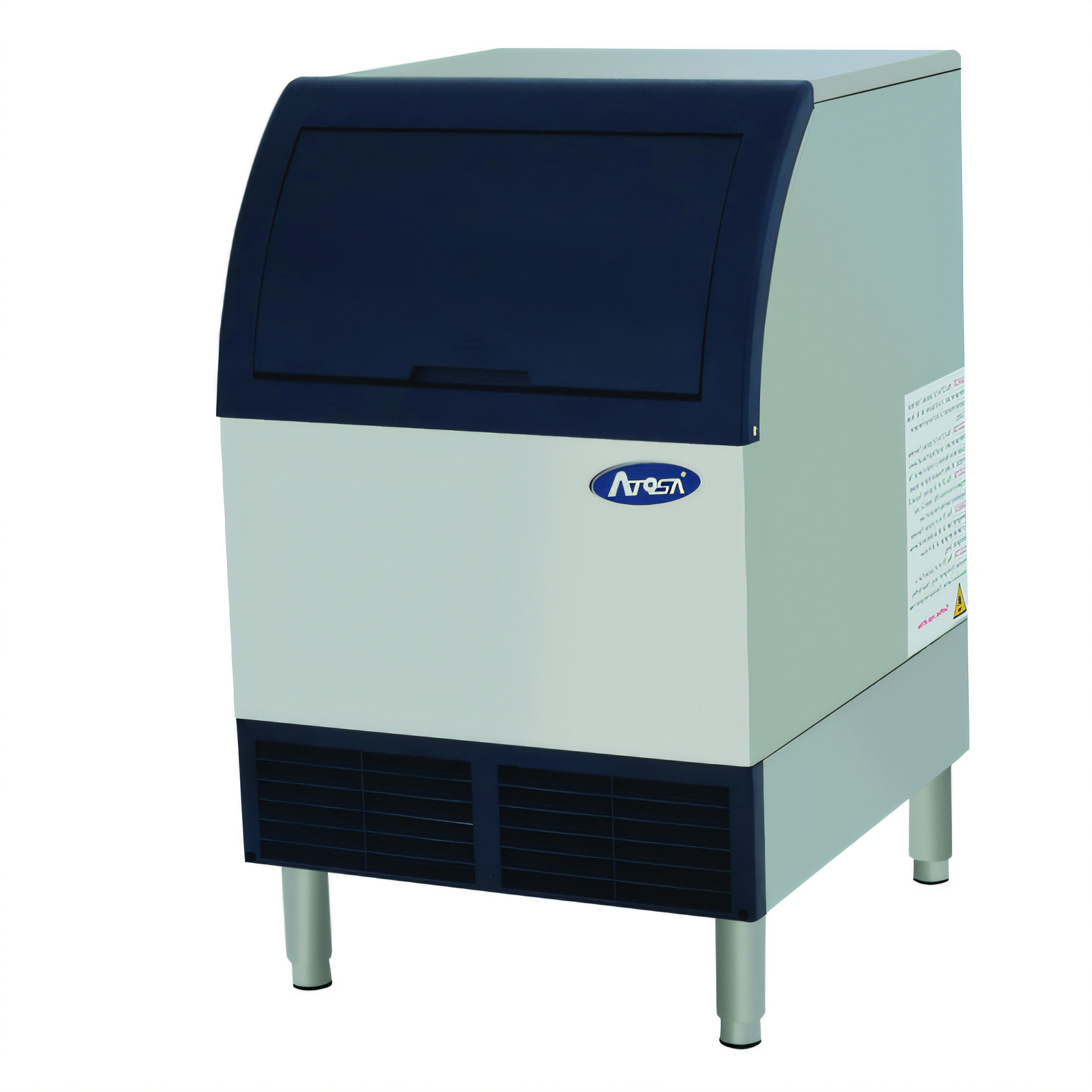

Atosa USA, Inc. YR140-AP-161 Atosa Ice Machines
Ice Maker with Bin, cube-style, air-cooled, self-contained condenser, 23.7"W x 28.5"D x 38.6"H, production capacity up to 142-lb/24 hours, 88 lb storage capacity, stainless steel exterior, 6" adjustable legs, includes: ice scoop, removable air filter, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 3.1 amps, cETLus, ETL-Sanitation, NSF, ENERGY STAR® (drain required)
Specifications
| Manufacturer |
Atosa USA, Inc. |
| Brand Name |
Atosa |
| Certifications |
NSF, cETLus, ETL-Sanitation, ENERGY STAR |
| Height |
38.6 in |
| Width |
23.7 in |
| Depth |
28.5 in |
| Shipping Weight |
176.37 lbs |
| Bin Storage Capacity |
88 lb (Fits 51 – 100 lb category) |
| Cube Type |
Half size / Half dice |
| Condenser Type |
Air-cooled |
| Finish |
Stainless steel |
| Energy Efficiency |
ENERGY STAR® |
| Production per 24 hr |
Up to 142 lb (within 101 – 200 lb / 46 – 90 kg range) |
| Full Specifications |
Ice Maker with Bin, cube-style, air-cooled, self-contained condenser, 23.7"W x 28.5"D x 38.6"H, production capacity up to 142-lb/24 hours, 88 lb storage capacity, stainless steel exterior, 6" adjustable legs, includes: ice scoop, removable air filter, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 3.1 amps, cETLus, ETL-Sanitation, NSF, ENERGY STAR® (drain required) |
Drawings
Documents
What our Experts Think
-
High Production Capacity: Capable of producing up to 140 lbs of ice per day, meeting the demands of high-volume commercial environments.
-
Efficient Performance: Advanced compressor and R134a refrigerant ensure fast ice production while minimizing energy consumption.
-
Durable Build: Constructed with high-quality stainless steel, designed for long-lasting performance in demanding conditions.
-
Easy Operation: User-friendly digital controls for precise settings and easy monitoring of ice production.
-
Low Maintenance: Simple cleaning and maintenance with an easy-access design and self-cleaning function for added convenience.
Q&A
Q: What is the Atosa YR140-AP-161 Ice Machine?
A: It’s a high-performance commercial ice machine designed to produce clear, high-quality ice for bars, restaurants, and hospitality businesses.
Q: What are the key features?
A: Features include a 140 lb. daily ice production capacity, an efficient air-cooled system, and a durable stainless steel exterior for long-lasting performance.
Q: How much ice does it produce?
A: The YR140-AP-161 produces up to 140 lbs. of ice per day, making it ideal for high-demand environments.
Q: Is it energy-efficient and easy to maintain?
A: Yes, it uses an energy-efficient air-cooled system and includes easy-to-access components for simple maintenance and cleaning.
Q: Why choose the Atosa YR140-AP-161 Ice Machine?
A: It offers reliable performance, NSF/ETL certifications, and is built to handle the demands of busy foodservice operations, ensuring a constant supply of quality ice.
Maintenance Tips
-
Regular Cleaning: Clean the machine every three months using the recommended cleaner. Follow the manufacturer's instructions for proper cleaning and sanitizing cycles.
-
Air Filter Maintenance: Clean the removable air filter regularly to ensure proper airflow and efficient operation. This prevents dust and debris buildup.
-
Water Quality Management: Install and maintain the water filter system. Replace the filter cartridge every six months or as needed, depending on water quality.
-
Condenser Cleaning: Periodically clean the condenser coils to remove dust and debris, ensuring efficient cooling and extending the unit's lifespan.
-
Proper Installation and Usage: Ensure the ice maker is installed in a well-ventilated area and within the recommended ambient temperature range (50°F to 110°F). Avoid obstructing the air inlet and outlet.
