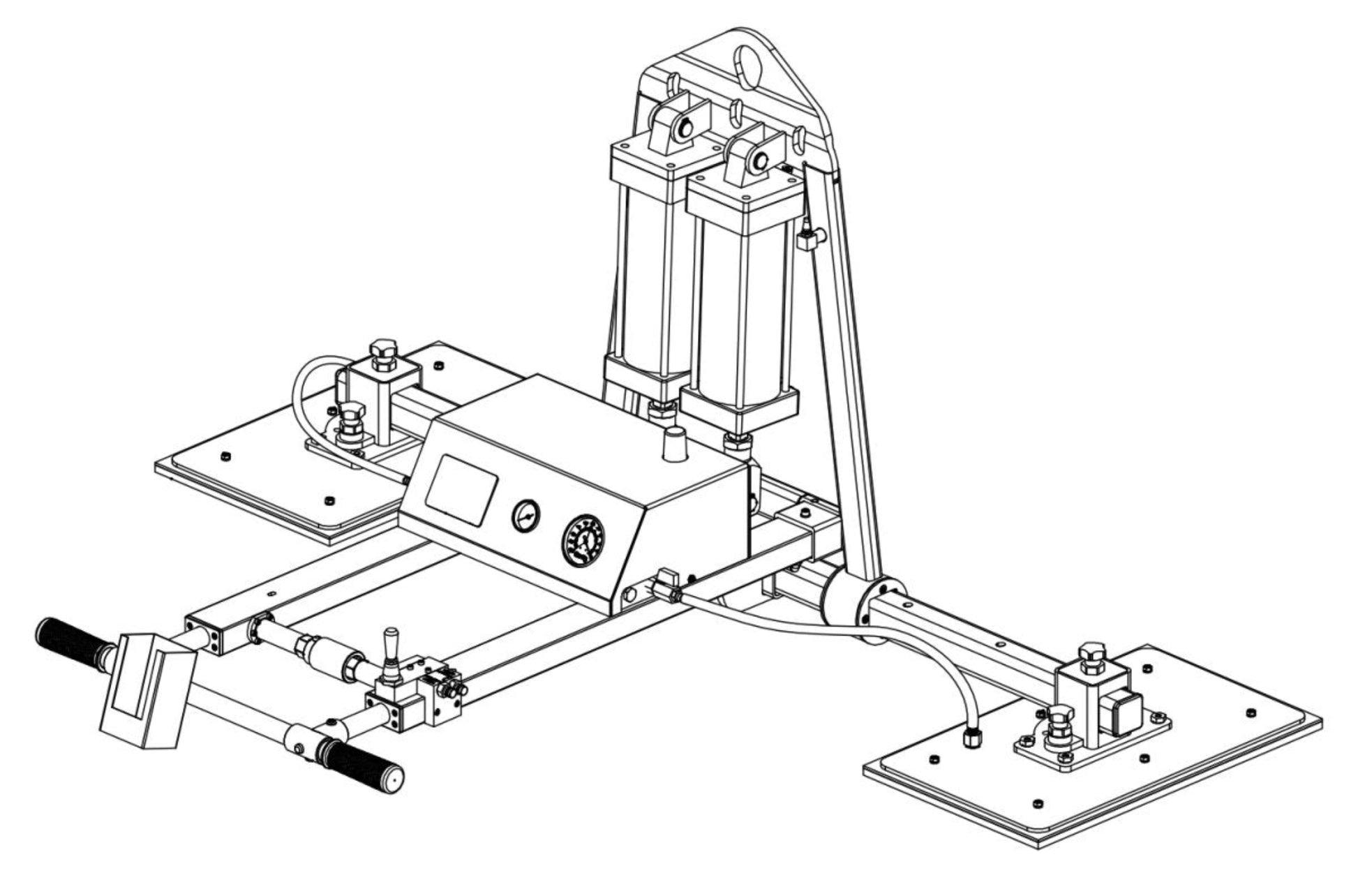

Aardwolf AVLP2-500-PRO Vacuum Lifter - AVLP2-500-PRO

Aardwolf AVLP2-500-PRO Vacuum Lifter - AVLP2-500-PRO

Specifications

What our Experts Think

• Smooth Pneumatic Tilting:
  Effortlessly tilts slabs from vertical to horizontal (0°–90°) using a reliable pneumatic piston—ideal for positioning large panels.

• Strong Dual Pad System:
  Fitted with two adjustable vacuum pads (500x300 mm) for superior grip and stability across various material sizes.

• Impressive Load Capacity:
  Handles up to 500 kg (1,102 lbs) horizontally and 250 kg (551 lbs) vertically, perfect for stone, glass, and similar heavy materials.

• Built-In Safety Vacuum Tank:
  Maintains vacuum in the event of power loss—ensuring slabs remain securely held during handling.

• Rechargeable Alarm System:
  Includes an integrated 12V battery-powered alarm that gives visual and audio alerts when vacuum pressure is low.

• User-Friendly Slide Valve:
  Simple ON/OFF valve makes it easy to control suction and release with confidence.

• Energy Efficient:
  Battery-operated air-saving system reduces compressed air use, improving efficiency and cost-effectiveness.

• Ergonomic Handle Design:
  Extendable handles improve comfort and control for operators handling larger or awkward materials.

• Air-Powered Operation:
  Runs on 5 bars (72 psi) of compressed air with 180 L/min air consumption—no electricity required.

Q&A

Q: What is the Aardwolf AVLP2-500-PRO Vacuum Lifter?
A: A pneumatic vacuum lifter designed for safely lifting and tilting heavy stone slabs, including granite and marble.

Q: What is the lifting capacity?
A: It can lift up to 500 kg horizontally and 250 kg vertically.

Q: Can it tilt slabs?
A: Yes, it tilts materials from 0° to 90° using a pneumatic piston for smooth vertical-to-horizontal handling.

Q: Is it easy to operate?
A: Yes, the slide valve control simplifies loading and unloading with clear ON/OFF positions.

Q: What's the packaging size and weight?
A: Packaged dimensions are 1480 x 390 x 960 mm, with a gross weight of 109 kg.

Maintenance Tips

• Clean Daily: Wipe suction pads and frame after each use to prevent dust buildup and ensure consistent suction.

• Battery Care: Fully charge the Bosch 12V 2.0Ah Li-ion battery after each use. Avoid deep discharges and store in a cool, dry place.

• Vacuum System: Inspect tank and hoses for leaks or damage. Test the vacuum alarm regularly for proper function.

• Air Supply: Maintain 5 bar (72 psi) air pressure. Check air lines for leaks and lubricate moving parts as recommended.

• Load Limits: Do not exceed 250 kg vertically or 500 kg horizontally. Always verify secure attachment before lifting.

• Temperature Use: Operate only between -15°C to +50°C to protect system integrity.

• Storage: Keep in a dry, clean area. Use protective coating for long-term storage.
