Bartell Global 20" Self Propelled Shot Blaster; 23HP 460V 3 Phase Electric - SPE20ES

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

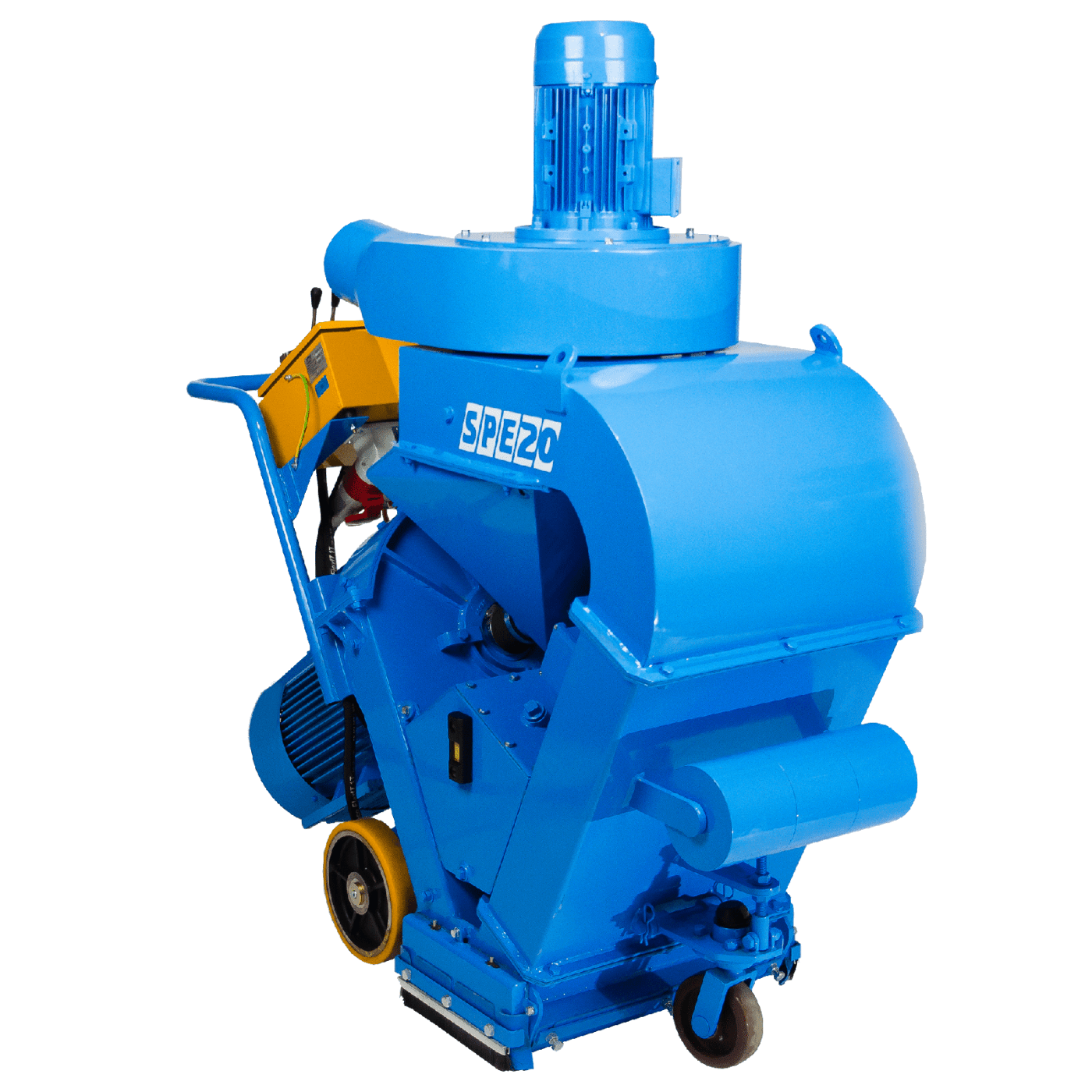

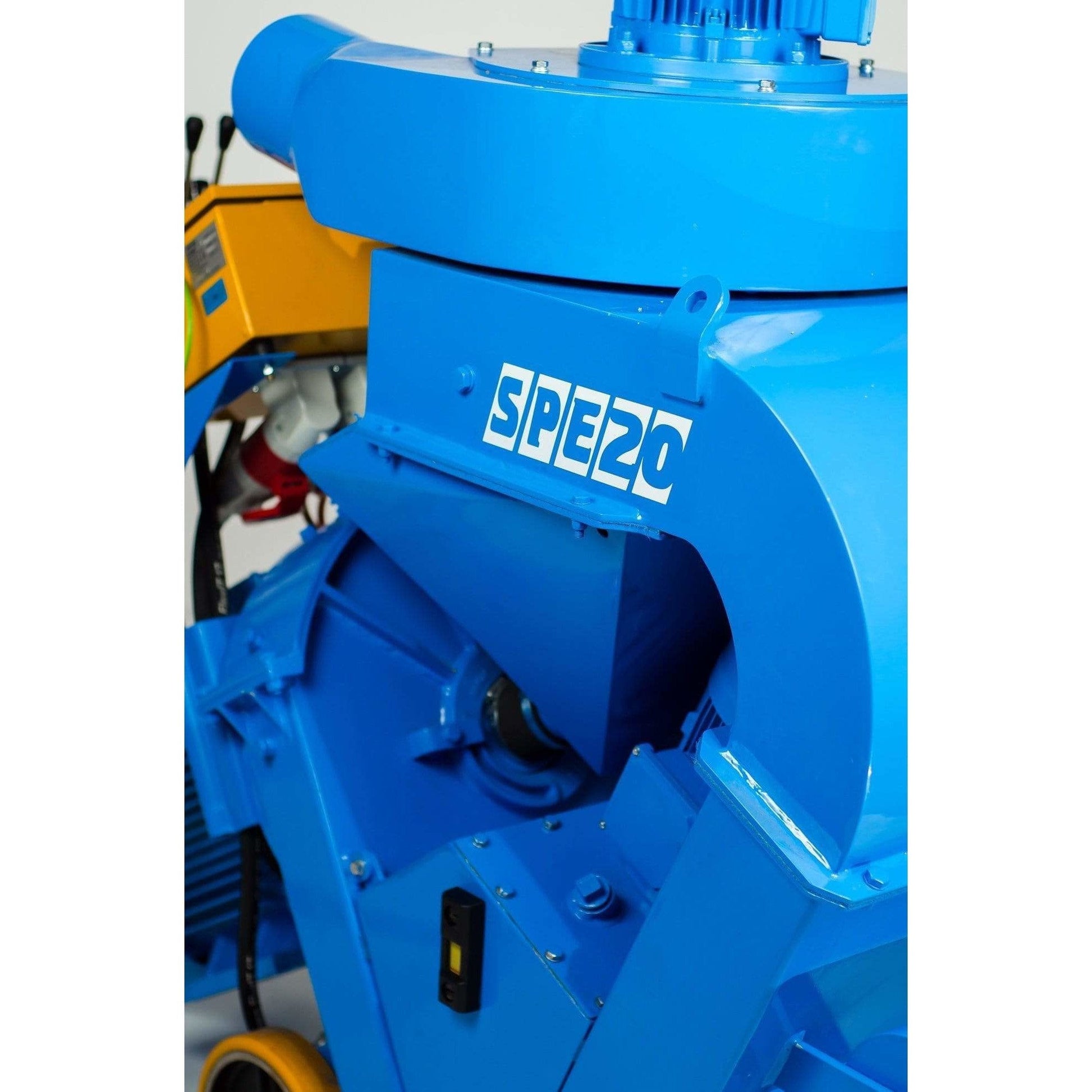

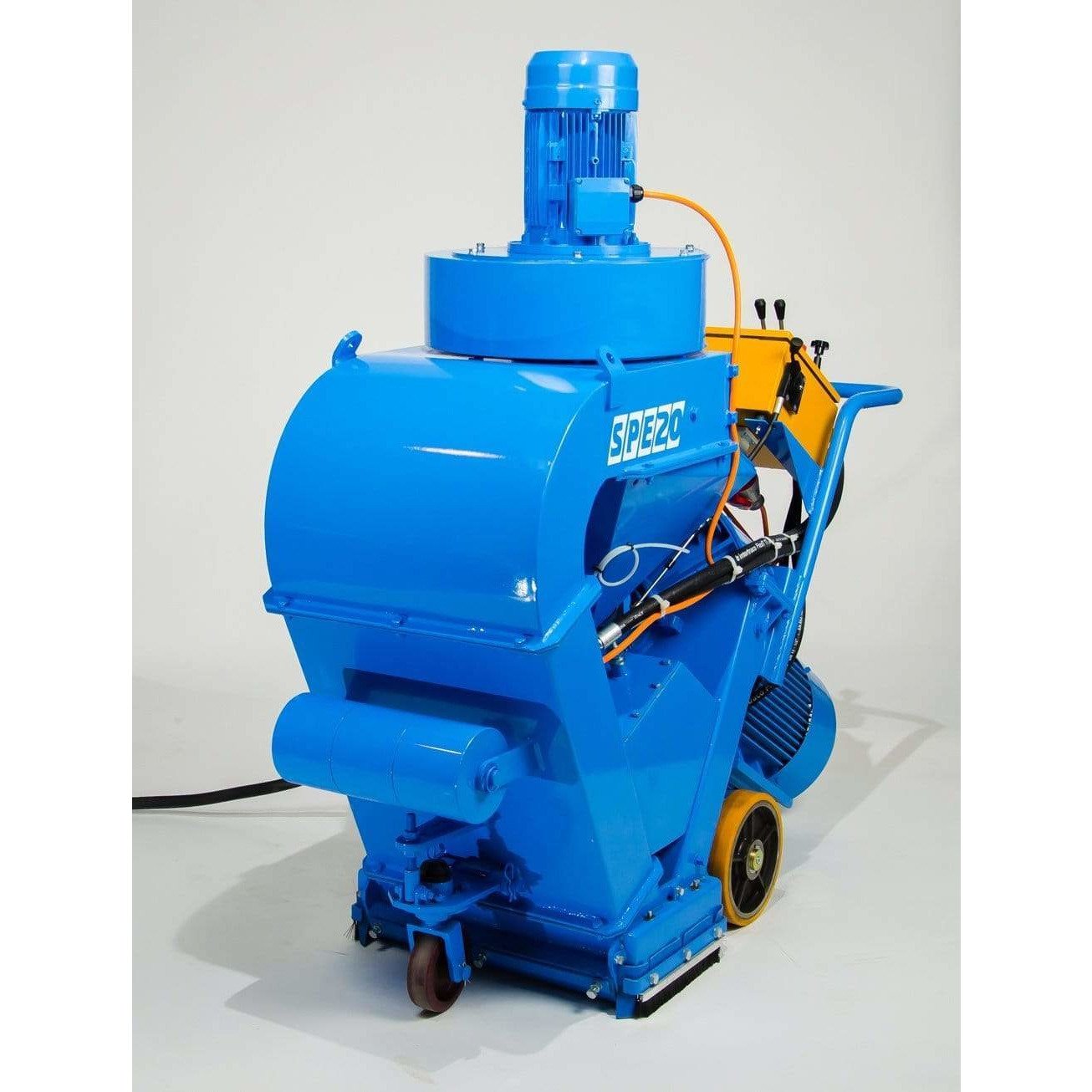

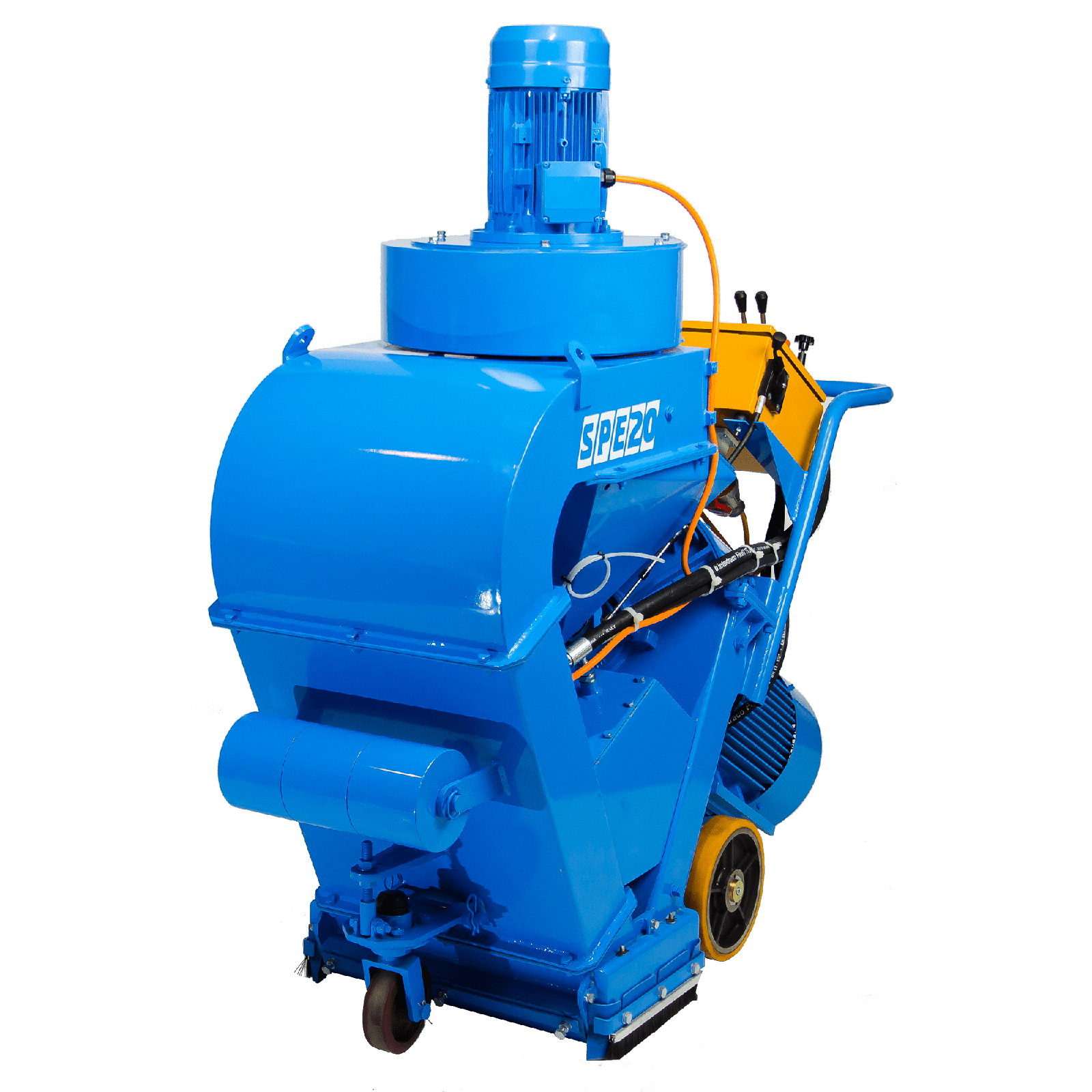

The SPE 20ES shot blaster is a large machine for the serious contractor, ideal for high productivity. Electrically powered, it is mainly used for preparation of concrete floors but equally effective on steel surfaces.

• 508mm (20″) working width
• Electrically powered, hydraulic dive
• Fast blast steel to SA 2.5- 3 standards, concrete and asphalt with ease
• Optional seal system to vary blast width

See Features Below:

• Blast unit constructed of manganese steel
• Dust collector fitted with integral compressor and reverse air jet pulsation system to allow continuous working
• Drive wheels are within the width of the blast cabinet
• Blasting width can be reduced for line removal and weld inspection
• Self propelled variable speed drive allows complete operator control
• Grill fitted into lower separator hopper unit assembly to eliminate foreign objects being allowed into the blast wheel and causing damage
• Capable of using up to S780 abrasive
• Blast wheel can be rotated in both directions (optional extra)
• Can be dismantled to pass through a 600mm access hole in storage tanks

Type: 400 or 460v 3Ø

Power Output (Blast Motor) (hp/kw): 30 / 22.5

Cleaning Width (mm): 520

Length (mm/in): 1730 / 68.1

Width (mm/in): 1030 / 40.6

Height (mm/in): 1600 / 63

Weight (kg/lb): 400 / 880
