Bartell Global HEPA Dust Collector, 110V/230V, Single Phase - HD3

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

See Features Below

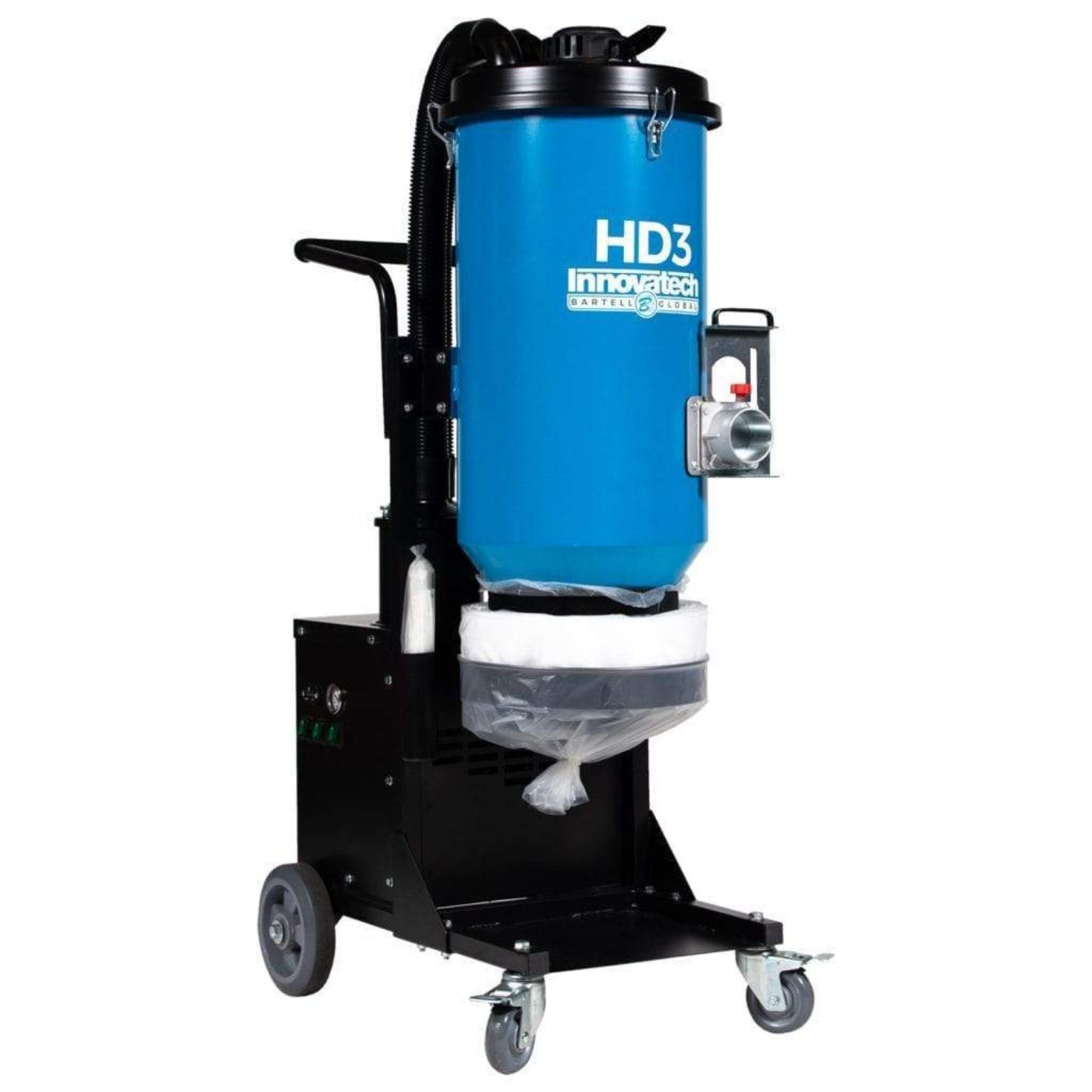

• HD3 is a three-motor HEPA dust extractor, which features a two-stage filtering system including a conical main filter and three HEPA filters

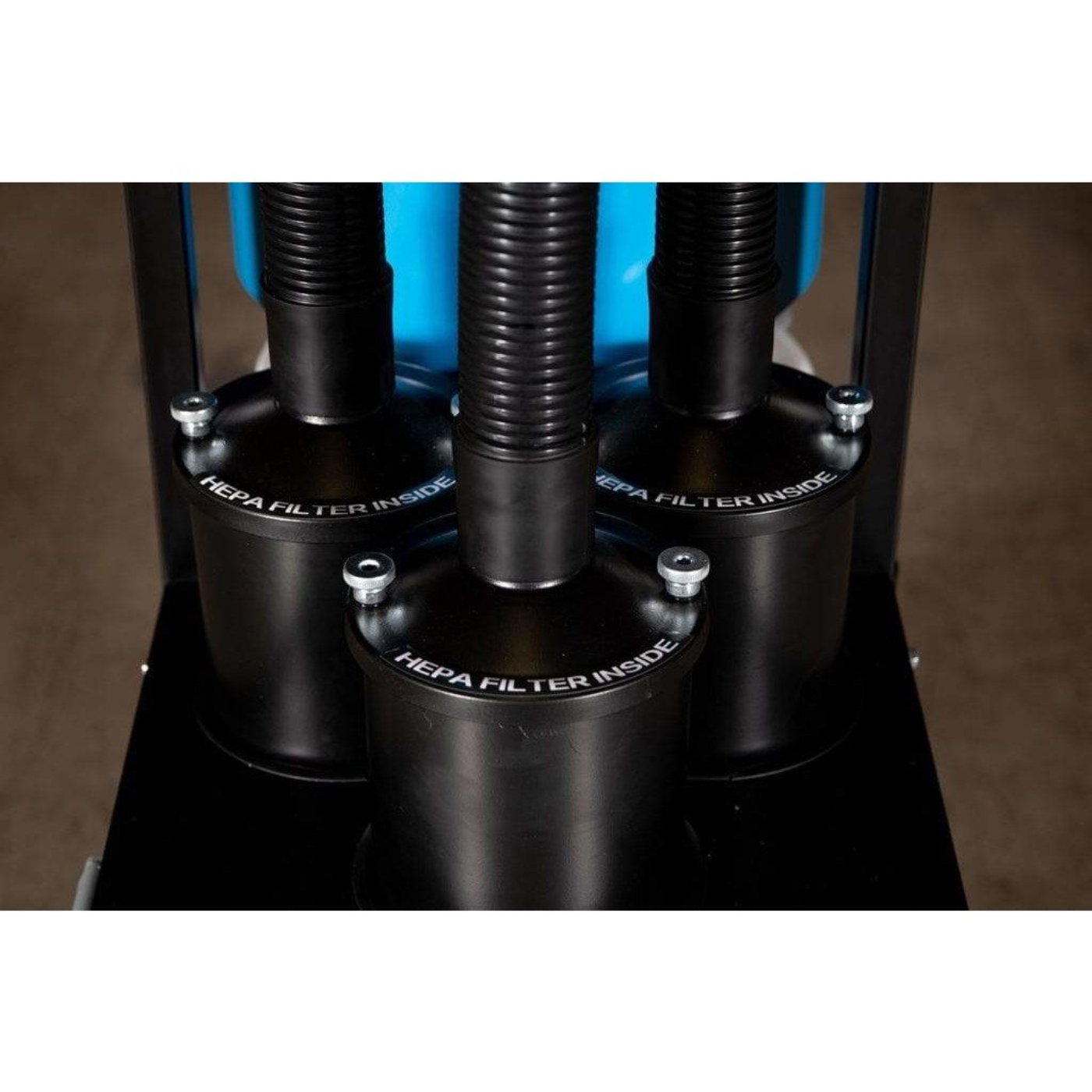

• Equipped with three HEPA filters which are individually tested and certified complying H13

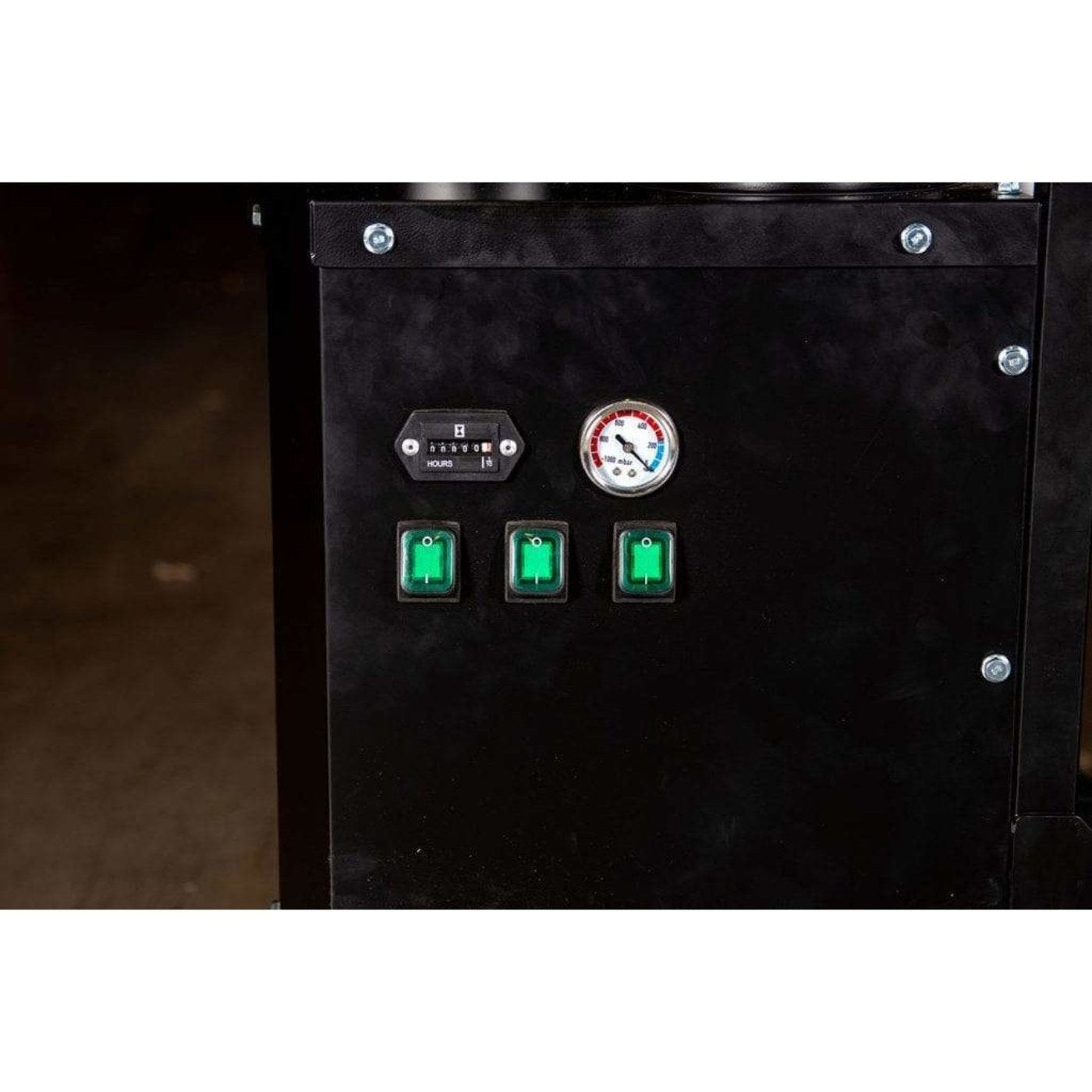

• 3 Individual motor switches – provides variable suction strength and power

• “Reverse-air” jet-pulse filter cleaning system – effectively cleans and removes dust build-up on filters

• Easy to use “Inlet closure door” – eliminates the need to remove hoses when pulsing and cleaning filters

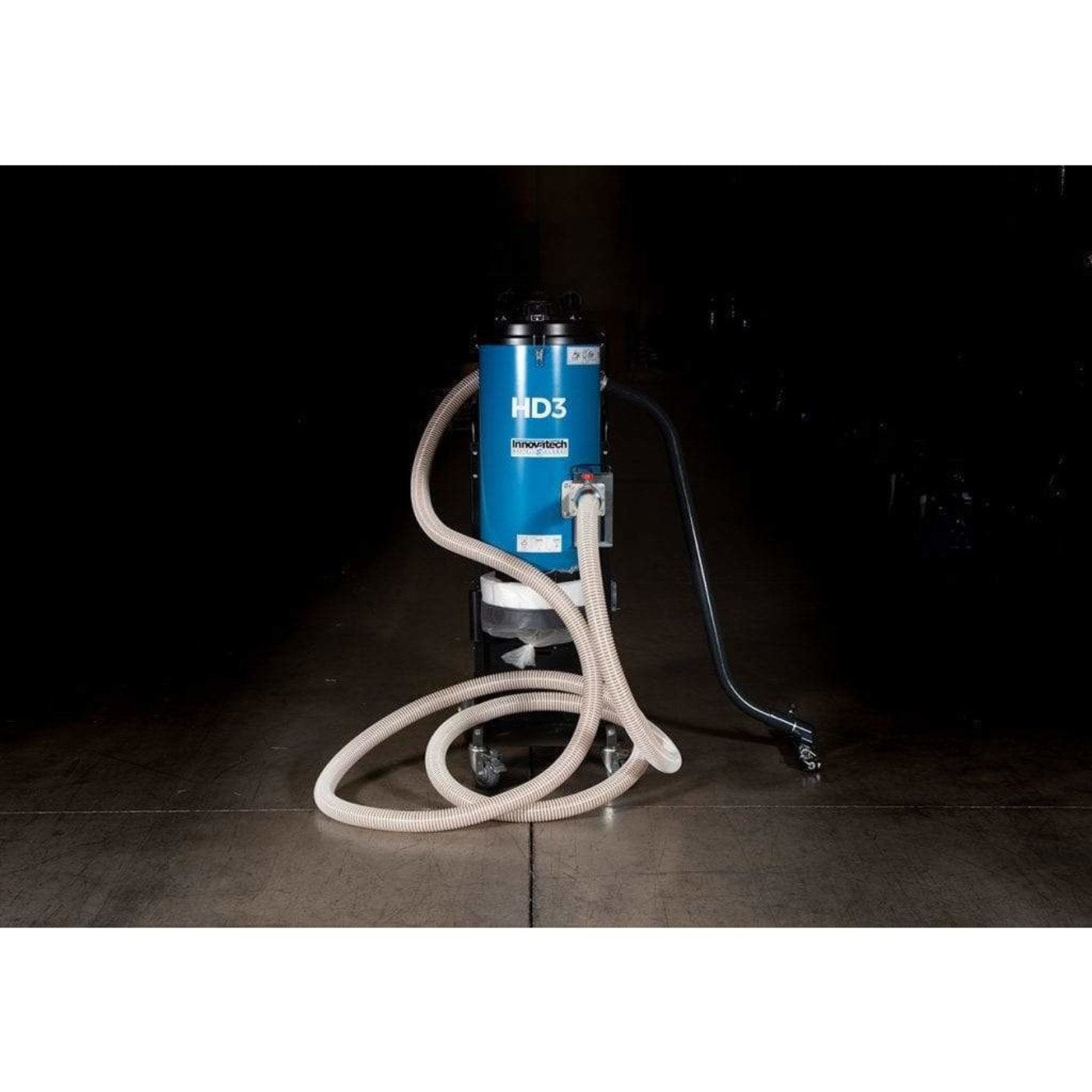

• Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding

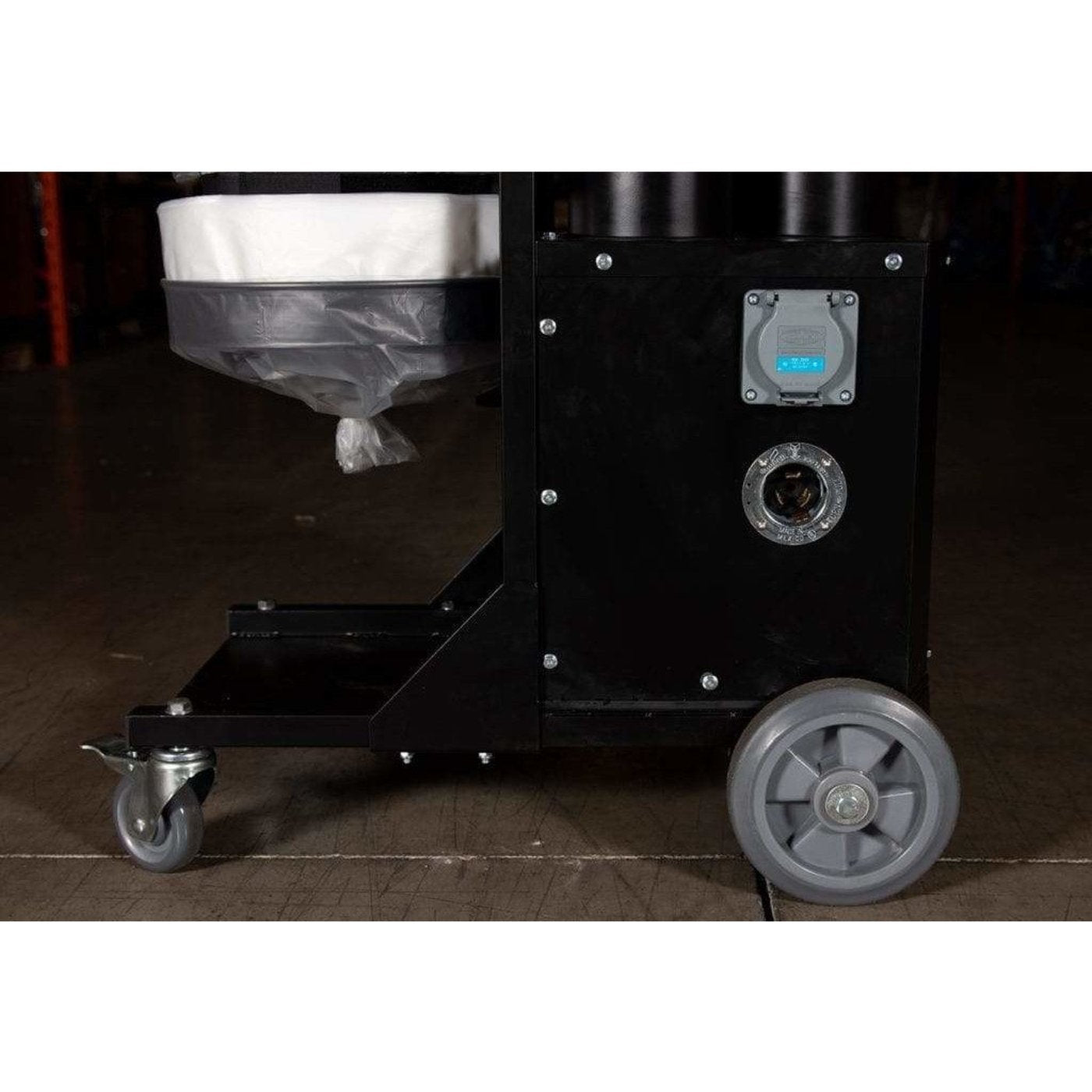

• Equipped with a “Continuous Bag” disposal system for effective dust collecting

Specifications

Volts: 230v

Inlet: 50mm

Power (HP): 4.8 HP

Amps: 12

Air Flow (cfm): 356

Water lift (inches): 90

Pre-filter (f8): 48 ft >99.5% @1.0um

HEPA Filter (H13): 39 ft2 >99.99% @0.3um

Dimensions: 30” x 22” x 56”

Weight: 149lbs

Manuals

Spec Sheet

What Our Experts Think

• Dual Voltage Options: Operates on both 110V and 230V single-phase power, offering flexibility for various job sites and power requirements.
• HEPA Filtration: Equipped with a high-performance HEPA filter, it effectively captures fine dust particles, ensuring superior air quality and compliance with safety standards.
• Enhanced Dust Control: Perfect for pairing with surface preparation equipment like grinders, scarifiers, and shot blasters, the HD3 ensures cleaner air and a more comfortable working environment.
• Compact & Portable: Its compact size and lightweight design make it easy to move and use in tight or confined spaces, offering convenience and portability on the job.
• Durable Build: Constructed with high-quality materials to withstand the demands of heavy-duty, industrial environments, ensuring longevity and reliability.
• Low Maintenance: Designed for easy servicing and maintenance, reducing downtime and keeping your operations running smoothly

Q&A

Q: What is the Bartell Global HEPA Dust Collector - HD3?
A: The HD3 is a versatile HEPA dust collector designed to capture fine dust particles, ensuring cleaner air and a safer work environment in a range of industrial applications.

Q: What is its power specification?
A: It operates on both 110V and 230V, single-phase power, making it adaptable for various job sites and work environments.

Q: What are its key features?
A: HEPA filtration for efficient dust capture, dual voltage (110V/230V), compact and durable design, and high-performance dust extraction for better air quality.

Q: Why is this dust collector important?
A: It helps maintain a clean and healthy work environment by effectively capturing harmful fine dust particles, reducing health risks and ensuring compliance with safety standards.

Q: Where can it be used?
A: Ideal for construction, flooring, and surface preparation applications, particularly where controlling fine dust is crucial for worker safety and equipment longevity

Maintenance Tips

• Inspect and Clean Filters: Check the HEPA filter regularly for dust accumulation. Clean or replace the filter as needed to maintain peak filtration performance.
• Empty Dust Collection Bin: Regularly empty the dust collection bin to prevent overfilling, which can reduce suction efficiency and airflow.
• Inspect Hoses and Connections: Examine hoses and all connections for blockages, leaks, or wear. Clean and replace components if necessary to maintain effective dust extraction.
• Monitor Motor and Electrical Components: Ensure the motor is running smoothly and check for overheating, strange noises, or loss of power. Inspect the power cord and electrical connections for any damage or wear.
• Clean the Unit: After each use, clean the unit, removing any dust or debris that could affect its operation and performance. Wipe down the exterior to keep it free from buildup.
• Lubricate Moving Parts: Apply lubrication to moving parts like the fan and motor bearings to reduce friction and prevent premature wear.
• Check for Leaks: Inspect the dust collector for air leaks in seals, hoses, and joints. Repair or replace any worn-out parts to maintain suction efficiency.
• Test HEPA Filter Performance: Periodically test the HEPA filter's ability to capture fine particles. Replace the filter if it no longer meets efficiency standards.
• Inspect Bolts and Fasteners: Regularly check and tighten any loose bolts, screws, or fasteners to prevent parts from coming loose during operation.
• Schedule Annual Professional Maintenance: Have the dust collector professionally inspected once a year to ensure all components are functioning properly and to address any issues early
