Bartell Global Reversible Plate Compactor, Honda/Yanmar, 4600KG Force - BR4600

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

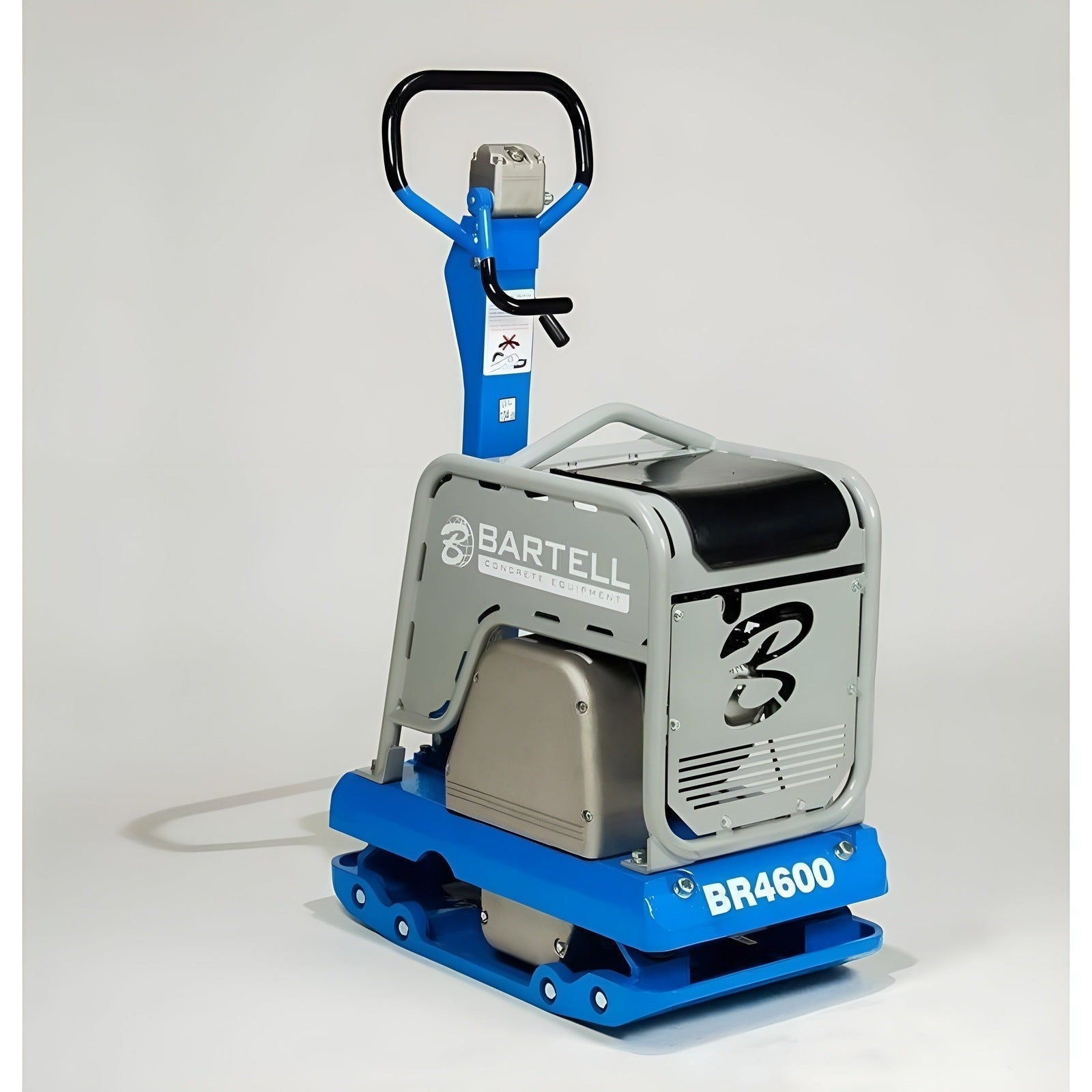

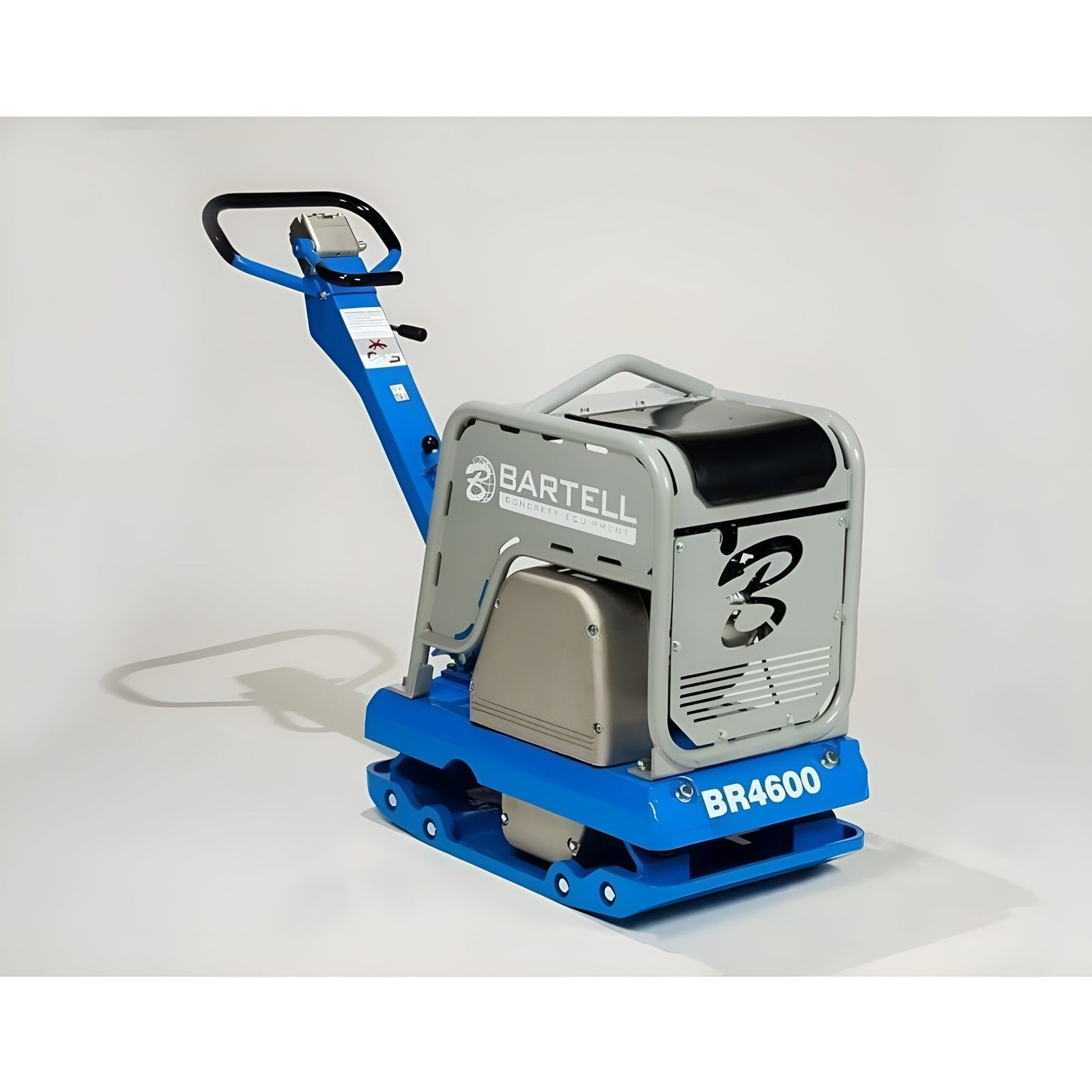

The BR4600 Reversible Compactor is built for medium – large applications. Equipped with a Honda GX390, it has the power and force to effectively compact deep base material properly.

See Features Below

• Hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction

• Cast aluminum throttle lever for a more professional, stronger, and durable for tamping

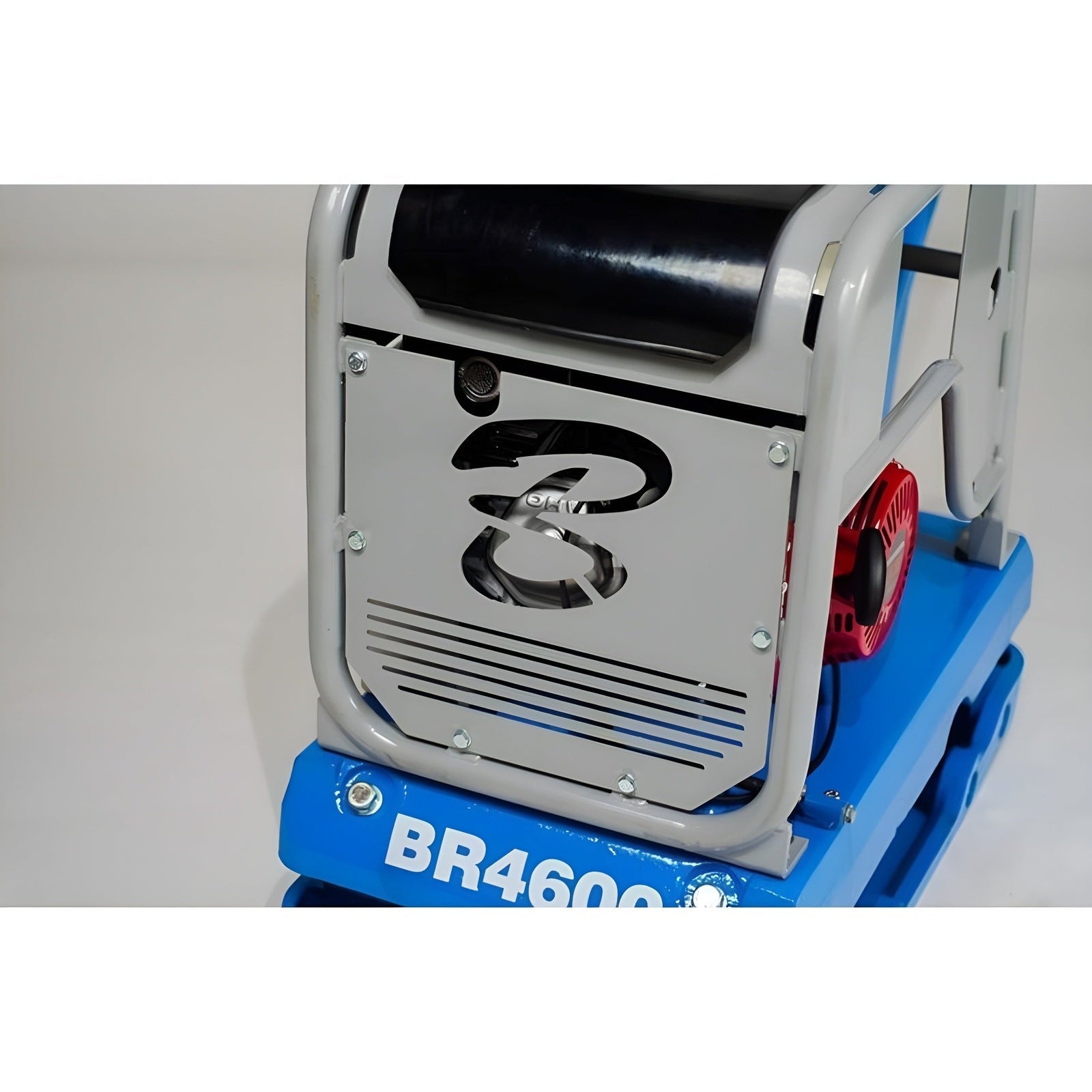

• New closed style frame for increased engine and guide hook protection

• Cast aluminum belt cover for increased clutch and engine longevity

• Ductile iron bases for increased strength and durability

• Optional extension plates and urethane mat options available

Specifications

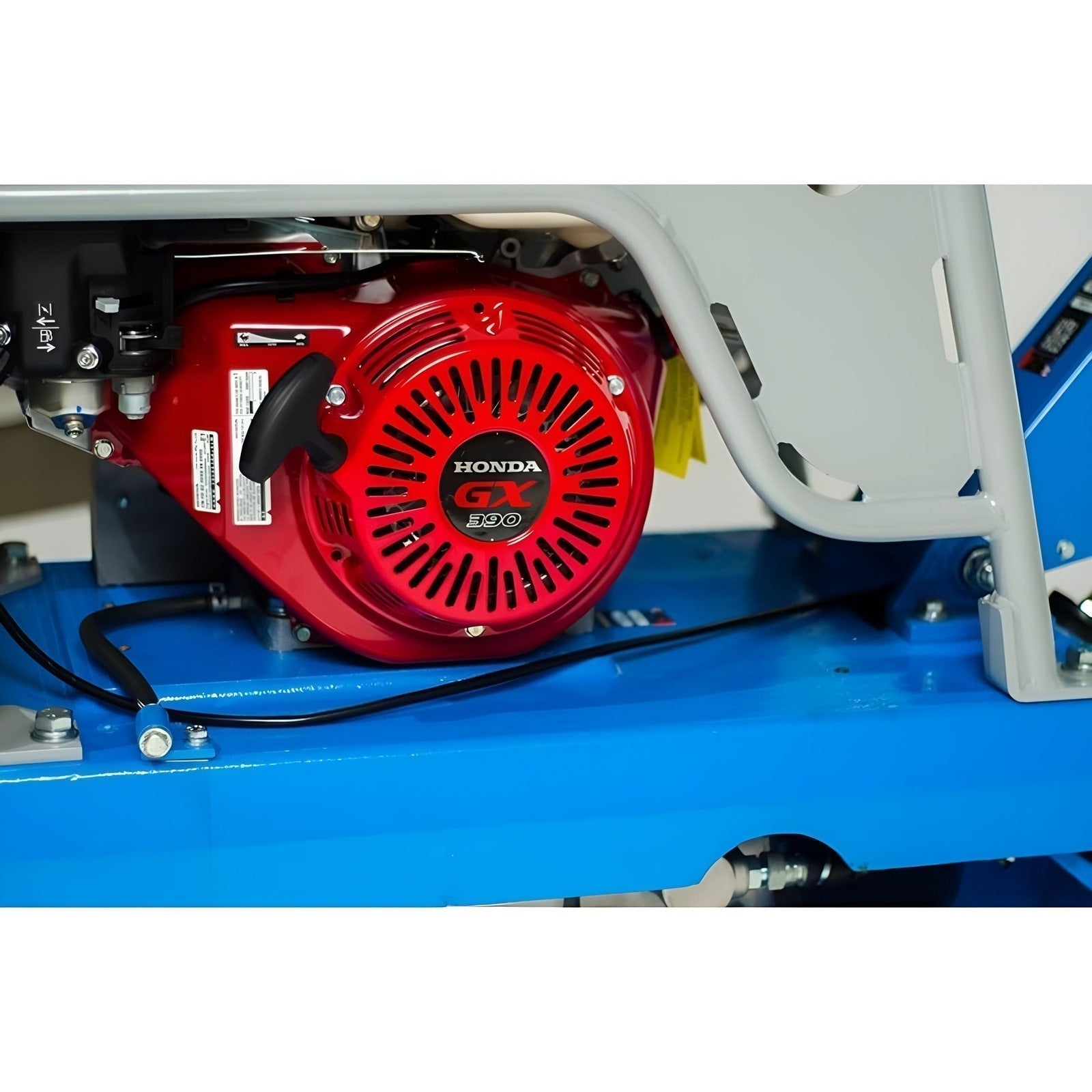

Engine: Honda

Spec: GX390

Power Output Hp (Kw): 8.6(6.3)

Width, in. (mm): 19” (485)

Height, in. (mm): 37” (930)

Length, in. (mm): 62” (1570)

Weight, lbs (kg): 772 (350)

Compaction Force: 10120 lbf, 45 kN, 4590 kgf

Max Travel Speed: 75 ft/min, 22.9 m/min

Manuals

Spec Sheet Spec Sheet

What Our Experts Think

• Unmatched Compaction Power: The Bartell Global BR4600 Reversible Plate Compactor delivers an impressive 4600 kg of force, making it ideal for heavy-duty compaction tasks on large-scale projects involving soil, gravel, and asphalt.
• Dual Engine Options: Powered by either a Honda or Yanmar engine, the BR4600 offers reliability, efficiency, and low maintenance, ensuring powerful, consistent performance in demanding environments.
• Reversible Plate Design: The reversible functionality provides excellent maneuverability, allowing efficient forward and reverse compaction in tight spaces, increasing overall job site productivity.
• Large Coverage Area: The 17" x 28" plate size allows for faster material compaction over large areas, reducing the number of passes needed and improving work efficiency.
• Heavy-Duty Durability: Constructed with durable, high-quality materials, the BR4600 is built to withstand harsh conditions, offering long-lasting performance even in the toughest environments.
• Versatile and Efficient: Perfect for a wide range of commercial, industrial, and landscaping applications, the BR4600 ensures optimal compaction results on any surface.

Q&A

Q: What is the Bartell Global Reversible Plate Compactor BR4600 used for?
A: The Bartell Global Reversible Plate Compactor BR4600 is designed for heavy-duty compaction of soil, gravel, asphalt, and other materials in construction, roadwork, and landscaping projects, offering high compaction force for maximum efficiency.

Q: What are the key features of the Bartell Global Reversible Plate Compactor BR4600?
A: The BR4600 features a Honda or Yanmar engine, a 17" x 28" plate, and delivers 4,600 kg of compaction force. Its reversible design allows for easy maneuverability and increased productivity, making it ideal for large job sites and confined spaces.

Q: Is the Bartell Global Reversible Plate Compactor BR4600 easy to operate?
A: Yes, the BR4600 is designed for ease of use with intuitive controls, a comfortable handle, and a reversible plate for smooth and efficient operation in various work environments.

Q: What type of engine does the Bartell Global Reversible Plate Compactor BR4600 use?
A: The BR4600 is equipped with a powerful Honda or Yanmar engine, offering exceptional reliability and performance for demanding compaction tasks.

Q: Does the Bartell Global Reversible Plate Compactor BR4600 come with a warranty?
A: Yes, the Bartell Global Reversible Plate Compactor BR4600 comes with a manufacturer’s warranty, ensuring long-lasting durability and dependable operation in tough conditions

Maintenance Tips

• Clean After Each Use: Clean the compactor thoroughly, including the engine, plate, and exposed parts, to remove dirt, debris, and material buildup. This prevents damage and ensures proper operation.

• Engine Maintenance: Follow the manufacturer's recommendations for regular oil changes. Check the air filter periodically and clean or replace it as needed to maintain optimal engine performance. Inspect the spark plug and replace if necessary.

• Fuel System: Always use fresh fuel and drain the fuel tank if storing the machine for a long period to avoid fuel degradation. Check for leaks in the fuel system and ensure the fuel lines are in good condition.

• Compaction Plate Inspection: Regularly inspect the compaction plate for cracks, excessive wear, or damage. Tighten any loose bolts and replace damaged parts immediately to maintain compaction efficiency.

• Lubrication: Apply lubrication to moving parts, including the vibration system and handle pivots, to reduce friction and wear. Follow the recommended lubrication intervals to maintain smooth operation.

• Hydraulic System Care: Check for hydraulic leaks and ensure the fluid level is at the recommended level. Replace any worn or damaged hydraulic components to ensure the hydraulic system functions properly.

• Belt and Drive System: Inspect the drive belt and system regularly for wear, cracks, or misalignment. Replace any worn or damaged belts to avoid further issues with operation.

• Tire and Handle Check: Examine the tires for damage, wear, or deflation. Ensure they are properly inflated and replace if necessary. Inspect the handle for stability and tighten any loose parts.

• Monitor Operation: Pay attention to the machine during operation. If you notice a decrease in compaction force or unusual vibrations, check for mechanical issues and address them immediately.

• Storage: Store the compactor in a clean, dry location away from moisture, extreme temperatures, and direct sunlight. Use a cover to protect the machine from dust and debris when not in use.
