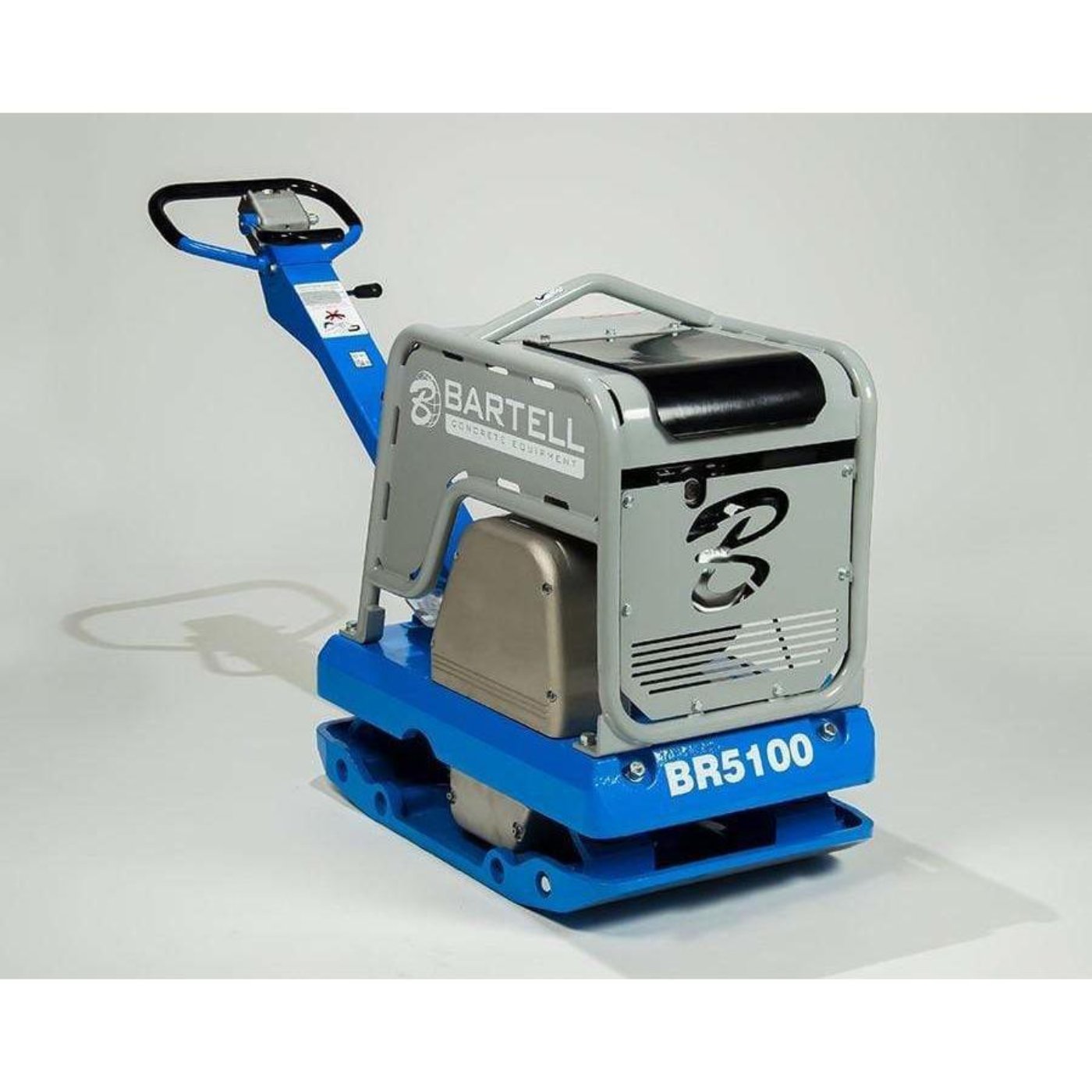

Bartell Global Reversible Plate Compactor, Yanmar Engine, 5100KG Force - BR5100

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

The BR5100 is the largest reversible plate compactor in Bartell’s fleet, offering high compaction force and travel speeds to help you accomplish your jobs quickly and effectively.

See Features Below

• Fully hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction

• Cast aluminum throttle lever for a more professional, stronger, and durable for tamping

• Built-in lifting bale for increased engine and guide hook protection

• Cast aluminum belt cover for increased clutch and engine longevity

• Ductile iron bases for increased strength and durability

• Optional extension plates available

• Full speed in both forwards and reverse

• Key start or recoil start

Specifications

Engine: Yanmar Diesel

Spec: L100W

Power Output Hp (Kw): 9.3 (6.9)

Width, in. (mm): 20” (500)

Height, in. (mm): 37” (930)

Length, in. (mm): 65” (1610)

Weight, lbs (kg): 1036 (470)

Compaction Force: 11244 lbf, 50 kN, 5100 kgf

Max Travel Speed: 72 ft/min, 22 m/min

Manuals

Spec Sheet

What Our Experts Think

• Exceptional Compaction Force: The Bartell Global BR5100 Reversible Plate Compactor delivers a powerful 5100 kg of compaction force, making it perfect for heavy-duty applications on tough materials like soil, gravel, and asphalt.
• Reliable Yanmar Engine: Powered by a robust Yanmar engine, this compactor offers excellent fuel efficiency, durability, and reliability for continuous operation in demanding conditions.
• Reversible Operation: The reversible plate design enhances maneuverability, allowing for efficient forward and backward compaction, ideal for working in tight spaces and around obstacles.
• Large Plate Size: With a 17" x 28" plate, the BR5100 provides substantial coverage, reducing the number of passes required and increasing job site productivity.
• Durable Construction: Built to withstand tough environments, the BR5100 is made with high-quality materials for long-lasting performance and reduced maintenance needs.
• Versatile and Efficient: Perfect for large-scale commercial and industrial compaction projects, the BR5100 ensures reliable, high-quality results on a variety of surfaces

Q&A

Q: What is the Bartell Global Reversible Plate Compactor BR5100 used for?
A: The Bartell Global Reversible Plate Compactor BR5100 is designed for high-performance compaction of soil, gravel, asphalt, and other materials in construction, roadwork, and landscaping projects, offering superior compaction force for tough applications.

Q: What are the key features of the Bartell Global Reversible Plate Compactor BR5100?
A: The BR5100 features a powerful Yanmar engine, a 17" x 28" plate, and delivers 5,100 kg of compaction force. Its reversible design ensures easy maneuverability and increased productivity on large job sites and confined spaces.

Q: Is the Bartell Global Reversible Plate Compactor BR5100 easy to operate?
A: Yes, the BR5100 is designed for ease of operation with intuitive controls, a comfortable handle, and a reversible plate for efficient and smooth operation across various surfaces.

Q: What type of engine does the Bartell Global Reversible Plate Compactor BR5100 use?
A: The BR5100 is powered by a durable Yanmar engine, known for its reliability and efficient performance in demanding compaction tasks.

Q: Does the Bartell Global Reversible Plate Compactor BR5100 come with a warranty?
A: Yes, the Bartell Global Reversible Plate Compactor BR5100 is covered by a manufacturer’s warranty, ensuring long-lasting performance and durability in heavy-duty applications

Maintenance Tips

• Post-Use Cleaning: Clean the compactor thoroughly after each use to remove dirt, debris, and material buildup. Pay special attention to the engine, compaction plate, and any moving parts to prevent rust and maintain performance.

• Engine Care: Follow the manufacturer's guidelines for regular oil changes, and check the air filter for dirt buildup. Clean or replace the air filter as needed and inspect the spark plug, replacing it if necessary for optimal engine operation.

• Fuel System Maintenance: Always use fresh, clean fuel and drain the fuel tank if storing the machine long-term to prevent fuel degradation. Check fuel lines regularly for cracks or leaks.

• Compaction Plate Inspection: Inspect the compaction plate for signs of wear, cracks, or damage. Tighten any loose bolts and replace damaged parts immediately to maintain compaction effectiveness.

• Lubrication: Lubricate all moving parts, such as the vibration system, plate, and handle pivots, to reduce friction and extend the life of the components. Follow the manufacturer's recommended lubrication schedule.

• Hydraulic System Check: Regularly check for leaks in the hydraulic system, and ensure that hydraulic fluid levels are maintained. Replace any damaged hydraulic components promptly to keep the system functioning properly.

• Belt and Drive System: Inspect the belt and drive system for wear or misalignment. Replace any worn or damaged belts to avoid operational issues.

• Tire and Handle Inspection: Check the tires for wear, deflation, or damage, and inflate or replace as needed. Ensure the handle is secure and tighten any loose fasteners.

• Operational Monitoring: If you notice a decrease in compaction performance or unusual vibrations, address potential mechanical issues promptly to prevent further damage.

• Proper Storage: Store the compactor in a clean, dry area to protect it from the elements. When not in use, cover the machine to prevent dust, dirt, and moisture buildup.
