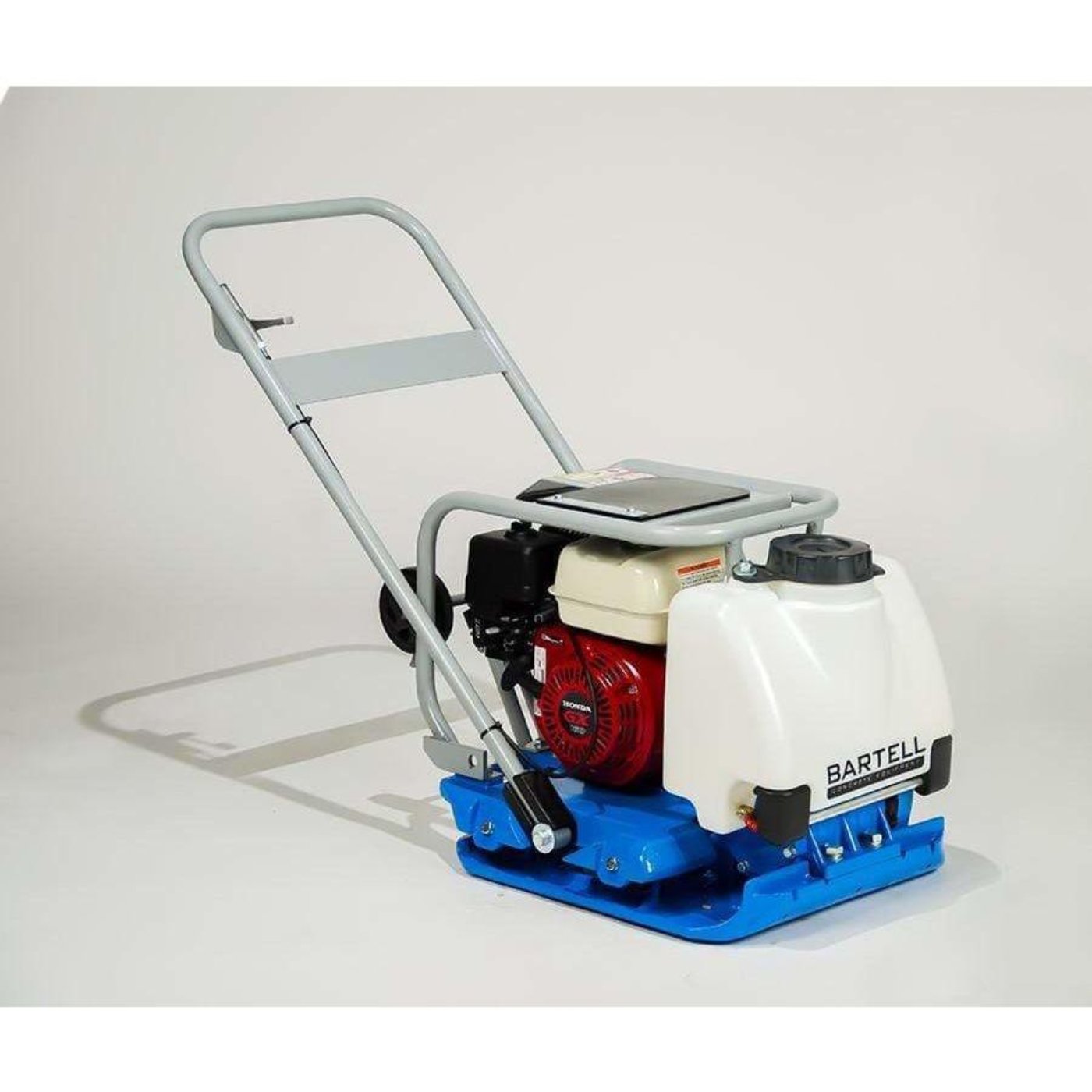

Bartell Global Forward Plate Compactor, 20X21, GX160 Honda, 1570KG Force - BCF1570

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

The BCF1570 Forward Plate is Bartell’s most popular compactor because of its versatility and quality. This unit is great for many different compactions applications, and because of the built-in water tank, it can be used on asphalt.

Bartell forward plates are innovative, hard hitting, and low maintenance.

See Features Below

• Robust throttle controls – Why should you have to bend over and run next to your machine to make it stop? You’ll find conveniently mounted throttle controls standard on every piece of compaction in our lineup

• Retractable Wheel kits – make it much easier to move your equipment to the site. Flip them down and roll. They simply lock up when you don’t need them

• Lifting bales – Maybe your work site is far off the beaten path? Every plate has a robust lifting bale to make it easier to move your equipment when a wheel kit won’t do

• Close to the Edge – Need to compact close to an edge? You can get right up against it with our straight-edge plate design

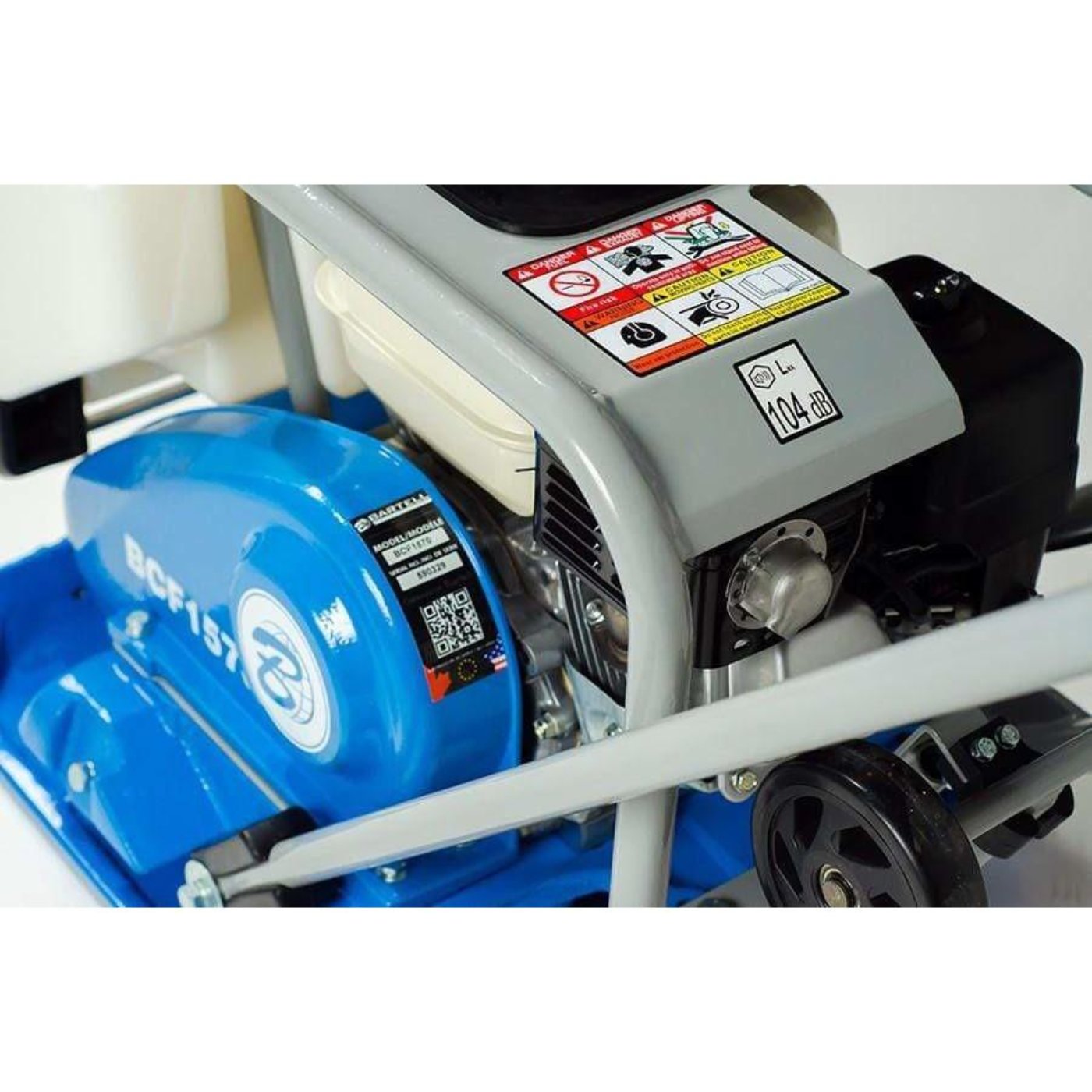

• Sealed belt guards – Sometimes a single rock is all it takes to throw a belt. Our new sealed cover design keeps rocks out and still cools properly

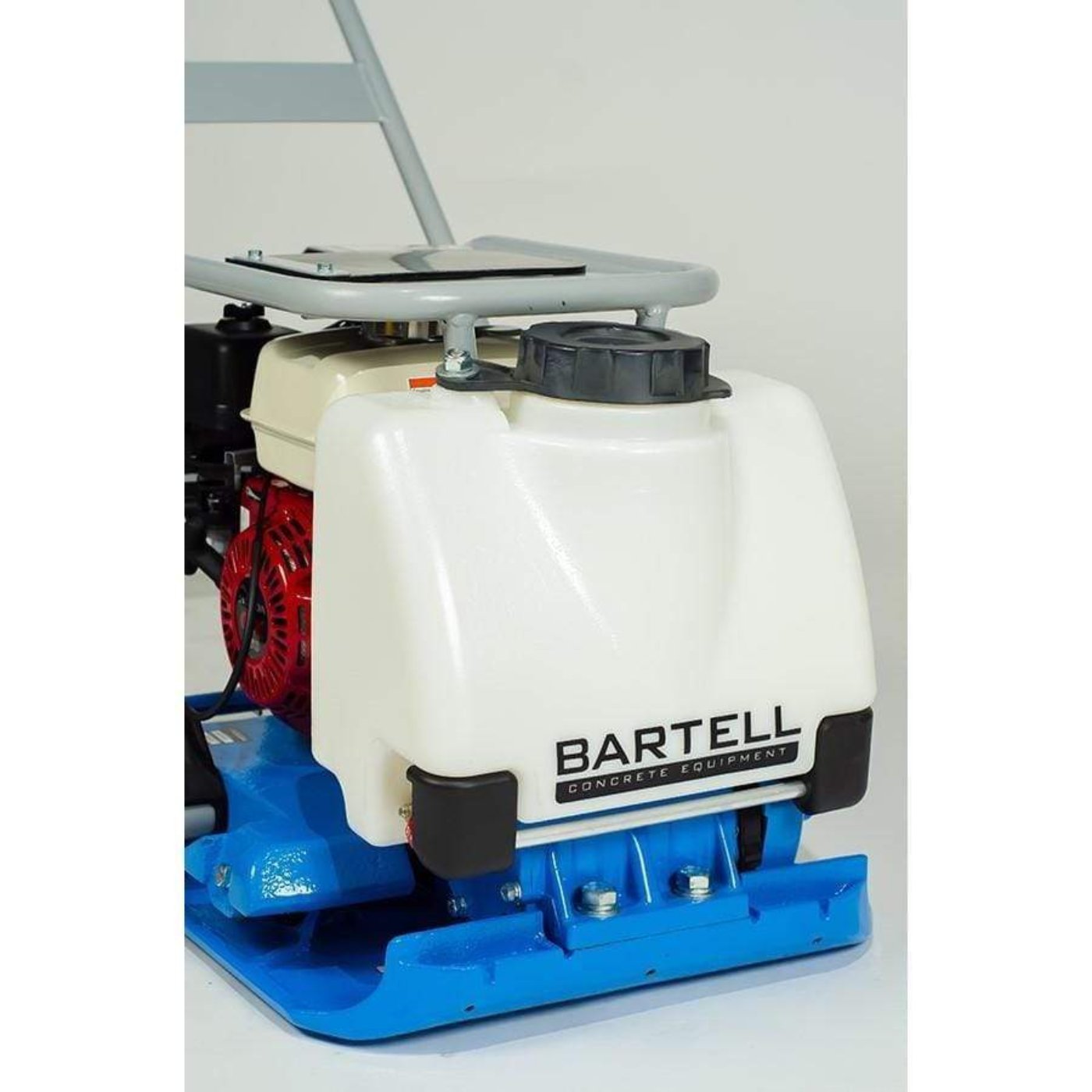

• Water tanks – The BCF1570 comes with water tanks standard.

Specifications

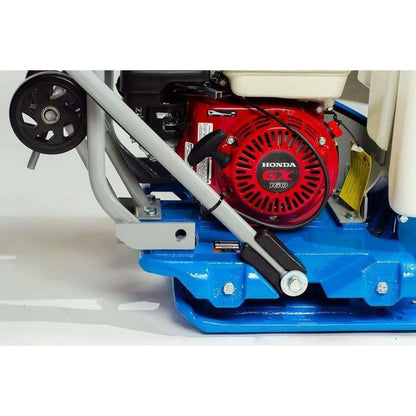

Engine: Honda GX160

Performance HP (kW): 4.8 (3.6)

Length: 44″ (1100mm)

Width: 20″ (500mm)

Height: 33″ (825mm)

Plate Size: 20″ x 21″ (500 x 525m)

Centrifugal Force: 3461 lbf, 15 kN, 1570 kgf

Travel Speed: 60-82 ft/min, 20-25 m/min

Manuals

Spec Sheet

What Our Experts Think

• Exceptional Compaction Force: With a powerful 1570kg force, it delivers superior compaction, making it perfect for dense soil, gravel, and asphalt.
• Large 20" x 21" Plate: The extended plate size increases surface coverage, allowing for faster work completion and higher efficiency during large projects.
• Honda GX160 Engine: Powered by the reliable Honda GX160 engine, known for its durability, fuel efficiency, and low maintenance, ensuring smooth and consistent operation.
• Heavy-Duty Construction: Built with a robust, corrosion-resistant frame designed to withstand heavy use in demanding environments, ensuring long-lasting reliability.
• Ergonomic Design: Features an ergonomic handle and low vibration for greater operator comfort during extended use, improving productivity on the job site.
• Versatile Use: Ideal for large-scale construction tasks like roadwork, foundation compaction, and trench backfill, where high compaction is critical

Q&A

Q: What is the Bartell Global Forward Plate Compactor - BCF1570?
A: The BCF1570 is a high-performance forward plate compactor with a 20x21-inch plate and powered by a Honda GX160 engine, delivering 1570KG of compaction force for heavy-duty applications.

Q: What are its key features?
A: 20x21 inch plate size, Honda GX160 engine, 1570KG compaction force, durable construction, and efficient operation for various compaction tasks.

Q: Why is this compactor important?
A: It provides exceptional compaction power, ideal for compacting soil, gravel, and asphalt, ensuring solid foundations for construction, paving, and roadwork projects.

Q: Where can it be used?
A: Suitable for large-scale construction, roadworks, landscaping, and infrastructure projects requiring powerful and efficient material compaction

Maintenance Tips

• Change Engine Oil: Check the engine oil regularly and replace it according to the manufacturer’s guidelines to ensure smooth engine operation and longevity.
• Inspect Air Filter: Clean or replace the air filter to prevent dirt and debris from entering the engine, which can reduce performance and damage components.
• Check Spark Plug: Inspect the spark plug for carbon buildup and wear. Clean or replace it as necessary to ensure easy starting and efficient engine operation.
• Monitor Fuel System: Drain stale fuel and check the fuel system for clogs or blockages, especially after long periods of non-use.
• Inspect the Compaction Plate: Examine the compaction plate for cracks, damage, or wear. Ensure it’s free from dirt and debris to maintain effective compaction.
• Lubricate Moving Parts: Regularly lubricate all moving parts such as the exciter mechanism, handle pivot points, and other components to reduce friction and wear.
• Check Vibration Isolators: Inspect the vibration mounts for signs of wear or damage, and replace them if they are loose or worn out.
• Tighten Bolts and Fasteners: Inspect all bolts, nuts, and fasteners to ensure they are tight, especially after prolonged use, to prevent parts from loosening.
• Clean After Use: Clean the compactor thoroughly after each use to remove dirt, debris, and moisture, which can cause rust or operational issues.
• Annual Inspection: Schedule an annual professional service to ensure all components are in good working condition, and replace any worn parts or fluids
