Bartell Global Tamping Rammer, 1400KG Force - BT1400H

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

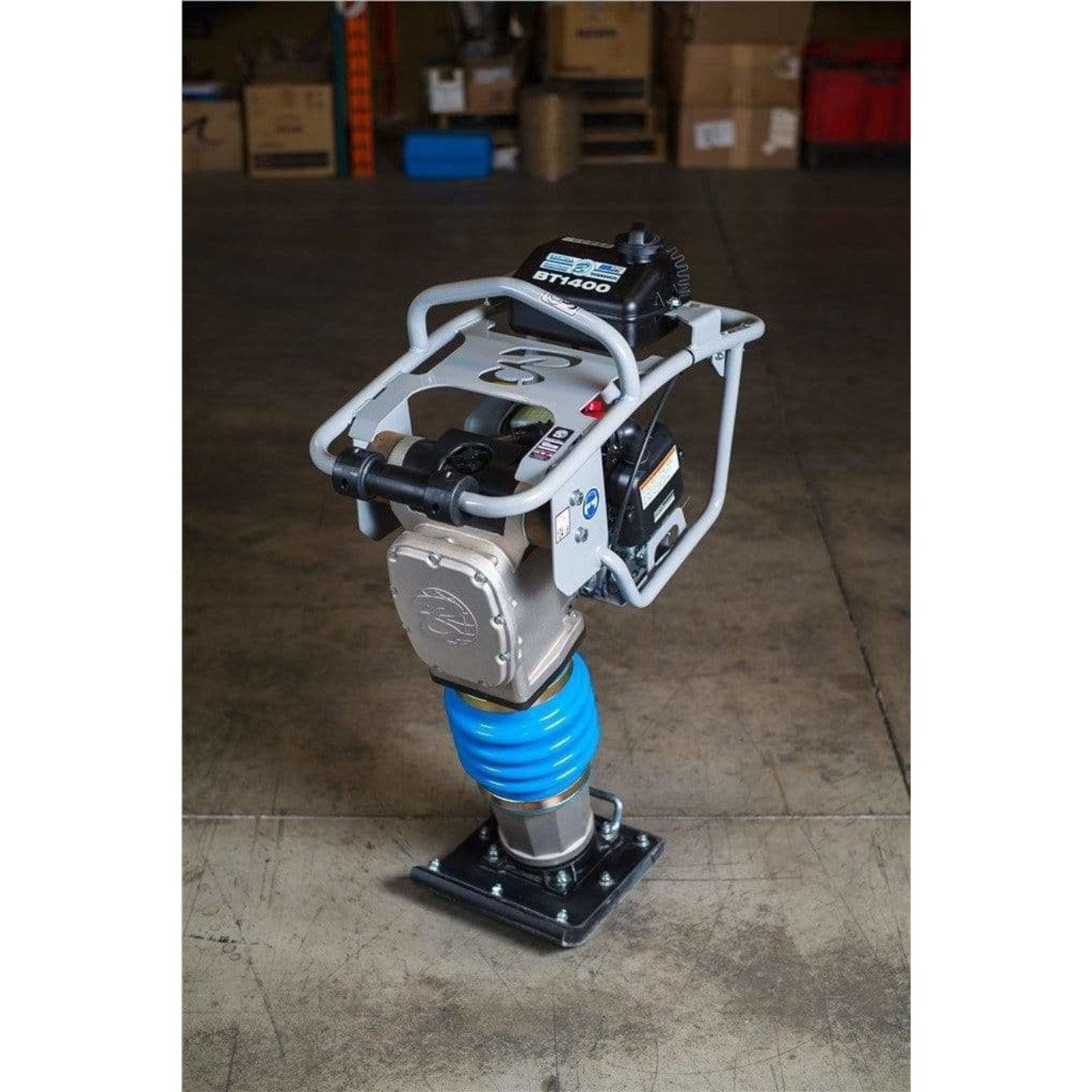

The BT1400 is Bartell’s standard tamping rammer that is perfect for general compaction applications suited for a rammer. This jumping jack is equipped with a GX120 engine rather than a GX100 like most to provide more power when needed. For example in higher elevations.

See Features Below:

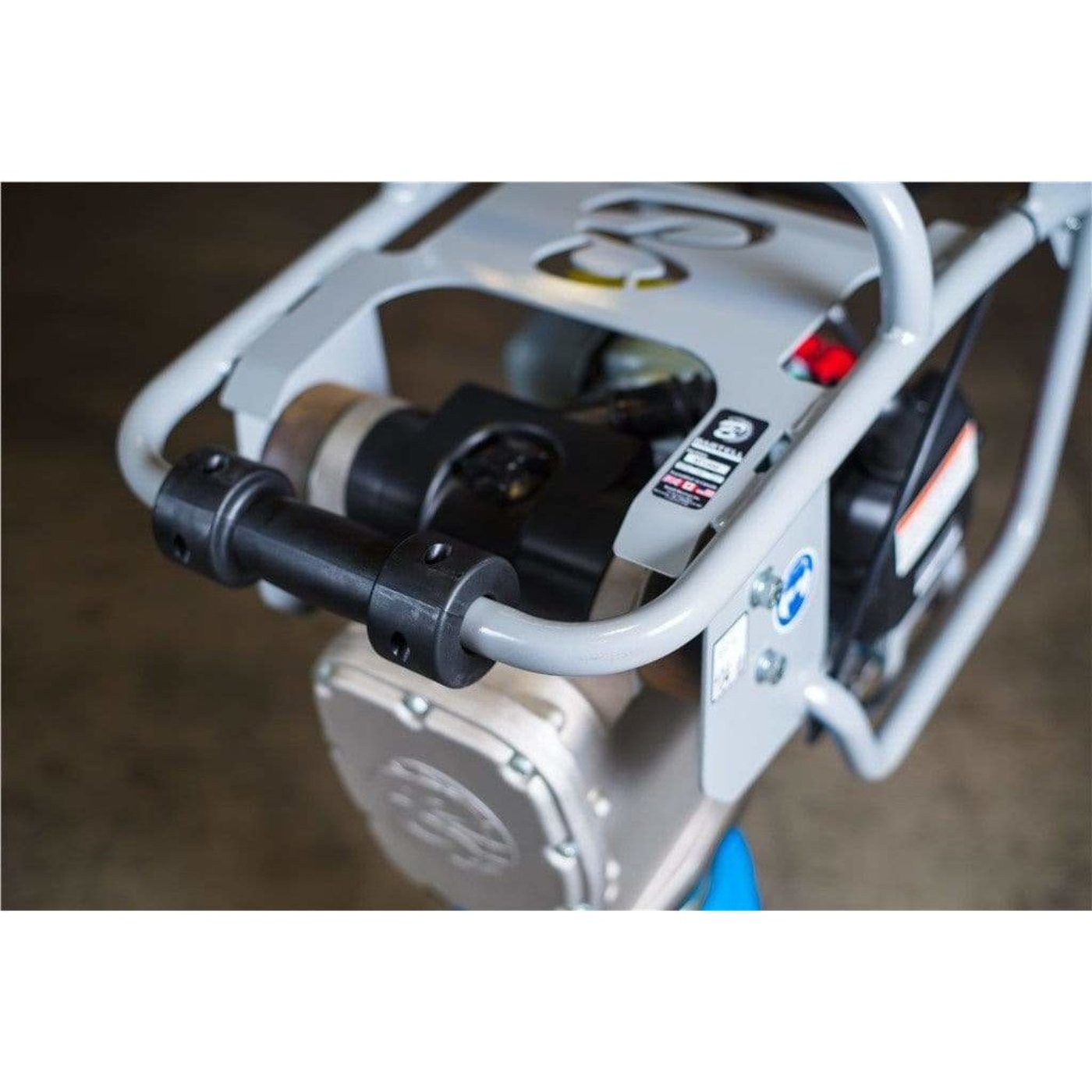

• Adjustable height operators handle for operator comfort

• Honda GX120 powered with diaphragm carburetor for extra power at higher elevations

• Heavy-duty throttle control provides longer service life

• Dual air filtration keeps the dirt where it belongs: out of your engine

• Integrated fuel valve provided for easy starting

• Heavy shock mount system to reduce hand-arm vibration and improve operator comfort

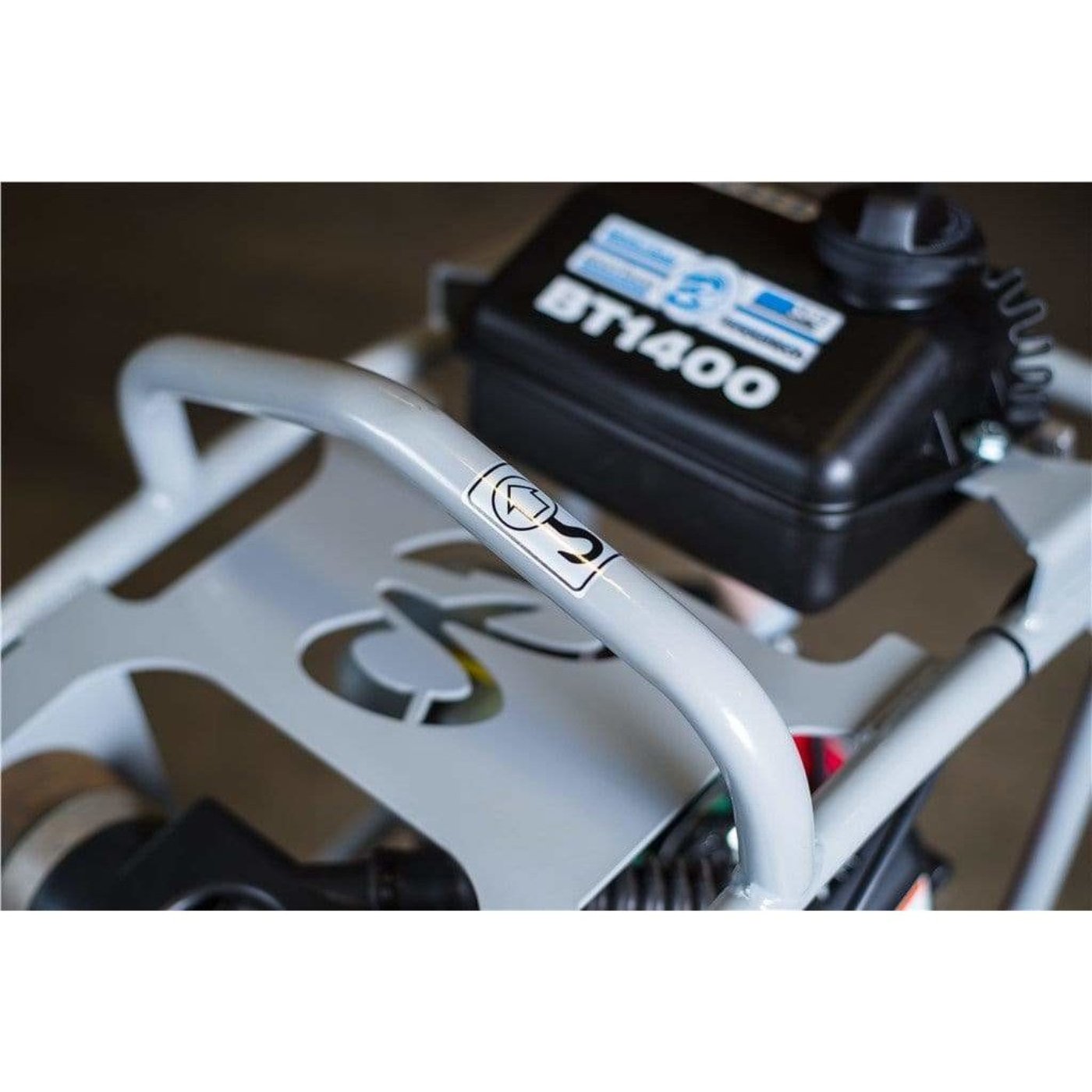

• Protective roll cage prevents possible damage on job site

• Integrated roller and lift handle makes loading and unloading a one-person job

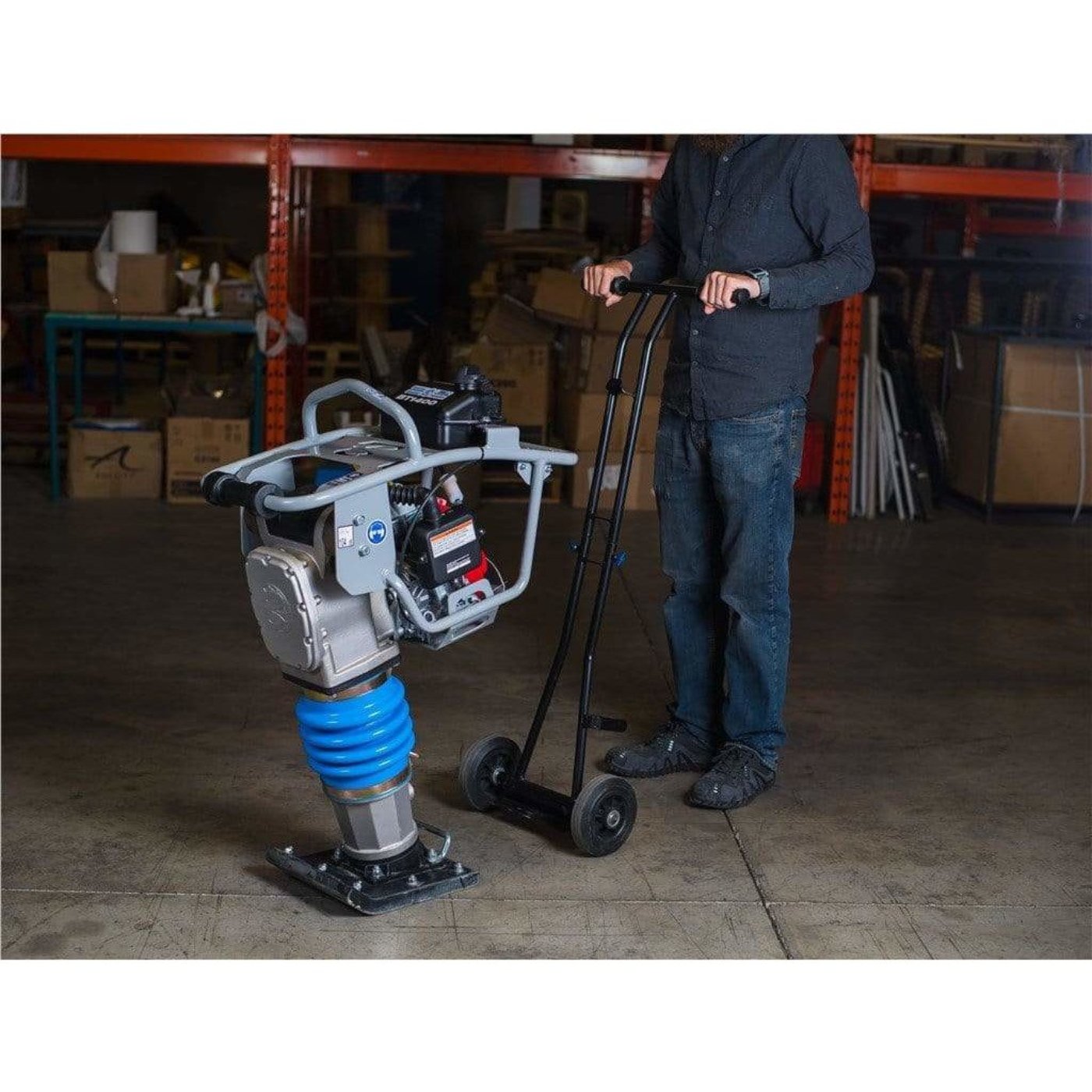

• Rammer dolly included

Part No.: BT1400H

Engine: Honda GX120

Power Output: 3.5hp (2.6kW)

RPM: 3600

Fuel Capacity: 0.5 GAL (2L)

Starting System: Recoil

Jumping Stroke: 2.8” (70mm)

Compaction Force: 3080lbf / 13.7kN (1400kgf)

Weight: 164lbs (74kg)

Plate Size: 11” x 11.8” (280mm x 300mm)

Spec Sheet
