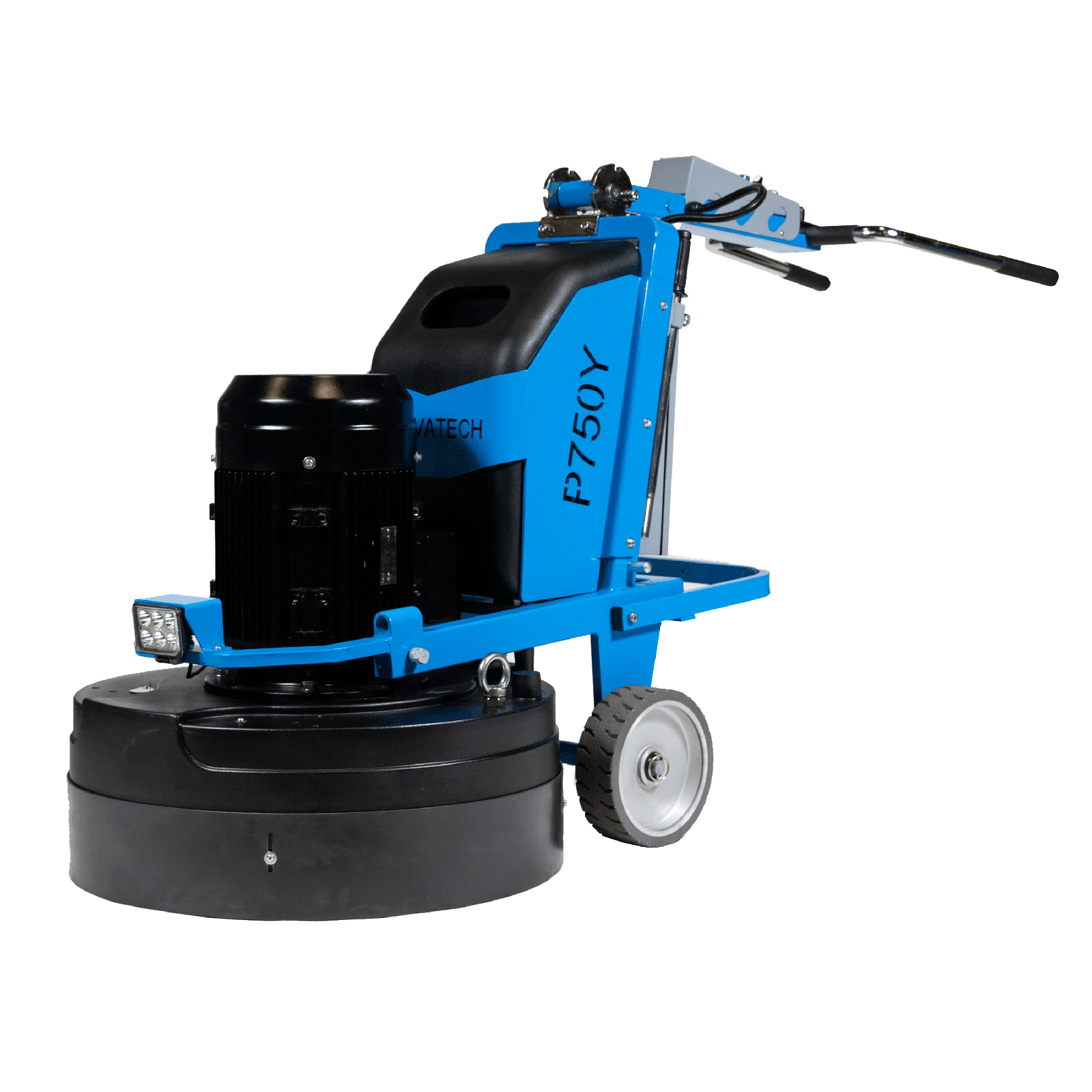

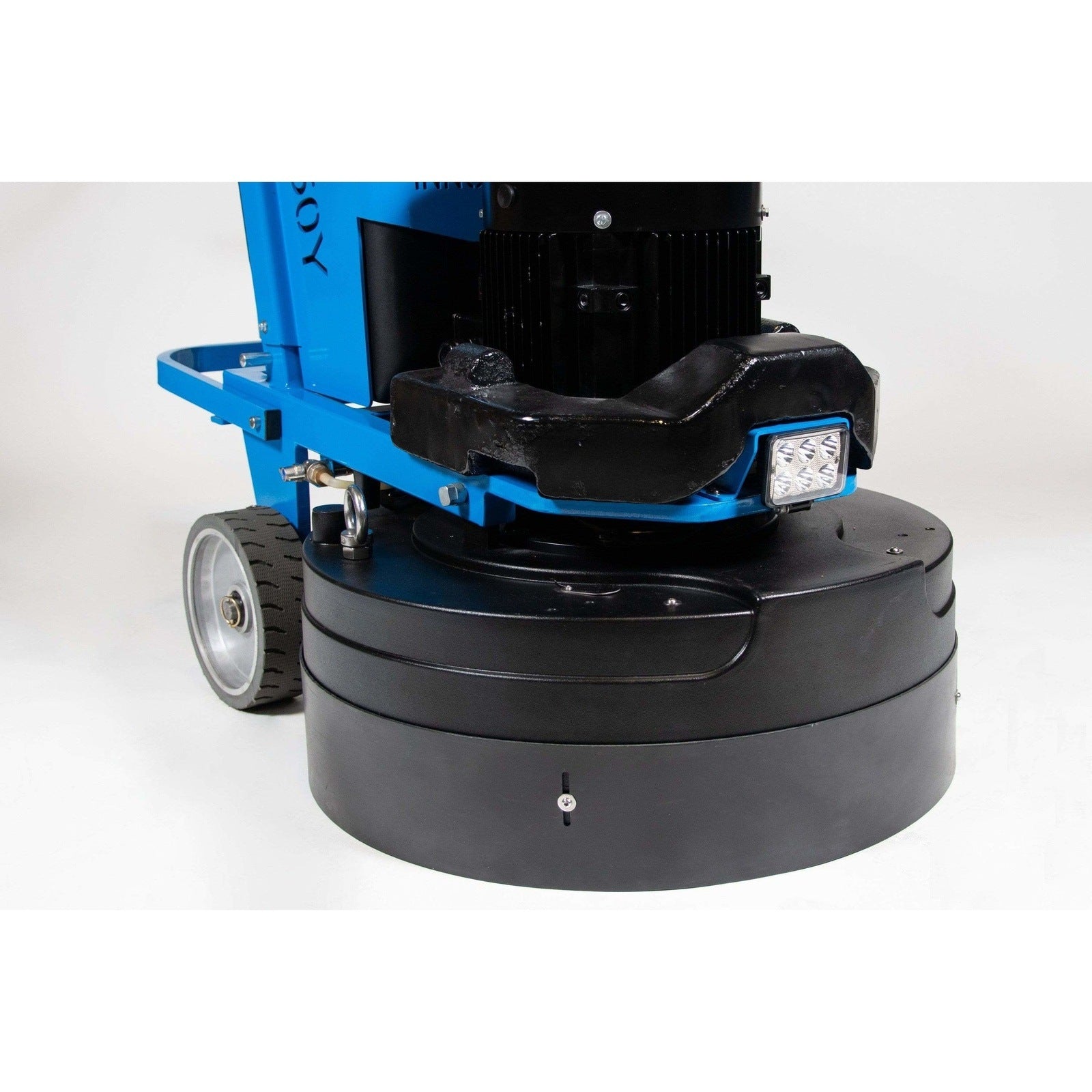

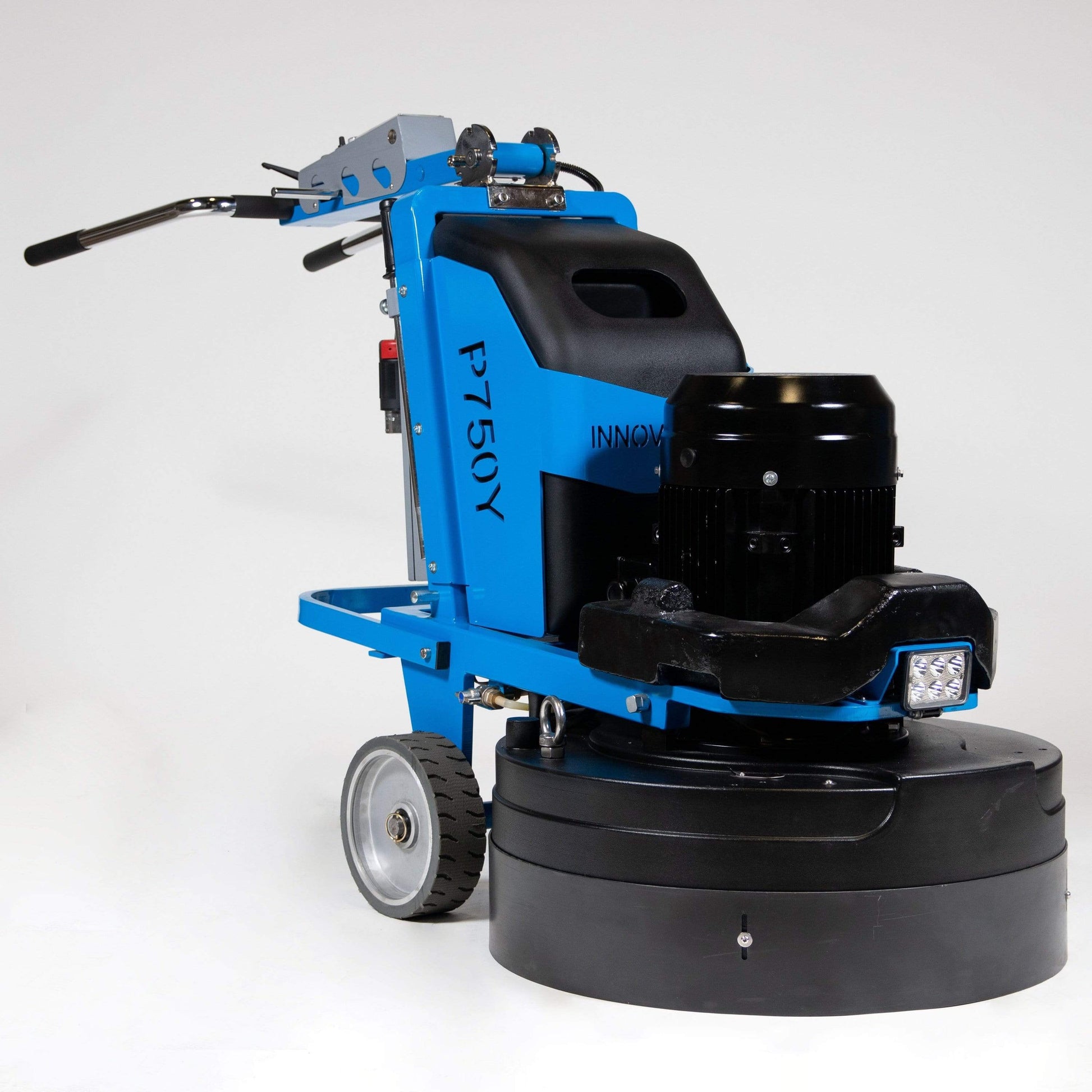

Bartell Innovatech Predator 3 Head Planetary Grinder And Polisher, 15HP, 480V, Single Phase, (29.5" Working Width) - P750Y

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

See Features Below

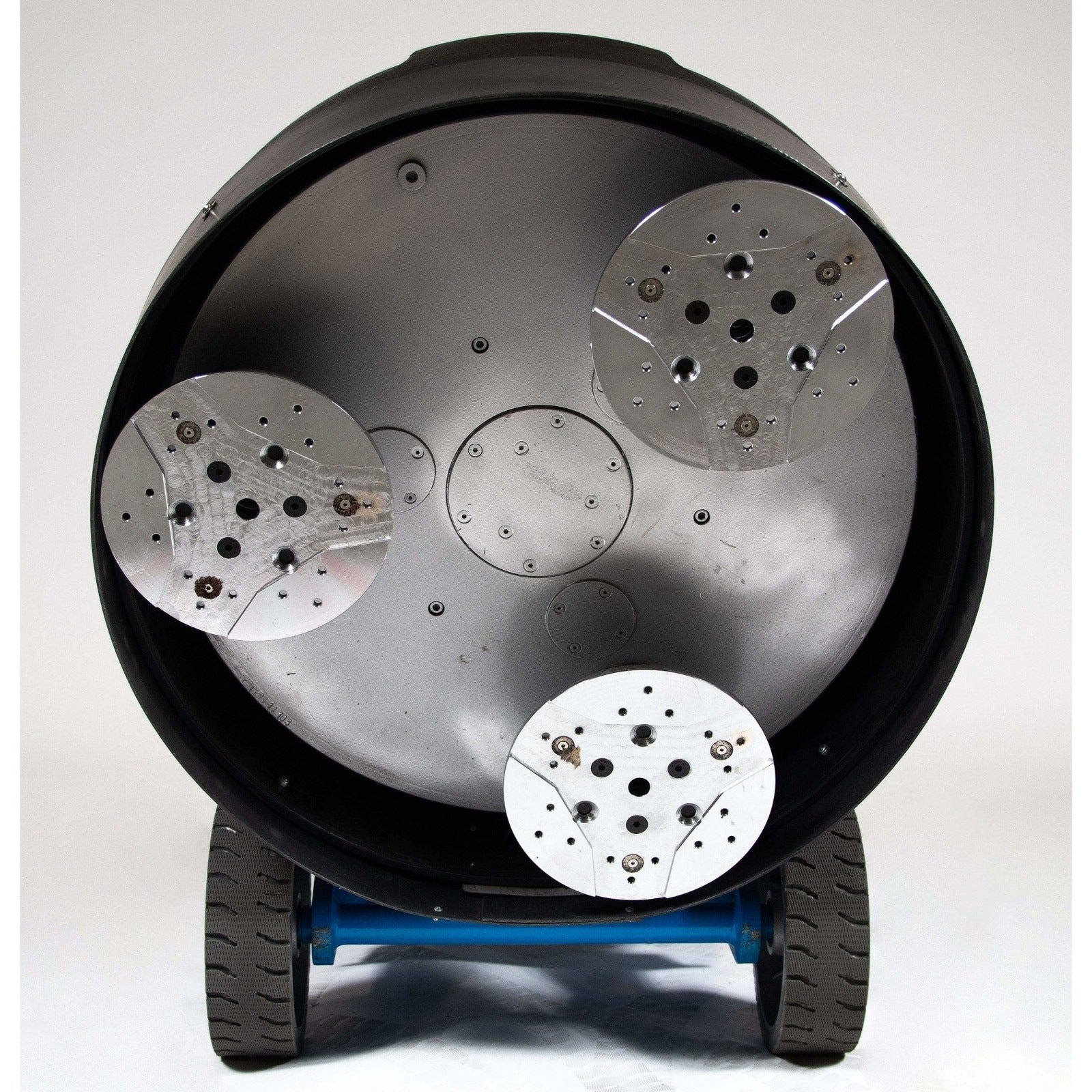

• 3 Head planetary design
• Exceptional balance
• Heavy Duty Steel Frame
• Easy height adjustment handle
• Assortment of tooling available
• Easy on site maintenance or repair with standard tools
• Variable speed control
• Additional weight included
• Forward/reverse
• Integrated water tank
• Bright LED included
• Slide Mag or 3 hole tooling plates

Specifications

Voltage: 480V 3 Phase

Power Output: 15HP (11.2Kw)

Power Frequency: 50/60HZ

Grinding Width: 29.5″ (750mm)

Number of Grinding Heads: 3

Grinding Head RPM: 0–1800 RPM

Grinding Head Diameter: 9.8″ (250mm)

Planetary Grinding Plate RPM: 0-380 RPM

Weight: 726lbs (330kg)

Dimensions: 38.2″ x 29.5″ x 41.3″

                      970 x 750 x 1050 (mm)

Manuals

Spec Sheet

What Our Experts Think

• High-Power Performance: The Bartell Innovatech P750Y features a 15HP motor, providing immense power for heavy-duty grinding and polishing, making it perfect for large-scale commercial and industrial projects.
• Wide Coverage: With a 29.5" working width, this grinder maximizes efficiency, covering more ground in less time while delivering consistent and superior results on a variety of floor surfaces.
• Versatile Functionality: Ideal for concrete, terrazzo, and stone floors, the P750Y excels at grinding, polishing, and surface preparation, making it a versatile choice for any flooring project.
• Advanced Planetary Technology: The 3-head planetary design ensures smooth, even coverage, reducing the chance of swirl marks and achieving a polished, professional finish every time.
• Durable and Reliable: Built for tough environments, the P750Y is made with high-quality materials that ensure long-lasting performance, even under the most demanding conditions.
• Efficient Dust Collection: Featuring an integrated dust control system, the P750Y helps maintain a cleaner work environment, improving air quality and reducing cleanup time.
• User-Friendly Operation: The P750Y’s intuitive controls and ergonomic design make it easy to operate, ensuring comfort for extended use while maximizing productivity on the job site.
• Ideal for Heavy-Duty Use: Perfect for large floor areas, the P750Y is designed to handle large projects, ensuring faster completion with reduced downtime.

Q&A

Q: What is the Bartell Innovatech Predator P750Y used for?
A: The Bartell Innovatech Predator P750Y is a high-performance planetary grinder and polisher designed for large-scale concrete, terrazzo, and stone surface preparation. It’s ideal for commercial and industrial applications where precision and speed are required.

Q: What are the key features of the Bartell Innovatech P750Y?
A: The P750Y features a 15HP motor, 480V single-phase power, and a wide 29.5" working width for fast and efficient grinding and polishing. Its 3-head planetary system ensures even surface contact and uniform results, while its adjustable speed control enhances versatility.

Q: How does the Bartell Innovatech P750Y improve productivity?
A: With a 29.5" working width and a powerful 15HP motor, the P750Y covers large areas quickly, reducing the time spent on each project. The 3-head planetary design provides consistent grinding, improving efficiency and ensuring a high-quality finish.

Q: Is the Bartell Innovatech P750Y easy to operate?
A: Yes, the P750Y is designed for ease of use with intuitive controls, ergonomic handles, and adjustable settings. It allows operators to adjust speed for optimal performance and control, making it suitable for a wide range of surface preparation tasks.

Q: Does the Bartell Innovatech P750Y come with a warranty?
A: Yes, the P750Y comes with a manufacturer’s warranty, ensuring reliability and long-lasting performance for your concrete grinding and polishing projects

Maintenance Tips

• Inspect Grinding Heads: Regularly check the grinding heads for wear and damage. Replace grinding pads or diamonds when necessary to ensure optimal grinding performance.

• Clean Thoroughly: After each use, clean the machine, especially the grinding heads and the dust collection system, to remove debris, slurry, and concrete dust. This will maintain efficiency and prevent clogging.

• Lubricate Components: Ensure all moving parts, including the planetary gears and motor components, are properly lubricated as per the manufacturer’s recommendations. This reduces friction and extends the lifespan of the machine.

• Tighten Bolts and Fasteners: Check all fasteners, nuts, and bolts before and after each use to make sure they are securely tightened. Loose components can lead to vibrations or potential damage.

• Check Electrical System: Regularly inspect the power cords, plugs, and electrical connections for wear, fraying, or damage. Replace any faulty wiring to avoid electrical failures.

• Examine Dust Collection System: Ensure the dust collection system is functioning correctly. Clean or replace the filters periodically and ensure hoses are free of blockages to maintain effective dust control.

• Monitor Hydraulic System: If your model has hydraulic components, check for leaks or damage. Inspect hoses and seals regularly to maintain proper hydraulic pressure and system functionality.

• Check Motor Performance: Listen for any abnormal noises or signs of overheating from the motor. Ensure proper airflow around the motor and shut the machine down if any issues arise.

• Inspect Grinding Discs: Examine the condition of the grinding discs regularly. Replace any worn or uneven discs to ensure smooth grinding and to prevent damage to the surface being worked on.

• Proper Storage: Store the machine in a clean, dry location when not in use. Avoid exposure to moisture and extreme temperatures to prevent rust and corrosion.
