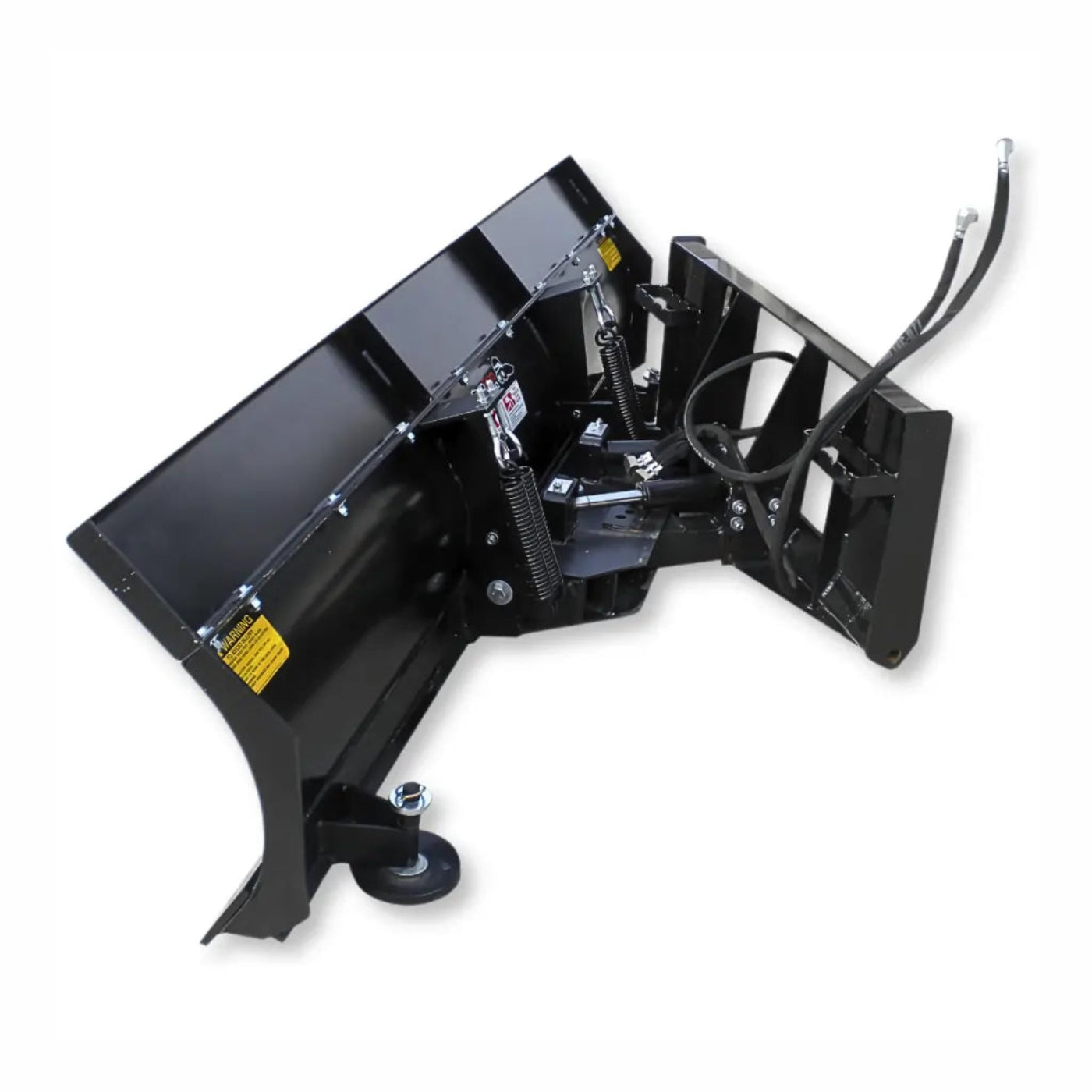

Blue Diamond Multi-Purpose Standard Duty Series 2 Dozer Blade - 123405
Enhance your skid steer's versatility with the Blue Diamond Standard Duty Series 2 Multi-Purpose Blade. Ideal for snow and light dirt work, it features adjustable skid shoes and a full-trip moldboard for operator safety. With optional 8” height extensions and hydraulic angle, this blade ensures optimal performance in various applications. Available in 48”, 60”, 72”, and 84” widths.
What Our Experts Think
-
Multi-Purpose Functionality: Designed for both snow removal and light dirt work, giving more versatility.
-
Standard Duty Build: Strong enough for general use while keeping weight and cost manageable.
-
Efficient Material Flow: Curved back and mouldboard shape help materials roll off cleanly and reduce drag.
-
Height & Angle Flexibility: 22″ blade height standard, with optional bolt-on extension; adjustable angle and skid shoes help adapt to different surfaces.
-
Protection Features: Full-trip mouldboard and trip-lockout pin provide safety when encountering hidden obstacles.
Q&A
Q: What is the Blue Diamond Standard Duty Series 2 Multi-Purpose Blade — model 123405?
A: A skid steer blade attachment with model number 123405, made for standard-duty tasks like pushing snow, moving light dirt, and general ground maintenance.
Q: How does it operate?
A: It attaches to the skid steer, then the blade can be angled hydraulically. It pushes material forward, with the curved back helping roll snow or dirt. Skid shoes assist in setting cutting height; there’s a trip-lockout pin for changing modes (snow vs dirt).
Q: Is it durable?
A: Yes — built with steel cutting edge, reinforced mouldboard, adjustable skid shoes, and designed to resist shocks via the trip mouldboard. It can handle regular use in moderate conditions.
Q: What are its key dimensions or capabilities?
A: For this 123405 model: 48″ straight width; when angled, reaches about 62¼″. Blade height is 22″. Angle capability is roughly 30°. Weight is about 490 lbs.
Q: What equipment is it compatible with?
A: Fits skid steer machines using a standard quick-attach mount and with hydraulic angle functionality.
Maintenance Tips
-
Inspect Cutting Edge & Mouldboard: Check for nicks, bends, wear before each use.
-
Adjust Skid Shoes Regularly: Ensure they’re set correctly to control blade height and reduce wear.
-
Lubricate Pivot & Angle Mechanisms: Grease pins, hinges, and angle cylinders for smooth operation.
-
Check Trip Mechanism: Make sure the trip-lockout pin and mouldboard trip system are working and not stuck.
-
Clean After Use & Store Properly: Remove materials like snow, dirt, salt; store in a dry spot to prevent rust.
