Hunter Calsense Two Wire Decoder | Select your Model - CS3-2W-POC

Hunter Calsense Two Wire Decoder | Select your Model - CS3-2W-POC

• Height: 1.4”
• Width: 3.3”
• Length: 4.0”
• Operating Temperature: -12° to 65°C (10° to 150°F)
•  Max Voltage: 24-VAC
• 14-gauge (1.5 mm) solid copper, jacketed
• Paige P7354D or Regency’s Hunter Decoder Cable
• Wire Splices
• 3M Scotchcast Connector Sealing Pack 3570G-N
• Max Distance from Decoder to Solenoids

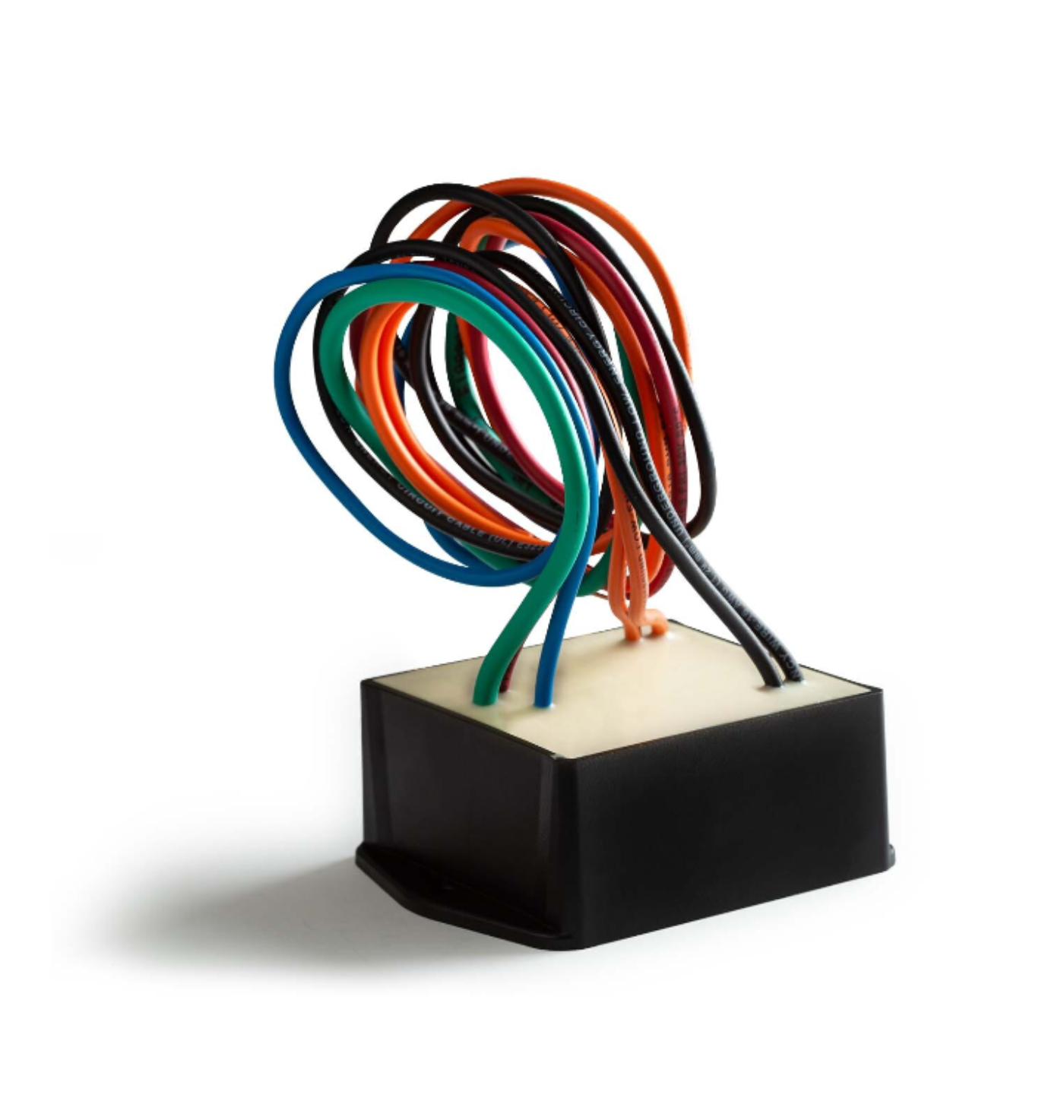

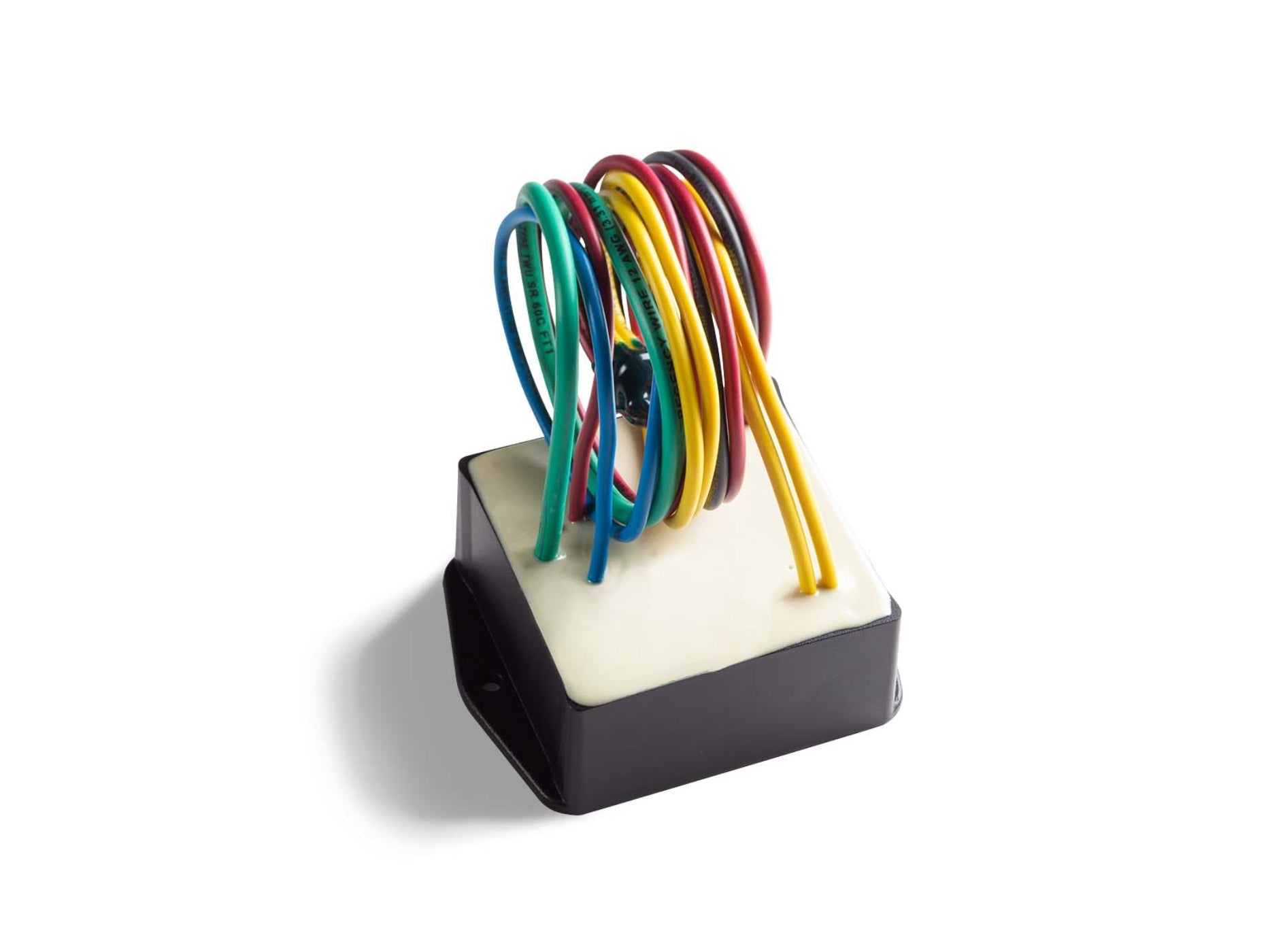

The Calsense 2-Wire POC Decoder

Model CS-3W-POC operates a single master valve and flow sensor. A single controller can operate up to four Calsense POC Decoders, with a maximum of 12 points of connection in a chain of Calsense controllers using FLOWSENSE® technology. It is recommended that all wire runs between valves and Calsense 2‐Wire Decoders be direct pulls and has no splices except at the Calsense Decoder location.

• 100 ft., 14-gauge wire to Master Valve
• 20 ft., 14-gauge wire to Flow Meter
• Transient Protection

The Calsense 2-Wire 2‐Station Decoder

Model CS-2W-2ST, operates up to 2‐solenoids using uniquely colored wires for each station. A single controller can operate up to 128 2‐wire stations, spread across a maximum of 70 physical Calsense 2‐Station Decoders. It is recommended that all wire runs between valves and Calsense 2‐Wire Decoders be direct pulls and has no splices, except at the Calsense 2-Wire Decoder location.

• Max Distance: 100 ft., 14-gauge wire

Soil Moisture Sensor Decoder

The Soil Moisture Sensor Decoder, model CS-2W-MOIST, measures the volumetric water content, temperature, and electrical conductivity of the soil. It also operates a single valve, eliminating the need for an additional Station Decoder. The combination of sensor/decoder comes standard with a 16-foot cable for proper moisture sensor placement and with the ability to wire one remote control valve to the 2-wire cable.

What Our Experts Think

• Reliable Two-Wire Technology: The Hunter Calsense Two Wire Decoder enables efficient control of irrigation systems, offering reliable communication over a two-wire setup for precise valve management.
• Easy Integration: Compatible with various Hunter controllers, this decoder simplifies system upgrades and integrates seamlessly into existing irrigation networks.
• Flexible & Scalable: Ideal for both small and large irrigation systems, it supports multiple zones and can be expanded as needed to meet growing demands.
• Durable & Long-Lasting: Designed for long-term use, the decoder’s robust construction ensures dependable performance in outdoor environments.
• Cost-Effective Solution: By reducing the need for individual wiring to each valve, it cuts down on installation time and costs, offering a more streamlined, economical approach to irrigation control.

Q&A

Q: What is the Hunter Calsense CS3-2W-POC Two Wire Decoder?
A: The Hunter Calsense CS3-2W-POC is a two-wire decoder used in irrigation systems, enabling efficient communication between the controller and irrigation valves, simplifying wiring and enhancing system performance.

Q: How does the Hunter Calsense CS3-2W-POC decoder work?
A: The decoder sends and receives signals over a two-wire system, controlling multiple irrigation valves with fewer wires, reducing installation complexity and maintenance costs.

Q: Is the Hunter Calsense CS3-2W-POC decoder compatible with all irrigation systems?
A: Yes, it is designed to work with Calsense irrigation controllers, providing flexibility and scalability in commercial and residential irrigation systems.

Q: What makes the Hunter Calsense CS3-2W-POC decoder unique?
A: Its ability to support a two-wire communication system allows for easier installation, increased reliability, and reduced cabling compared to traditional systems.

Q: How much does the Hunter Calsense CS3-2W-POC Two Wire Decoder cost?
A: Prices may vary depending on availability; please check with the retailer for the most current pricing.

Maintenance Tips

• Inspect wiring: Regularly check the wiring for any signs of wear, corrosion, or damage. Ensure all connections are secure to maintain proper communication.
• Clean the decoder: Wipe the decoder with a soft, damp cloth to remove dirt or debris. Avoid using abrasive materials to protect the surface.
• Test functionality: Periodically test the decoder to ensure it’s communicating properly with the system and functioning as expected.
• Monitor battery life: If the decoder has a battery, check its status and replace it as necessary to maintain reliable operation.
• Store in a dry, protected area: If storing the decoder for extended periods, keep it in a cool, dry place to avoid exposure to moisture or extreme temperatures.
