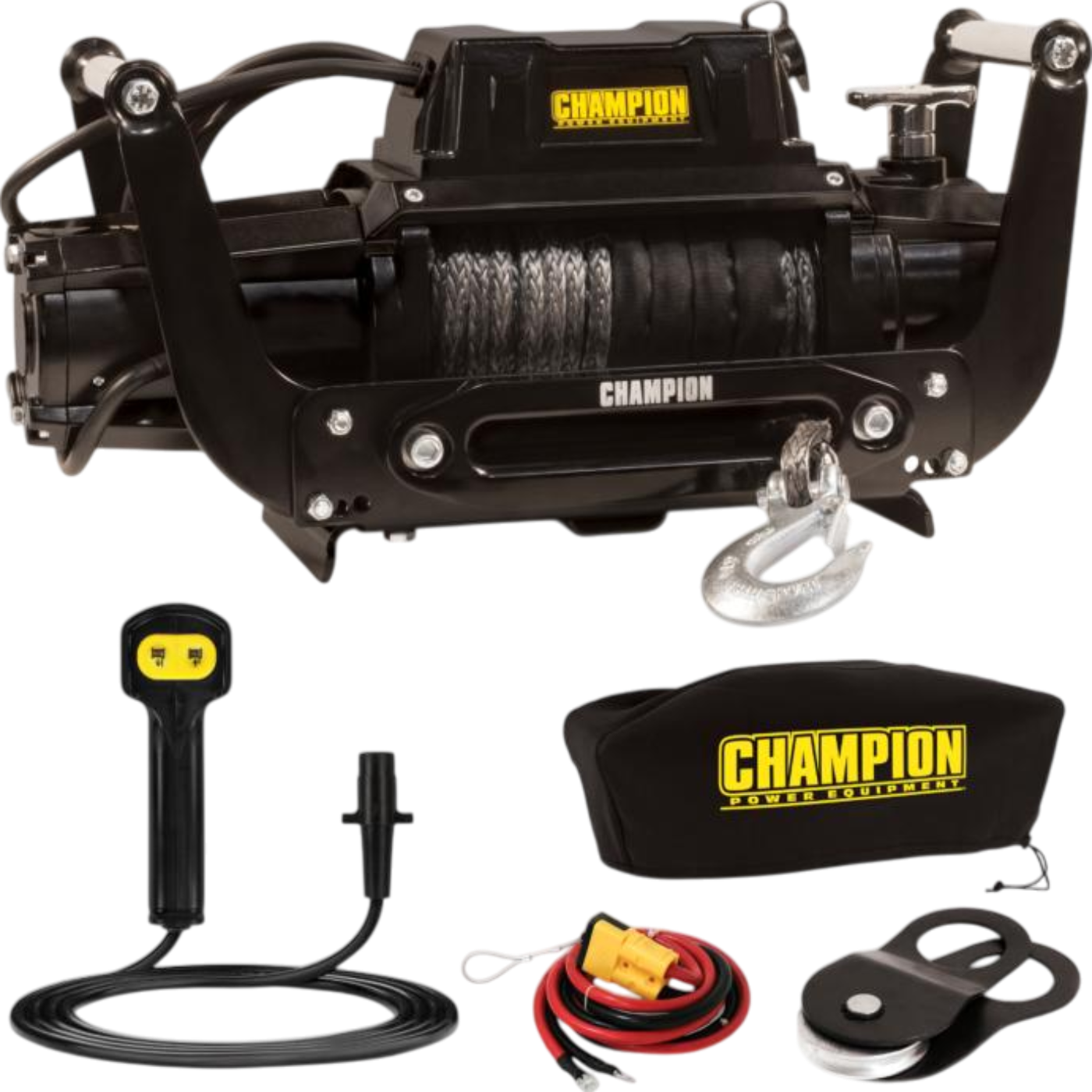

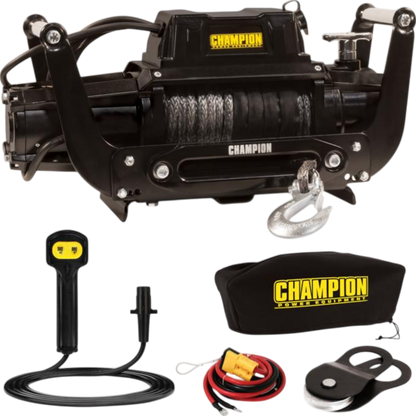

Champion Electric Winch Kit with Speed Mount 12,000-lb. Synthetic Rope New - 100427
The Champion Power Equipment 100427 Truck/SUV Synthetic Rope Winch Kit is designed for powerful and reliable winching with your truck or SUV. With a rated line pull of 12,000 pounds, this winch installs quickly with the Speed Mount 2-inch hitch adapter. The winch features a gear reduction ratio of 216:1, boasting a line speed of 2.3 feet per minute with a full load. Designed with a stainless steel thimble and protective sleeve, the 85-ft by 11/32-in synthetic winch rope has a minimum break strength of 15,000 lbs. and is guided onto the drum through the fairlead.
Features
- Powerful 12,000-lb. rated line pull powered by a 6-horsepower 12V DC series wound motor.
- Efficient line speed of 2.3 feet per minute with a full load, and 15.7 feet per minute with no load.
- Convenient Speed Mount 2-inch hitch adapter, included hand-held quick-connect remote control and free-spooling clutch create an easier than ever winching experience.
- The hawse fairlead creates a smooth pull with the safe, strong, and flexible synthetic rope, which is lightweight, splinter-free, won't kink, has less recoil than steel, and floats.
- Convenient handles are 3-position adjustable, plus they serve as side guards to protect the winch.
Specifications
| Winch Type |
Truck and SUV |
| Line Pull |
12,000 lbs. |
| Remote Length |
12 ft. |
| Gear Ratio |
216:1 |
| Gear System |
Three-Stage Planetary |
| Full Load Line Speed |
2.3 ft/min |
| No-Load Line Speed |
15.7 ft/min |
| Clutch Type |
Free Spooling |
| Brake System |
Dynamic |
| Rope Material |
Synthetic Rope |
| Rope Length |
85 ft. |
| Rope Diameter |
11/32 in. |
| Fairlead Type |
Hawse |
| Drum Size |
2.5 x 8.8 in. |
| Bolt Pattern |
10 x 4.5 in. |
| Mounting Channel |
Speed Mount |
| Hitch Adapter Size |
2 in. |
| Motor Type |
12V DC (Series Wound) |
| Horsepower |
6 HP |
| Max Current at Full Load |
480A |
| Duty Cycle |
Intermittent |
| Dimensions |
22.3" x 5.9" x 10.1" |
| Weight |
95.9 lbs. |
What Our Experts Think
-
The Champion 12,000-lb. Electric Winch Kit delivers exceptional pulling power for trucks, SUVs, trailers, and off-road recovery.
-
Features a durable synthetic rope, providing lightweight strength and safer handling than steel cables.
-
Includes a Speed Mount 2-inch hitch adapter for quick, secure attachment.
-
Equipped with a wired remote control for precise winching operation from a safe distance.
-
Ideal for off-road enthusiasts, vehicle recovery, and heavy-duty hauling tasks.
Q&A
-
What is the maximum pulling capacity?
Rated for 12,000 lbs., making it suitable for large vehicles and demanding recovery jobs.
-
What type of rope does it include?
Comes with a strong synthetic rope — lightweight, rust-free, and easy to handle.
-
Is installation simple?
Yes — the Speed Mount system allows quick setup and removal using any standard 2" hitch receiver.
-
Does it include a remote?
Yes — includes a handheld remote for easy, controlled operation.
Maintenance Tips
-
Inspect the rope and hook before each use for wear or damage.
-
Keep electrical connections clean and tight to ensure proper function.
-
Store winch in a dry, covered area when not in use.
-
Re-spool synthetic rope evenly after use to prevent tangles or kinks.
