Champion 2300W/3500W Generator Gas Inverter Low THD CO Shield New 201494 9200W/11500W Generator 50 Amp Gas Electric Start CO Shield New - 201494

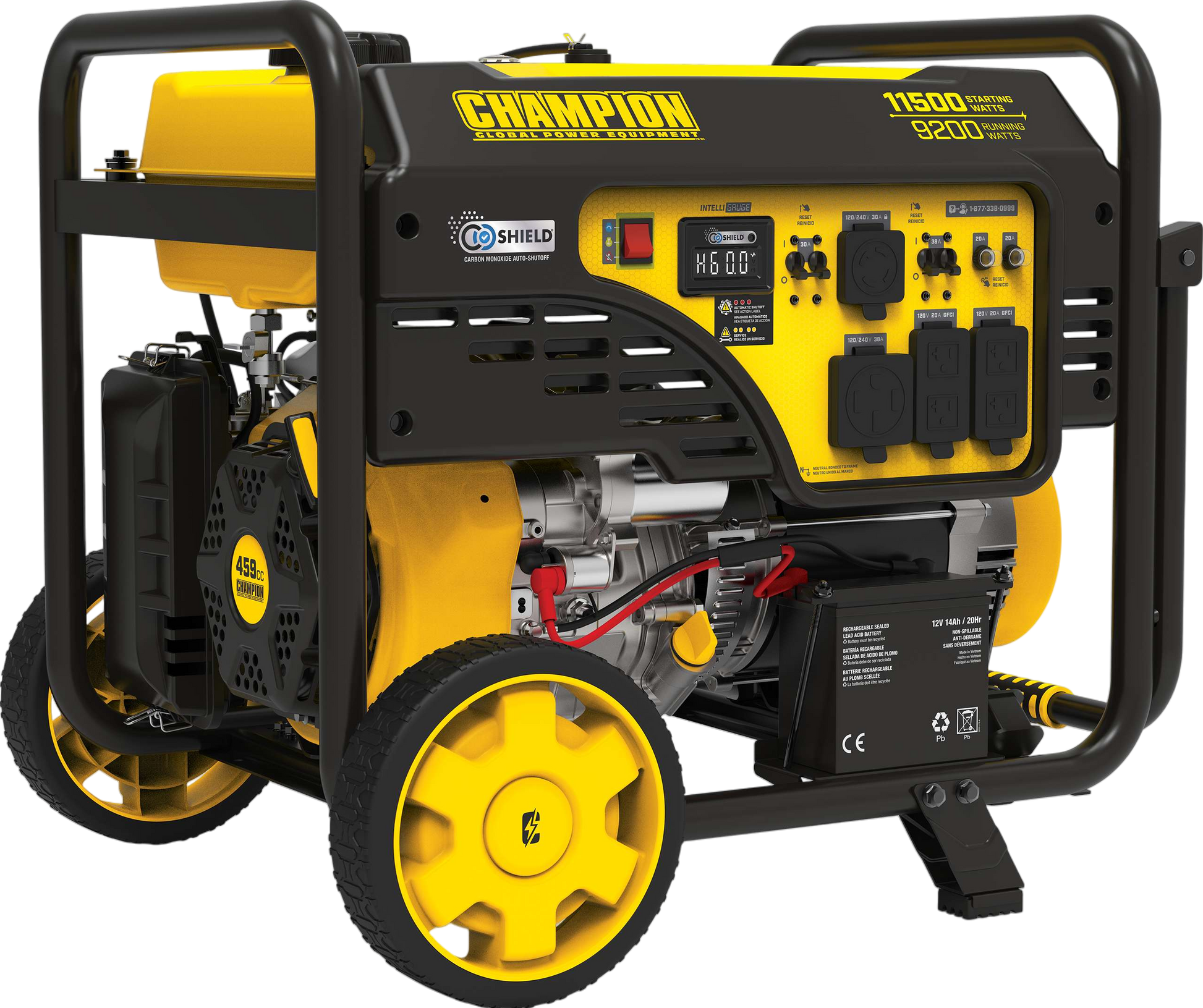

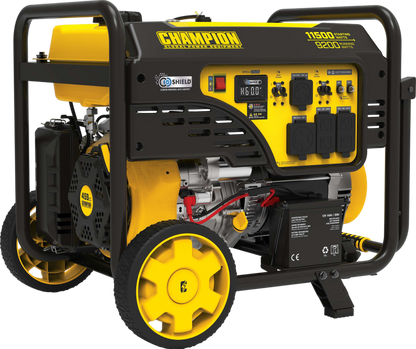

The Champion Power Equipment 201494 9200-Watt Portable Generator with CO Shield is designed with your safety and convenience in mind. For projects, the 459cc Champion single-cylinder OHV engine has what it takes to handle the multiple power tools and large equipment you need to get the job done. This unit has a 1.2-quart oil capacity (recommended 10W-30) and 7.7-gallon fuel tank for up to 10 hours of power at 50% load.
At 11500 starting watts and 9200 running watts, this unit can handle it all in an outage - lights, refrigerator, modem/router, security system, window AC, furnace blower, TV, computer, phone charger and more.
Features
- Electric Start - Power up the 459cc Champion engine with the handy rocker switch, battery included.
- Reliable and Powerful - At 11500 starting watts and 9200 running watts, enjoy up to 10 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet.
- Covered Outlets - 120/240V 30A locking, 120/240V 38A, and two 120V 20A GFCI household duplex outlets; Volt Guard built-in surge protector prevents overloads and keeps your appliances and equipment safe.
- Intelligauge - Keep track of voltage, frequency, session run time, and total run time to easily monitor output and track maintenance intervals; plus features CO Shield carbon monoxide auto shutoff system.
- Champion Support - This generator is EPA certified. Includes 3-year limited warranty with lifetime technical support from dedicated experts.
Specifications
| Length |
29.1 in. |
| Width |
26.1 in. |
| Height |
26.1 in. |
| Weight |
203 lb. |
| Fuel Type |
Gasoline |
| Fuel Gauge |
Analog |
| Gasoline Capacity |
7.7 gal. |
| Gasoline Tank Material |
Steel |
| Engine Oil Type |
10W-30 |
| Engine Oil Capacity |
1.2 qt. |
| Engine Oil Included |
Yes |
| Low Oil Shut-Off |
Yes |
| Wheels |
Yes |
| Wheel Type |
Solid |
| Wheel Diameter |
9.5 in. |
| PGMA Compliant |
G300-2023 |
| EPA Certified |
Yes |
| Portable Generator Technology |
CO Shield® |
| Gasoline Starting Watts |
11500W |
| Gasoline Running Watts |
9200W |
| Gasoline Starting Amps at 120V |
95.8A |
| Gasoline Starting Amps at 240V |
47.9A |
| Gasoline Running Amps at 120V |
76.7A |
| Gasoline Running Amps at 240V |
38.3A |
| Volts |
120/240 |
| Frequency |
60Hz |
| Outlets |
(2) 120V 20A GFCI Duplex (5-20R), (1) 120/240V 30A Locking (L14-30R), 120/240V 38A (14-50R) |
| DC Operation |
No |
| GFCI Outlets |
Yes |
| Covered Outlets |
Yes |
| Covered Circuit Breakers |
Yes |
| Gasoline Run Time at 1/2 Load |
10 hr. |
| Noise Level |
74 dBA |
| Parallel Capability |
No |
| Voltmeter |
Intelligauge |
| Automatic Voltage Regulation |
Yes |
| Battery |
Yes |
| Start Type |
Recoil, Electric |
| Engine Brand |
Champion |
| Engine Size |
459cc |
| Engine Type |
4-stroke |
| Engine Speed |
3600 |
What Our Experts Think
-
The Champion 9200W/11500W Gas Generator delivers powerful, reliable performance for home backup or jobsite use.
-
Produces 11,500 starting watts and 9,200 running watts, ideal for whole-home or heavy-duty applications.
-
Equipped with electric start, Intelligauge™ display, and CO Shield® carbon monoxide protection for safety and convenience.
-
Built with a durable steel frame, 50A outlet, and Volt Guard™ surge protection for stable operation.
-
Perfect for homeowners, contractors, and emergency backup power users.
Q&A
-
What’s the power capacity?
Provides 11,500 starting watts and 9,200 running watts, capable of handling large appliances and tools.
-
Does it include an electric start?
Yes — features a push-button electric start with included battery for easy ignition.
-
Is it safe for indoor use?
No — must be used outdoors only; however, it includes CO Shield® to automatically shut off if CO levels rise.
-
What outlets are available?
Includes 50A, 30A, and 120V household outlets to power everything from tools to RVs.
Maintenance Tips
-
Change oil every 50–100 hours or per usage frequency.
-
Use fresh, stabilized gasoline and run monthly to keep components lubricated.
-
Clean or replace air filter and spark plug regularly.
