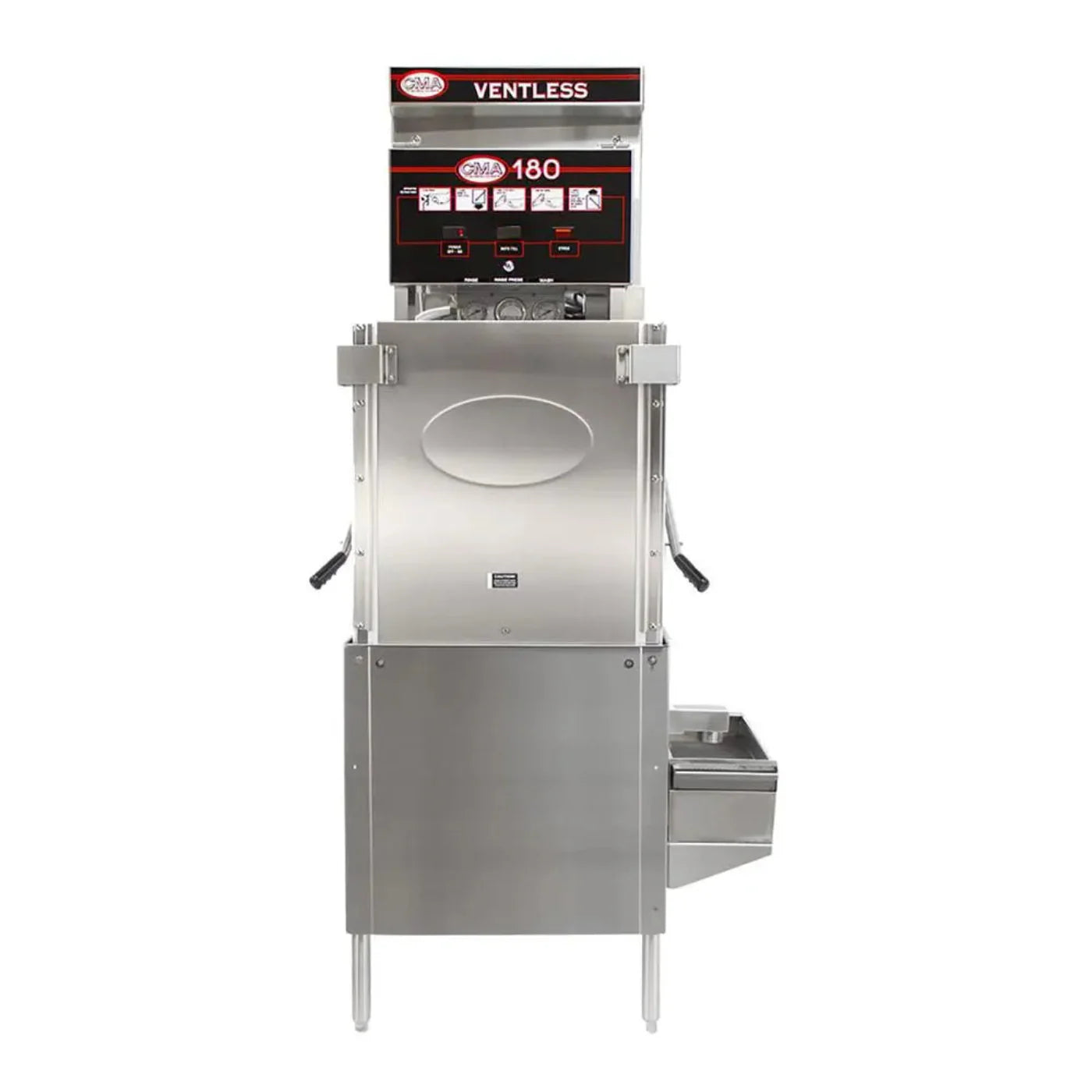

CMA Dishmachine 180-VL Tall Single Rack High Temperature Ventless 3-Door Dishwasher with Booster, 3 Phase, 220V, 60Hz, 1HP

CMA Dishmachine 180-VL Tall Single Rack High Temperature Ventless 3-Door Dishwasher with Booster, 3 Phase, 220V, 60Hz, 1HP

The CMA Dishmachine 180-VL Single Rack High Temperature Ventless Dishwasher, powered by 220V/60Hz/3 Phase, is engineered for high-efficiency performance in commercial kitchens. This dishwasher is designed with a ventless heat recovery system that utilizes heat from the wash and rinse tanks to preheat the incoming final rinse water, thereby reducing energy consumption and eliminating the need for an additional hood system.

With an 8-gallon wash tank and a 1 HP wash pump motor, this unit is capable of handling up to 40 racks per hour while consuming just 0.89 gallons of water per cycle. The built-in 12kW booster heater ensures that the final rinse reaches optimal temperatures for effective sanitization. The machine features dimensions of 25 1/2 inches in width, 29 inches in depth, and 86 5/16 inches in height, with an interior chamber clearance of 17 1/2 inches, providing ample space for various types of dishware.

Constructed entirely from stainless steel, the CMA-180-VL is built for durability and easy maintenance. It includes an automatic soil purging system with a removable external tray to keep wash water clean, and the fully automatic cycle, coupled with an integrated heat exchange condenser, simplifies operation and enhances efficiency. Designed for a 208/240V, 3-phase electrical connection, this model is well-suited for high-volume dishwashing needs in restaurants, hotels, and other food service environments.

Features

• Features a ventless design with a heat recovery system, providing energy savings and eliminating the need for a separate hood system, which is ideal for saving on operating costs.

• Offers high-temperature cleaning with a built-in 12kW booster heater, ensuring effective sanitization of up to 40 racks per hour with minimal water usage.

• Includes an automatic soil purging system with a removable external tray, which keeps the wash water clean and reduces the need for frequent maintenance.

• Provides a versatile design that allows for rack loading from the front or sides, making it suitable for both straight and corner installations in various kitchen layouts.

• Incorporates all-stainless steel construction and a fully automatic cycle with an integrated heat exchange condenser, ensuring durability and ease of use in busy environments.

What Our Experts Think

• Ventless Design: The CMA 180-VL Tall eliminates the need for a traditional vent hood by utilizing a heat recovery system that captures steam from the wash cycle to preheat incoming water, reducing energy costs and simplifying installation.

• High Capacity and Efficiency: Capable of processing up to 40 racks per hour, this dishwasher uses only 0.89 gallons of water per cycle, making it both efficient and environmentally friendly.

• Safe-T-Temp Feature: Ensures a consistent 180°F final rinse temperature for effective sanitization, with a built-in 12 kW booster heater to maintain optimal performance.

• Spacious Interior: Offers a 28-inch dish clearance, accommodating larger items and providing flexibility for various dishware sizes.

• Durable Construction: Constructed entirely of stainless steel, the CMA 180-VL Tall is built for longevity and easy maintenance in demanding commercial environments.

Q&A

Q: What is the CMA Dishmachines CMA-180-VL TALL Dishwasher?
The CMA-180-VL TALL is a high-temperature, ventless, single-rack dishwasher designed for commercial kitchens. It features a 3-door configuration suitable for straight or corner installations. The unit operates without the need for a vent hood, utilizing a heat recovery system to condense steam and pre-heat incoming cold water, reducing energy costs.

Q: What are the key specifications?

• Dimensions: 25.5" W x 29" D x 96.31" H

• Dish Clearance: 28"

• Capacity: Approximately 40 racks per hour

• Water Usage: 0.89 gallons per rack

• Booster Heater: 12 kW

• Wash Tank Heater: 6 kW

• Motor: 1 HP

• Voltage Options: 208V/60Hz/1Ph, 208V/60Hz/3Ph, 240V/60Hz/1Ph, 240V/60Hz/3Ph, 480V/60Hz/3Ph

• Certifications: NSF, UL, cULus

• Warranty: 1-year parts and labor

Q: How does the ventless operation work?
The CMA-180-VL TALL employs a heat recovery system that captures and condenses steam from the wash and rinse cycles. This process pre-heats incoming cold water before it enters the booster heater, reducing energy consumption and eliminating the need for a traditional vent hood.

Q: What features enhance its efficiency and safety?

• Safe-T-Temp Feature: Ensures a 180°F sanitizing rinse by locking the machine into the wash cycle until the booster heater reaches the required temperature.

• Door Safety Interlock System: Prevents the operator from interrupting the ventless process, ensuring proper steam evacuation.

• Automatic Heat Exchange Condenser Wash-Down: Cleans the condenser to maintain efficiency.

• Pressure Regulating Valve (PRV): Maintains consistent rinse pressure.

• Wash Tank Screens: Filter recirculating wash water to prevent debris from entering spray arms.

Q: What are the installation and maintenance considerations?
The CMA-180-VL TALL is designed for easy installation with its ventless operation, eliminating the need for a separate vent hood. Regular maintenance includes ensuring the heat recovery system is functioning properly and cleaning the wash tank screens to prevent clogs. The unit's stainless steel construction ensures durability and ease of cleaning.

Q: Are there any optional accessories available?
Yes, optional accessories include various dish racks, a low chemical alarm kit, detergent and rinse pumps, a splash prevention panel, and a drain water tempering kit. These accessories can be purchased separately to enhance the dishwasher's functionality.

Maintenance Tips

Clean or Replace Filters
Regularly clean or replace the wash tank screens to maintain water flow and ensure clean results.

Inspect Wash Tank Heater
Check the 6kW wash tank heater annually for mineral buildup. Clean as needed to maintain efficient operation.

Check Drain Line
Ensure the drain line is clear and free from blockages to avoid water backup. Clean the drain line periodically to prevent clogging.

Inspect Door Seals
Check the door seals for wear and tear. If damaged, replace them to maintain efficiency and prevent leaks during operation.

Test Thermostat
Regularly test the thermostat to ensure proper heating. If the dishwasher is not reaching the correct temperature, the thermostat may need recalibration or replacement.

Schedule Professional Maintenance
Schedule professional service annually to inspect and clean internal components such as the wash pump, motor, and internal wiring for optimal performance.
