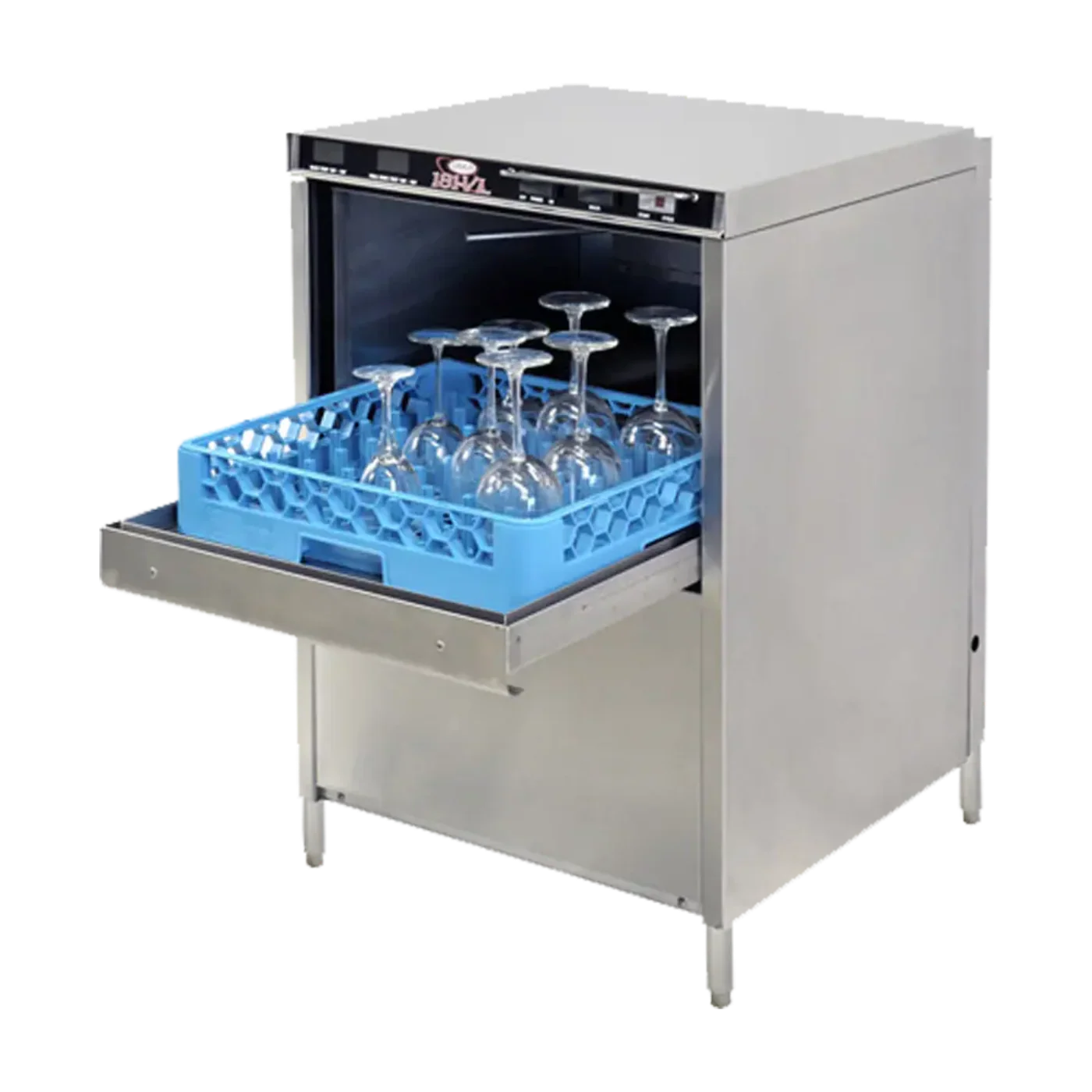

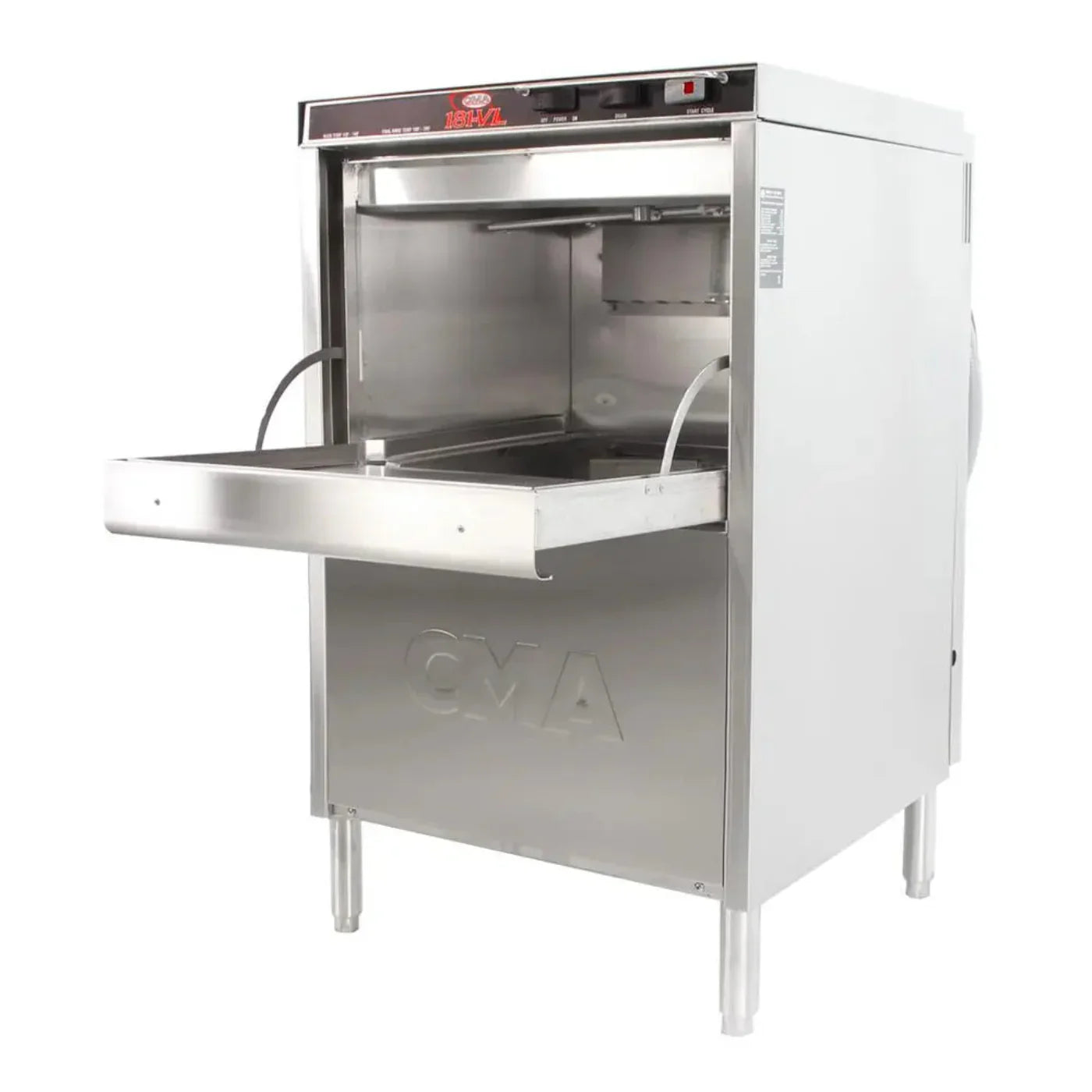

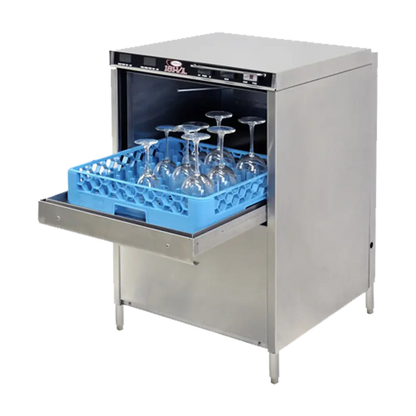

CMA Dishmachine 181 VL High Temperature Energy Recovery Undercounter Glasswasher, 1 Phase, 220V, 60Hz, 1HP

CMA Dishmachine 181 VL High Temperature Energy Recovery Undercounter Glasswasher, 1 Phase, 220V, 60Hz, 1HP

The CMA 81-VL high-temperature energy recovery undercounter glass washer, manufactured by CMA Dishmachines, features a robust energy recovery system that significantly reduces water vapor escape during and after each cycle. This model, designed for high-volume settings, promotes faster drying of glasses while reducing energy costs by utilizing only a cold water supply. The unit is constructed from durable type 304 stainless steel, which ensures longevity and efficient heat retention.

With dimensions of 24" width, 27" depth, and 33 3/8" height, the glass washer is compact yet spacious enough to accommodate a large 11 1/4" interior chamber clearance. This allows it to fit taller stemware, mugs, and various glass sizes. The efficient 1 hp wash motor uses only 0.73 gallons of water per cycle, conserving both water and energy. The Safe-T-Temperature booster heater integrated within the unit achieves a 180-degree Fahrenheit final rinse, ensuring thorough sanitation. A pair of rotating arms provide fresh water rinsing during the 178-second cycle.

Designed for user convenience, the washer chamber is set at an ergonomic height, reducing the need for excessive bending and enhancing employee comfort. The top-mounted controls are easy to read and operate, contributing to effortless use in high-paced environments. Maintenance is simplified with a removable stainless steel pump protection screen, which helps preserve internal components. This glass washer requires a 208-230V electrical connection and is an excellent choice for commercial kitchens seeking efficiency and durability.

Features

• Features an energy recovery system to reduce water vapor, promoting faster drying and lowering energy costs, perfect for busy hotel bars and restaurants.

• Offers a large interior chamber to fit various glassware sizes, ensuring versatility in cafes and other food service environments.

• Includes a soft start feature that minimizes noise and reduces glass breakage, extending the life of your glassware.

• Utilizes efficient water and energy use per cycle, conserving resources while maintaining a high level of cleanliness.

• Provides user-friendly controls and a comfortable chamber height, making it easy to operate and reducing strain on staff.

What Our Experts Think

• High-Temperature Sanitization: Achieves 180°F final rinse, ensuring hygienic glassware.

• Energy Recovery System: Utilizes heat from vapor to pre-warm incoming water, reducing energy consumption.

• Compact Design: Ideal for establishments with limited space, measuring 24" W x 27" D x 33⅜" H.

• Efficient Operation: Cleans up to 600 glasses or 20 racks per hour with minimal water usage.

• User-Friendly Features: Equipped with digital LED temperature gauges and top-mounted controls for ease of use.

• Durable Construction: Made in the USA with Type 304 stainless steel for longevity and reliability.

Q&A

Q: What is the CMA Dishmachines 181 VL High Temperature Energy Recovery Undercounter Glasswasher?
The CMA 181 VL is a high-temperature undercounter glasswasher with built-in energy recovery, designed to reduce steam and improve efficiency in commercial environments.

Q: What is the capacity and size of the 181 VL?
It handles up to 20 racks per hour and measures 24" W x 27" D x 33-3/8" H, with clearance for glassware up to 11-1/4" tall.

Q: What electrical setup is required?
The unit runs on 1-phase, 220V, 60Hz power with a 1 HP motor.

Q: What certifications does the 181 VL carry?
It is NSF and cULus certified for sanitation and electrical safety.

Q: What maintenance is recommended?
Routine care includes cleaning wash and rinse arms, checking the heat recovery and booster system, and inspecting the detergent and rinse aid pumps.

Maintenance Tips

Clean or Replace Filters
Regularly clean or replace the wash pump and rinse system filters every 1–2 weeks to maintain water flow and ensure clean results.

Inspect Wash Tank Heater
Check the 6kW wash tank heater annually for mineral buildup. Clean as needed to maintain efficient operation.

Check Drain Line
Ensure the drain line is clear and free from blockages to avoid water backup. Clean the drain line periodically to prevent clogging.

Inspect Door Seals
Check the door seals for wear and tear. If damaged, replace them to maintain efficiency and prevent leaks during operation.

Test Thermostat
Regularly test the thermostat to ensure proper heating. If the dishwasher is not reaching the correct temperature, the thermostat may need recalibration or replacement.

Schedule Professional Maintenance
Schedule professional service annually to inspect and clean internal components such as the wash pump, motor, and internal wiring for optimal performance.
