CMA Dishmachine S-AH Tall Single Rack Low Temperature Upright Scullery Pot and Pan Dishwasher, 1 Phase, 115V, 60Hz, 1HP

CMA Dishmachine S-AH Tall Single Rack Low Temperature Upright Scullery Pot and Pan Dishwasher, 1 Phase, 115V, 60Hz, 1HP

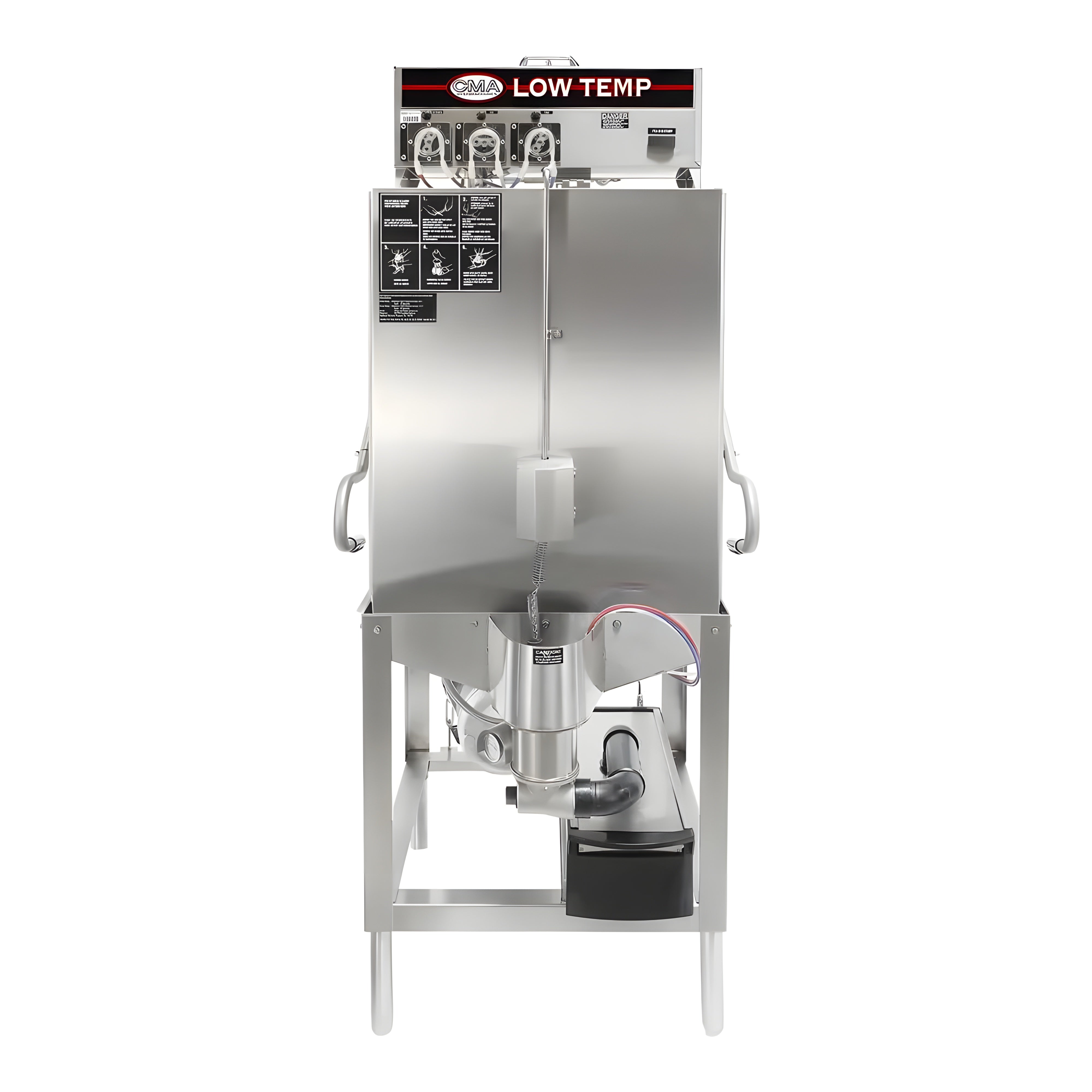

The CMA Dishmachine S-AH Tall Single Rack Low Temperature Chemical Sanitizing Straight Dishwasher operates on a 115V/60Hz/1 Phase electrical connection and is designed to meet NSF, UL, and CSA sanitation standards. This model can handle dishware up to 27 inches high and is equipped with a tall design to accommodate larger items such as pots and pans. It features a 90-second wash cycle and can clean up to 40 racks per hour, using 1.7 gallons of water per cycle.

The dishwasher incorporates a pump purging system that eliminates soil and chemical carryover during the rinse cycle, trapping debris in an integrated Poly Pro scrap accumulator. This ensures that the wash water remains clean and effective throughout the cleaning process. The upper and lower stainless steel wash arms, designed with reinforced end caps, deliver superior cleaning performance and are easily removable for maintenance.

Constructed entirely from stainless steel, the CMA S-AH is built for durability and long-term use. It includes a top-mounted control box with chemical pumps and a deliming system to assure proper chemical usage and maintenance. The unit also includes one dishrack and operates with a standard 115V electrical connection.

Features

• Features a tall design that accommodates pots and pans up to 27 inches high, making it ideal for large or bulky items in commercial kitchens.

• Offers efficient cleaning with a capacity of up to 40 racks per hour while using only 1.7 gallons of water per cycle, ensuring sustainability and cost savings.

• Includes an auto start/stop function for ease of use and efficient operation, streamlining the dishwashing process.

• Provides an integrated Poly Pro scrap accumulator and pump purging system that prevents soil and chemical carryover, keeping wash water clean and effective.

• Equipped with a top-mounted control box with built-in chemical pumps and a deliming system for effective chemical use and maintenance.

What Our Experts Think

Single Rack Efficiency: The CMA S-AH Tall Single Rack Dishwasher is designed for streamlined cleaning, allowing efficient washing of pots and pans with a single load.

Low-Temperature Sanitization: Utilizes low-temperature washing combined with chemical sanitization for energy-efficient operation, perfect for maintaining cost-effective kitchen processes.

Compact & Space-Saving: Its upright design fits well in tight spaces, ideal for scullery areas that need a high-capacity washer in a small footprint.

Powerful Cleaning: Operates on 115V, 1-phase, 60Hz, with a 1HP motor, ensuring reliable and thorough cleaning, even for the toughest kitchen tasks.

Durable & Robust Construction: Built with stainless steel, this dishwasher is engineered for long-lasting durability, perfect for high-demand kitchen environments.

Q&A

Q: What is the capacity of the CMA Dishmachine S-AH?
A: It cleans up to 40 racks per hour, accommodating approximately 160 covers.

Q: What are the dimensions of the dishwasher?
A: The unit measures 25.75" W x 25.75" D x 66–67" H.

Q: Is this dishwasher suitable for washing large pots and pans?
A: Yes, it features a 27" door clearance, allowing for the washing of large pots and pans.

Q: What is the water consumption per cycle?
A: It uses approximately 1.7 gallons of water per cycle.

Q: Does it require a booster heater?
A: No, it operates as a low-temperature chemical sanitizing dishwasher without the need for booster or tank heaters.

Q: What is the wash cycle time?
A: The total wash cycle time is 90 seconds, comprising a 45-second wash, 30-second rinse, and 15-second dwell.

Q: Is this dishwasher energy-efficient?
A: Yes, it is designed to be energy-efficient while providing powerful cleaning performance.

Q: What is the warranty for this dishwasher?
A: It comes with a 1-year limited parts and labor warranty.

Maintenance Tips

Clean or Replace Filters – Regularly clean or replace the filters in the wash pump and rinse system to maintain water flow and ensure clean results. Clean filters every 1-2 weeks, or more frequently if used heavily.

Clean Coils – Check the coils of the dishwasher’s heating element at least once a year to ensure there is no buildup of mineral deposits or debris. Clean as needed to maintain efficient operation.

Check Drain Line – Ensure the drain line is clear and free from blockages to avoid water backup. Clean the drain line periodically to prevent clogging.

Inspect Window Seals – Check the door seals for wear and tear. If damaged, replace them to maintain efficiency and prevent leaks during operation.

Test Thermostat – Regularly test the thermostat to ensure proper heating. If the dishwasher is not reaching the correct temperature, the thermostat may need recalibration or replacement.

Schedule Professional Maintenance – Schedule professional service annually to inspect and clean internal components such as the wash pump, motor, and internal wiring for optimal performance.
