Manitowoc FBA - Manitowoc UYF0190A - STKUY0190A

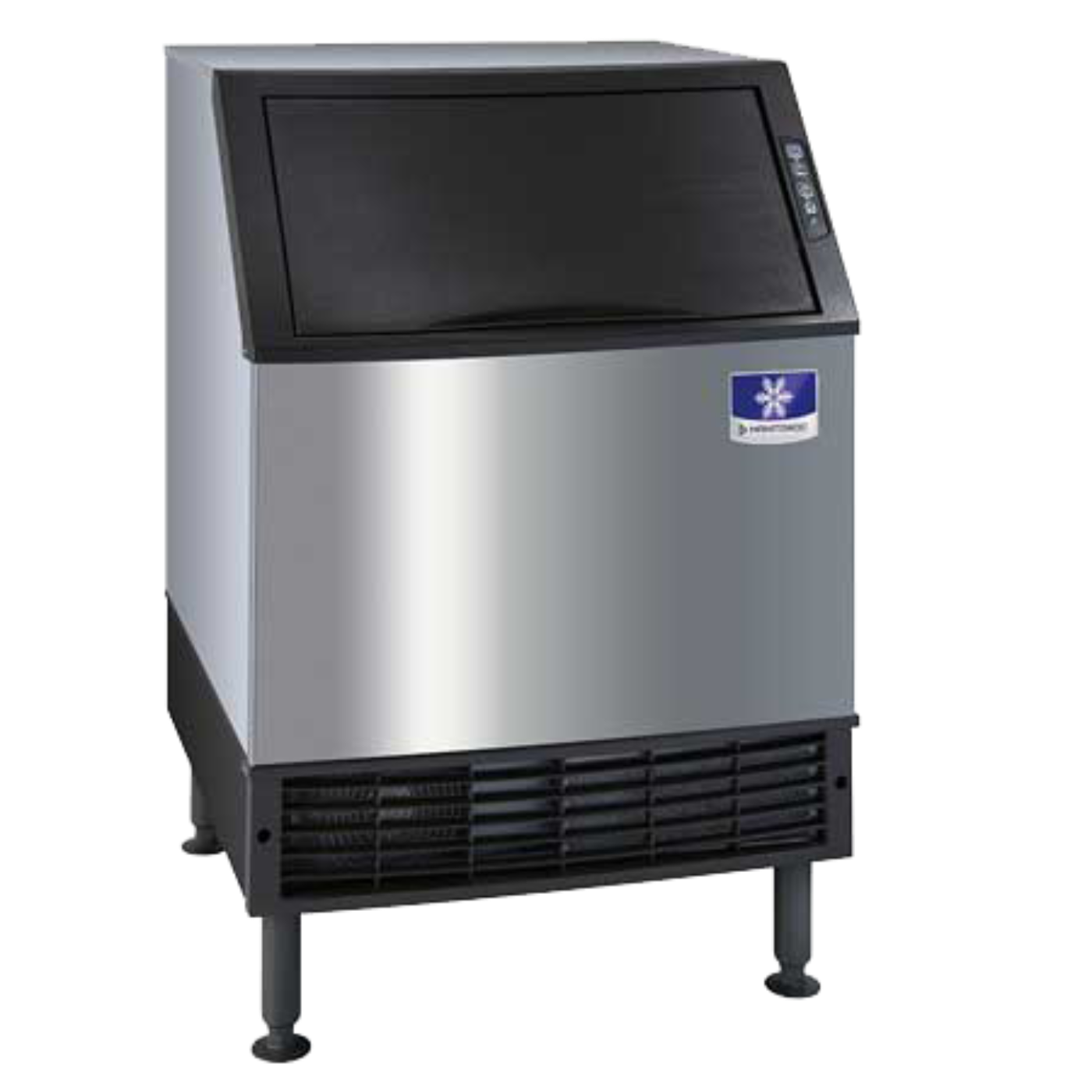

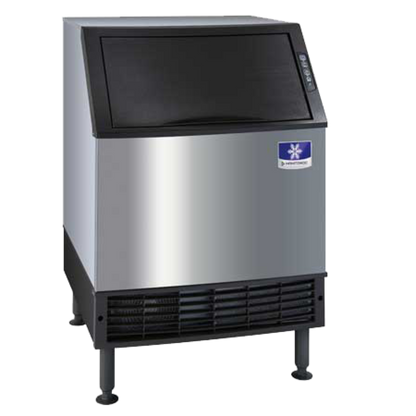

The Manitowoc UYF0190A is an undercounter, air-cooled ice machine. It makes half-dice ice. The unit produces up to 193 lbs. of ice daily. It measures 26” w X 38.5” h X 28” d, and has 6” legs. The included ice storage bin holds up to 90 lbs. of ice.
The Manitowoc UYF0190A is a NEO undercounter ice machine. Improvements in performance, intelligence, and convenience make the ice machine easy to own and less expensive to operate. NEO produces more ice while using less water and energy. The delay function allows you to pause your machine. It is also easy to clean.
We also have free shipping.
Features
- Product Features:
-
Easy Access: Angled door provides a larger opening making ice more visible and easier to access.
-
Intelligence: Provides feedback with full bin and service indicators. Delay function allows you to pause your machine for slow periods or days when you're closed.
-
Easy to Clean: Smooth sealed food-zone with removable water trough, distribution tube, and damper door for faster cleaning. AlphaSan added to key internal components.
-
Convenience: Forward-sliding storage bin allows for easier, quicker access to refrigeration components without having to move the entire ice machine. Air Filter slides out easily from the bottom without tools.
-
LuminIce™ Growth Inhibitor: Available LuminIce™ Growth Inhibitor controls the growth of bacteria and yeast within the foodzone. (This is an option, not included)
Specifications
| Model |
UYF0190A (Half Dice, Air Cooled) |
| Ice Production Capacity |
Up to 193 lbs of ice daily |
| Ice Storage Capacity |
90 lbs |
| Dimensions (W x D x H) |
26" Wide, 28" Deep, 38.5" High (on 6" Legs) |
| Half Dice Cube Size |
3/8" x 1 1/8" x 7/8" |
| Energy Star Qualified |
Yes |
What our Experts Think
-
Ice Production Capacity: Produces up to 193 lbs (88 kg) of half-dice ice cubes per 24 hours under standard conditions, ensuring a consistent ice supply for establishments with moderate to high demand.
-
Ice Storage Capacity: Equipped with an integrated bin that holds up to 90 lbs (40.8 kg) of ice, providing convenient access during peak times.
-
Ice Type: Produces half-dice ice cubes measuring 3/8" x 1-1/8" x 7/8", known for their rapid cooling and chewable texture, ideal for beverages and food displays.
-
Compact Design: Measuring 26" (66.04 cm) in width, 28.5" (72.4 cm) in depth, and 38.5" (97.8 cm) in height (on 6" legs), this undercounter unit fits seamlessly into standard commercial kitchen spaces.
-
Energy Efficiency: Operates with a 0.42 HP compressor and consumes approximately 8.3 kW per 100 lbs of ice produced, promoting energy savings and cost-effectiveness.
-
User-Friendly Features: Equipped with LED-illuminated indicator buttons for intuitive operation, including modes for Power, Delay, Clean, Full Bin, and Service.
-
Advanced Cleaning and Maintenance: Features a forward-sliding storage bin for easy access to refrigeration components without moving the entire unit. The FoodZone includes removable components and antimicrobial protection to facilitate quick and thorough cleaning.
-
Certifications: Certified by NSF, cULus, and CE, meeting rigorous safety and sanitation standards for commercial equipment.
Q&A
Q: What is the ice production capacity of the Manitowoc UYF0190A?
A: The Manitowoc UYF0190A produces up to 193 lbs of half-dice ice per day under optimal conditions (70°F air/50°F water)
Q: What type of ice does this machine produce?
A: It produces half-dice cubes measuring 3/8" x 1 1/8" x 7/8"
Q: What are the dimensions of the Manitowoc UYF0190A?
A: The unit measures 26" in width, 28.5" in depth, and 38.5" in height, making it suitable for undercounter installation.
Q: What is the storage capacity of the Manitowoc UYF0190A?
A: It has a storage bin that holds up to 90 lbs of ice.
Q: Is the Manitowoc UYF0190A energy efficient?
A: Yes, it is designed to be energy-efficient, consuming approximately 8.3 kWh per 100 lbs of ice produced.
Q: What maintenance features does the Manitowoc UYF0190A offer?
A: It includes a pop-out air filter and a removable bin for easy cleaning and maintenance.
Q: Who is the Manitowoc UYF0190A best suited for?
A: Ideal for establishments like bars, offices, and small restaurants that require a consistent and reliable supply of half-dice ice.
Maintenance Tips
-
Ice Production Capacity: Produces up to 193 pounds of half-dice ice per day under standard conditions (70°F air and 50°F water).
-
Ice Storage Capacity: Equipped with a 90-pound storage bin, ensuring a sufficient supply of ice during peak hours
-
Ice Dimensions: Produces half-dice ice cubes measuring 3/8" x 1 1/8" x 7/8", offering a versatile size suitable for various beverages.
-
Compact Design: Measuring 26" in width, 28.5" in depth, and 38.5" in height, the UYF0190A is designed for undercounter installation, fitting beneath most countertops and bars.
-
Energy Efficiency: Operates on 115V electrical power with a 6.0 amp draw, making it an energy-efficient choice for establishments aiming to reduce operational costs.
