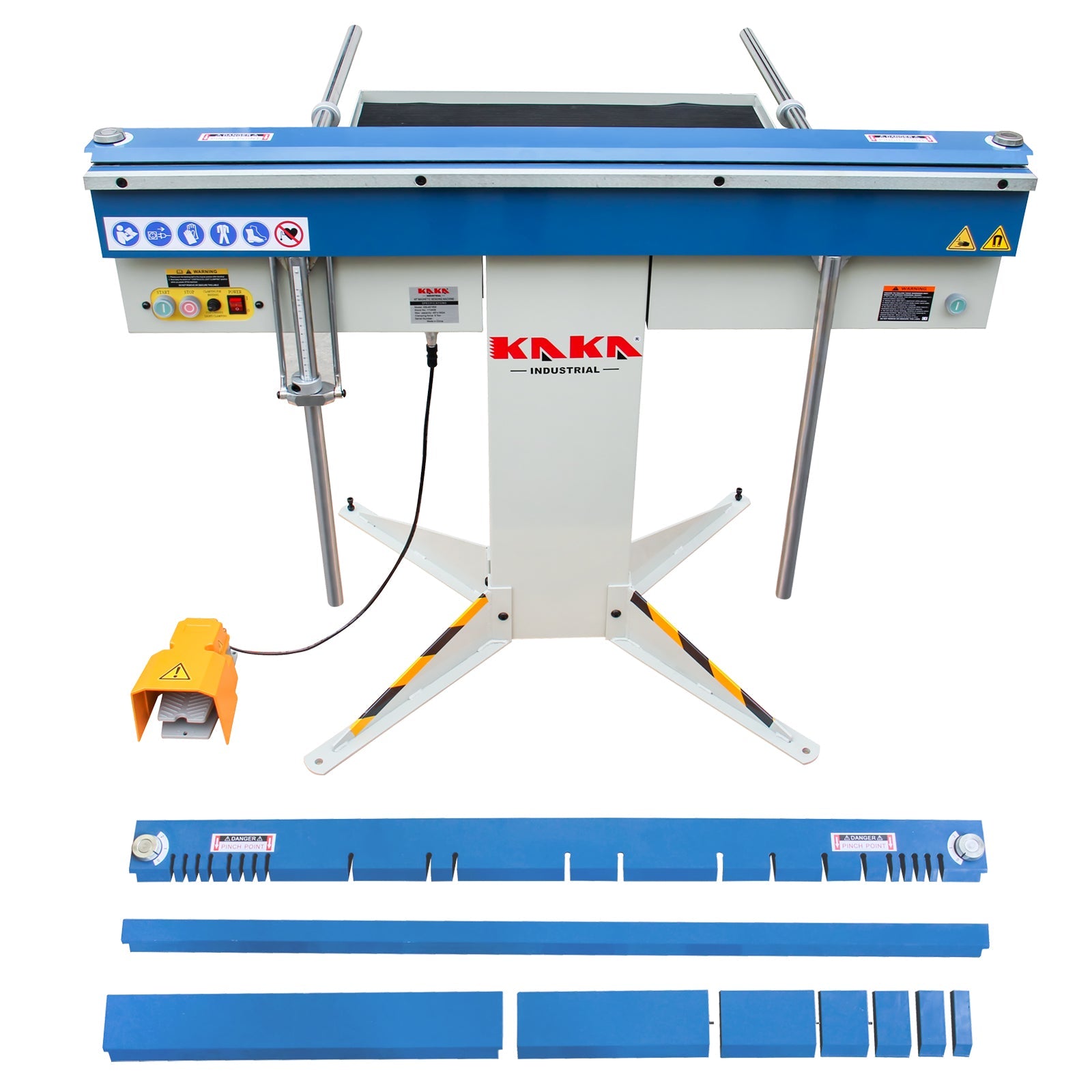

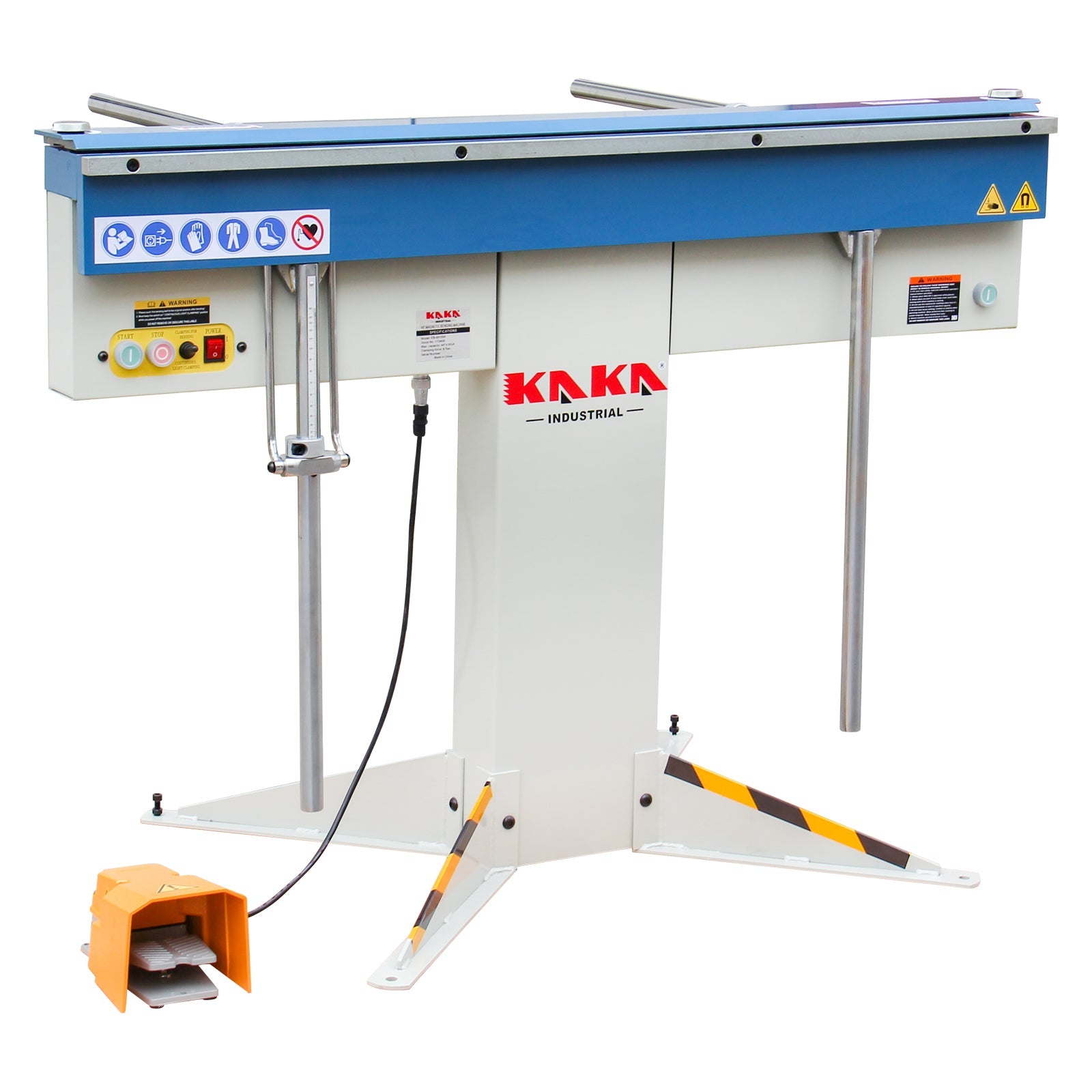

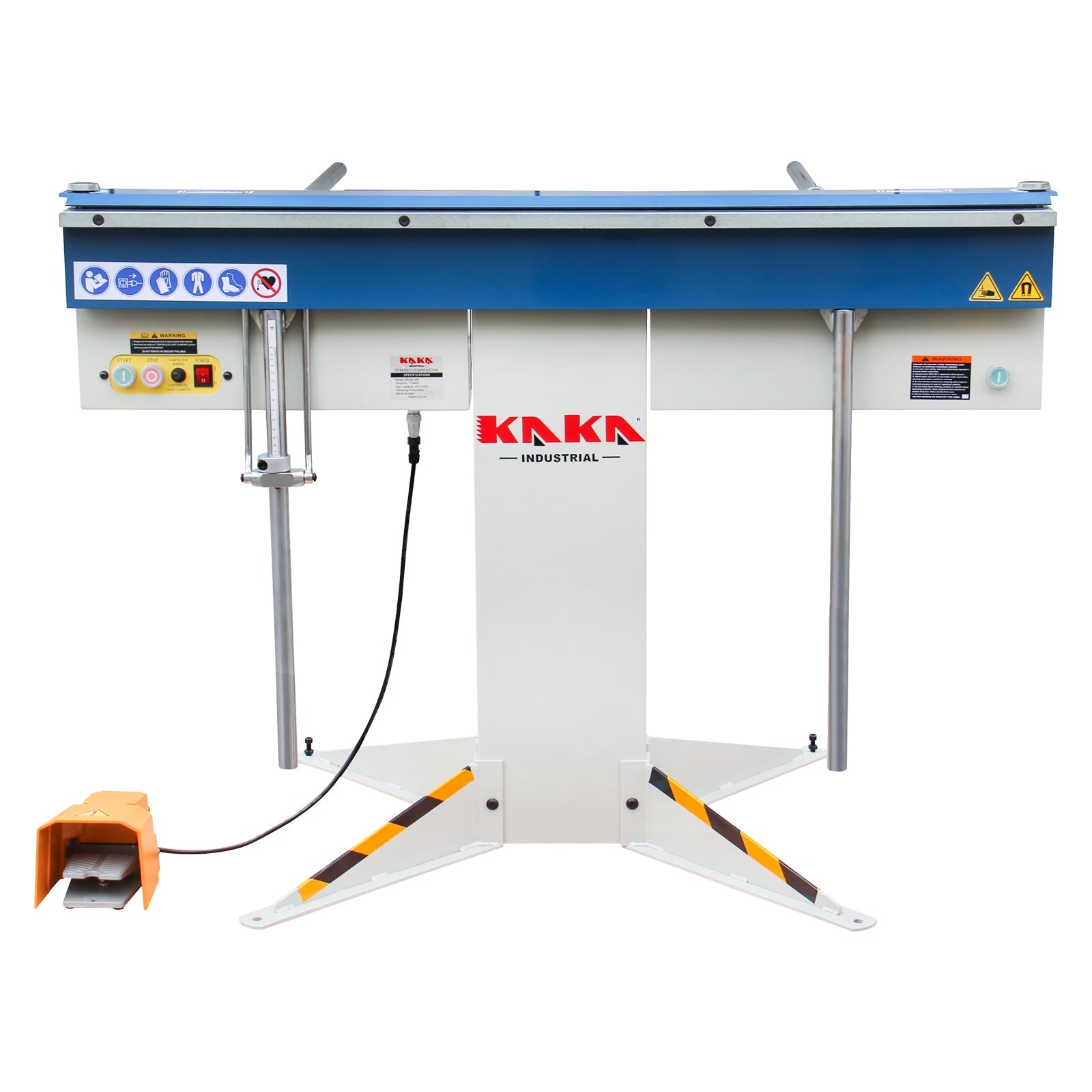

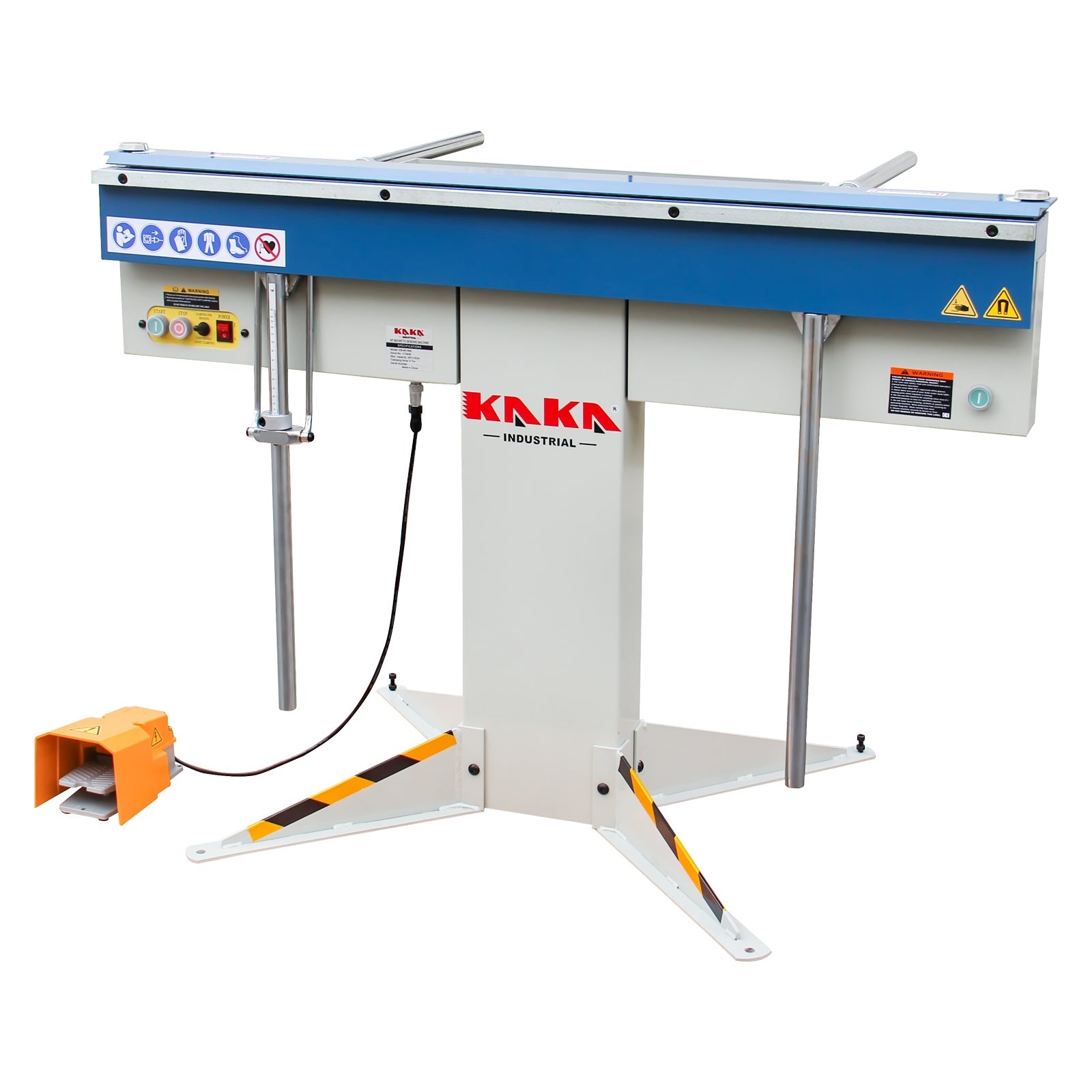

KAKA INDUSTRIAL Magnetic Pan and Box Brake, 48-Inch Electro Metal Brake Bender, 6-Ton 16-Gauge Box and Pan Brake, 220V Single Phase with Foot Pedal Control Siding Brake, Includes Clamp Bars EB-4816M - 173408V220
EB-4816M Applicable Accessories Please click: here:https://www.kakaindustrial.com/collections/eb-4816m-applicable-accessories
KAKA Industrial EB-4816 Manual Magnetic Sheet Metal Brake, Box and Pan Brake
- The KAKA EB-4816M 48-Inch Professional Magnetic Sheet Metal Brake is significantly different from traditional bending machines because it uses a powerful electromagnetic system to clamp the workpiece, rather than relying on mechanical methods for tightening. This feature brings numerous advantages to the machine.
- The main difference between the EB-4816M and EB-4816B is that the EB-4816B features a storage base for clamp bars, offering space-saving convenience and easy to catch.
- This machine is the ultimate solution for metalworking, automotive repair, HVAC, and DIY professionals. Its innovative open-ended design allows you to easily bend enclosed ducts, boxes, and complex shapes, overcoming the limitations of traditional brakes.
- It can bend a variety of materials, including steel, aluminum, copper, coated sheets, and stainless steel. It's especially suitable for products that require no pressure marks or dents, thanks to the electromagnetic clamping system, which ensures uniform clamping force across every square centimeter.

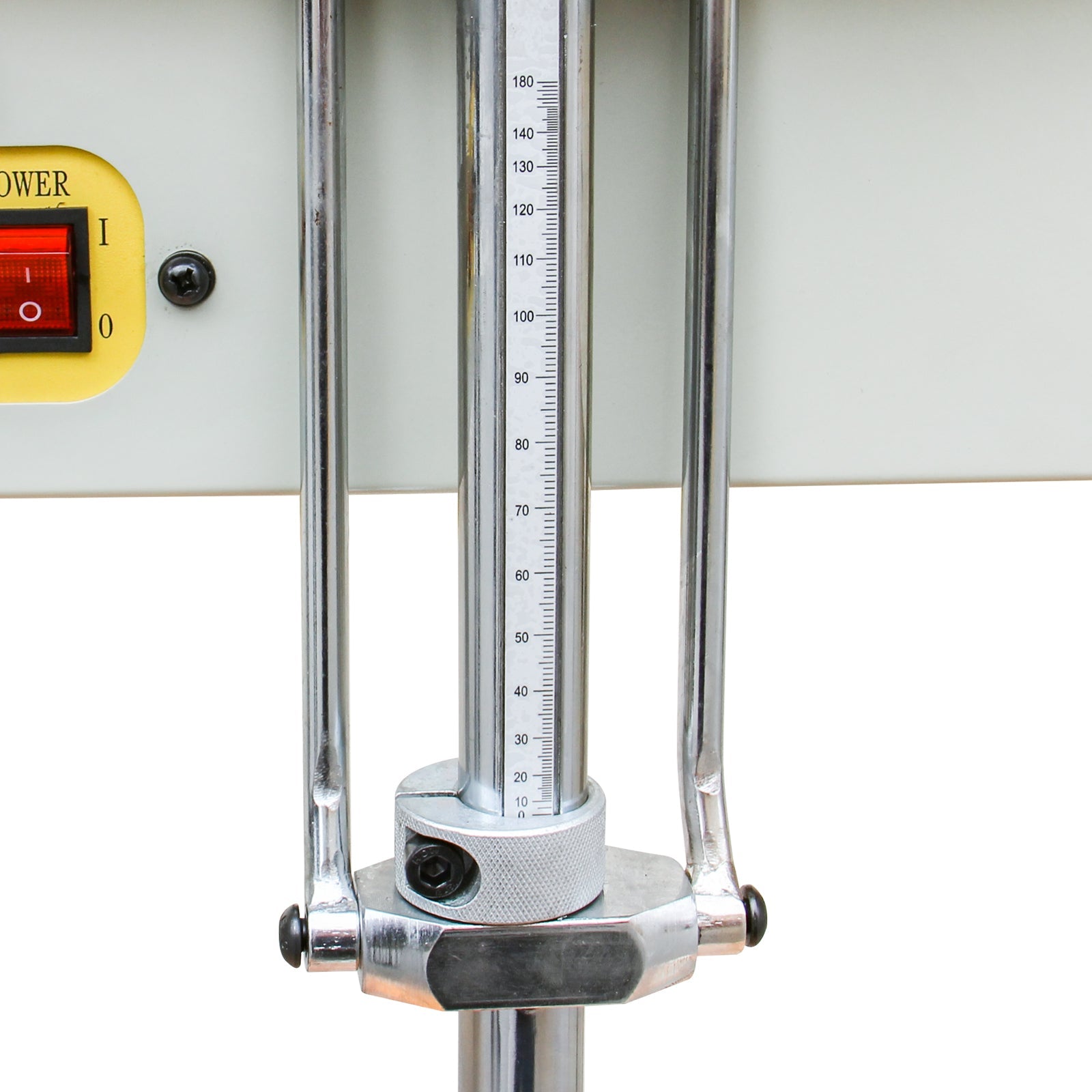

- With multiple clamp bars, the EB-4816M offers unmatched flexibility for various bending tasks, from straight bends to intricate box and pan applications. The foot pedal control allows for hands-free operation, increasing safety and efficiency in busy workshops. Precision features like scaled stroke angle control and blade gap adjustment make it easy to achieve repeatable, high-quality results on 16-gauge mild steel and other materials.
- This machine can bend any shape, size, and angle without the need for custom dies. It eliminates the hassle and expense of changing tools, making it a cost-effective option compared to traditional machines. The design is fully open with a small footprint, making it lightweight, easy to transport, and convenient for use in various spaces. Operating on standard 220V household power, it is not affected by bending area limitations, and ordinary users can get started in just five minutes.
- Whether you're a professional fabricator or a dedicated DIY enthusiast, the KAKA EB-4816M is your go-to solution for superior bending performance.
Easy, hands-free operation:
Put a piece of material between the clamping bar to the depth required.
Engage the powerful magnet in the bending bed with push button control.
Hit the foot pedal that softly clamps the material. This foot control keeps your fingers safely out of the machine and you to reposition the material.

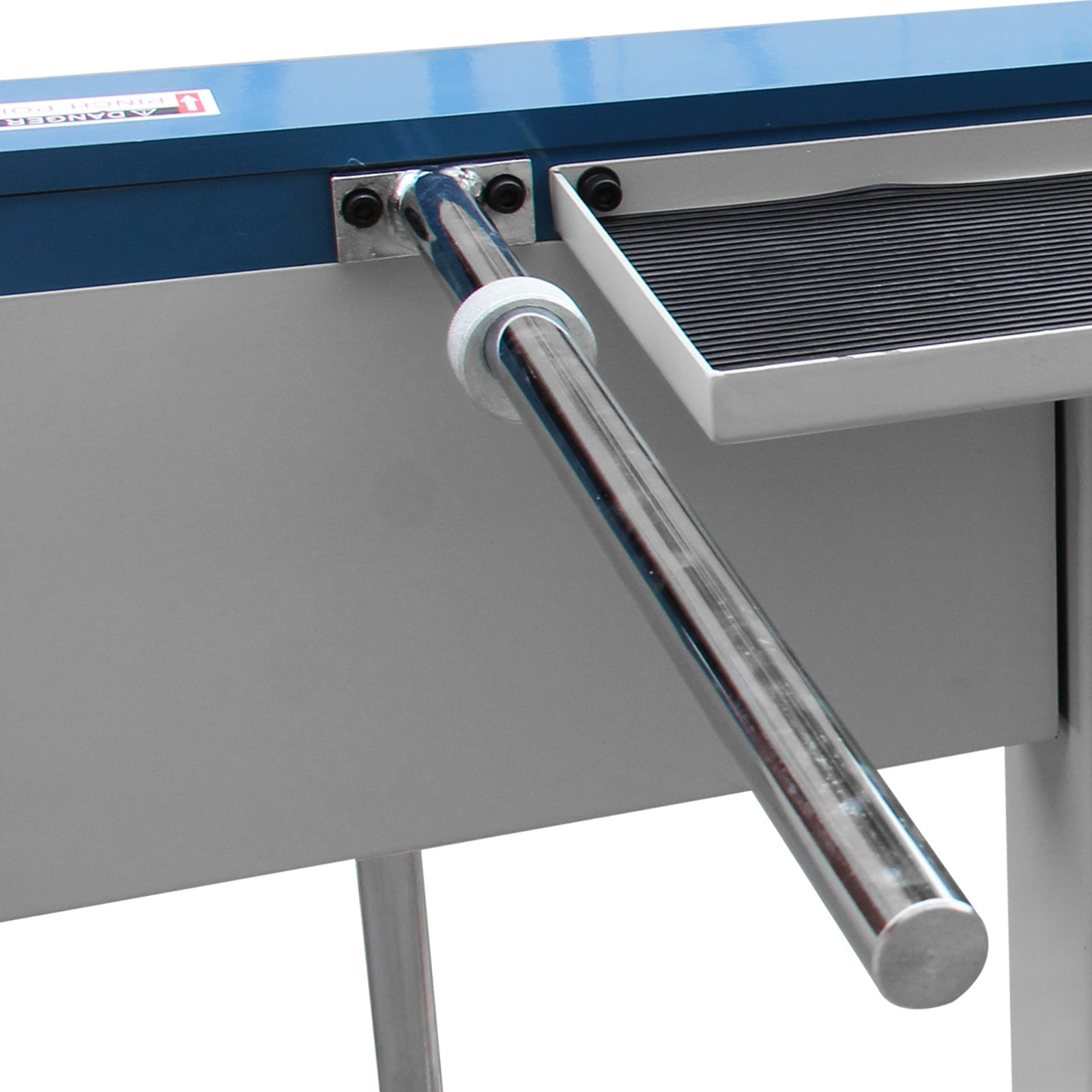

Lift the the bottom bending leaf to complete the bend.
Recommended for:
HVAC shops, industrial art shops, and general sheet metal fabrication shops.

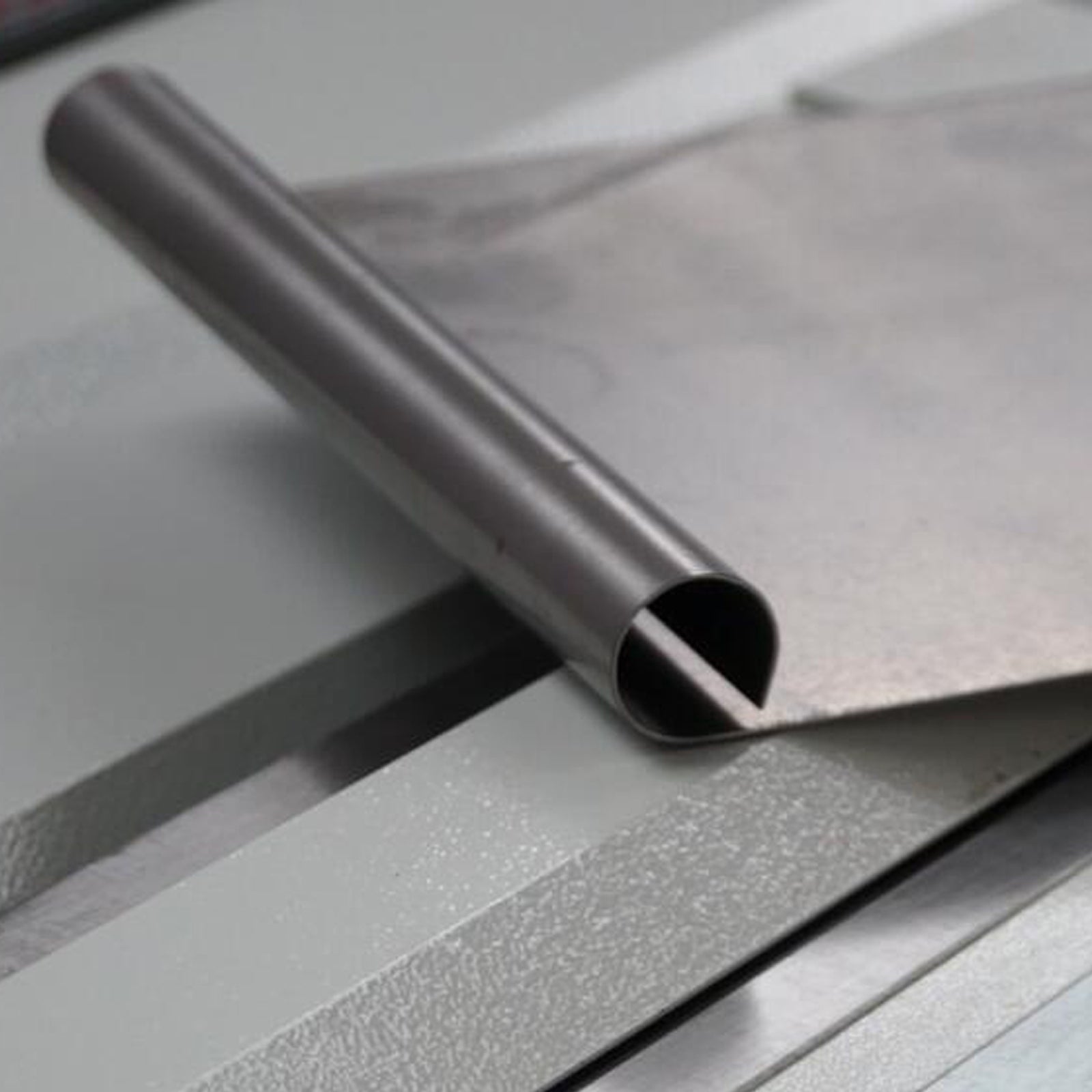

Making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications.
Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more.

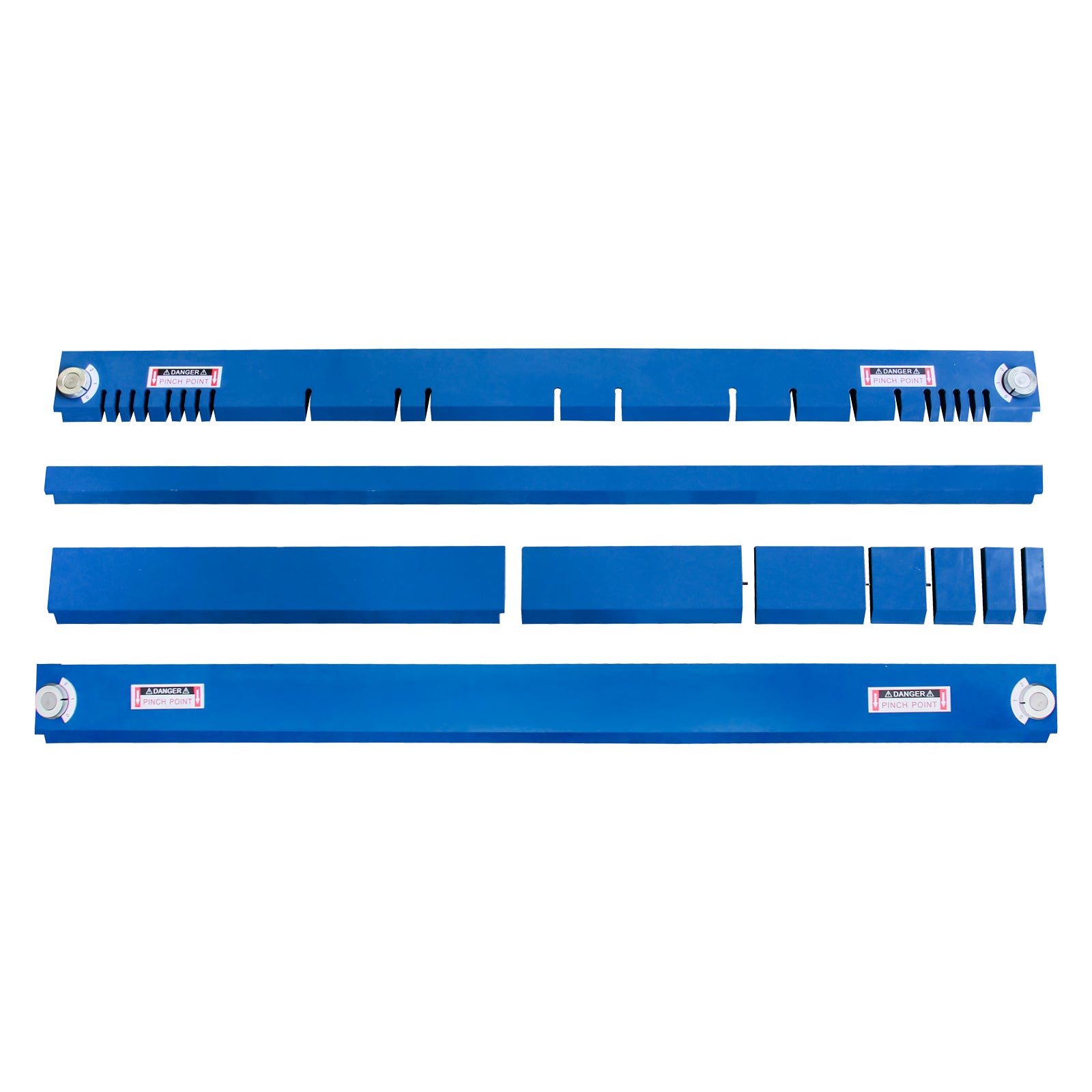

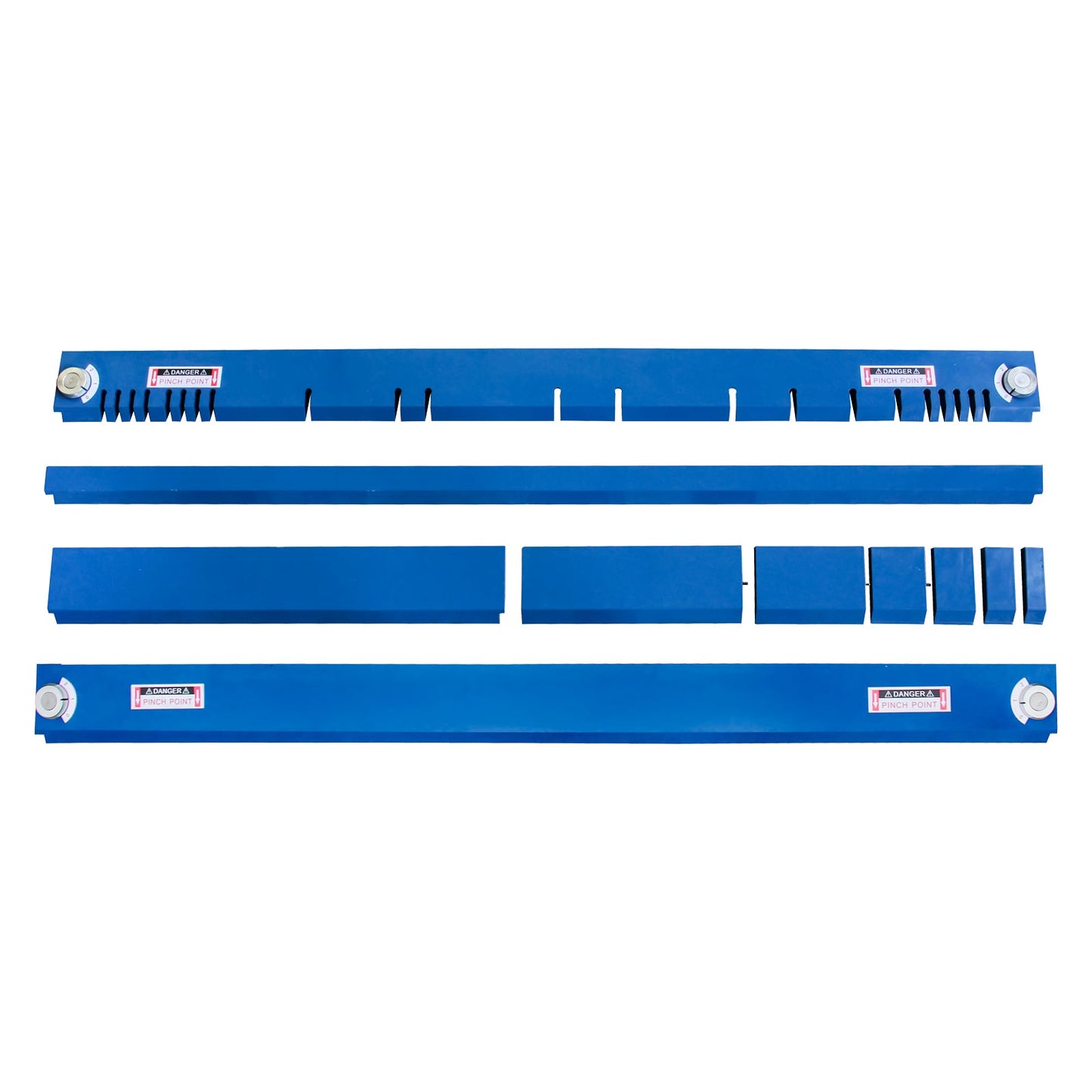

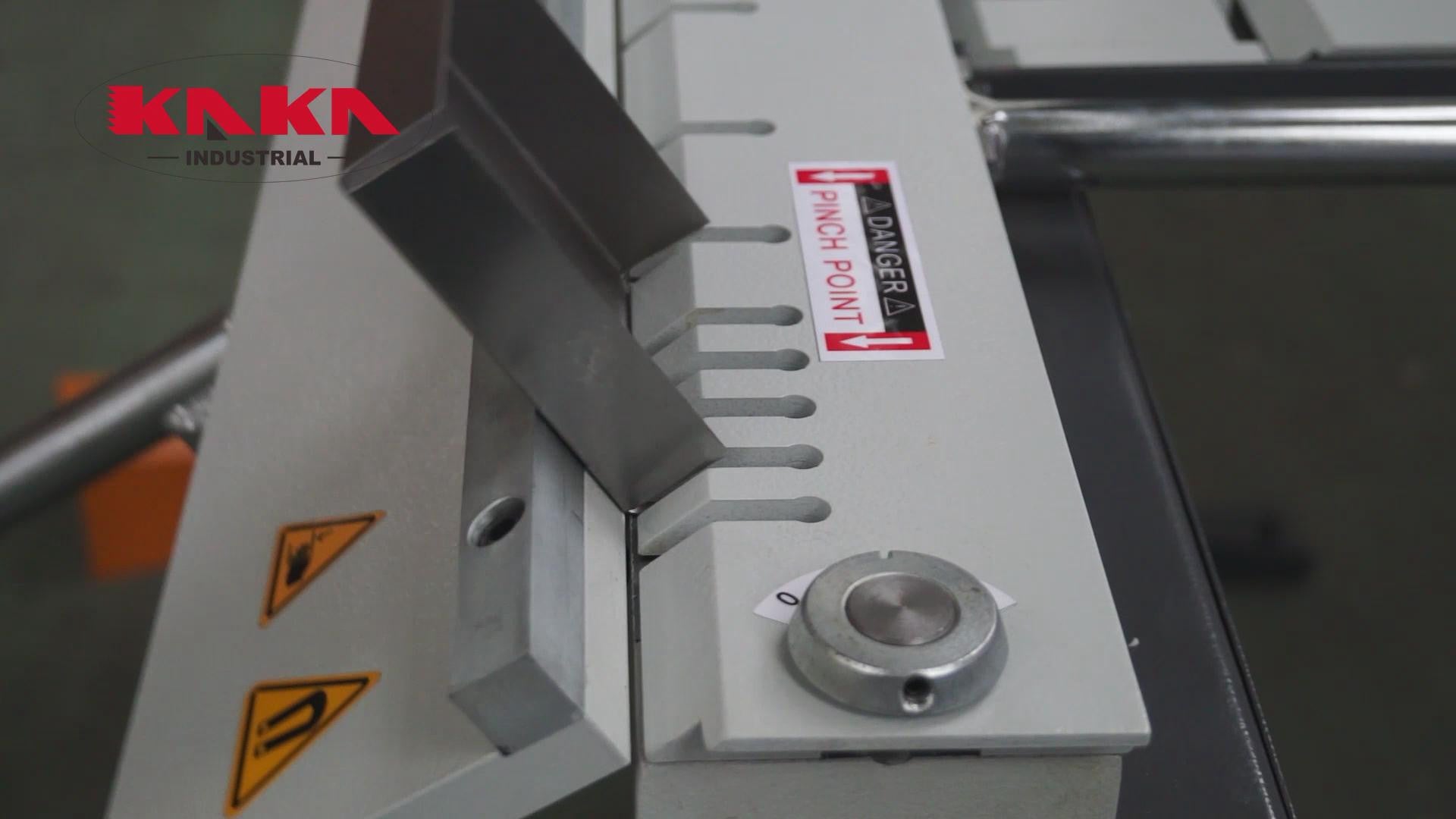

Clamp Bar & Segment fingers include:
(1) 52” x 2” Solid Clamp Bar
(1) 52” x 4” Solid Clamp Bar
(1) 52” x 4” Notched Adjustable Clamp Bar
(1) 11” x 4” Clamp Bar
(1) 5.5” x 4” Clamp Bar
(1) 2.75” x 4” Clamp Bar
(1) 2” x 4” Clamp Bar
(1) 1.5” x 4” Clamp Bar
(1) 1” x 4” Clamp Bar
Special Notes: Capacities can change depending on set up leaf extension. Rule of thumb for mild steel, 16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.
Things to Know Before Purchase To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty.
NOMINAL CAPACITY
1250 mm x 1.6 mm (4ft x 16g)
CLAMPING FORCE (with standard full-length clampbar)
6 Tonne
ELECTRICAL
Supply: 1 phase, 220V ac
Nominal current: 8 Amp
Duty cycle: 30%
Protection: Thermal cut-out, 70°C
What Our Experts Think
-
The KAKA Industrial EB-4816M Magnetic Pan and Box Brake (173408V220) is a 48-inch electro-magnetic sheet metal bender ideal for precise bending of boxes, pans, and siding panels.
-
Offers 6 tons of magnetic clamping force with 220V single-phase operation for stable and consistent performance.
-
Features foot pedal control for hands-free operation, improving workflow and safety.
-
Includes removable clamp bars, providing flexibility for bending different profiles.
-
Built with a heavy-duty frame, ensuring durability, accuracy, and long-lasting industrial performance.
Q&A
Q: What is the bending capacity?
A: Can bend up to 16-gauge mild steel, suitable for a variety of sheet metal tasks.
Q: How is the clamping controlled?
A: Uses a 6-ton electro-magnetic clamping system operated via a foot pedal.
Q: Are clamp bars included?
A: Yes, it comes with removable clamp bars for versatile bending.
Q: What material thickness is supported?
A: Supports 16-gauge mild steel, aluminum, and similar sheet metals.
Maintenance Tips
-
Keep the magnetic surface clean to maintain full clamping strength.
-
Wipe down the frame and clamp bars after each use to remove metal debris.
-
Inspect electrical components and foot pedal regularly for safe operation.
-
Store in a dry area to prevent corrosion and maintain long-term performance.
