Coxreels SHW Series Spring Driven "Welding" Low Pressure Hose Reels - SHW-N-1100
SHW Series Spring Driven "Welding" Low Pressure Hose Reels

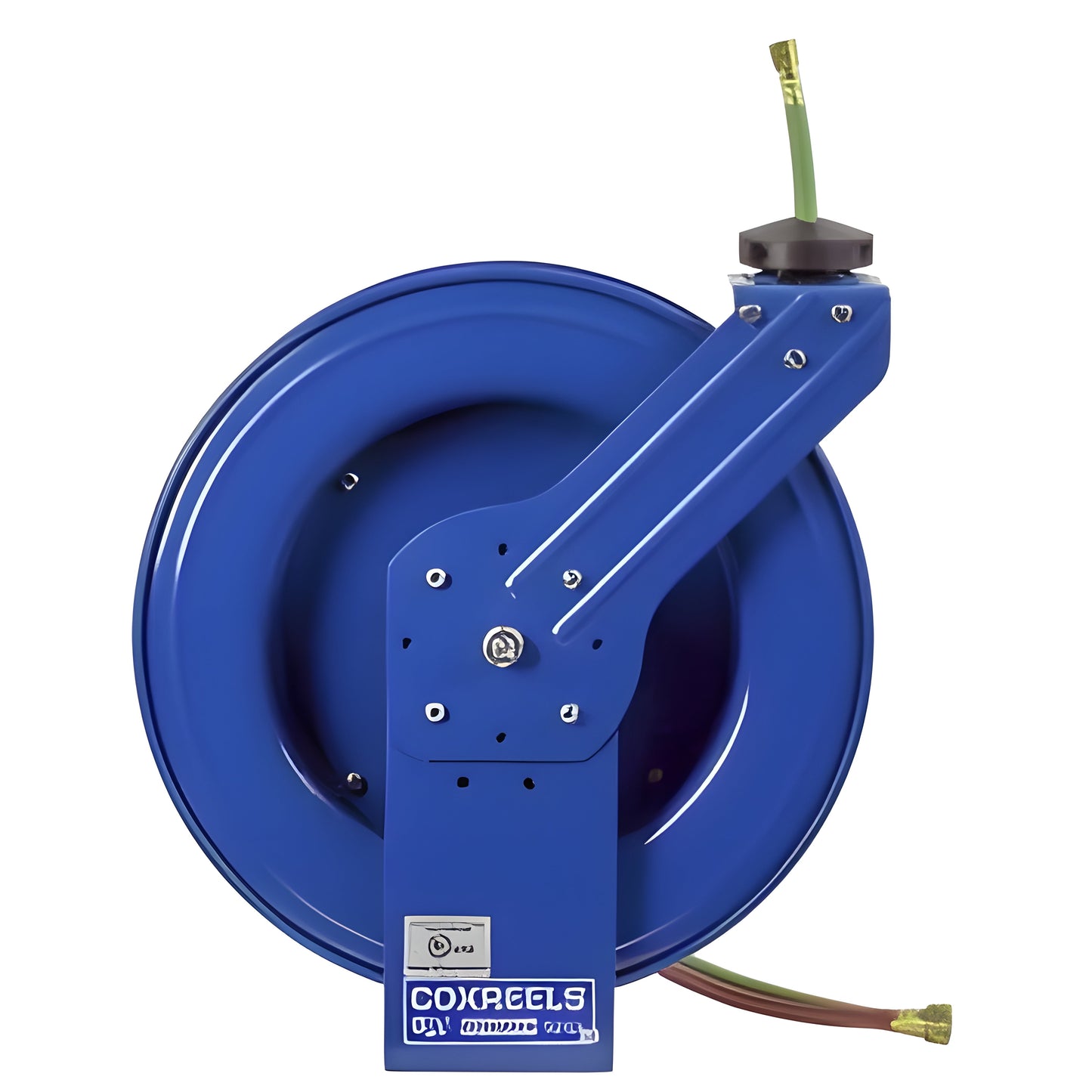

COXREELS SHW Series spring driven "Welding" hose reels is the ideal solution for managing bulky twin line welding hose The SHW Series has a larger chassis and frame than P-W Series to accommodate longer lengths of welding hose and Coxreels’ original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features

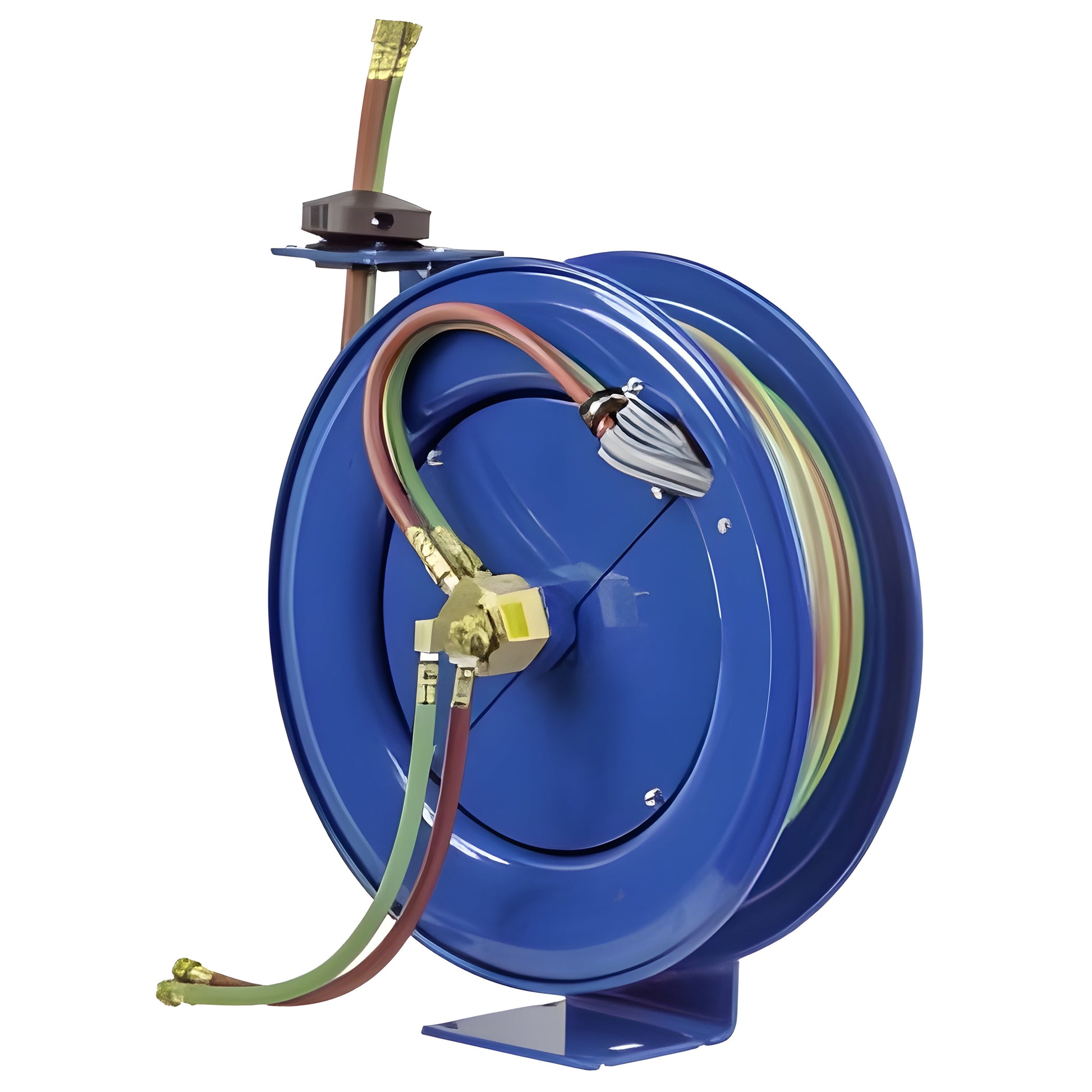

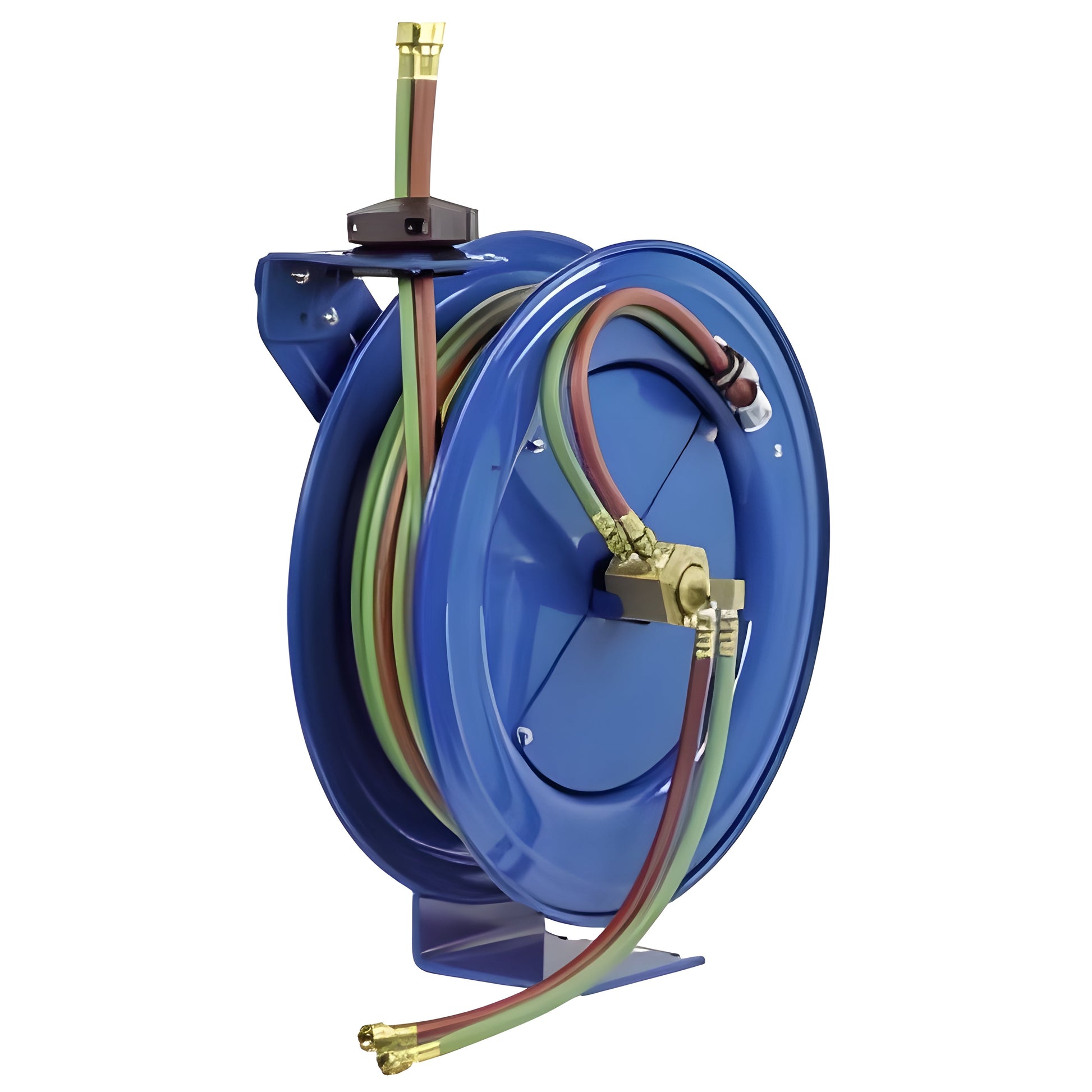

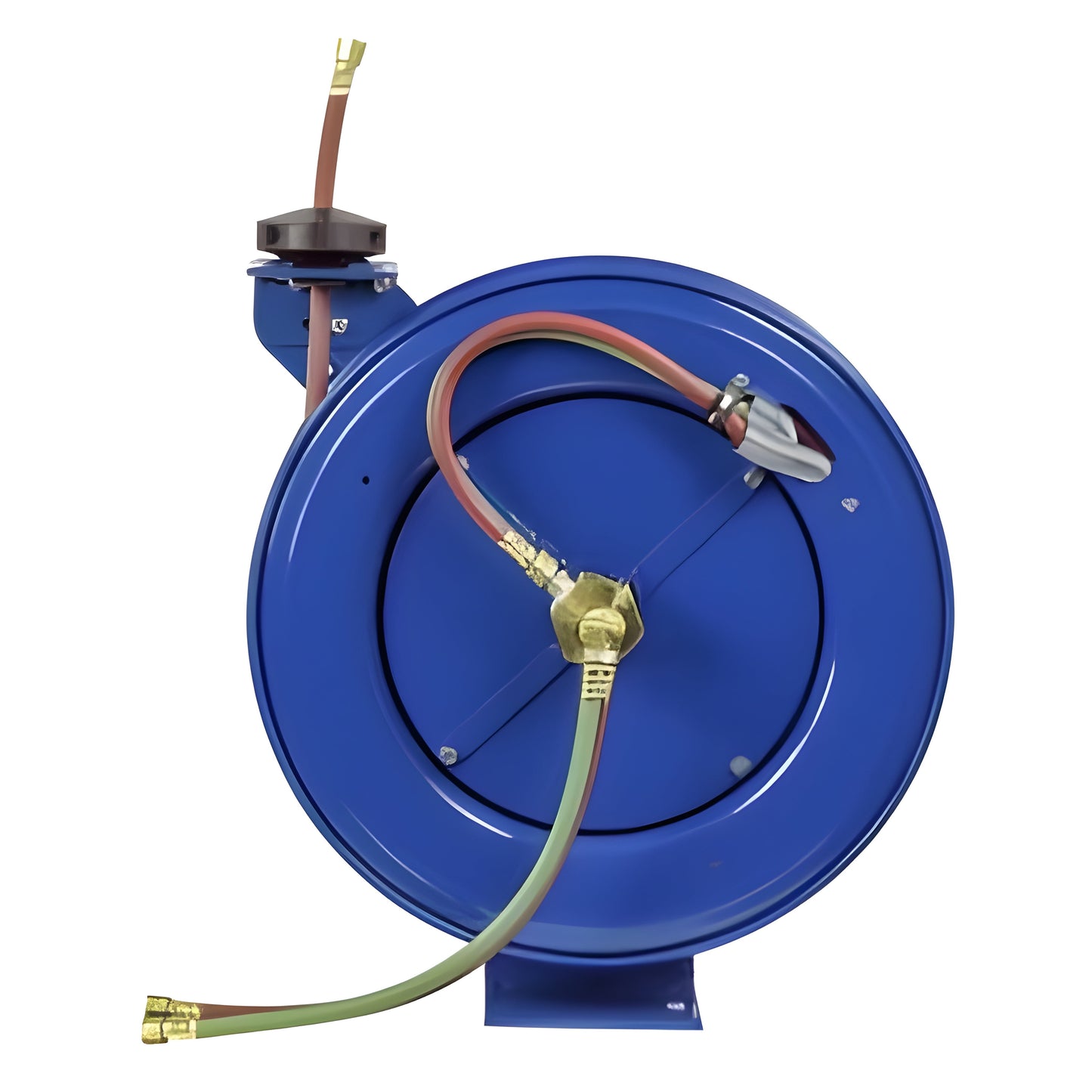

- WELDING GAS SWIVEL - External 90º full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support

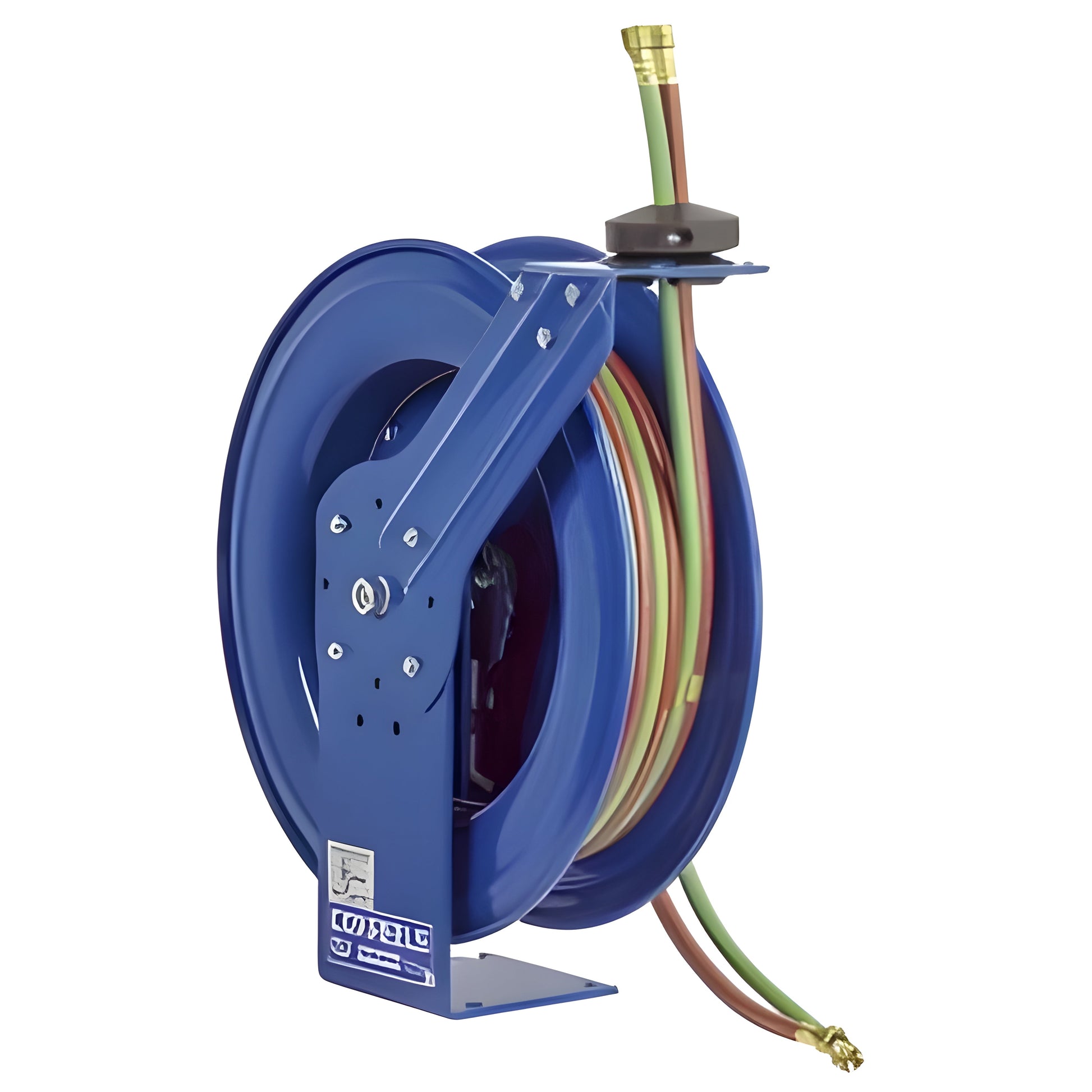

- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxy-acetylene or "T" grade welding hose, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| SHW-N-1100 |
1/4" |
100' |
Yes |
200 |
84 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHW-N-150 |
1/4" |
50' |
Yes |
200 |
64 |
10.25"(W) 21.25"(H) 19.5"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHW-N-160 |
1/4" |
60' |
Yes |
200 |
76 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHW-N-175 |
1/4" |
75' |
Yes |
200 |
80 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWL-N-1100 |
1/4" |
100' |
No |
200 |
62 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWL-N-150 |
1/4" |
50' |
No |
200 |
52 |
10.25"(W) 21.25"(H) 19.5"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWL-N-160 |
1/4" |
60' |
No |
200 |
61 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWL-N-175 |
1/4" |
75' |
No |
200 |
63 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWT-N-1100 |
1/4" |
100' |
Yes |
200 |
84 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWT-N-150 |
1/4" |
50' |
Yes |
200 |
64 |
10.25"(W) 21.25"(H) 19.5"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWT-N-175 |
1/4" |
75' |
Yes |
200 |
80 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWTL-N-1100 |
1/4" |
100' |
No |
200 |
62 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWTL-N-150 |
1/4" |
50' |
No |
200 |
52 |
10.25"(W) 21.25"(H) 19.5"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| SHWTL-N-175 |
1/4" |
75' |
No |
200 |
63 |
10.25"(W) 25.5"(H) 24"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
Designed for Welding Applications: Built specifically for oxy-acetylene and other low-pressure welding hose management.
-
Spring-Driven Retraction: Automatic, smooth hose retraction for easy storage and quick deployment.
-
Low-Pressure Capability: Handles pressures up to 200 PSI, ideal for welding, brazing, and cutting operations.
-
Heavy-Duty Construction: Made with durable materials to withstand rugged industrial environments.
-
Corrosion-Resistant Finish: Protects against rust and wear, ensuring long-term reliability.
-
Compact & Space-Saving: Keeps hoses neatly stored and tangle-free, optimizing workspace efficiency.
-
Versatile Applications: Ideal for welding, fabrication, and automotive repair shops.
Q&A
Q: What is the Coxreels SHW Series Spring Driven "Welding" Low Pressure Hose Reel - SHW-N-1100?
A: The Coxreels SHW-N-1100 is a heavy-duty, spring-driven hose reel designed for welding applications, providing efficient storage and automatic retraction of low-pressure welding hoses.
Q: What is the hose capacity of this reel?
A: The SHW-N-1100 can accommodate up to 100 feet of low-pressure welding hose, making it suitable for industrial and commercial welding operations.
Q: How does the spring-driven mechanism work?
A: The reel features a self-retracting spring mechanism that allows for smooth, automatic hose rewind, reducing manual effort and keeping the workspace organized.
Q: Is the reel durable?
A: Yes, the SHW Series is constructed with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting performance in harsh welding environments.
Q: Is this reel easy to install?
A: Yes, the SHW-N-1100 offers multiple mounting options, including wall, floor, and ceiling installation, making it adaptable to various workspaces.
Q: What are typical applications for this reel?
A: This reel is ideal for oxy-acetylene and other welding hose applications in workshops, manufacturing facilities, and industrial settings, ensuring safety and efficiency.
Maintenance Tips
-
Regular Cleaning – Wipe down the reel and hose with a damp cloth to remove dust, dirt, and welding debris. Avoid harsh chemicals that may damage the surface.
-
Lubricate Moving Parts – Apply a silicone-based lubricant to the spring mechanism and pivot points for smooth operation and longevity.
-
Inspect Hose and Fittings – Check the hose for cracks, wear, or leaks. Ensure fittings are secure and replace any damaged components to maintain safe gas flow.
-
Monitor Pressure Levels – Ensure the operating pressure stays within recommended limits to prevent hose or reel damage.
-
Adjust Spring Tension – If retraction slows down or becomes uneven, adjust the spring tension according to the manufacturer’s guidelines.
-
Secure Mounting Hardware – Periodically check and tighten bolts, screws, and brackets to keep the reel stable and properly mounted.
-
Store Properly – When not in use, keep the reel in a dry, protected area to prevent corrosion and environmental damage.
