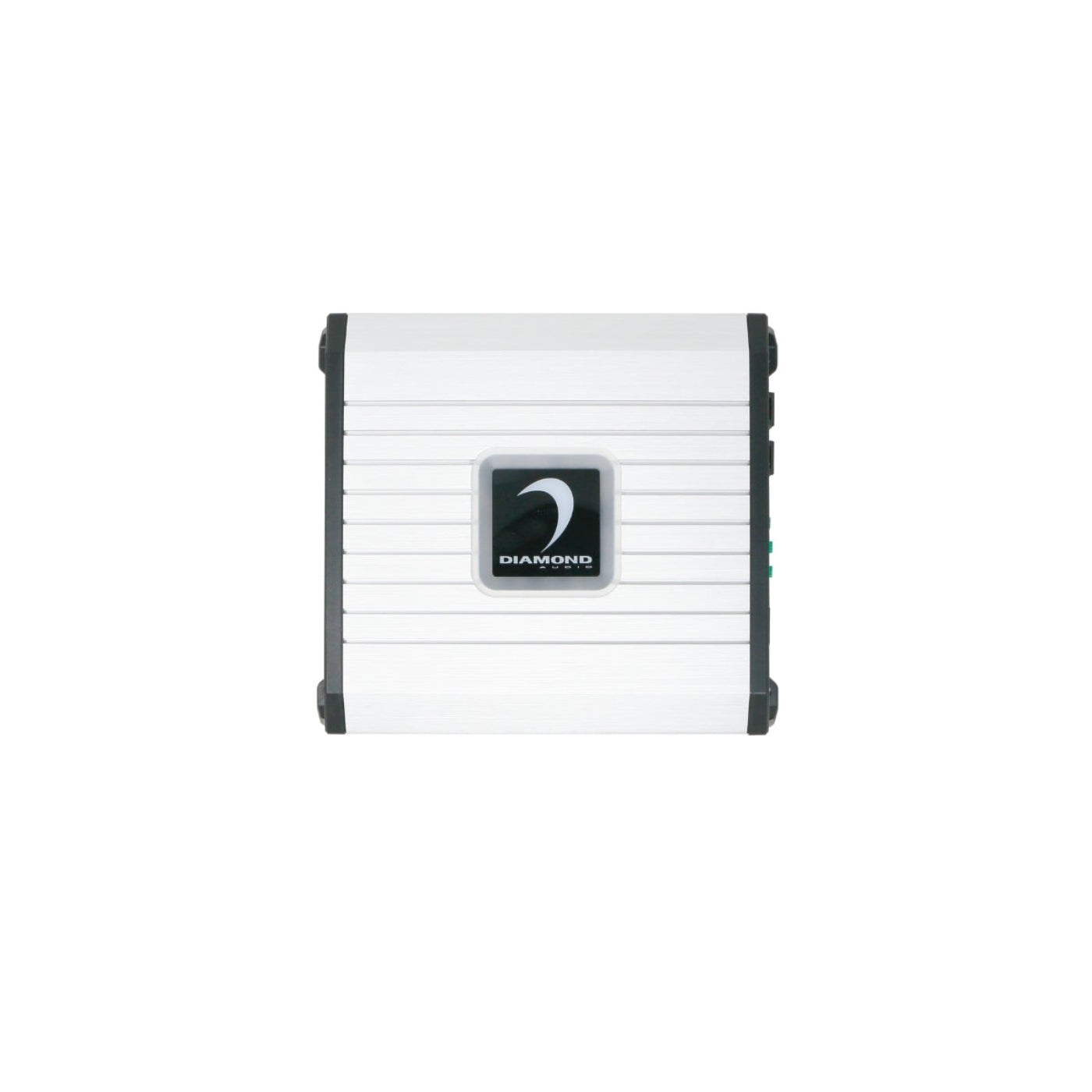

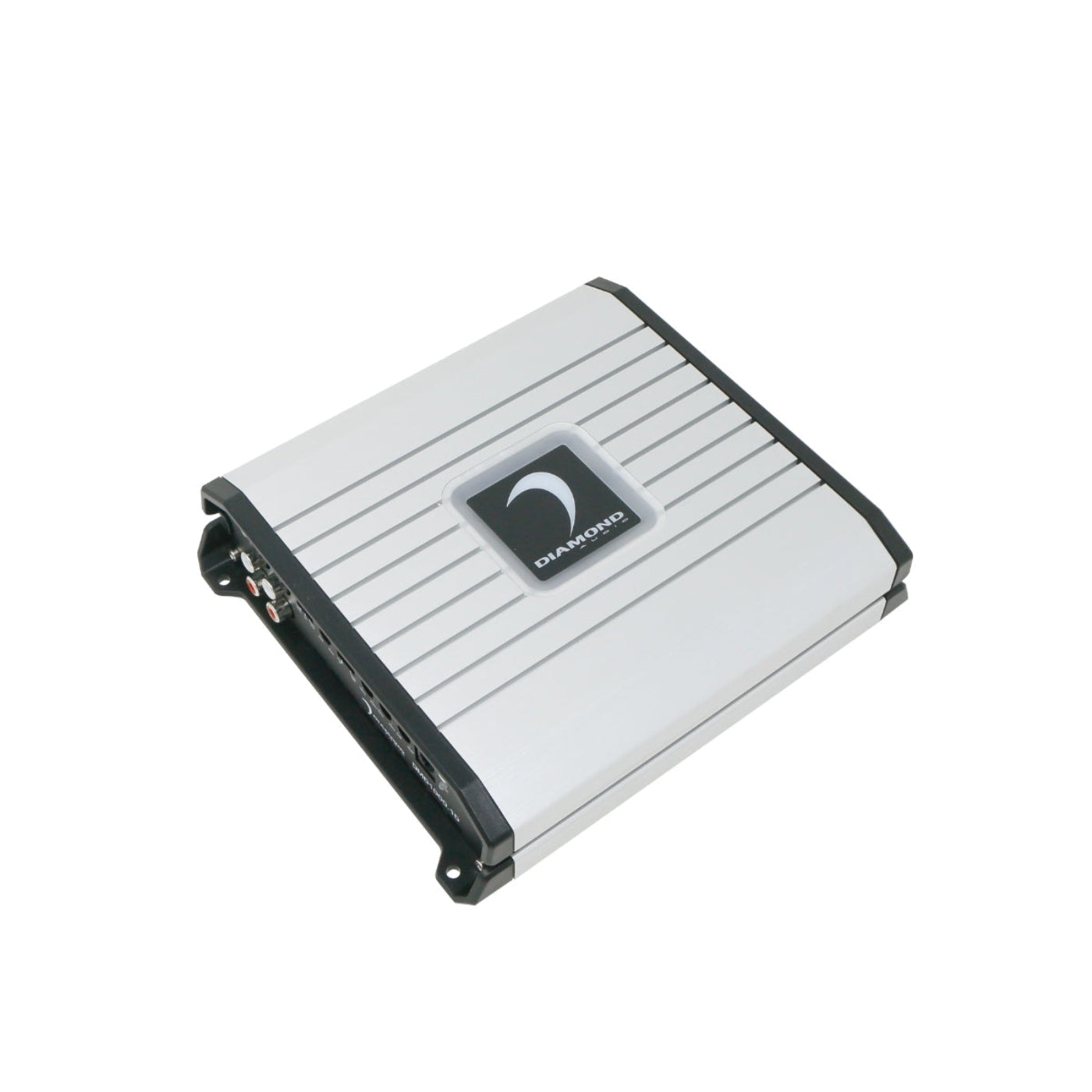

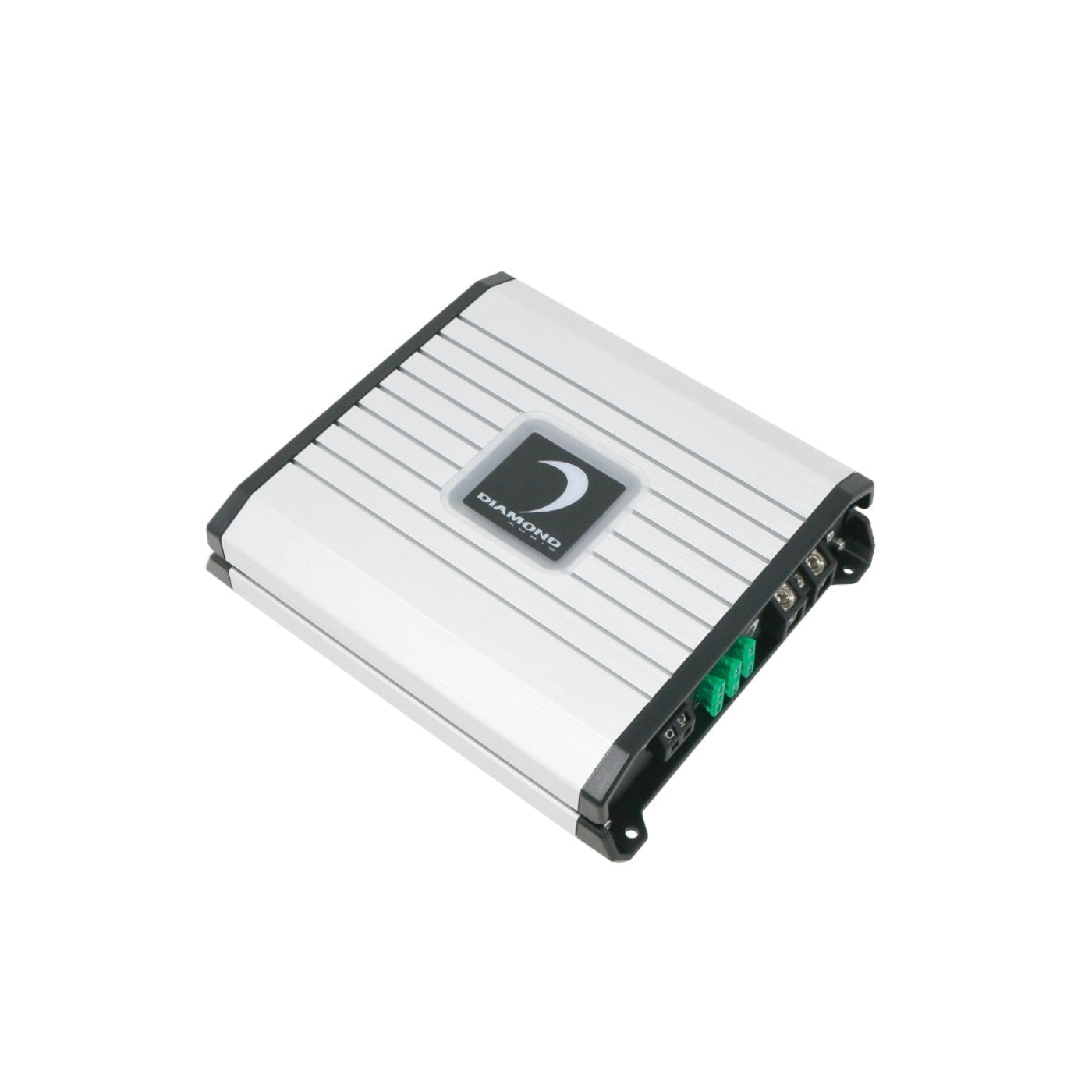

Diamond Audio DMD Series 1-Channel Mono Block Digital Amplifier - DMD1000.1D
Introducing the DMD Series Amplifiers from Diamond Audio – delivering best-in-class performance and unbeatable value! Designed with substantial power in a compact heat sink, the DMD Series is the perfect solution for any budget-friendly mobile audio system.
The DMD Series features five amplifier models to choose from: one 4-channel, three mono-channel, and one 6-channel amplifier. Powered by the latest IR chipset technology and utilizing innovative SMD technology and circuit design on 4-layer FR4 PC boards, these amplifiers offer advanced performance in a small footprint.
Enjoy noise-free operation with balanced differential inputs, and take advantage of features like a subsonic filter, bass boost, and an LED-lit logo indicating power/protection status. With audio precision quality control verification, the DMD Series ensures high performance and reliability that competitors can't match.
Upgrade to the DMD Series Amplifiers from Diamond Audio and experience the perfect blend of power, technology, and value. Transform your mobile audio system with these exceptional amplifiers and hear the difference today!
What our Experts Think
-
High-Power Mono Output: Delivers 1,000 W RMS at 2 Ω and 680 W RMS at 4 Ω—ideal for driving a single high-performance subwoofer.
-
Digital Class-D Technology: Efficient PWM power supply and modern circuit design provide high output in a compact size.
-

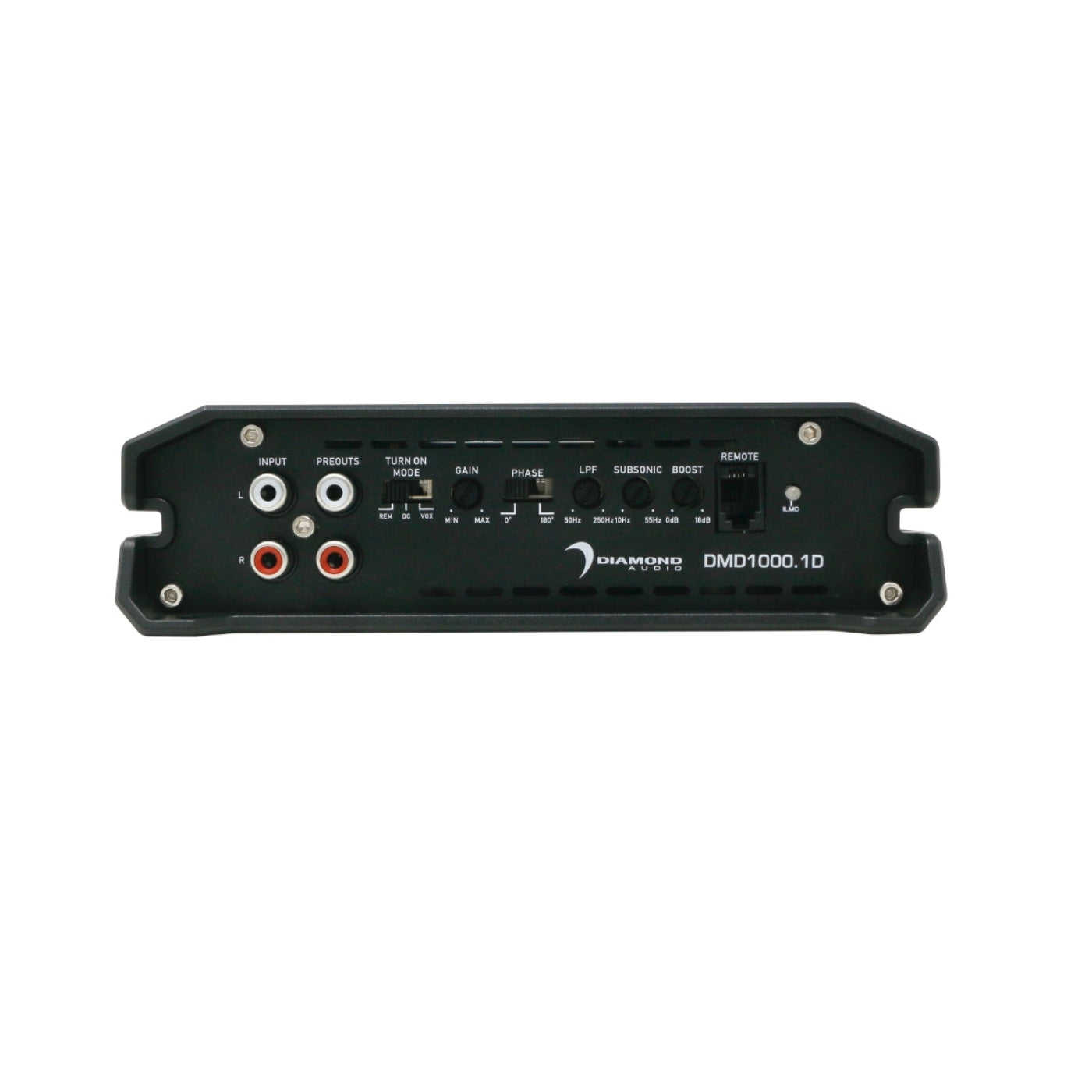

Fine-Tune Control Features: Variable low-pass filter (50–250 Hz), sub-sonic filter (10–55 Hz), bass boost (0–18 dB), and input sensitivity (0.2 mV–10 V) allow precise tuning.
-
Compact & Flexible Installation: Small footprint and balanced differential inputs enable easy installation and low noise.
-
Performance Upgrade: Strong, reliable amplifier for mobile audio systems, offering robust subwoofer power without excess size or cost.
Q&A
Q: What is the DMD1000.1D amplifier?
A: A mono-block Class D car audio amplifier from Diamond Audio’s DMD Series, designed for high-performance subwoofer use.
Q: What are the power and impedance ratings?
A: Approximately 1,000 W RMS at 2 Ω, and 680 W RMS at 4 Ω.
Q: What are the key technical features?
A: High efficiency (>88%), damping factor >250, signal-to-noise ratio >90 dB, variable low-pass filter (50–250 Hz), subsonic filter (10–55 Hz), bass boost (0–18 dB), input sensitivity 0.2 mV–10 V, compact size (203 × 174 × 48 mm).
Q: What type of system is it suited for?
A: Ideal for powering high-output subwoofers in car audio systems, offering strong bass output with efficient power usage in a compact amp.
Q: What installation tips should I follow?
A: Ensure correct wiring for 2 Ω load, solid ground connection, proper fuse and wiring gauge, mount with adequate ventilation, and set crossover and gain to match the subwoofer and system.
Maintenance Tips
-
Regular Cleaning: Wipe the amplifier exterior with a soft, dry cloth; avoid liquids or abrasive cleaners.
-

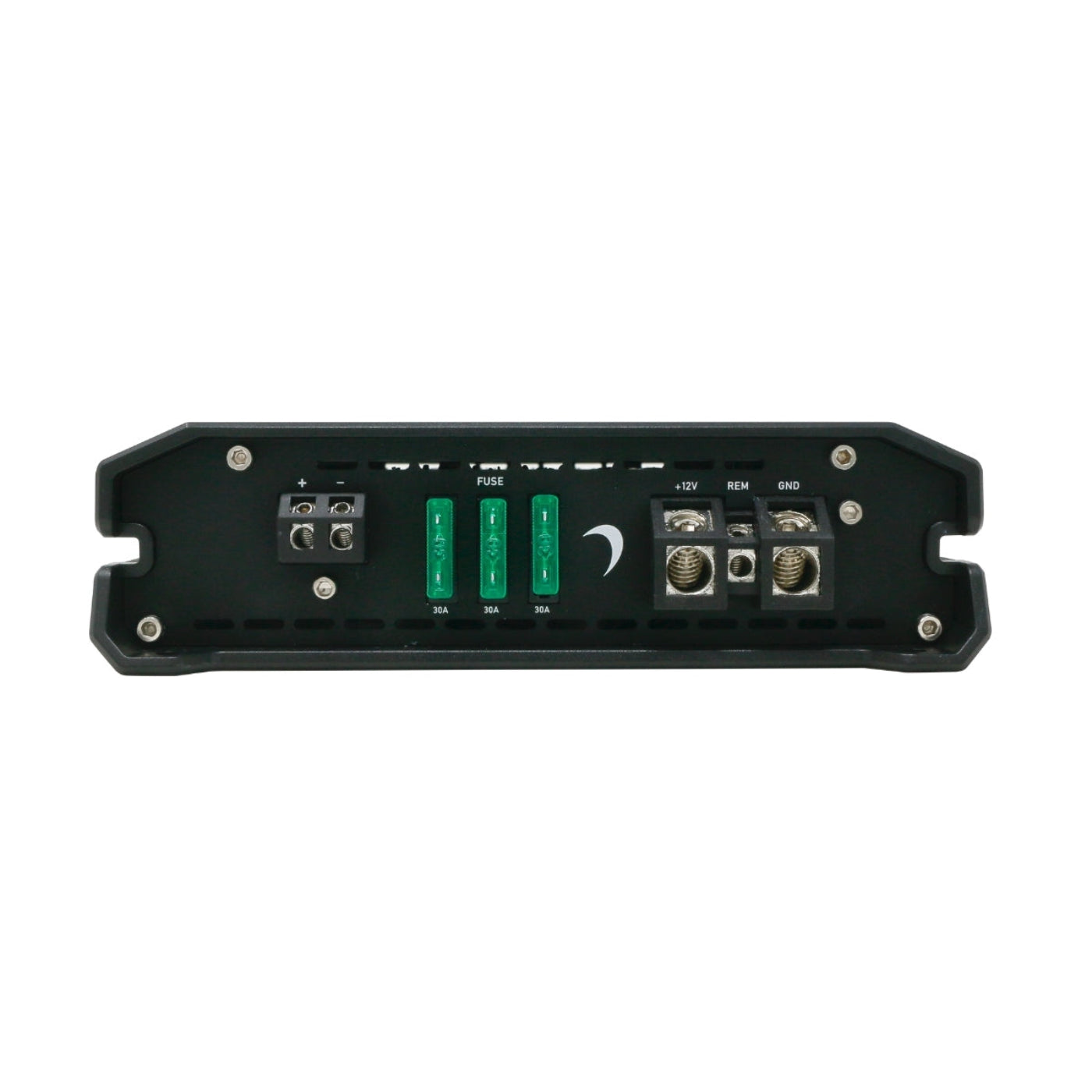

Inspect Connections: Check all power, ground, and speaker connections for secure, corrosion-free contacts.
-
Proper Ventilation: Ensure adequate airflow around the amplifier to prevent overheating.
-
Avoid Overloading: Operate within recommended voltage and power limits to prevent damage.
-
Proper Mounting: Securely mount the amplifier to minimize vibration and movement.
-
Safe Handling: Avoid impacts, moisture, or extreme temperatures to maintain performance.
-
Routine Checks: Periodically inspect fuses, wiring, and terminals for wear or damage
