Fanuc Corporation| GE FANUC Micro Processor Board Mark IV - DS3800HMPG1G1D

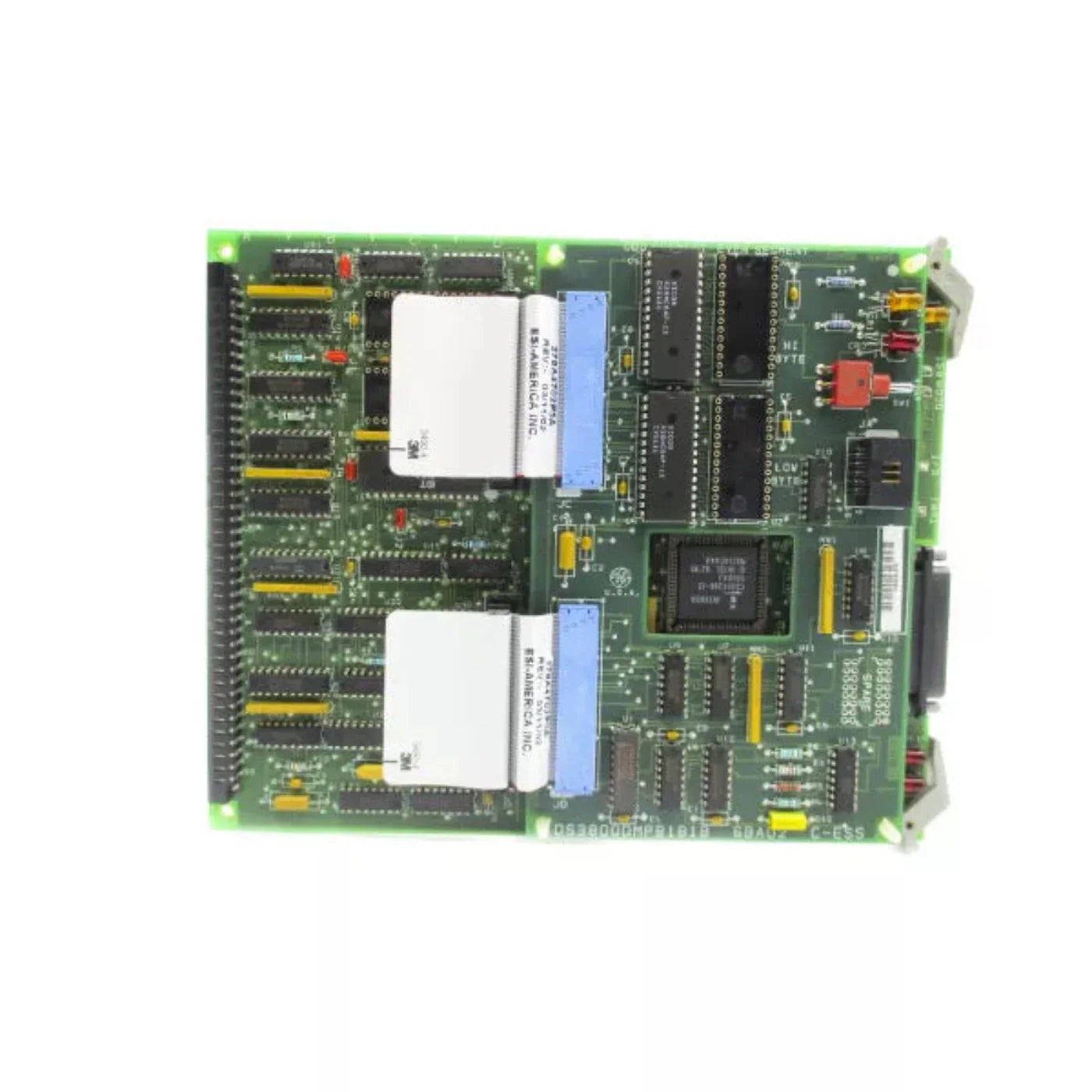

The GE CPU Board DS3800HMPG1G1D is a Mark IV Micro Processor Board designed for straightforward installation in drives. It features a modular connector at one end and retention levers at the opposite end. The board includes 2 red indicator LEDs and 1 amber LED visible from the front, as well as a microprocessor, EPROM modules, and a 34-pin connector.
The GE CPU Board DS3800HMPG1G1D is engineered for rapid integration into the drive system. This board incorporates a modular connector at one end and retention levers at the opposite end, facilitating secure installation and connection. The board is equipped with two red indicator LEDs and one amber LED, which are observable from the board's front panel. The LED indicators serve to provide operational status and fault conditions during normal operation.
The DS3800HMPG1G1D features an integrated microprocessor and is populated with erasable programmable read-only memory (EPROM) modules. It also includes a 34-pin connector, which is used for interfacing with other components within the system.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part Number |
DS3800HMPG1G1D |
Manufacturer |
General Electric |
Series |
Mark IV |
Product Type |
Network Controller Board |
Input Voltage Range |
24 V dc |
Size |
8.25 cm high x 4.18 cm |
-
Robust Processing Power: Engineered for high-speed, stable industrial performance.
-
Legacy System Support: Ideal replacement for aging Mark IV systems—ensures continued reliability.
-
GE Quality Assurance: Built to meet strict GE FANUC standards for durability and efficiency.
-
Seamless Compatibility: Integrates easily with Mark IV control systems in turbine and automation environments.
-
Field-Tested Reliability: Proven in demanding conditions with consistent uptime.
-
Cost-Effective Maintenance: Extends system life without requiring a full upgrade.
Q&A
Q: What is the DS3800HMPG1G1D Micro Processor Board?
A: It’s a GE Fanuc microprocessor board from the Mark IV series, designed to serve as the central processing unit in industrial control systems.
Q: What systems is it compatible with?
A: This board is compatible with GE Fanuc Mark IV turbine and process control systems, enabling precise control and system coordination.
Q: What does the microprocessor board do?
A: It processes control logic, executes commands, and manages data flow within the automation system to ensure optimal operational efficiency.
Q: Why choose the DS3800HMPG1G1D?
A: It delivers reliable processing power, proven stability, and seamless integration within Mark IV systems—ideal for critical industrial control applications.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, dependable performance, and industrial-grade durability.
Maintenance Tips
-
Visual Inspection: Regularly inspect the board for signs of wear, burns, bulging capacitors, or corrosion—especially near connectors and ICs.
-
Clean Carefully: Use dry compressed air or an anti-static brush to remove dust. Avoid liquids or solvents that could damage sensitive components.
-
Verify Voltage Supply: Ensure the board is receiving correct and stable voltage as per specifications to avoid malfunction or permanent damage.
-
Inspect Connectors: Check all pin connectors and edge card terminals for tightness and cleanliness; reseat if necessary to ensure proper contact.
-
Monitor Board Temperature: Ensure the processor board is kept within its rated temperature range. Ensure fans and enclosures provide adequate ventilation.
-
Run Diagnostic Tests: Perform periodic system-level diagnostics to detect and address performance anomalies or early signs of failure.
-
Check Communication Integrity: Ensure consistent data exchange between the board and other system components; investigate any communication faults or irregularities.
-
Protect from Static: Always handle the board using ESD-safe procedures to prevent electrostatic discharge damage.
-
Avoid Overload Conditions: Ensure the processor board is operating within designed load and function parameters.
