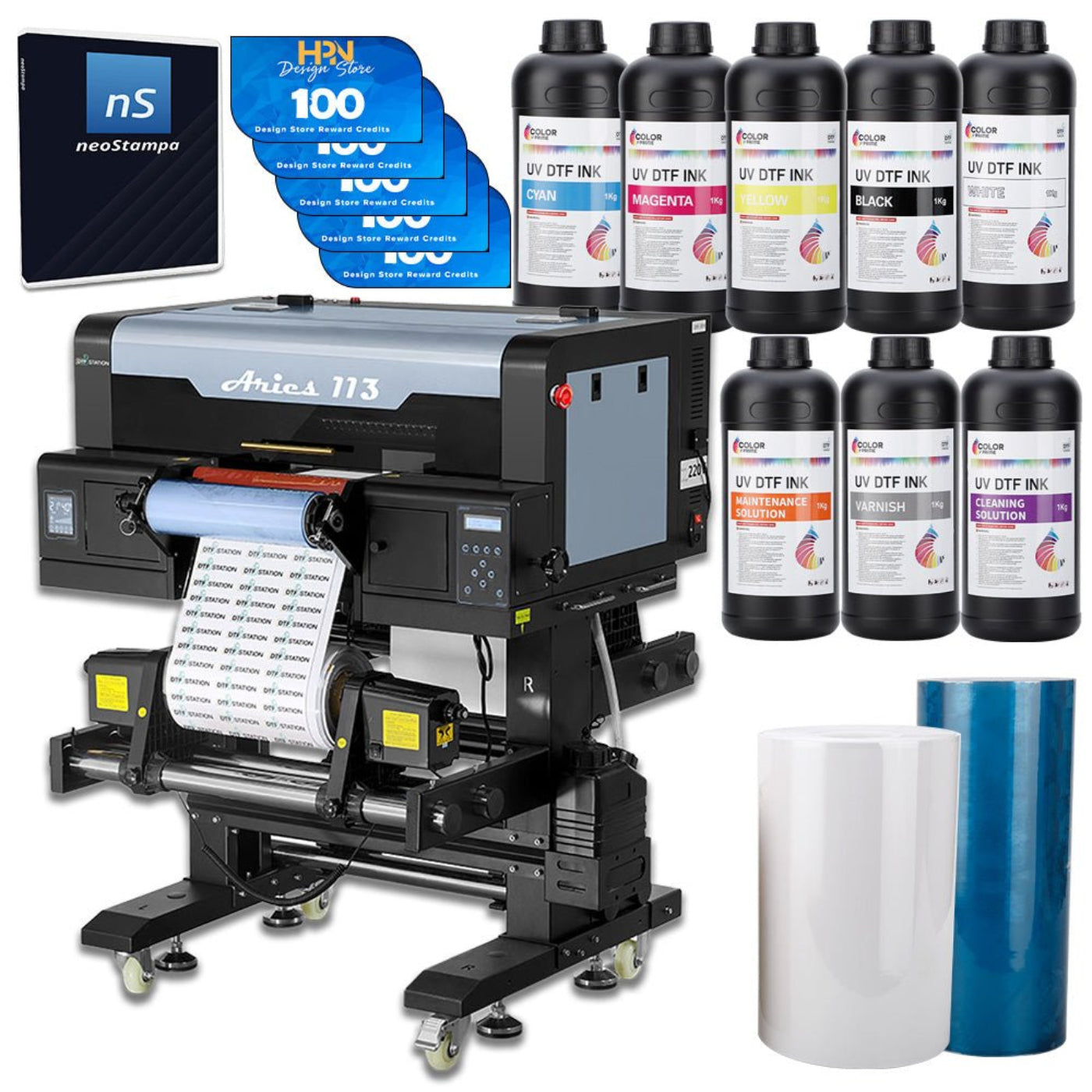

DTF Station Aries 113 UV 12" DTF Printer Bundle - BNDL-DTFS-ARIES-113-SPLY-S

DTF Station Aries 113 UV 12" DTF Printer Bundle - BNDL-DTFS-ARIES-113-SPLY-S

Unleash Revolutionary UV Printing Excellence: The Aries 113 is more than just a UV printer it's an all-in-one solution with a built-in laminator; a game-changer in the realm of direct-to-film printing. This technological marvel redefines the benchmarks for performance and reliability. Set your print job in the morning, and by the evening, your finished film awaits, with minimal need for operator involvement.

Built for UV direct-to-film printing, the DTF Station's Aries 113 UV is equipped with dual XP600 printheads, and guided by cutting-edge Hosonsoft technology. This innovation enables you to transfer top-tier prints even onto irregular, non-flat surfaces without breaking the bank. The self-cleaning system minimizes downtime, while its White Ink Management System and assortment of sensors help ensure you can worry less and print more.

• One Time Driving Distance within 2 hours (of Buena Park, CA, 90621) OR
• One Time Accommodations such as hotel, rental car, flight ticket
• 4~8 Training Hours Onsite
• Lifetime Virtual Training

Features

• Speed:
• 6 pass: 2.5-3.53 m²/hr
• 8 pass: 1.5-2.0 m²/hr
• White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside the printer
• Semi-Auto Laminator Pressure Control: Even pressure for bonding A and B films with a single lever
• Passive Auto-Cleaning: when the printer is left on, it will automatically maintain and clean the printhead every 4 hours
• Active Auto-Cleaning: during set intervals (even during printing), the printer can stop to clean the printhead
• Head Strike Sensor: helps prevent damage to the printhead
• Auto Ink Alert System: informs the user when ink is running low
• Media Take-Up System: Automatically winds all the prints in a roll
• Compact and Cost-Effective Workhorse Printer
• Hands-Free Operation: Set your print job in the morning, and by day's end, your completed film is ready, requiring minimal operator involvement.
• Automated Head Maintenance and Care
• Streamlined and Space-Efficient Design: Compact, all-in-one printer with a built-in laminator effortlessly blends style and functionality, ensuring it harmonizes with any workspace

• Seamless Media Management: Eliminate the hassle of manual laminator pressure adjustments with our automated system
• Accessible Design: intuitive, labeled board design and connections for easy access and repair

Specifications

• Print Head: Dual Epson XP600 (2)
• Software: neoStampa RIP Software
• Max Film Width: 12.60"
• Max Print Width: 11.8"
• Printing Speed:
• 6 pass: 2.5-3.53 m²/hr
• 8 pass: 1.5-2.0 m²/hr
• Daily Output: 500 pcs (4"x4" design size)
• Weight (lb):
• Product: 88.18 lb
• Packaging: 132.27 lb
• Dimensions (WxDxH):
• Product: 31.29" x 12.99" x 17.40"
• Packaging: 33.46" x 19.29" x 25.55"
• Power Requirements: 500W / 110V / 4.54A

What's Included

• Aries 113 UV DTF Printer
• On-Site Training
• Color Prime UV DTF A Film (11.81" x 109yd) (x1)

• Color Prime UV DTF B Film (11.81" x 109yd) (x1)
• Color Prime UV DTF Ink 1kg - CMYKW & Varnish (x1 each)
• Color Prime UV DTF Cleaning Solution 1kg
• Color Prime UV DTF Maintenance Solution 1kg
• 500 Credits to the HPN Design Store
• 1 year Limited Warranty on Non-Consumable Parts + 6 Month Warranty on up to 2 printheads*

  • *Must complete Onsite Training
  • *Use of non-DTF Station ink, film, powder, or other supplies will void warranty coverage. Details depend on training option selected. Terms & Conditions apply. Visit link for full details.
• neoStampa RIP Software
• AC Power Cable
• Ethernet Cable
• USB Flash Drive (Installation & Informational Materials)
• Paper Core (Cylindrical tubes) x 2
• Metal Clips x2
• Plastic Squeegee
• Spare Parts/Consumables
  • Dampers x8
  • Syringes x6
  • Print head cable x2
  • 1 Meter Ink tube x1
  • Ink tube connectors x10
  • Disposable vinyl glove x3
  • Extra Screws of different sizes
  • Ink Tube Splitter x2
• Informational Materials
  • Quick Start Guide
  • Maintenance Chart
  • User Manual
  • Initial Parameter Settings

What Our Experts Think

• Precise 12" printing for small to medium production runs.

• Vibrant, durable colors with UV curing technology.

• Compact, space-saving design ideal for workshops.

• Easy-to-use interface reduces setup and operation time.

• Reliable performance for consistent, high-quality prints.

Q&A

• Q: Can it print on different materials?
  A: Yes, works on fabrics and coated surfaces.

• Q: What is the print speed?
  A: Fast, efficient 12" wide prints per pass.

• Q: Is support included?
  A: Full technical support comes with the bundle.

• Q: What’s included in the bundle?
  A: Printer, UV curing station, consumables, and setup guide.

Maintenance Tips

• Regularly clean print heads to prevent clogs.

• Inspect and replace UV lamps as needed.

• Use manufacturer-recommended inks and substrates.

• Calibrate the system weekly for consistent output.

• Keep the printer in a clean, ventilated workspace.
