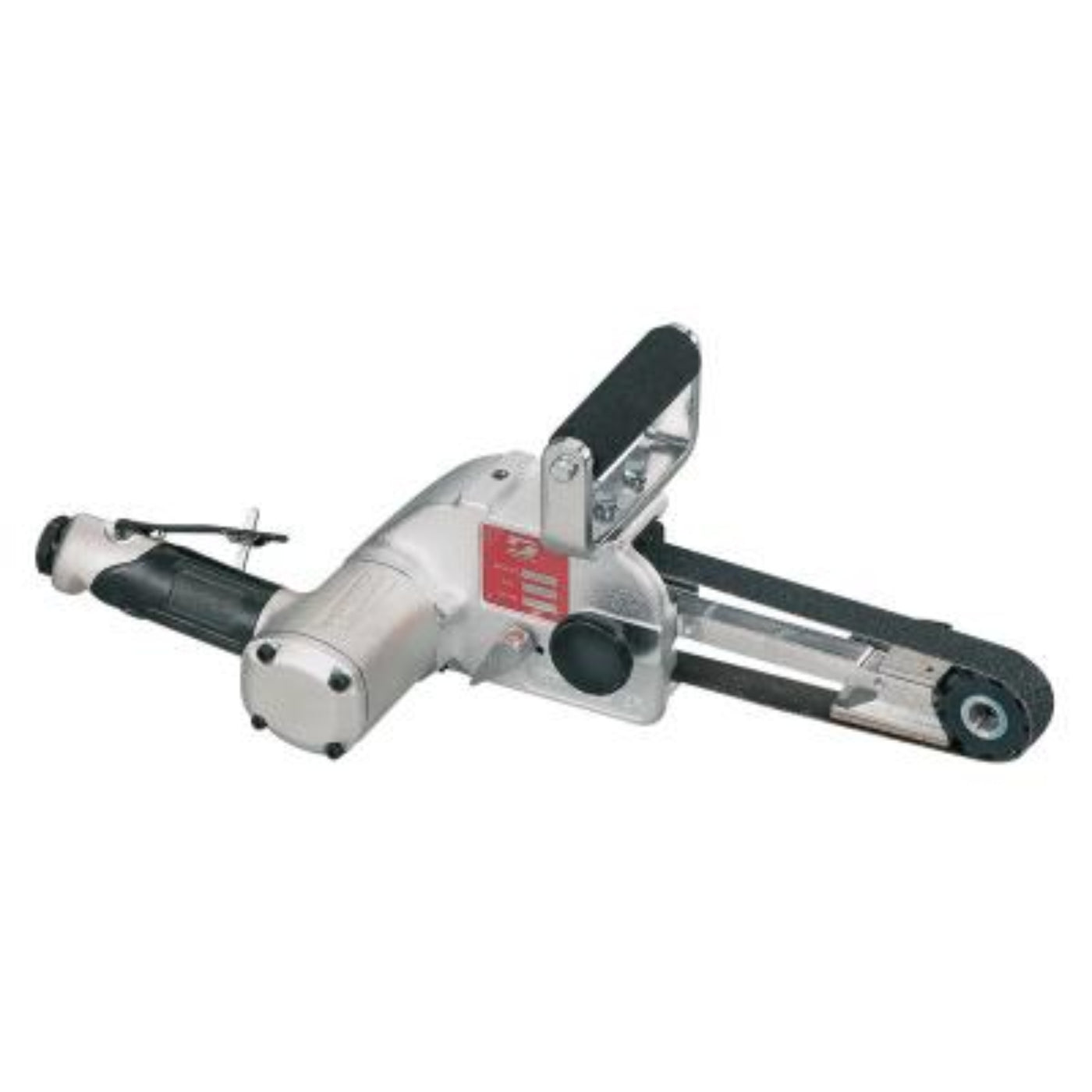

DYNABRADE Dynabelter Abrasive Belt Tool, Heavy-Duty - 11476
- 1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts.
- For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
-
Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
-
Heavy-Duty, 1.2 hp model accepts 1" wide x 30" long abrasive belts.
-
Includes 11681 Contact Arm Assembly, and top control handle.
-
Ideal for use with 3/8" Dynaswivel, and 98265 Coupler/Plug Assembly.
Specifications
| Air Consumption (SCFM) |
58.0 |
| Power (hp) |
1.2 |
| Max. RPM |
13,000 |
| Max. SFPM |
4,250 |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
7.25 |
| Length in. (mm) |
21.0 |
| Weight lb. (kg) |
8.6 |
| Width in. (mm) |
12.5 |
| Pkg. Height in. (mm) |
7.5 |
| Pkg. Length in. (mm) |
18.5 |
| Pkg. Weight lb. (kg) |
10.8 |
| Pkg. Width in. (mm) |
12.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026114760 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
High-Powered Performance
Equipped with a 1.2 hp (895 W) motor, the Dynabelter 11476 delivers up to 13,000 RPM, making it ideal for demanding tasks like weld grinding, blending, and finishing on various materials.
-
Versatile Belt Compatibility
Accepts 1/4" to 1" wide x 30" long abrasive belts, providing flexibility for different applications, including polishing tubing and deburring structural steel.
-
Ergonomic Design
Features a right-angle handle and a safety-lock lever throttle, ensuring comfortable operation and enhanced user control during extended use.
-
Durable Construction
The tool's aluminum housing ensures longevity and resistance to wear, suitable for heavy-duty industrial environments.
-
Front Exhaust System
The front exhaust directs debris away from the operator, maintaining a cleaner work environment and improving visibility.
Q&A
Q: What is the Dynabrade Dynabelter 11476 used for?
A: A heavy-duty pneumatic abrasive belt tool designed for aggressive sanding, grinding, and finishing on tough surfaces.
Q: What belt size does the 11476 support?
A: Compatible with 1" x 30" abrasive belts.
Q: Which industries benefit from this tool?
A: Ideal for metal fabrication, shipbuilding, automotive, and heavy industrial applications.
Q: What are the key features of the Dynabelter 11476?
A: Powerful motor, durable construction, ergonomic design, and quick belt changes for efficient heavy-duty use.
Q: Why choose the Dynabelter 11476?
A: Provides high material removal rates with consistent finishes, boosting productivity in demanding jobs.
Maintenance Tips
-
Inspect abrasive belts regularly; replace worn belts to ensure maximum cutting efficiency.
-
Clean the tool and air inlets after each use to remove dust and debris.
-
Lubricate the air motor and moving parts as recommended by the manufacturer.
-
Use clean, dry compressed air to prevent moisture buildup and clogging.
-
Check belt tension and tracking frequently for smooth operation.
-
Tighten screws and fasteners periodically to maintain tool stability.
-
Avoid overloading to prevent motor strain and overheating.
-
Store in a dry, dust-free environment to extend tool lifespan.
