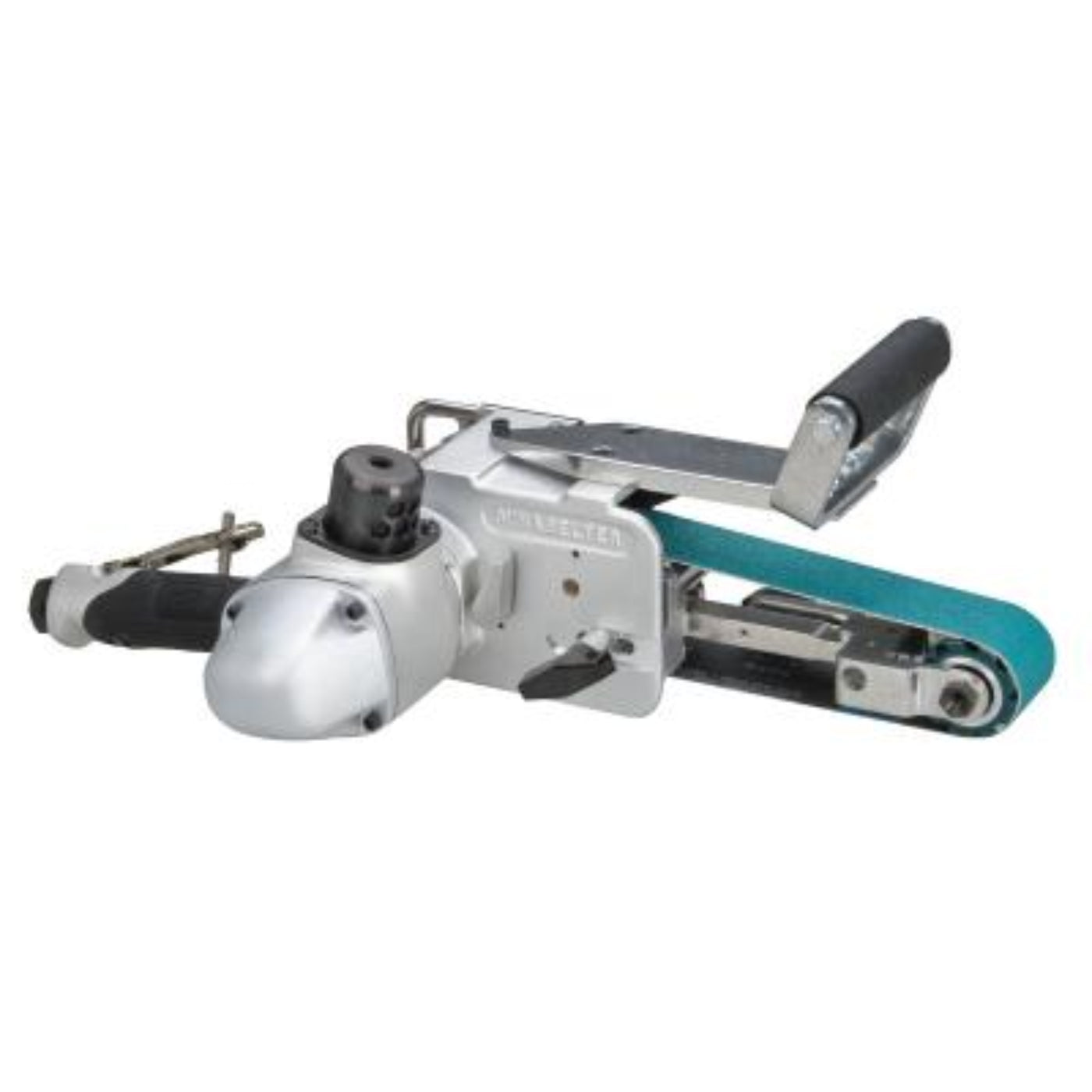

DYNABRADE Dynabelter Abrasive Belt Tool, Extra Heavy-Duty - 11477
-
2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1"-2" W x 30" L (25-51 mm x 762 mm) Belts.
- For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
-
Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
-
Extra Heavy-Duty, 2.0 hp model accepts 2" wide x 30" long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.
-
11871 Contact Arm with 4" dia. contact wheel is available for 2" wide x 60" long belts, providing a 20" workable reach. Optional 11891 Platen is available for 11871 Arm.
-
Ideal for use with 1/2" Dynaswivel, and 98273 Coupler/Plug Assembly.
Specifications
| Air Consumption (SCFM) |
70.0 |
| Power (hp) |
2.0 |
| Max. RPM |
7,200 |
| Max. SFPM |
4,700 |
| Air Inlet Thread |
1/2" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
7.75 |
| Length in. (mm) |
21.5 |
| Weight lb. (kg) |
15.66 |
| Width in. (mm) |
12.5 |
| Pkg. Height in. (mm) |
7.5 |
| Pkg. Length in. (mm) |
18.5 |
| Pkg. Weight lb. (kg) |
17.86 |
| Pkg. Width in. (mm) |
12.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026114777 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
High-Powered Performance: Equipped with a 2.0 hp motor operating at 7,200 RPM, the Dynabelter 11477 delivers robust power for demanding applications.
-
Versatile Abrasive Belt Compatibility: Designed to accommodate 1" to 2" wide x 30" long abrasive belts, providing flexibility for various tasks.
-
Ergonomic Design: Features a vertical configuration with a front exhaust system, enhancing maneuverability and ensuring a cleaner workspace.
-
Durable Construction: Built with a pressure bar and top control handle, ensuring longevity and effective debris management.
-
Professional Endorsement: Widely recognized by professionals for its reliability and performance in demanding environments.
Q&A
Q: What is the Dynabelter 11477 used for?
A: An extra heavy-duty abrasive belt tool designed for tough grinding, finishing, and deburring tasks.
Q: What belt size does it support?
A: Compatible with 1/2" wide abrasive belts.
Q: What are its key features?
A: Robust construction, powerful motor, ergonomic grip, and easy belt changes for demanding applications.
Q: Which industries commonly use the Dynabelter 11477?
A: Ideal for heavy industrial, metal fabrication, maintenance, and manufacturing sectors.
Q: Why choose the Dynabelter 11477?
A: Provides superior durability and performance for the most challenging abrasive tasks.
Maintenance Tips
-
Clean the tool thoroughly after each use to remove dust and debris.
-
Regularly inspect abrasive belts and replace when worn or damaged.
-
Lubricate moving parts according to manufacturer’s instructions.
-
Use clean, dry, and properly regulated air supply.
-
Store in a dry, cool environment to prevent corrosion and extend tool life.
