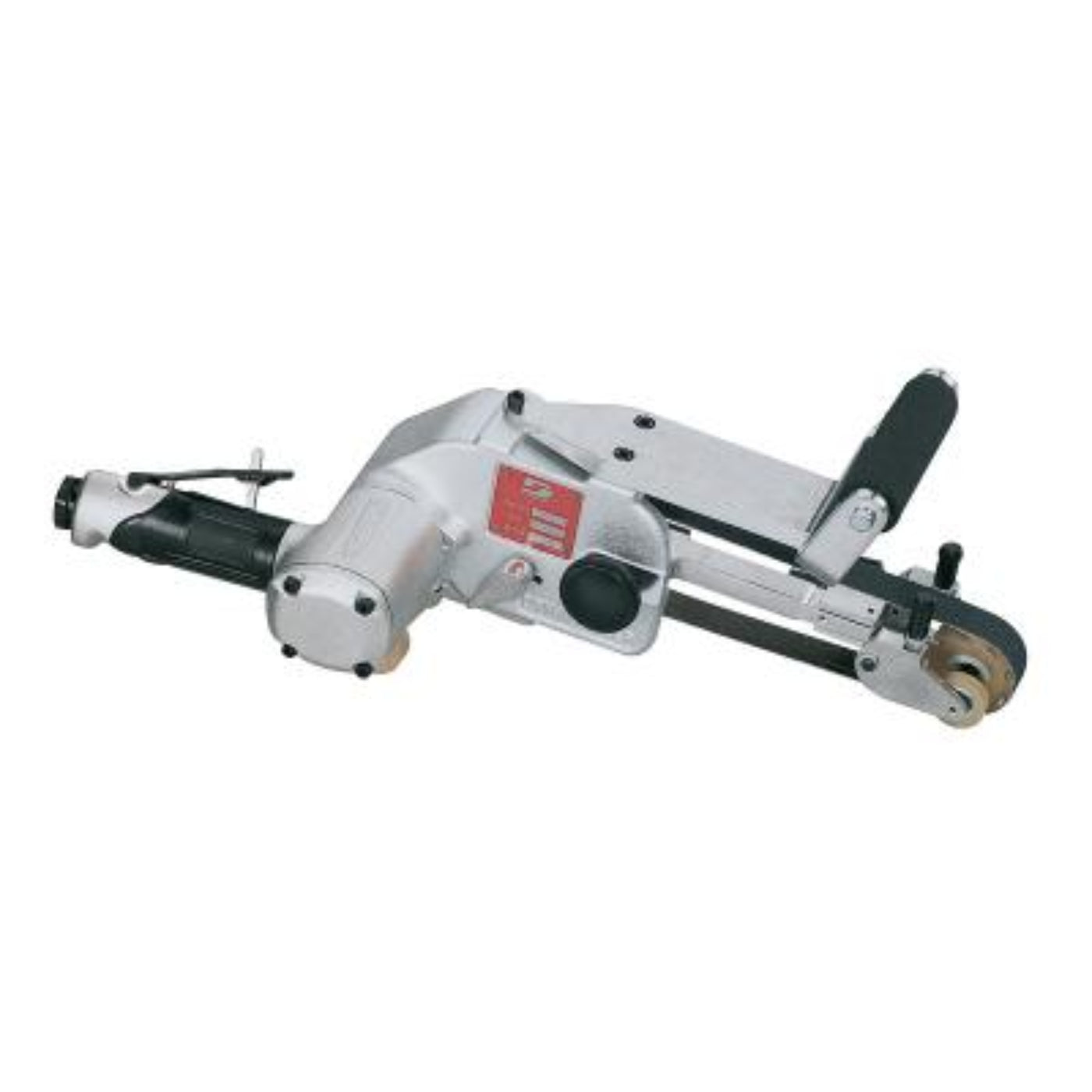

DYNABRADE Dynabelter Accu-Grinder Abrasive Belt Tool, Heavy-Duty - 11486
-
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1" W x 30" L (25 mm x 762 mm) Belts.
- Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow 'in-line' scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!
-
Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
-
Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2" diameter x 1" wide.
-
Work on Longitudinal Welds; I.D; 12" diameter pipe or larger.; O.D; 8" diameter pipe or larger
Specifications
| Air Consumption (SCFM) |
58.0 |
| Power (hp) |
1.2 |
| Max. RPM |
13,000 |
| Max. SFPM |
4,220 |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
7.0 |
| Length in. (mm) |
22.0 |
| Weight lb. (kg) |
10.14 |
| Width in. (mm) |
12.5 |
| Pkg. Height in. (mm) |
7.5 |
| Pkg. Length in. (mm) |
18.5 |
| Pkg. Weight lb. (kg) |
12.13 |
| Pkg. Width in. (mm) |
12.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026114869 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
High-Powered Performance
Equipped with a 1.2 hp motor, the Dynabelter 11486 delivers up to 13,000 RPM, making it ideal for demanding tasks like weld grinding, blending, and finishing on various materials.
-
Versatile Belt Compatibility
Accepts 1" wide x 30" long abrasive belts, providing flexibility for different applications, including polishing tubing and deburring structural steel.
-
Ergonomic Design
Features a right-angle handle and a safety-lock lever throttle, ensuring comfortable operation and enhanced user control during extended use.
-
Durable Construction
The tool's aluminum housing ensures longevity and resistance to wear, suitable for heavy-duty industrial environments.
-
Front Exhaust System
The front exhaust directs debris away from the operator, maintaining a cleaner work environment and improving visibility.
Q&A
Q: What is the Dynabrade Dynabelter Accu-Grinder 11486 used for?
A: A heavy-duty pneumatic abrasive belt tool designed for precise grinding, sanding, and finishing on tough materials.
Q: What belt size does the 11486 support?
A: Compatible with 1" x 30" abrasive belts.
Q: Which industries benefit most from this tool?
A: Ideal for metal fabrication, shipbuilding, automotive, and heavy industrial applications requiring accuracy.
Q: What are the key features of the Dynabelter Accu-Grinder 11486?
A: Powerful motor, ergonomic design, precise belt tracking, and quick belt changes for efficient and accurate heavy-duty grinding.
Q: Why choose the Dynabelter Accu-Grinder 11486?
A: Delivers high material removal with precision, improving productivity and finish quality on demanding jobs.
Maintenance Tips
-
Regularly inspect abrasive belts; replace worn belts to maintain grinding efficiency.
-
Clean the tool and air inlets after each use to prevent dust buildup.
-
Lubricate moving parts and air motor per manufacturer recommendations.
-
Use clean, dry compressed air to avoid moisture and clogging.
-
Check belt tension and tracking frequently for smooth operation.
-
Tighten screws and fasteners regularly to maintain tool stability.
-
Avoid overloading to prevent motor strain and overheating.
-
Store the tool in a dry, dust-free environment to prolong lifespan.
