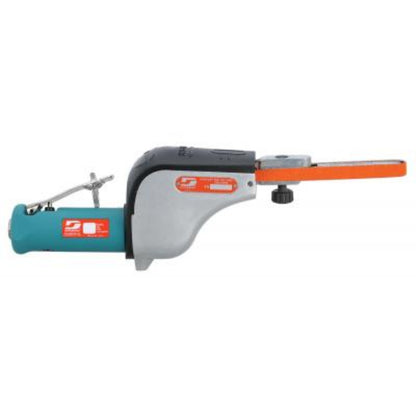

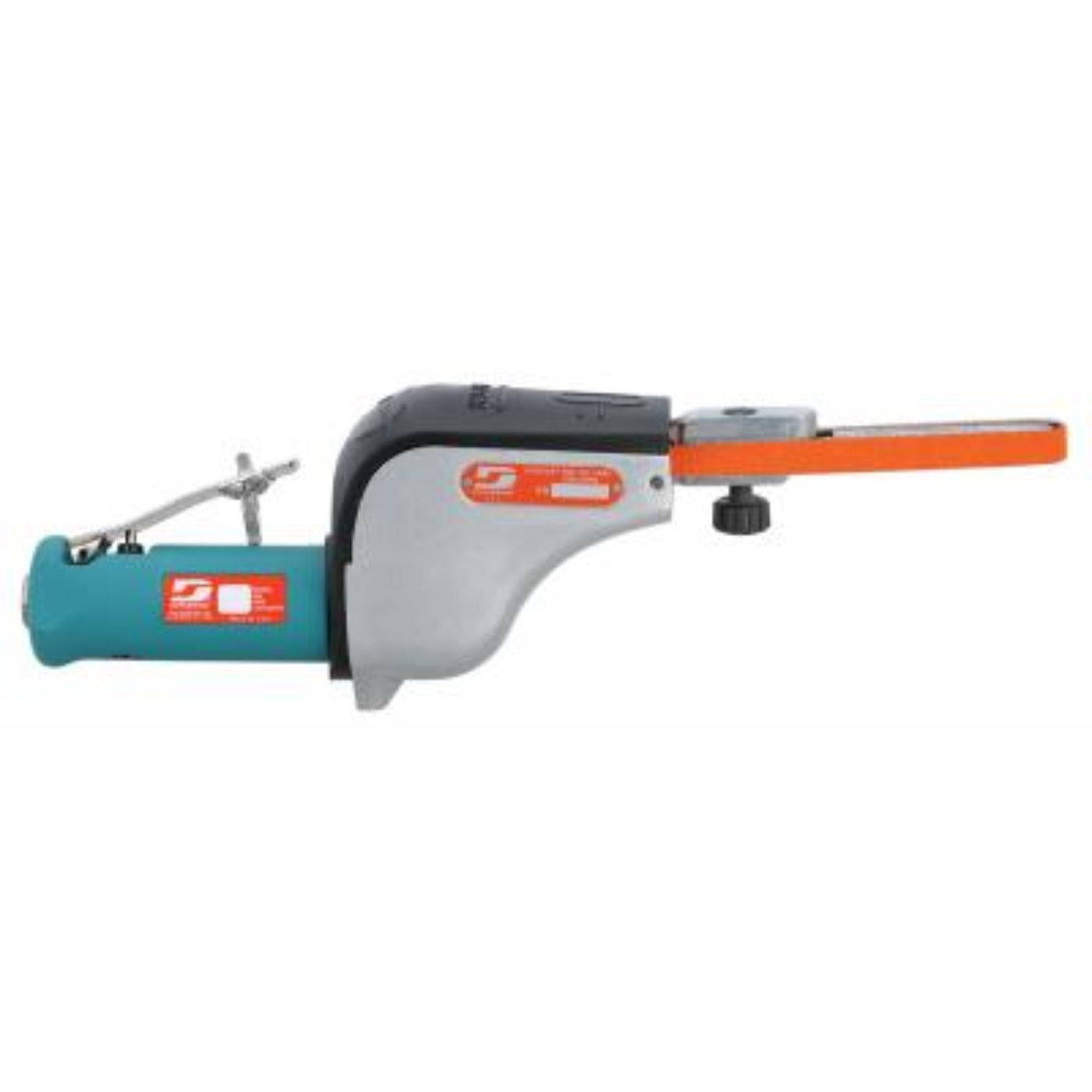

DYNABRADE Dynafile Abrasive Belt Tool - 14000
-
.5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts.
- World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more!
-
Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.
-
Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long. Work in areas as small as 3/8" diameter.
-
Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change!
-
Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.
Specifications
| Air Consumption (LPM) |
736 |
| Air Consumption (SCFM) |
26.0 |
| Power (hp) |
0.5 |
| Max. RPM |
20,000 |
| Max. SFPM |
5,800 |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Sound Power dB[A] |
88 |
| Sound Level dB[A] |
77 |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
4.6 |
| Length in. (mm) |
14.6 |
| Weight lb. (kg) |
3.32 |
| Width in. (mm) |
5.75 |
| Pkg. Height in. (mm) |
3.25 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
4.1 |
| Pkg. Width in. (mm) |
5.75 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026140004 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
| Vibration Test Method |
ISO 20643 |
| Power (W) |
373 |
| Vibration (m/sec�) |
<2.5 |
What our Experts Think
-
High-Speed Performance
Equipped with a 0.5 hp motor, the Dynafile 14000 delivers up to 20,000 RPM, making it ideal for tasks like weld grinding, blending, and deburring.
-
Versatile Belt Compatibility
Supports 1/8" to 1/2" wide x 24" long abrasive belts, offering flexibility for various applications.
-
Ergonomic Design
Features a straight-line configuration and a lightweight composite belt guard, ensuring comfortable operation and easy belt changes.
-
Enhanced Control
The front exhaust system directs debris away from the operator, maintaining a cleaner work environment.
-
Durable Construction
Designed for longevity, the tool's robust build ensures reliable performance in demanding environments.
Q&A
Q: What is the Dynabrade Dynafile 14000 used for?
A: A pneumatic abrasive belt tool designed for sanding, finishing, blending, and deburring on metal, wood, and composites.
Q: What belt size does the 14000 support?
A: Compatible with 1/2" x 18" abrasive belts.
Q: Which industries benefit from this tool?
A: Ideal for metal fabrication, automotive, aerospace, and woodworking professionals.
Q: What are the key features of the Dynafile 14000?
A: Compact design, ergonomic grip, variable speed control, low vibration, and quick belt changes for efficient operation.
Q: Why choose the Dynafile 14000?
A: Offers precise control and consistent finishes in tight spaces, enhancing productivity and reducing operator fatigue.
Maintenance Tips
-
Inspect abrasive belts regularly; replace worn belts to maintain performance.
-
Clean the tool and air inlets after each use to remove dust and debris.
-
Lubricate the air motor and moving parts as per manufacturer guidelines.
-
Use clean, dry compressed air to prevent moisture damage and clogging.
-
Check belt tension and tracking frequently for smooth operation.
-
Tighten screws and fasteners periodically to ensure tool stability.
-
Avoid overloading to prevent motor strain and overheating.
-
Store in a dry, dust-free environment to extend tool life.
