DYNABRADE Dynafile Abrasive Belt Tool Versatility Kit - 14010
- .5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts.
- World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more! Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.
-
Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Work in areas as small as 3/8" diameter. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long.
-
Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change! Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.
-

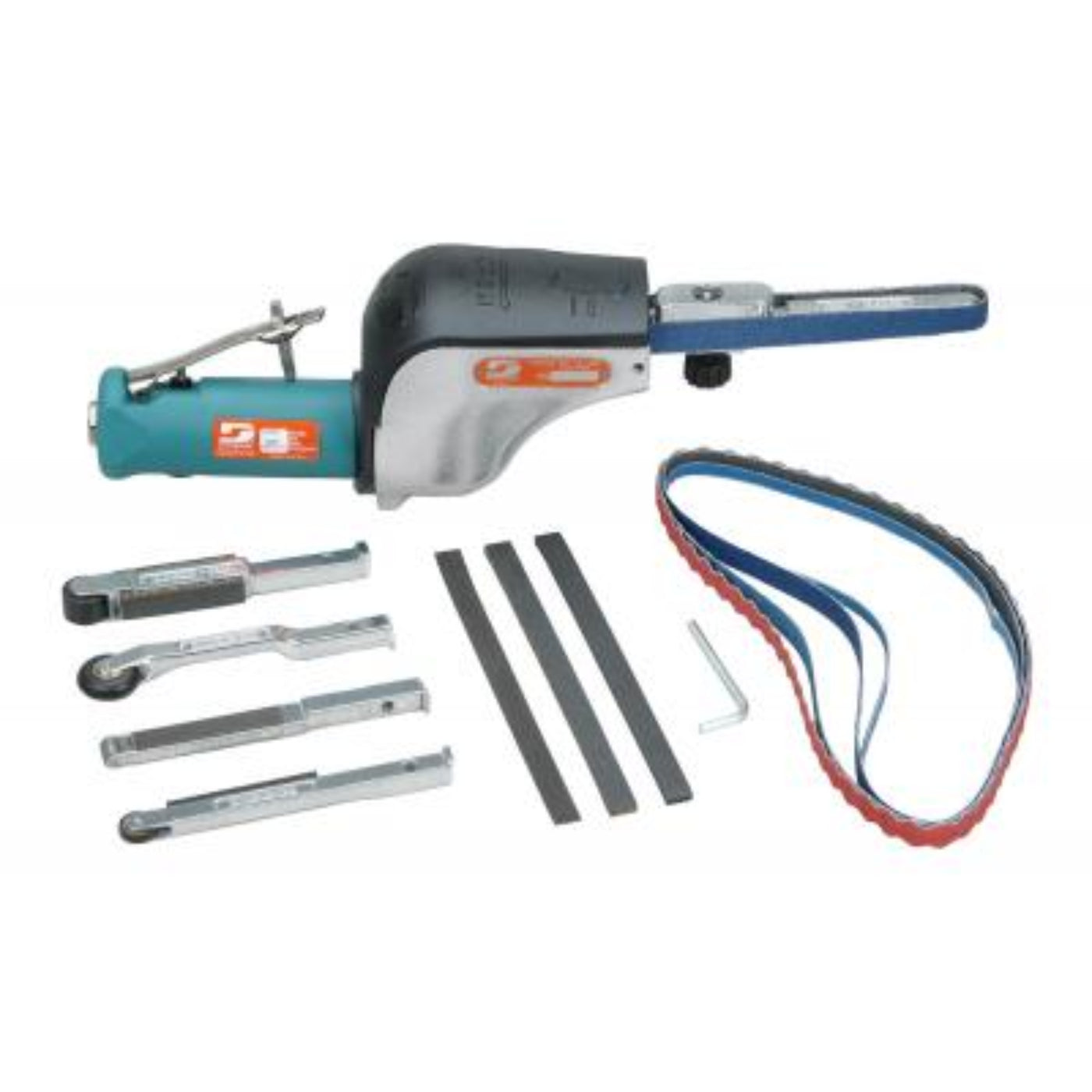

Includes 14000 Dynafile with five popular Contact Arms, plus an assortment of abrasive belts, in durable case. Includes Contact Arms 11213, 11216, 11218, 11219 and 11231.
-
This kit is USA Government National Stock Number 5130011263260.
SPECIFICATIONS
| Air Consumption (SCFM) |
31.0 |
| Power (hp) |
0.5 |
| Max. RPM |
20,000 |
| Max. SFPM |
5,800 |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
4.6 |
| Length in. (mm) |
14.6 |
| Weight lb. (kg) |
3.75 |
| Width in. (mm) |
11.5 |
| Pkg. Height in. (mm) |
4 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
6.62 |
| Pkg. Width in. (mm) |
11.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026140103 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Comprehensive Kit: Includes the Dynafile tool plus five versatile contact arms for a variety of applications.
-
Precision Work: Capable of working on diameters as small as 3/8", ideal for tight spaces and detailed jobs.
-
Flexible Abrasive Belts: Supports 1/8", 1/4", and 1/2" wide belts, all 24" long, with excellent tracking.
-
High Performance: Powerful 0.5 hp motor runs at 20,000 RPM with 31 SCFM air consumption for efficient material removal.
-
Ergonomic Design: Lightweight with front exhaust and adjustable throttle for user comfort and control.
-
Multi-Material Use: Effective on metal, plastic, fiberglass, composites, rubber, glass, and stone.
-
Durable & Ready: Comes in a sturdy case with spare belts and accessories for long-lasting use.
Q&A
Q: What is included in the Dynabrade 14010 Dynafile Versatility Kit?
A: The kit includes the Dynafile abrasive belt tool, multiple contact arms, assorted abrasive belts, and a durable storage case.
Q: What materials can the Dynafile 14010 be used on?
A: Ideal for grinding, deburring, blending, and finishing on metal, plastic, wood, and composites.
Q: What size belts does the Dynafile use?
A: It uses 1/2" to 1" wide belts, up to 24" long.
Q: Can the contact arms be changed?
A: Yes, it features interchangeable contact arms for versatile applications and tight areas.
Q: Is the tool powered by air or electricity?
A: The Dynafile 14010 is air-powered (pneumatic) and requires an air compressor.
Maintenance Tips
-
Clean After Use: Blow out dust and debris with compressed air to prevent buildup in moving parts.
-
Inspect Belts & Arms: Check abrasive belts for wear and tracking; inspect contact arms for alignment and damage.
-
Lubricate as Needed: Apply a few drops of pneumatic tool oil daily to the air motor for smooth operation.
-
Check Air Supply: Use clean, dry, regulated air (90 PSI max) to prevent moisture or debris damage.
-
Tighten Fasteners: Periodically inspect and tighten screws, guards, and accessories.
