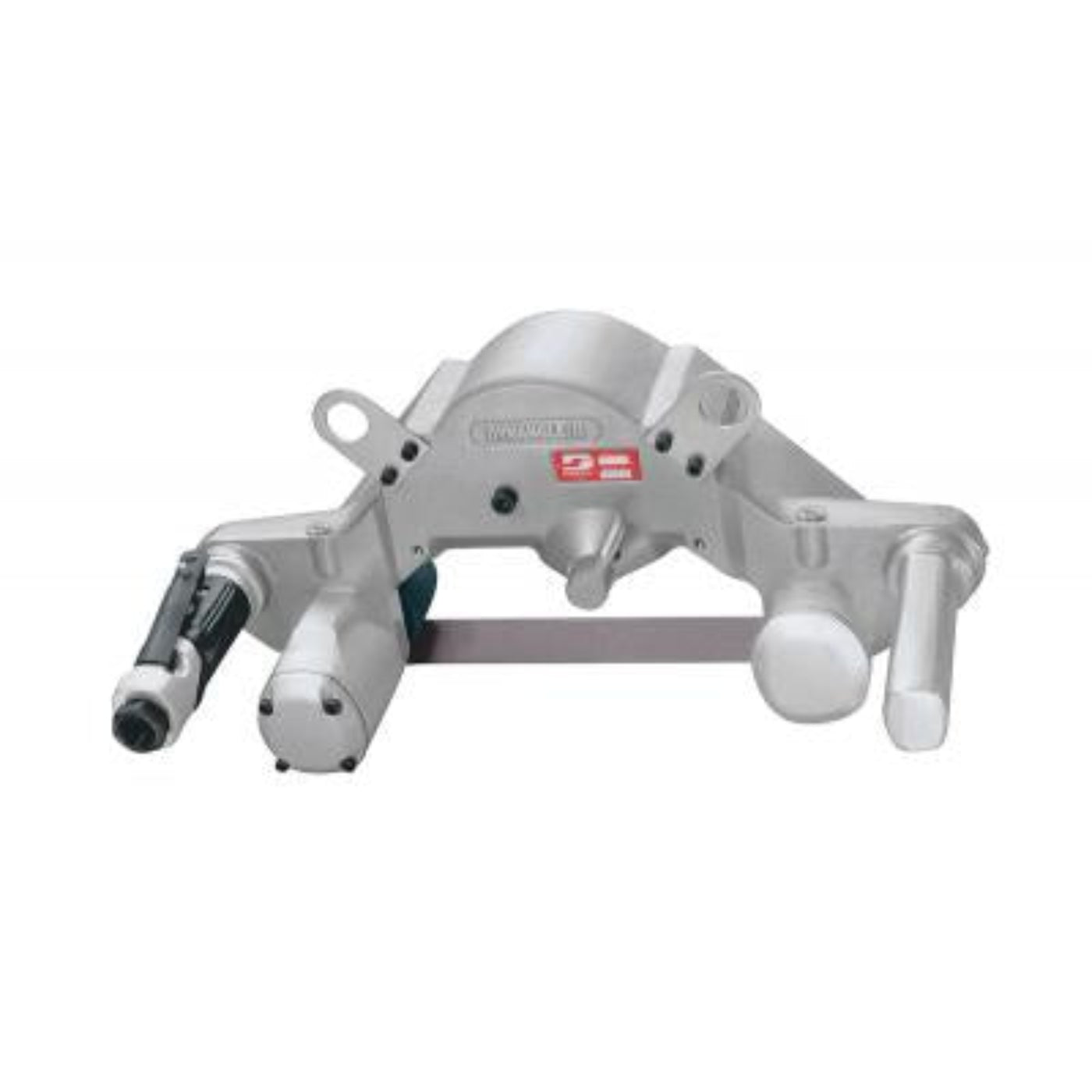

DYNABRADE Dynangle II Abrasive Belt Tool, Single Motor - 14300
-
1.2 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts.
- Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
-
Single Motor model uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
-
14350 Conversion Kit available to upgrade single motor model to a dual motor model at a later date, if desired.
-
Safety-lock lever-throttle; hanger brackets included for optional overhead suspension.
-
For grinding with a platen pad, dual motor models are recommended.
Specifications
| Air Consumption (SCFM) |
53.0 |
| Power (hp) |
1.2 |
| Max. RPM |
13,000 |
| Max. SFPM |
8,500 |
| Air Inlet Thread |
1/2" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
8.5 |
| Length in. (mm) |
18.875 |
| Weight lb. (kg) |
15.66 |
| Width in. (mm) |
12.5 |
| Pkg. Height in. (mm) |
13.75 |
| Pkg. Length in. (mm) |
20.25 |
| Pkg. Weight lb. (kg) |
18.96 |
| Pkg. Width in. (mm) |
12.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026143005 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Powerful Performance: Equipped with a 1.2 hp motor delivering 13,000 RPM, the Dynangle II 14300 excels in polishing, grinding contours, and surface conditioning of stainless steel and other metals.
-
Versatile Applications: Suitable for use on wood, plastic, fiberglass, and composites, making it a versatile tool for various materials.
-
Efficient Design: The tool utilizes 2" x 34" abrasive belts, with a belt span of 11-1/2", allowing for "strap polishing" on pipes up to 36" in diameter.
-
Upgrade Flexibility: A conversion kit (Ref. 14350) is available to upgrade the single motor model to a dual motor model at a later date, if desired.
-
Safety Features: Includes a safety-lock lever-throttle and hanger brackets for optional overhead suspension, enhancing user safety and convenience.
Q&A
Q: What is the Dynabrade Dynangle II 14300 used for?
A: It’s a pneumatic abrasive belt tool designed for sanding, finishing, and blending on flat and contoured surfaces.
Q: What belt size does the 14300 model support?
A: Compatible with 1/2" x 18" abrasive belts.
Q: What industries is the Dynangle II suited for?
A: Ideal for metal fabrication, automotive, aerospace, and industrial finishing applications.
Q: What are the key features of the Dynangle II 14300?
A: Features a powerful single motor, ergonomic design, low vibration, and quick belt changes for efficient use.
Q: Why choose the Dynangle II 14300?
A: Provides precise control and consistent finishes in tight spaces, enhancing productivity and reducing operator fatigue.
Maintenance Tips
-
Regularly inspect abrasive belts; replace worn belts promptly to ensure optimal performance.
-
Clean the tool and air inlet after each use to prevent dust and debris buildup.
-
Lubricate the air motor and moving parts following manufacturer guidelines.
-
Use clean, dry compressed air to avoid moisture and clogging issues.
-
Check belt tension and tracking frequently for smooth operation.
-
Tighten all screws and fasteners regularly to maintain tool stability.
-
Avoid overloading to prevent motor overheating and extend tool life.
-
Store in a dry, dust-free area to protect against corrosion and damage.
